RWZ-A6AGSM850 and PCS1900 (Mobile Phone)

- 1 - Thank you very much for choosing Amoi A6a, the fashionable and elegant blue screen mobile phone. A6a is a perfect integration of unparalleled contemporary design and consummate craftsmanship, bringing you easy communication and entertainment, as well as highlighting your tastes. Key Features: GSM World Tri-band Unlocked Compatible with Most Standard GSM Networks Metal Silver Keys with Sapphire Blue Backlight SMS (Short Messaging Service) Phonebook Memory: 150 V-card Entries AMOI Smart Dial 16-Polyphonic Ring Tones Interesting Standby Animations & Images Multi Call Functions (Call Divert, Call Wait/ Hold, Auto-Redial/ Answer, Incoming Call Filter) Built-in Amusing Games Tool Kit (Alarm Clock, Calculator, World Time, Voice Memo) - 2 - Specifications: GSM/ GPRS: 850/ 1800/ 1900MHz Voice Encoding: FR/ EFR/ HR Screen: 1.8" FSTN Main Screen (128 x 128 Pixels) Dimension: 86.5 x 44 x 17.9 mm; 3.41" x 1.73" x 0.70" Weight: 78 g; 2.75 oz Battery Capacity: 650 mAh Standby Time: 80~120 hrs Talk Time: 2~3 hrs The manufacturer may, at any time and without notice, make changes or improvements to the products offered, but provide necessary corrigendum with this manual or release new version of this manual for the following lot. The Amoi logo and trademark are the property of the manufacturer. Nov. 2004 - 3 - INTELLECTUAL PROPERTY All Intellectual Property, as defined below, owned by or which is otherwise the property of AMOI or its respective suppliers relating to the AMOI mobile phones, including but not limited to, accessories, parts, or software relating thereto (the “Phone System”), is proprietary to AMOI and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You could not infringe on it, otherwise you may violate the rights secured by the Intellectual Property. Moreover, you must agree that you will not (and will not attempt to) modify, prepare derivative works, recompile, disassemble, or attempt to create source code from the software. No title or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with AMOI and its suppliers. - 4 - TABLE OF CONTENTS Safety Precautions ................................................................. 7 Unpacking ..............................................................................9 Your Phone .................................................................... 11 Phone’s Layout ................................................................ 11 Keys Description ....................................................13 Display ............................................................................ 14 Backlight .......................................................................... 15 7 Color LED......................................................15 Getting Started .............................................................. 16 Installing a SIM Card ....................................................... 16 Charging a Battery .......................................................... 18 Switching the Phone On/Off ........................................... 22 Your Phone’s Mode...................................................... 23 Call Functions ............................................................. 24 Making Calls .................................................................... 24 Receiving Calls ................................................................ 25 Rejecting a Call...................................................26 Missed Calls ................................................................... 26 Adjusting the Volume....................................................... 27 Quick-switch to Mute Mode............................................ 27 Call Menu..................................................................... 27 Making a Conference Call.......................................29 Entering Text ................................................................. 30 Changing Text Input Mode ............................................ 30 - 5 - Insert Symbol .................................................................. 31 English Mode ............................................................... 31 Spanish Mode.......................................................31 ABC Mode ................................................................... 32 123(Numeric) Mode ........................................................ 33 Insert Template......................................................33 Insert Phone Number...............................................34 Using User’s Dictionary ................................................. 34 Phonebook ........................................................................... 36 Storing a Phone Number in PB..................................... 36 Phonebook Menu............................................................ 36 Using Menus ............................................................... 43 Accessing a Menu Function........................................43 List of Menu Functions .................................................. 44 Messages ......................................................................... 48 Voice Mail ........................................................ 48 SMS...................................................................49 Broadcast ......................................................................... 51 Settings ............................................................................ 52 Display .................................................................. 53 Power On/ Off Display............................................... 53 Standby Display ......................................…

Text truncated - open the document above for the full version.

- 1 - Thank you very much for choosing Amoi A6a, the fashionable and elegant blue screen mobile phone. A6a is a perfect integration of unparalleled contemporary design and consummate craftsmanship, bringing you easy communication and entertainment, as well as highlighting your tastes. Key Features: GSM World Tri-band Unlocked Compatible with Most Standard GSM Networks Metal Silver Keys with Sapphire Blue Backlight SMS (Short Messaging Service) Phonebook Memory: 150 V-card Entries AMOI Smart Dial 16-Polyphonic Ring Tones Interesting Standby Animations & Images Multi Call Functions (Call Divert, Call Wait/ Hold, Auto-Redial/ Answer, Incoming Call Filter) Built-in Amusing Games Tool Kit (Alarm Clock, Calculator, World Time, Voice Memo) - 2 - Specifications: GSM: 850/ 1800/ 1900MHz Voice Encoding: FR/ EFR/ HR Screen: 1.8" FSTN Main Screen (128 x 128 Pixels) Dimension: 86.5 x 44 x 17.9 mm; 3.41" x 1.73" x 0.70" Weight: 78 g; 2.75 oz Battery Capacity: 650 mAh Standby Time: 80~120 hrs Talk Time: 2~3 hrs The manufacturer may, at any time and without notice, make changes or improvements to the products offered, but provide necessary corrigendum with this manual or release new version of this manual for the following lot. The Amoi logo and trademark are the property of the manufacturer. Nov. 2004 - 3 - INTELLECTUAL PROPERTY All Intellectual Property, as defined below, owned by or which is otherwise the property of AMOI or its respective suppliers relating to the AMOI mobile phones, including but not limited to, accessories, parts, or software relating thereto (the “Phone System”), is proprietary to AMOI and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You could not infringe on it, otherwise you may violate the rights secured by the Intellectual Property. Moreover, you must agree that you will not (and will not attempt to) modify, prepare derivative works, recompile, disassemble, or attempt to create source code from the software. No title or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with AMOI and its suppliers. - 4 - TABLE OF CONTENTS Safety Precautions ................................................................. 7 Unpacking ..............................................................................9 Your Phone .................................................................... 11 Phone’s Layout ................................................................ 11 Keys Description ....................................................13 Display ............................................................................ 14 Backlight .......................................................................... 15 7 Color LED......................................................15 Getting Started .............................................................. 16 Installing a SIM Card ....................................................... 16 Charging a Battery .......................................................... 18 Switching the Phone On/Off ........................................... 22 Your Phone’s Mode...................................................... 23 Call Functions ............................................................. 24 Making Calls .................................................................... 24 Receiving Calls ................................................................ 25 Rejecting a Call...................................................26 Missed Calls ................................................................... 26 Adjusting the Volume....................................................... 27 Quick-switch to Mute Mode............................................ 27 Call Menu..................................................................... 27 Making a Conference Call.......................................29 Entering Text ................................................................. 30 Changing Text Input Mode ............................................ 30 - 5 - Insert Symbol .................................................................. 31 English Mode ............................................................... 31 Spanish Mode.......................................................31 ABC Mode ................................................................... 32 123(Numeric) Mode ........................................................ 33 Insert Template......................................................33 Insert Phone Number...............................................34 Using User’s Dictionary ................................................. 34 Phonebook ........................................................................... 36 Storing a Phone Number in PB..................................... 36 Phonebook Menu............................................................ 36 Using Menus ............................................................... 43 Accessing a Menu Function........................................43 List of Menu Functions .................................................. 44 Messages ......................................................................... 48 Voice Mail ........................................................ 48 SMS...................................................................49 Broadcast ......................................................................... 51 Settings ............................................................................ 52 Display .................................................................. 53 Power On/ Off Display............................................... 53 Standby Display ............................................…

Text truncated - open the document above for the full version.

A m £ i Elect ro n ic s c £ .LT D Feder al Comm un icati on Com mi ssion Equipment A uthor izat ion D iv i si on, A ppl i cati on Processing Br anch 74 35 Oak l and M i l l s Road Col umb i a, M D 2 104 8 M ay l 0, 2004 TO W HO M IT M AY CON CERN Pur suant to Paragraphs ì 0.4 57and 0.459 552 (b) (4)of t he Fr eedom of I nf or ma t i on Ac t , conf i den t i a l i t y f or t he f o l l owi n g pr oduc t s : FCCI DNumberPr oduc tTi t l e/ Mode l RWZFA6A Tr i - Band/A6a For t he pr oduc t s t a t ed abov e, c onf i den t i a l : l )El ec t r i c a l Schema t i c s of t he Ci r cu i t r y 2)Bl oc k Di agr am 3)Par t s L i s t 4)Tec hn i c a l -Oper at i ona l No ot her i t ems submi t t ed as par t of t he equ i pment au t hor i zat i on f i l i ng pr oc ess ar e deemed conf i dent i a l .The above exh i b i t s c ont a i n A moi El ect roni cs Co . L t d t r ade secr et s and pr opr i et ar y i nf or mat i on t hat cou l d be of benef i t t o our compet i t or s r egar d i ng t he des i gn of our IIlob i l e hands et . Th i s ma t er i a l i s not cust omar i l y ava i l ab l e t o gener a l pub l i c and we r eques t t hat i t b e wi t hhel d f r om pub l i c i nspec t i on. I f you hav e any ques t i ons,p l ease f ee l f r ee t o cont ac t me at t he addr ess shown be l ow. s- ly, » Í Û Cu i J i Bi n l vl a aØ Manager l yv- I Pr oj ec t managemen t depar t ment } A rnoi Electroni cs Co. L td. A rnoi Tow n, X inYang, Telephone N umber : E-mai l A ddr ess: Descr i pt i on Requi r ed f or sect i on 2. 1003 (c) H aicang Induk i al Z on e, X i am en , China + 8 6 2 1 5l 3 l 4886 cutj ibi n@Ámoi .com.cn of the Commission 's Rules (47 C.F-R.) and Sectionì AmdElect r£ n ics C0 .LT D r equest s we r equest t hat t he f ol l owi ng i nf or mat i on be hel d Descr i pt i on ~p Postal code: 361102 , Fax Number: +86 2l 5l 3l 4795

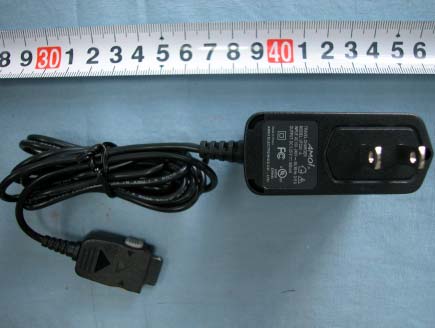

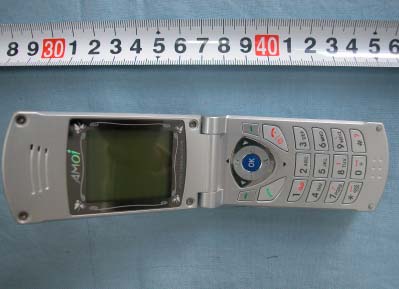

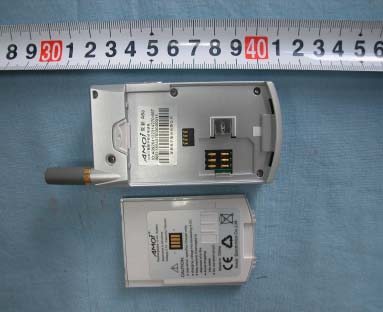

Telecommunication Metrology Center of Ministry of Information Industry No. FCC-PART-24-2005004 Page 48of 54 ANNEX B PHOTOGRAPH OF EUT External Photo Mobile Phone Mobile Phone Telecommunication Metrology Center of Ministry of Information Industry No. FCC-PART-24-2005004 Page 49of 54 Mobile Phone Mobile Phone Telecommunication Metrology Center of Ministry of Information Industry No. FCC-PART-24-2005004 Page 50of 54 Mobile phone Charger (AC/DC Adapter) Telecommunication Metrology Center of Ministry of Information Industry No. FCC-PART-24-2005004 Page 51of 54 Charger (AC/DC Adapter)

Telecommunication Metrology Center of Ministry of Information Industry No. FCC-PART-24-2005004 Page 53of 54 mobile phone PCB front view Telecommunication Metrology Center of Ministry of Information Industry No. FCC-PART-24-2005004 Page 52of 54 Internal Photo Mobile phone Disassembly

No. L04d TEST REPORT Tes t na m e Pro d u c t M o d e l c l ie nt Ty pe o f tes t ~Me. DAT-P-114mt -TO No. SAR2005003 Eled rÁ nag neUc Field (¿ed ÒCA bso muon Rate) GSM Triple Freq ue ncy Mobile Stat io n A6 a A nmi Elect ro nics C0 ., Ltd . Entrusted Te lec o m m un ic at io of Min is t ry of ̄ .Ä÷ Telecommunication Metrology Center of Ministry of Information Industry No. SAR2005003 Page 2 of 86 GENERAL TERMS 1. The test report is invalid if not marked with “exclusive stamp for the test report” or the stamp of the test center. 2. Any copy of the test report is invalid if not re-marked with the “exclusive stamp for the test report” or the stamp of the test center. 3. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 4. The test report is invalid if there is any evidence of erasure and/or falsification. 5. If there is any dissidence for the test report, please file objection to the test center within 15 days from the date of receiving the test report. 6. Normally, entrust test is only responsible for the samples that have undergone the test. 7. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permissions of the test center. Address: No. 52, Huayuanbei Road, Beijing, P. R. China Post code: 100083 Cable:04282 Telephone: +86 10 62302041 Fax: +86 10 62304793 N£. SAR2005003Page 3 of 86 Te lec o m m u n ic at io n Met ro lo g y Ce nt e r of M in ist ry of Inf o rm at io n Ind us t ry GENERAL SUMMARY Telecommunication Metrology Center of Ministry of Information Industry No. SAR2005003 Page 4 of 86 TABLE OF CONTENT 1 COMPETENCE AND WARRANTIES ...................................................................... 5 2 GENERAL CONDITIONS ........................................................................................ 5 3 DESCRIPTION OF EUT .......................................................................................... 5 3.1 ADDRESSING INFORMATION RELATED TO EUT ....................................................................... 5 3.2 CONSTITUENTS OF EUT......................................................................................................... 6 3.3 GENERAL DESCRIPTION.......................................................................................................... 7 4 OPERATIONAL CONDITIONS DURING TEST....................................................... 7 4.1 SCHEMATIC TEST CONFIGURATION......................................................................................... 7 4.2 SAR MEASUREMENT SET-UP................................................................................................. 8 4.3 DASY4 E-FIELD PROBE SYSTEM............................................................................................ 8 4.4 E-FIELD PROBE CALIBRATION................................................................................................. 9 4.5 OTHER TEST EQUIPMENT..................................................................................................... 10 4.6 EQUIVALENT TISSUES............................................................................................................11 4.7 SYSTEM SPECIFICATIONS..................................................................................................... 12 5 CHARACTERISTICS OF THE TEST..................................................................... 12 5.1 APPLICABLE LIMIT REGULATIONS.......................................................................................... 12 5.2 APPLICABLE MEASUREMENT STANDARDS............................................................................. 12 6 LABORATORY ENVIRONMENT ........................................................................... 13 7 TEST RESULTS .................................................................................................... 13 7.1 DIELECTRIC PERFORMANCE................................................................................................. 13 7.2 SYSTEM VALIDATION............................................................................................................. 13 7.3 SUMMARY OF MEASUREMENT RESULTS( 850 MHZ BAND) ................................................... 14 7.4 SUMMARY OF MEASUREMENT RESULTS (BODY-WORN, GSM 850 MHZ BAND).................... 15 7.5 SUMMARY OF MEASUREMENT RESULTS (HEAD, PCS 1900 MHZ BAND) ............................. 16 7.6 SUMMARY OF MEASUREMENT RESULTS (BODY-WORN, PCS 1900 MHZ BAND) .................. 17 7.7 CONCLUSION........................................................................................................................ 17 8 MEASUREMENT UNCERTAINTY......................................................................... 17 9 MAIN TEST INSTRUMENTS ................................................................................. 19 10 TEST PERIOD ..................................................................................................... 19 11 TEST LOCATION................................................................................................. 19 ANNEX A MEASUREMENT PROCESS...................................................................20 ANNEX B TEST LAYOUT ........................................................................................ 21 ANNEX C GRAPH RESULTS................................................................................... 25 ANNEX D SYSTEM VALIDATION RESULTS........................................................... 85 Telecommunication Metrology Center of Ministry of Information Industry No. SAR2005003 Page 5 of 86 1 COMPETENCE AND WARRANTIES Telecommunication Metrology Center of Ministry of Information Industry is a test laboratory accredited by DAR (DATech) – Deutschen Akkreditierungs Rat (Deutsche Akkreditierungsstelle Technik) for the tests indicated in the Certificate No. DAT-P-114/01-10. Telecom…

Text truncated - open the document above for the full version.

:| , FÜ aEm¶,i fÜ4 / : N0. L0442 : TEST REP£ RT Tes t nam e p ro d uc t M o d el C lient Ty p e of t es t N0 . FCC-PART24-2005004 FCC Test MobileG SM Stat ion A6a Amo i Electro nics CO. L ́ Non Type Approval n icat i Te lec o nwn u of Min ist ry of l r / Telecommunication Metrology Center of Ministry of Information Industry No. FCC-PART-24-2005004 Page 2of 54 Notice 1. The test report is invalid if not marked with “exclusive stamp for the test report” or the stamp of the test center. 2. Any copy of the test report is invalid if not re-marked with the “exclusive stamp for the test report” or the stamp of the test center. 3. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 4. The test report is invalid if there is any evidence of erasure and/or falsification. 5. If there is any dissidence for the test report, please file objection to the test center within 15 days from the date of receiving the test report. 6. Normally, entrust test is only responsible for the samples that have undergone the test. 7. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the test center. Address: No. 52, Huayuanbei Road, Beijing, P. R. China Post code: 100083 Cable: 04282 Telephone: +86 10 62302041 Fax: +86 10 62304793 No . FCC-PA RT-24.2005004 A- (Lu BiMrn19soºnTgØ)(¶ ́ 3ang Ruë0(Þs ́Þ3Øg chonw @ÚÚn± ) Te lec o m m u n ic at io n Met ro lo gy Cent er of Min ist ry of lnfo r m at io n Ind ust ry Page 3of 54 Telecommunication Metrology Center of Ministry of Information Industry No. FCC-PART-24-2005004 Page 4of 54 TABLE OF CONTENT 1 COMPETENCE AND WARRANTIES ................................................ 5 2 GENERAL CONDITIONS .................................................................. 5 3 ABOUT EUT ...................................................................................... 5 4 LABORATORY ENVIRONMENT....................................................... 6 5 SUMMARY OF TEST RESULTS ....................................................... 7 6 MAIN TEST INSTRUMENTS ............................................................... 8 7 TEST PERIOD ................................................................................... 8 8 TEST LOCATION .............................................................................. 8 ANNEX A MEASUREMENT RESULTS................................................ 9 ANNEX B PHOTOGRAPH OF EUT ................................................... 48 ANNEX C TEST LAYOUT .................................................................. 54 Telecommunication Metrology Center of Ministry of Information Industry No. FCC-PART-24-2005004 Page 5of 54 1 COMPETENCE AND WARRANTIES Telecommunication Metrology Center of Ministry of Information Industry is a test laboratory accredited by DAR (DATech) – Deutschen Akkreditierungs Rat (Deutsche Akkreditierungsstelle Technik), for the tests indicated in the Certificate No. DAT-P-114/01-10. Telecommunication Metrology Center of Ministry of Information Industry is a test laboratory accredited by CNAL – Accreditation Certificate of China National Accreditation Board for Laboratories, for the tests indicated in the Certificate No. L0442. Telecommunication Metrology Center of Ministry of Information Industry has been accepted by the CETECOM Competent Body for the EMC test reports since April 2000. Telecommunication Metrology Center of Ministry of Information Industry is a testing laboratory competent to carry out the tests described in this report. Telecommunication Metrology Center of Ministry of Information Industry guarantees the reliability of the data presented in this report, which is the result of measurements and tests performed to the item under test on the date and under the conditions stated on the report and is based on the knowledge and technical facilities available at Telecommunication Metrology Center of Ministry of Information Industry at the time of execution of the test. Telecommunication Metrology Center of Ministry of Information Industry is liable to the client for the maintenance by its personnel of the confidentiality of all information related to the item under test and the results of the test. 2 GENERAL CONDITIONS 2.1 This report only refers to the item that has undergone the test. 2.2 This report standalone dose not constitute or imply by its own an approval of the product by the certification Bodies or competent Authorities. 2.3 This document is only valid if complete; no partial reproduction can be made without written approval of Telecommunication Metrology Center of Ministry of Information Industry. 2.4 This report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of Telecommunication Metrology Center of Ministry of Information Industry and the Accreditation Bodies, if it applies. 3 ABOUT EUT 3.1 Addressing Information Related to EUT Table 1: Applicant’s details (The Client) Name or Company Amoi Electronics Co.,Ltd Address/Post No.45, Tiyu road,Xiamen,Fujian,China City Xiamen Postal Code 361012 Country China Telephone 0592-6516777-3330 Fax 0592-6516007 Telecommunication Metrology Center of Ministry of Information Industry No. FCC-PART-24-2005004 Page 6of 54 Table 2: Manufacturer’s details Name or Company Amoi Electronics Co.,Ltd Address/Post No.45, Tiyu road,Xiamen,Fujian,China City Xiamen Postal Code 361012 Country China Telephone 0592-6516777-3330 Fax 0592-6516007 3.2 Equipment under test (EUT) Model A6a Description GSM mobile station IMEI EUT1: 355437000000011; Hardware status V3.1 Software status A6a-REL02-050121-DLV23.26-AEI Frequency 1850.2MHz – 1909.8MHz for PCS 1900; 824.2MHz-848.8MHz for GSM 850 Type of modulation GMSK Number of channels 299 for PCS 1900;124 for GSM 850 Antenna External Power supply Battery or Charger (AC Adaptor) Output powe…

Text truncated - open the document above for the full version.

Telecommunication Metrology Center of Ministry of Information Industry No. FCC-PART-24-2005004 Page 54of 54 ANNEX C TEST LAYOUT Pic1 Conducted Emission Pic2 Radiated Spurious Emission ***END OF REPORT BODY***
