RYK-04060131Wireless 11g Outdoor AP Bridge

P600 Wireless 11g Outdoor AP Bridge User Manual Version 1.0 User’s Guide 1 Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording, or otherwise without the prior writing of the publisher. DEC. 2004 User’s Guide 2 Contents 1. Introduction...............................................................................................................4 2. Safety Notification....................................................................................................5 3. AP Default Settings...................................................................................................6 4. Web Management Settings......................................................................................7 4.1. Primary Setup........................................................................................8 4.2. System................................................................................................12 4.3. Operating Mode....................................................................................13 4.4. Status.................................................................................................15 4.5 Traffic Log............................................................................................16 4.6 Access Control......................................................................................17 4.7 Advanced Wireless.................................................................................18 4.8. SNMP INFO.........................................................................................20 4.9. Upgrade Firmware.................................................................................21 5. Troubleshooting.....................................................................................................23 User’s Guide 3 1. Introduction Thank you for purchasing your P600 Wireless 802.11g Outdoor AP Bridge. This user guide will assist you with the installation procedure. The package you have received should contain the following items: ƒ P600 Wireless 802.11g Outdoor AP Bridge ƒ CD - User Guide ƒ PoE Host / Cord ƒ Waterproof RJ-45 connector ƒ Mount Kit package Note: if anything is missing, please contact your vendor User’s Guide 4 2. Safety Notification Your Wireless AP should be placed in a safe and secure location. To ensure proper operation, please keep the unit away from water and other damaging elements. Please read the user manual thoroughly before you install the device. The device should only be repaired by authorized and qualified personnel. ƒ Please do not try to open or repair the device yourself. ƒ Do not place the device in a damp or humid location, i.e. a bathroom. ƒ The device should be placed in a sheltered and non-slip location within a temperature range of +5 to +40 Celsius degree. ƒ Please do not expose the device to direct sunlight or other heat sources. The housing and electronic components may be damaged by direct sunlight or heat sources. User’s Guide 5 3. AP Default Settings The default settings are shown following. User admin Password admin AP IP Address 192.168.1.250 AP Subnet Mask 255.255.255.0 RF ESSID ap11g 11g RF Channel 6 Mode 11b+g Encryption Disabled User’s Guide 6 4. Web Management Settings TURN ON POWER SUPPLY Quick power cycle can caused system corruption. When power on, be careful not to shut down in about 5 seconds, because data is writing to the flash. START UP & LOGIN In order to configure the outdoor Wireless 11g AP, you must use your web browser and manually input http://192.168.1.250 into the Address box and press Enter. The Main Page will appear. To start configure the outdoor Wireless 11g AP, you must login as “admin” in the User Name box. And input password “admin” on the password section. Once you have logged-in as administrator, it is a good idea to change the administrator password to ensure a secure protection to the outdoor Wireless 11g AP. The Security Settings section described later in this manual describes how to change the password. Once you have input the correct password and logged-in, the screen will change to the Setup page screen. User’s Guide 7 4.1. Primary Setup MAKE CORRECT NETWORK SETTINGS OF YOUR COMPUTER To change the configuration, use Internet Explorer (IE) or Netscape Communicator to connect the WEB management 192.168.1.250. Primary Setup This screen contains all of the AP's basic setup functions. . Most users will be able to configure the AP and get it working properly using the settings on this screen. LAN IP Address and Subnet Mask: This is the AP's IP Address and Subnet Mask as seen on the internal LAN. The default value is 192.168.1.250 for IP Address and 255.255.255.0 for Subnet Mask. Wireless: This section provide the Wireless Network settings for your WLAN User’s Guide 8 Wireless Settings SSID: The service set identifier ( SSID ) or network name. It is case sensitive and must not exceed 32 characters, which may be any keyboard character. You shall have selected the same SSID for all the APs that will be communicating with mobile wireless stations. Channel: Select the appropriate channel from the list provided to correspond with your network settings. You shall assign a different channel for each AP to avoid signal interference. Security: There are 3 types of security to be selected. To secure your Wireless Networks, it’s strongly recommended to enable this feature. -WEP Make sure that all wireless devices on your network are using the same encryption level and key. WEP keys must consist of the letters "A" through "F" and the numbers "0" through "9." User’s Guide 9 Important Notice In order to make right use of WPA, please ensure that your current Wireless Adapter’s driver, and Wireless Utility can support it, WPA needs 802.1x authentication (when RADIUS mode is chosen), though the Operating System must also s…

Text truncated - open the document above for the full version.

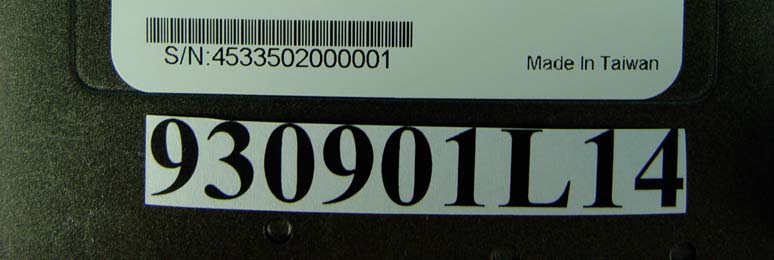

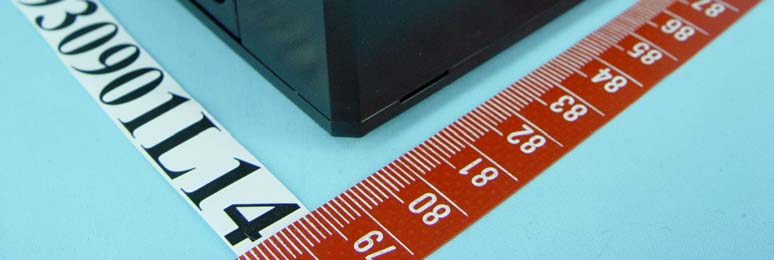

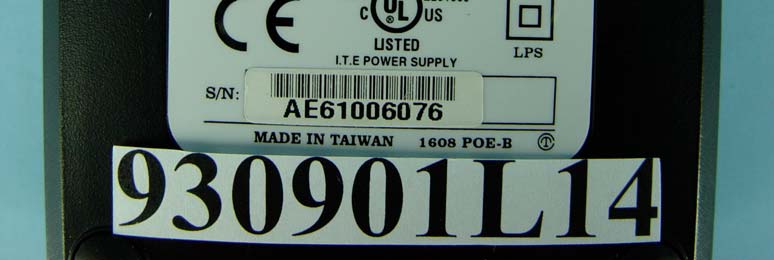

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7

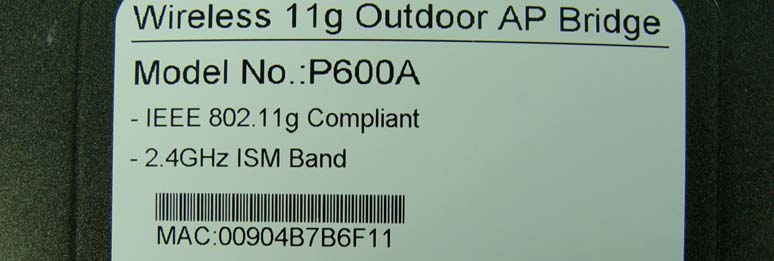

FCC ID Label Location

第 1 頁，共 1 頁 2004/10/18file://R:\Customer%20document\正文\930901L14%20(%20P600A,%20P600N%20)\P600A...

Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22 Page 23

FCC ID: RYK-04060131 Report No. RF 930901L14 Operational Description This device is a Wireless 11g Outdoor AP Bridge which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by Power over Ethernet. The antennas are Patch and Dipole antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: RYK-04060131 Report No: SA930901L14 1 RF EXPOSURE REPORT REPORT NO.: SA930901L14 MODEL NO.: P600A, P600N, TEW-412APBO and TEW- 413APBO ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: SparkLAN Communications, Inc. ADDRESS: 3Fl., No. 246, Sec. 1, Neihu Road., Neihu Chiu, Taipei, Taiwan 114, R.O.C ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien, Taiwan, R.O.C. FCC ID: RYK-04060131 Report No: SA930901L14 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: RYK-04060131 Report No: SA930901L14 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warming statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. FCC ID: RYK-04060131 Report No: SA930901L14 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 9dBi or 7.943(numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm : For CCK technique: For Antenna 8dBi gain Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241225.1770.0321.0 6243725.1190.0321.0 11246220.0910.0251.0 For Antenna 9dBi gain Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241225.1770.0401.0 6243725.1190.0401.0 11246220.0910.0321.0 For OFDM technique: For Antenna 8dBi gain Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241225.2930.0321.0 6243725.2350.0321.0 11246211.2200.0141.0 For Antenna 9dBi gain Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241225.2930.0401.0 6243725.2350.0401.0 11246211.2200.0181.0

FCC ID: RYK-04060131 Report No.: RF930901L141Issued: Sep. 17, 2004 FCC TEST REPORT REPORT NO.: RF930901L14 MODEL NO.: P600A (refer to page 7 for other model) RECEIVED: Jul. 24, 2004 TESTED: Jul. 24 ~ Aug. 28, 2004 APPLICANT: SparkLAN Communications, Inc. ADDRESS: 3Fl., No. 246, Sec. 1, Neihu Road., Neihu Chiu, Taipei, Taiwan 114, R.O.C ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Lin, Chiapau Tsun, Linko Hsiang, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien, Taiwan, R.O.C. This test report consists of 96 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: RYK-04060131 Report No.: RF930901L142Issued: Sep. 17, 2004 Table of Contents 1CERTIFICATION .......................................................................................................4 2SUMMARY OF TEST RESULTS ...............................................................................5 2.1MEASUREMENT UNCERTAINTY.............................................................................6 3GENERAL INFORMATION........................................................................................7 3.1GENERAL DESCRIPTION OF EUT ..........................................................................7 3.2DESCRIPTION OF TEST MODES ............................................................................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................8 3.4DESCRIPTION OF SUPPORT UNITS ......................................................................9 3.5 CONFIGURATION OF SYSTEM UNDER TEST .......................................................9 4TEST TYPES AND RESULTS .................................................................................10 4.1CONDUCTED EMISSION MEASUREMENT ..........................................................10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................10 4.1.2TEST INSTRUMENTS.............................................................................................10 4.1.3TEST PROCEDURES ............................................................................................. 11 4.1.4DEVIATION FROM TEST STANDARD ................................................................... 11 4.1.5TEST SETUP...........................................................................................................12 4.1.6EUT OPERATING CONDITIONS ............................................................................13 4.1.7TEST RESULTS ......................................................................................................14 4.2RADIATED EMISSION MEASUREMENT ...............................................................26 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................................26 4.2.2TEST INSTRUMENTS.............................................................................................27 4.2.3TEST PROCEDURES .............................................................................................28 4.2.4DEVIATION FROM TEST STANDARD ...................................................................28 4.2.5TEST SETUP...........................................................................................................29 4.2.6EUT OPERATING CONDITIONS ............................................................................29 4.2.7TEST RESULTS ......................................................................................................30 4.2.8TEST RESULTS (A) ................................................................................................34 4.2.9TEST RESULTS (B) ................................................................................................45 4.36dB BANDWIDTH MEASUREMENT.......................................................................56 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................56 4.3.2TEST INSTRUMENTS.............................................................................................56 4.3.3TEST PROCEDURE................................................................................................57 4.3.4DEVIATION FROM TEST STANDARD ...................................................................57 4.3.5TEST SETUP...........................................................................................................57 4.3.6EUT OPERATING CONDITIONS ............................................................................57 4.3.7TEST RESULTS (A) ................................................................................................58 4.3.8TEST RESULTS (B) ................................................................................................62 4.4MAXIMUM PEAK OUTPUT POWER ......................................................................66 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .......................66 4.4.2TEST INSTRUMENTS.............................................................................................66 FCC ID: RYK-04060131 Report No.: RF930901L143Issued: Sep. 17, 2004 4.4.3TEST PROCEDURES .............................................................................................67 4.4.4DEVIATION FROM TEST STANDARD ...................................................................67 4.4.5TEST SETUP...........................................................................................................67 4.4.6EUT OPERATING CONDITIONS ............................................................................67 4.4.7TEST RESULTS (A) ..............…

Text truncated - open the document above for the full version.

FCC ID: RYK-04060131 Report No.: RF930901L1492Issued: Sep. 17, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Test Mode 1 930901L14 930901L14 FCC ID: RYK-04060131 Report No.: RF930901L1493Issued: Sep. 17, 2004 Test Mode 2 930901L14 930901L14 FCC ID: RYK-04060131 Report No.: RF930901L1494Issued: Sep. 17, 2004 RADIATED EMISSION TEST Test Mode 1 930901L14 930901L14 FCC ID: RYK-04060131 Report No.: RF930901L1495Issued: Sep. 17, 2004 Test Mode 2 930901L14 930901L14
