RYK-WAPR300Wireless MIMO Pre-N Access Point

Wireless MIMO Pre-N Access Point Quick Installation Guide Guide d’installation rapide Anleitung zur Schnellinstallation Guida Veloce all’Installazione Guía rápida de instalación Version 1.0 Table of Contents English 1. Before Installation...................................................................................................2 2. Hardware Installation..............................................................................................3 3. Configure your computer’s TCP/IP Settings.......................................................4 4. Configure your AP...............................................................................................7 Français 1. Avant l’installation...................................................................................................9 2. Installation du matériel.........................................................................................10 3. Configurez les réglages TCP/IP de votre ordinateur......................................11 4. Configurez votre AP.............................................................................................14 Deutsch 1. Vor der Installation................................................................................................16 2. Installation der Hardware.....................................................................................17 2. Installation de........................................................................................................17 3. Konfiguration der TCP/IP-Einstellungen...........................................................18 4. Konfiguration Ihres APs.......................................................................................21 Italiano 1. Prima dell’installazione........................................................................................23 2. Installazione dell’Hardware.................................................................................24 3. Configurazione delle impostazioni TCP/IP del computergs...........................25 4. Configurazione dell’ AP.....................................................................................28 Español 1. Antes de la instalación.........................................................................................30 2. Instalación del hardware......................................................................................31 3. Configuración TCP/IP del ordenador.................................................................32 4. Configuración del punto de acceso...................................................................35 1 1. Before Installation Thank you for purchasing the Wireless 11g MIMO AP. This guide will help you set-up and configure your AP with easy to follow installation instructions. For more detailed or advanced settings, please refer to the User Manual on the CD-ROM. Package Contents Please make sure you have the following in the box: ♦ Wireless 11g MIMO AP ♦ Quick Installation Guide ♦ User Manual CD-ROM ♦ Antenna ♦ Universal AC/DC Power Adapter ♦ RJ-45 Network Cable 2 2. Hardware Installation 1. Power off your network devices. 2. Locate an optimum location for the AP. The best place for the AP is usually at the center of your wireless network, with line of sight to all of your wireless devices. 3. Adjust the antennas. Normally, the higher location of your AP will get better the performance. 4. Using a standard Ethernet network cable, connect the AP’s Ethernet port to your local network. 5. Connect the AC power adapter to the AP's Power port. Then connect the other end to an electrical outlet. Only use the power adapter supplied with the AP. Use of a different adapter may cause product damage. 6. The Hardware installation is completed. Please refer to the following content or user guide for AP configuration. Verify Hardware LED status Verify the following LED lights are on: Power: The Power LED lights up and will keep while the AP is powered on. WLAN: The WLAN LED flashes when there is a successful Wireless-G connection. LAN: The LAN LED lights up when Ethernet port of AP was connected to LAN. When the LED is flashing that indicates the network activity over that port. 3 3. Configure your computer’s TCP/IP Settings Windows 2000/XP 1. Click Start; click Settings and then click on the Control Panel. 2. Double-Click the Network Connection icon. 3. Right-Click on the Local Area Connection icon and then click on Properties. The Local Area Connection Properties windows will appear. 4. Under the General Configuration Tab, locate and select TCP/IP with the corresponding network card, then click Properties. The Internet Protocol (TCP/IP) Properties window will appear. 5. Click on Use the following IP Address and enter IP Address: 192.168.1.10 Subnet Mask: 255.255.255.0 Default gateway: 192.168.1.1 4 Windows 95/98/98SE/ME 1. Click Start; click Settings and then click on the Control Panel. 2. Double-clicked the Network icon to open the Network Properties window. 3. Under the Configuration tab, locate and select TCP/IP with the corresponding network card, click on the Properties button and the TCP/IP Properties window will appear. 4. Under the IP Address tab, select Specify an IP Address and enter IP Address: 192.168.1.10 Subnet Mask: 255.255.255.0 Then click OK on the TCP/IP properties window. 5. Click OK on the Network window. 6. In this moment, the installation may require files from your Windows CD-ROM. Please prepare the original CD and put it into your CD-ROM 5 device. 7. After the files load, the Windows requests you to reboot system. Click Yes to reboot your system. 8. Now your computer is ready to access and configure the AP. NOTE : The default IP address setting for the AP is a class C IP address (192.168.1.250 / 255.255.255.0). Please make sure that the current workstation is following the class C IP address range, from 192.168.1.2 to 192.168.1.254 6 4. Configure your AP 1. Open your web browser, type http://192.168.…

Text truncated - open the document above for the full version.

Page 1 Label location FCC ID: RYK-WAPR300

WAPR-300 BL_112105 (455x430x16M jpeg)

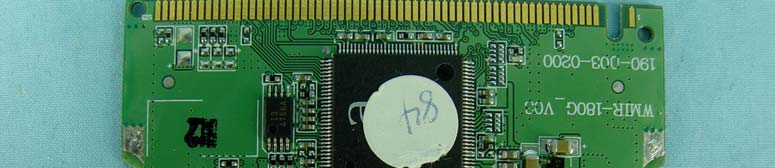

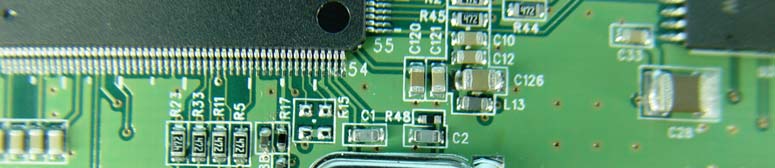

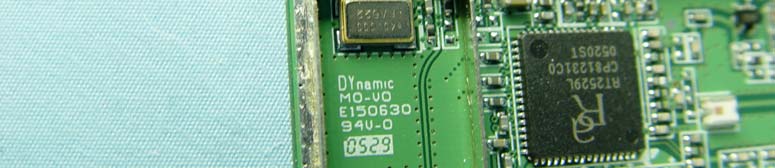

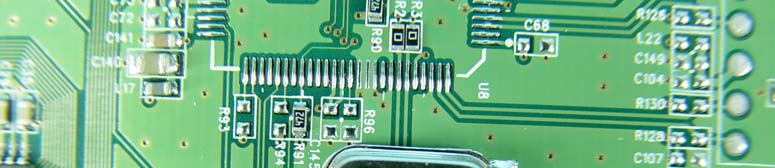

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10

FCC ID: RYK-WAPR300 Report No. RF941027L05 Operational Description This device is a Wireless MIMO Pre-N Access Point which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna with quick R-SAM antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The EUT provides three RF chains, only one chain with transmitter function, and two receiver chains. The other instruction, please have a look at the users manual.

FCC ID: RYK-WAPR300 Report No: SA941103L10 1 RF EXPOSURE REPORT REPORT NO.: SA941103L10 MODEL NO.: WAPR-300 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: SparkLAN Communications, Inc. ADDRESS: 3Fl., No. 246, Sec. 1, Neihu Road., Neihu Chiu, Taipei Taiwan 114, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: RYK-WAPR300 Report No: SA941103L10 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: RYK-WAPR300 Report No: SA941103L10 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: RYK-WAPR300 Report No: SA941103L10 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.11dBi or 1.626(numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b DSSS modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241216.0320.0051.0 6243731.7690.0101.0 11246240.3650.0131.0 802.11g OFDM modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241225.5860.0081.0 6243731.7690.0101.0 11246240.4580.0131.0

FCC ID: RYK-WAPR300 Report No.: RF941103L101Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF941103L10 MODEL NO.: WAPR-300 RECEIVED: Nov. 03, 2005 TESTED: Nov. 17 ~ Dec. 02, 2005 ISSUED: Dec. 06, 2005 APPLICANT: SparkLAN Communications, Inc. ADDRESS: 3Fl., No. 246, Sec. 1, Neihu Road., Neihu Chiu, Taipei Taiwan 114, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 64 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: RYK-WAPR300 Report No.: RF941103L102Report Format Version 2.0.4 TABLE OF CONTENTS 1.CERTIFICATION...........................................................................................................4 2.SUMMARY OF TEST RESULTS ..................................................................................5 2.1MEASUREMENT UNCERTAINTY................................................................................5 3.GENERAL INFORMATION ...........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT .............................................................................6 3.2 DESCRIPTION OF TEST MODES ...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................9 3.2.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 11 3.2.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 11 4. TEST TYPES AND RESULTS ....................................................................................12 4.1 CONDUCTED EMISSION MEASUREMENT .............................................................12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...........................................12 4.1.2 TEST INSTRUMENTS................................................................................................12 4.1.3 TEST PROCEDURES ................................................................................................13 4.1.4 DEVIATION FROM TEST STANDARD.......................................................................13 4.1.5 TEST SETUP..............................................................................................................14 4.1.6 EUT OPERATING CONDITIONS ...............................................................................14 4.1.7 TEST RESULTS .........................................................................................................15 4.2 RADIATED EMISSION MEASUREMENT ..................................................................21 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................21 4.2.2 TEST INSTRUMENTS................................................................................................22 4.2.3 TEST PROCEDURES ................................................................................................23 4.2.4 DEVIATION FROM TEST STANDARD.......................................................................24 4.2.5 TEST SETUP..............................................................................................................24 4.2.6 EUT OPERATING CONDITIONS ...............................................................................24 4.2.7 TEST RESULTS .........................................................................................................25 4.3 6dB BANDWIDTH MEASUREMENT..........................................................................32 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................32 4.3.2 TEST INSTRUMENTS................................................................................................32 4.3.3 TEST PROCEDURE...................................................................................................33 4.3.4 DEVIATION FROM TEST STANDARD.......................................................................33 FCC ID: RYK-WAPR300 Report No.: RF941103L103Report Format Version 2.0.4 4.3.5 TEST SETUP..............................................................................................................33 4.3.6 EUT OPERATING CONDITIONS ...............................................................................33 4.3.7 TEST RESULTS .........................................................................................................34 4.4 MAXIMUM PEAK OUTPUT POWER..........................................................................40 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ..........................40 4.4.2 INSTRUMENTS..........................................................................................................40 4.4.3 TEST PROCEDURES ................................................................................................41 4.4.4 DEVIATION FROM TEST STANDARD.......................................................................41 4.4.5 TEST SETUP..............................................................................................................41 4.4.6 EUT OPERATING CONDITIONS ...............................................................................41 4.4.7 TEST RESULTS ...............................................................................................…

Text truncated - open the document above for the full version.

FCC ID: RYK-WAPR300 Report No.: RF941103L1061Report Format Version 2.0.4 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: RYK-WAPR300 Report No.: RF941103L1062Report Format Version 2.0.4 RADIATED EMISSION TEST
