RYK-WHRB100125 Mbps 802.11g Wireless Powerline Router

1 Table of Contents 1 INTRODUCTION..........................................................................................1 1.1 Purpose..................................................................................................................1 2 SET ROUTER..............................................................................................1 2.1 Connect to TPL-111BR...........................................................................................1 2.2 Configure the TCP/IP Settings of your PC...............................................................2 3 BASIC &HOMEPLUG NETWORK KEY SETTING......................................3 3.1 Basic setting....................................................................................................................3 4 LAN SETTING.............................................................................................4 5 WAN SETTING............................................................................................5 6 ROUTER STATUS.......................................................................................6 7 FILTERS SETTING......................................................................................7 8 ROUTING SETTING....................................................................................8 9 WIRELESS SETTING..................................................................................9 10 POWERLINE................................................................................................9 11 SECURITY.................................................................................................10 12 UPGARDE FIRMWARE.............................................................................12 1 1 Introduction 1.1 Purpose The major purpose of this document is to illustrate how to configure the Router to work properly. 2 SET ROUTER 2.1 Connect to TPL-111BR 1. Connect one end of an Ethernet cable to the LAN port on the back of the TPL-111BR, and the other end to a standard port on a network device, for example, a PC. 2. Connect the power cable to the TPL-111BR, and then plug the power cable into a power outlet. 2 2.2 Configure the TCP/IP Settings of your PC Before you begin Make sure that you get setup information you need from your Internet Service Provider (ISP). To set up Windows 2000 1. Right-click on My Network Places icon on the desktop and then click Properties in menu. 2. Double-click Local Area Connection icon and then click Properties button. 3. Select Internet Protocol (TCP/IP) and click Properties button. There are two ways to assign an IP address. You can either obtain an IP address automatically or specify an IP address. If you want to obtain an IP address automatically 4. Check the radio button for Obtain an IP address automatically. 5. Then you have to assign Domain Name System (DNS) server’s IP address. Two methods are available: automatically obtain an IP address or manually specify an IP address for DNS server. If you can obtain DNS server address automatically, check the radio button for Obtain DNS server address automatically and proceed to step 10. Or if you can configure a DNS server address, then proceed to step 9. If you want to specify an IP address manually Contact your network administrator first to obtain a valid IP address for you to use. This IP address must be a unique address in the range of addresses that are available for your network. 6. Check the radio button for Specify an IP address. In the IP address box, type the assigned IP address. The default IP is 10.0.0.XXX.[any one besides 10.0.0.2]. 7. In the Subnet mask box, type the subnet mask of your network. The default is 255.255.255.0. 8. In the Default gateway box, set the gateway address. The default is 10.0.0.2 9. Check the radio button for Use the following DNS server addresses. In the Preferred DNS server and Alternate DNS server boxes, input the IP addresses of DNS Server provided by your ISP. 10. Click OK button in the TCP/IP Properties window to complete the PC configuration, and click Close or the OK button to close the Network window. 11. To link your PC together with TPL-111BR by plugging an Ethernet cable or making a Wireless connection. 3 12. Open your web browser. Enter http://10.0.0.2 in the web browser’s address field, and press the Enter key. 13. A Login window will appear. Enter admin in the User Name field and enter admin in the Password field. 3 Basic &Homeplug network key setting 3.1 Basic setting 1. Set the router log in user name and password at the basic setting 4 4 LAN setting 1. Set the LAN IP and subnet mask 2. Set the LAN DHCP server enable or disable 3. After setting press Apply to let the setting work 5 5 WAN SETTING 1. The WAN can set to DHCP client, static IP, PPPoE or Disabled 2. After setting ok, press Apply to let the setting work 6 6 Router Status Show the router status information 7 7 Filters Setting 1. Set LAN MAC filter to allow or deny. to use the router 2. After setting, press Apply to let the setting work 8 8 Routing setting 1. Set the router routing mode to RIPV1 or RIPV2 2. After setting, press Apply to let the setting work 9 9 Wireless Setting After setting, press Apply to let the setting work 10 Powerline 10 1. Set the Powerline network encryption key. 11 Security 1. Set the router wireless security (802.1X, WEP, etc...) 11 2. After setting, press Apply to let the setting work 12 12 Upgarde Firmware 1. Upgrade the router firmware 2. The router will auto reboot after upgraded Limited Warranty TRENDware warrants its products against defects in material and workmanship, under normal use and service, for the following lengths of time from the date of purchase. Powerline Products – 3 Years Warranty If a product does not operate as warranted above during the applicable warranty period, TRENDware shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defectiv…

Text truncated - open the document above for the full version.

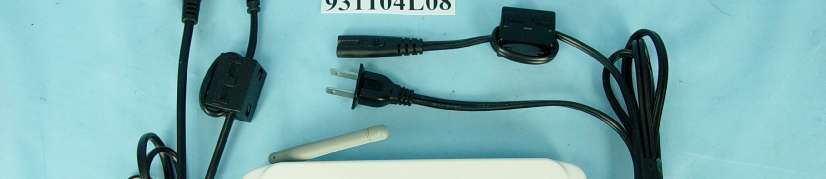

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: RYK-WHRB100 Report No. RF931104L08B Operational Description This device is a 125 Mbps 802.11g Wireless Powerline Router which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by AC line. The antenna is Monopole antenna with UFL connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: RYK-WHRB100 Report No: SA931104L08B 1 RF EXPOSURE REPORT REPORT NO.: SA931104L08B MODEL NO.: EP-6615, TPL-111BR ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: SparkLAN Communications, Inc. ADDRESS: 3Fl., No. 246, Sec. 1, Neihu Road., Neihu Chiu, Taipei Taiwan 114, R.O.C. ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: RYK-WHRB100 Report No: SA931104L08B 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: RYK-WHRB100 Report No: SA931104L08B 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warming statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. FCC ID: RYK-WHRB100 Report No: SA931104L08B 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.0dBi or 1.58 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For DSSS: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241225.7040.0081.0 6243726.3030.0081.0 11246225.1190.0081.0 For OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241225.7040.0081.0 6243725.1190.0081.0 11246220.8930.0071.0

FCC ID: RYK-WHRB100 Report No.: RF931104L08B1Report Format Version 2.0.3 Reference No.: 940823L31 FCC TEST REPORT REPORT NO.: RF931104L08B MODEL NO.: EP-6615 (refer to page 6 for other models) RECEIVED: NA TESTED: Sep. 27 ~ Dec. 10, 2004 ISSUDE: Aug. 25, 2005 APPLICANT: SparkLAN Communications, Inc. ADDRESS: 3Fl., No. 246, Sec. 1, Neihu Road., Neihu Chiu, Taipei Taiwan 114, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 68 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: RYK-WHRB100 Report No.: RF931104L08B2Report Format Version 2.0.3 Reference No.: 940823L31 Table of Contents 1CERTIFICATION...........................................................................................................4 2SUMMARY OF TEST RESULTS ..................................................................................5 2.1MEASUREMENT UNCERTAINTY ...............................................................................5 3GENERAL INFORMATION ...........................................................................................6 3.1GENERAL DESCRIPTION OF EUT.............................................................................6 3.2DESCRIPTION OF TEST MODES...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................................10 3.4DESCRIPTION OF SUPPORT UNITS .......................................................................10 4TEST TYPES AND RESULTS .................................................................................... 11 4.1CONDUCTED EMISSION MEASUREMENT .............................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 11 4.1.2 TEST INSTRUMENTS................................................................................................ 11 4.1.3 TEST PROCEDURES ................................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD ......................................................................12 4.1.5 TEST SETUP .............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS ...............................................................................13 4.1.7 TEST RESULTS .........................................................................................................14 4.2RADIATED EMISSION MEASUREMENT ..................................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................20 4.2.2 TEST INSTRUMENTS................................................................................................21 4.2.3 TEST PROCEDURES ................................................................................................22 4.2.4 DEVIATION FROM TEST STANDARD ......................................................................22 4.2.5 TEST SETUP .............................................................................................................23 4.2.6 EUT OPERATING CONDITIONS ...............................................................................23 4.2.7 TEST RESULTS .........................................................................................................24 4.36dB BANDWIDTH MEASUREMENT .........................................................................37 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................37 4.3.2 TEST INSTRUMENTS................................................................................................37 4.3.3 TEST PROCEDURE...................................................................................................38 4.3.4 DEVIATION FROM TEST STANDARD ......................................................................38 4.3.5 TEST SETUP .............................................................................................................38 4.3.6 EUT OPERATING CONDITIONS ...............................................................................38 4.3.7 TEST RESULTS .........................................................................................................39 4.4MAXIMUM PEAK OUTPUT POWER .........................................................................45 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................45 4.4.2 TEST INSTRUMENTS................................................................................................45 4.4.3 TEST PROCEDURES ................................................................................................46 4.4.4 DEVIATION FROM TEST STANDARD ......................................................................46 4.4.5 TEST SETUP .............................................................................................................46 4.4.6 EUT OPERATING CONDITIONS ...............................................................................46 4.4.7 TEST RESULTS .........................................................................................................47 4.5POWER …

Text truncated - open the document above for the full version.

FCC ID: RYK-WHRB100 Report No.: RF931104L08B66Report Format Version 2.0.3 Reference No.: 940823L31 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: RYK-WHRB100 Report No.: RF931104L08B67Report Format Version 2.0.3 Reference No.: 940823L31 RADIATED EMISSION TEST
