RYK-WMIA199NI802.11abgn Mini PCI

SparkLAN WMIA-199NI Install MB8X driver on Windows SOP 1.click setup.exe to install Atheros utility. 2. select English language to install it. 3. click next to install utility 4. select accept to next setp. 5.select install client utility and driver to next step. 6.click next. 7.click next. 8. click next. 9. select Atheros Client Utility(ACU) and Supplicant. 10. click (Y) to next step 11. click finish to restart computer. 12. go to device manager to install driver. 13. update driver. 14. Select No, and Next. 15. Select advance to next. 16. Select driver folder to install driver. 17. Click Browser to select driver folder. 18. Click next. 19. Waiting.... 20. Finish. U.S. Regulatory Wireless Notice Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, 3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain change. As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: RYK-WMIA199NI”. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual.

FCC ID: RYK-WMIA199NI Report No. : RF981116L04 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Jan. 15, 2010 Dear Application Examiner, SparkLAN Communications, Inc., It’s 802.11abgn Mini PCI, FCC ID: RYK-WMIA199NI would like to have your authorization as a modular approval specific to the mobile device. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR9160. 3. “The modular transmitter must have its own power supply regulation part no.: AME88052EFTZ, AME88011EEVZ. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration”. The EUT is tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: RYK-WMIA199NI Report No. : RF981116L04 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Gary Chang Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

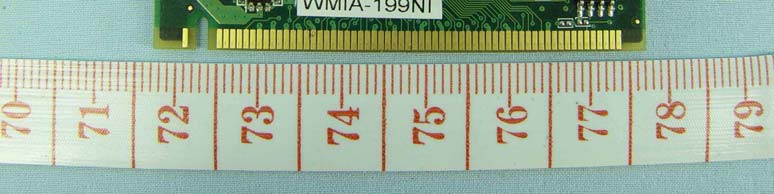

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 3 Page 4

FCC ID: RYK-WMIA199NI Report No.: RF981116L04 OPERATIONAL DESCRIPTION This device is a 802.11abgn Mini PCI, which operates in both of the 5GHz and 2.4GHz bands, the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antennas are Dipole antennas with UFL antenna connectors. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: RYK-WMIA199NI Report No.: SA981116L04 Report Format Version 3.0.0. 1 RF EXPOSURE REPORT REPORT NO.: SA981116L04 MODEL NO.: WMIA-199NI, RLXIB-IHN, RLXIB-ICN, RLXIB-IH2N, RLXIB-IH2N-W ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: SparkLAN Communications, Inc. ADDRESS: 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: RYK-WMIA199NI Report No.: SA981116L04 Report Format Version 3.0.0. 2 RF EXPOSURE MEASUREMENT (MOBILE DEVICE) 1. INTRODUCTION In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF EXPOSURE LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) (A)LIMITS FOR OCCUPATIONAL / CONTROL EXPOSURES 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: RYK-WMIA199NI Report No.: SA981116L04 Report Format Version 3.0.0. 3 3. FRIIS FORMULA Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT OPERATING CONDITION The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: RYK-WMIA199NI Report No.: SA981116L04 Report Format Version 3.0.0. 4 6. TEST RESULTS 6.1 ANTENNA GAIN The maximum Gain measured in Fully Anechoic Chamber are 3dBi or 1.995(numeric) (for 2.4GHz); 4dBi or 2.512(numeric) (for 5.0GHz). 6.2 OUTPUT POWER INTO ANTENNA & RF EXPOSURE VALUE AT DISTANCE 20cm: For 2.412 ~ 2.462GHz band: POWER OUTPUT (dBm) CHAIN 0 CHAIN 1 CHAIN 2 TOTAL POWER (MW) TOTAL POWER (DBM) POWER DENSITY (mW/ cm 2 ) LIMIT OF POWER DENSITY (mW/ cm 2 ) 19.1 19.1 19.6 253.2 24.0 0.100 1.000 For 5.180 ~ 5.240GHz band: POWER OUTPUT (dBm) CHAIN 0 CHAIN 1 CHAIN 2 TOTAL POWER (MW) TOTAL POWER (DBM) POWER DENSITY (mW/ cm 2 ) LIMIT OF POWER DENSITY (mW/ cm 2 ) 11.0 12.0 12.1 45.0 16.5 0.023 1.000 For 5.745 ~ 5.825GHz band: POWER OUTPUT (dBm) CHAIN 0 CHAIN 1 CHAIN 2 TOTAL POWER (MW) TOTAL POWER (DBM) POWER DENSITY (mW/ cm 2 ) LIMIT OF POWER DENSITY (mW/ cm 2 ) 19.1 17.6 21.1 267.2 24.3 0.134 1.000

Report No.: RF981116L04 1 Report Format Version 3.0.1 FCC TEST REPORT (15.247) REPORT NO.: RF981116L04 MODEL NO.: WMIA-199NI (refer to item 3.1 for more detail) RECEIVED: Aug. 19, 2008 TESTED: Aug. 19, 2008 ~ Jan. 12, 2010 ISSUED: Jan. 13, 2010 APPLICANT: SparkLAN Communications, Inc. ADDRESS: 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 115 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF981116L04 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION........................................................................................................... 5 2. SUMMARY OF TEST RESULTS .................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY................................................................................ 6 3. GENERAL INFORMATION ........................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................. 7 3.2 DESCRIPTION OF TEST MODES ............................................................................... 9 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST .......................................................... 9 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................. 10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 14 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 14 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND) ................................................. 15 4.1 RADIATED EMISSION MEASUREMENT .................................................................. 15 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................ 15 4.1.2 TEST INSTRUMENTS................................................................................................ 16 4.1.3 TEST PROCEDURES ................................................................................................ 17 4.1.4 DEVIATION FROM TEST STANDARD....................................................................... 17 4.1.5 TEST SETUP.............................................................................................................. 18 4.1.6 EUT OPERATING CONDITIONS ............................................................................... 18 4.1.7 TEST RESULTS ......................................................................................................... 19 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................. 32 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 32 4.2.2 TEST INSTRUMENTS................................................................................................ 32 4.2.3 TEST PROCEDURES ................................................................................................ 33 4.2.4 DEVIATION FROM TEST STANDARD....................................................................... 33 4.2.5 TEST SETUP.............................................................................................................. 34 4.2.6 EUT OPERATING CONDITIONS ............................................................................... 34 4.2.7 TEST RESULTS ......................................................................................................... 35 4.3 6dB BANDWIDTH MEASUREMENT.......................................................................... 37 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................... 37 4.3.2 TEST INSTRUMENTS................................................................................................ 37 4.3.3 TEST PROCEDURE................................................................................................... 37 4.3.4 DEVIATION FROM TEST STANDARD....................................................................... 37 4.3.5 TEST SETUP.............................................................................................................. 38 4.3.6 EUT OPERATING CONDITIONS ............................................................................... 38 4.3.7 TEST RESULTS ......................................................................................................... 39 4.4 MAXIMUM OUTPUT POWER .................................................................................... 43 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .......................... 43 4.4.2 INSTRUMENTS .......................................................................................................... 43 4.4.3 TEST PROCEDURES ................................................................................................ 43 4.4.4 DEVIATION FROM TEST STANDARD....................................................................... 44 4.4.5 TEST SETUP.............................................................................................................. 44 4.4.6 EUT OPERATING CONDITIONS ............................................................................... 44 4.4.7 TEST RESULTS ......................................................................................................... 45 4…

Text truncated - open the document above for the full version.

Report No.: RF981116L04-1 1 Report Format Version 3.0.1 FCC TEST REPORT (15.407) REPORT NO.: RF981116L04-1 MODEL NO.: WMIA-199NI (refer to item3.1 for more detail) RECEIVED: Aug. 19, 2008 TESTED: Aug. 19, 2008 ~ Jan. 12, 2010 ISSUED: Jan. 13, 2010 APPLICANT: SparkLAN Communications, Inc. ADDRESS: 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 70 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF981116L04-1 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION........................................................................................................... 4 2. SUMMARY OF TEST RESULTS .................................................................................. 5 2.1 MEASUREMENT UNCERTAINTY................................................................................ 5 3. GENERAL INFORMATION ........................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ............................................................................. 6 3.2 DESCRIPTION OF TEST MODES ............................................................................... 8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST .......................................................... 8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................... 9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 11 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 11 4. TEST TYPES AND RESULTS .................................................................................... 12 4.1 RADIATED EMISSION MEASUREMENT .................................................................. 12 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................ 12 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS .............. 12 4.1.3 TEST INSTRUMENTS................................................................................................ 13 4.1.4 TEST PROCEDURES ................................................................................................ 14 4.1.5 DEVIATION FROM TEST STANDARD....................................................................... 14 4.1.6 TEST SETUP.............................................................................................................. 15 4.1.7 EUT OPERATING CONDITION.................................................................................. 15 4.1.8 TEST RESULTS ......................................................................................................... 16 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................. 25 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 25 4.2.2 TEST INSTRUMENTS................................................................................................ 25 4.2.3 TEST PROCEDURES ................................................................................................ 26 4.2.4 DEVIATION FROM TEST STANDARD....................................................................... 26 4.2.5 TEST SETUP.............................................................................................................. 27 4.2.6 EUT OPERATING CONDITIONS ............................................................................... 27 4.2.7 TEST RESULTS ......................................................................................................... 28 4.3 MAXIMUM CONDUCTED OUTPUT POWER MEASUREMENT ............................... 30 4.3.1 LIMITS OF MAXIMUM CONDUCTED OUTPUT POWER MEASUREMENT............. 30 4.3.2 TEST INSTRUMENTS................................................................................................ 30 4.3.3 TEST PROCEDURE................................................................................................... 30 4.3.4 DEVIATION FROM TEST STANDARD....................................................................... 31 4.3.5 TEST SETUP.............................................................................................................. 31 4.3.6 EUT OPERATING CONDITIONS ............................................................................... 31 4.3.7 TEST RESULTS ......................................................................................................... 32 4.4 PEAK POWER EXCURSION MEASUREMENT ........................................................ 38 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT...................................... 38 4.4.2 TEST INSTRUMENTS................................................................................................ 38 4.4.3 TEST PROCEDURE................................................................................................... 38 4.4.4 DEVIATION FROM TEST STANDARD....................................................................... 39 4.4.5 TEST SETUP.............................................................................................................. 39 4.4.6 EUT OPERATING CONDITIONS ............................................................................... 39 4.4.7 TEST RESULTS .........................................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 3 RADIATED EMISSION TEST 4
