RYK-WMIR268GN802.11bgn Mini PCI Module

SparkLAN Communications, Inc.
802.11bgn Mini PCI Module - FCC ID RYK-WMIR268GN - SparkLAN Communications, Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Apr 01, 2012
Application Purpose
Original Equipment
Date of Application
Apr 01, 2012
Equipment Note
802.11bgn Mini PCI Module
Frequency Range
2422.00000000 - 2452.00000000
Company
SparkLAN Communications, Inc.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

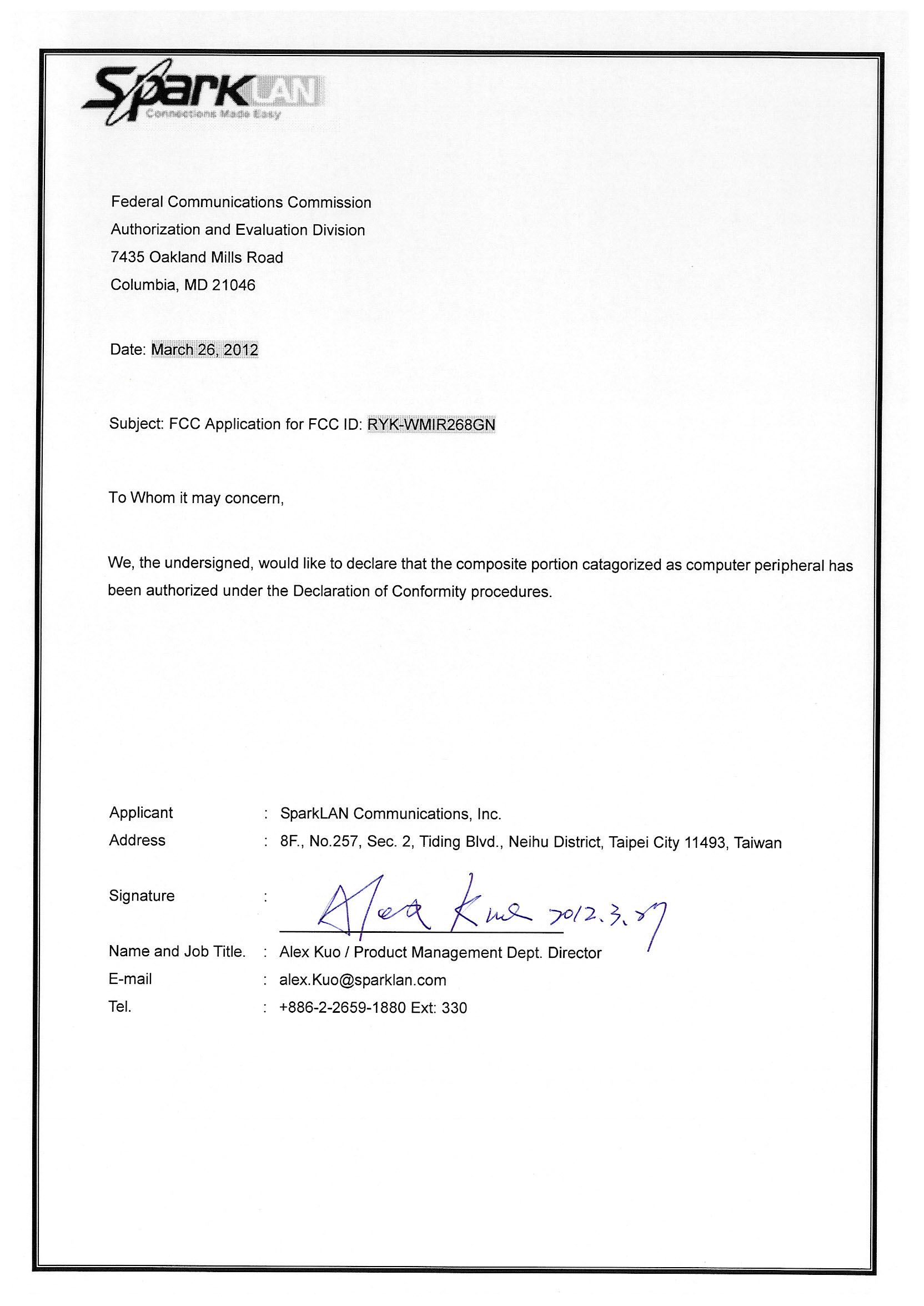

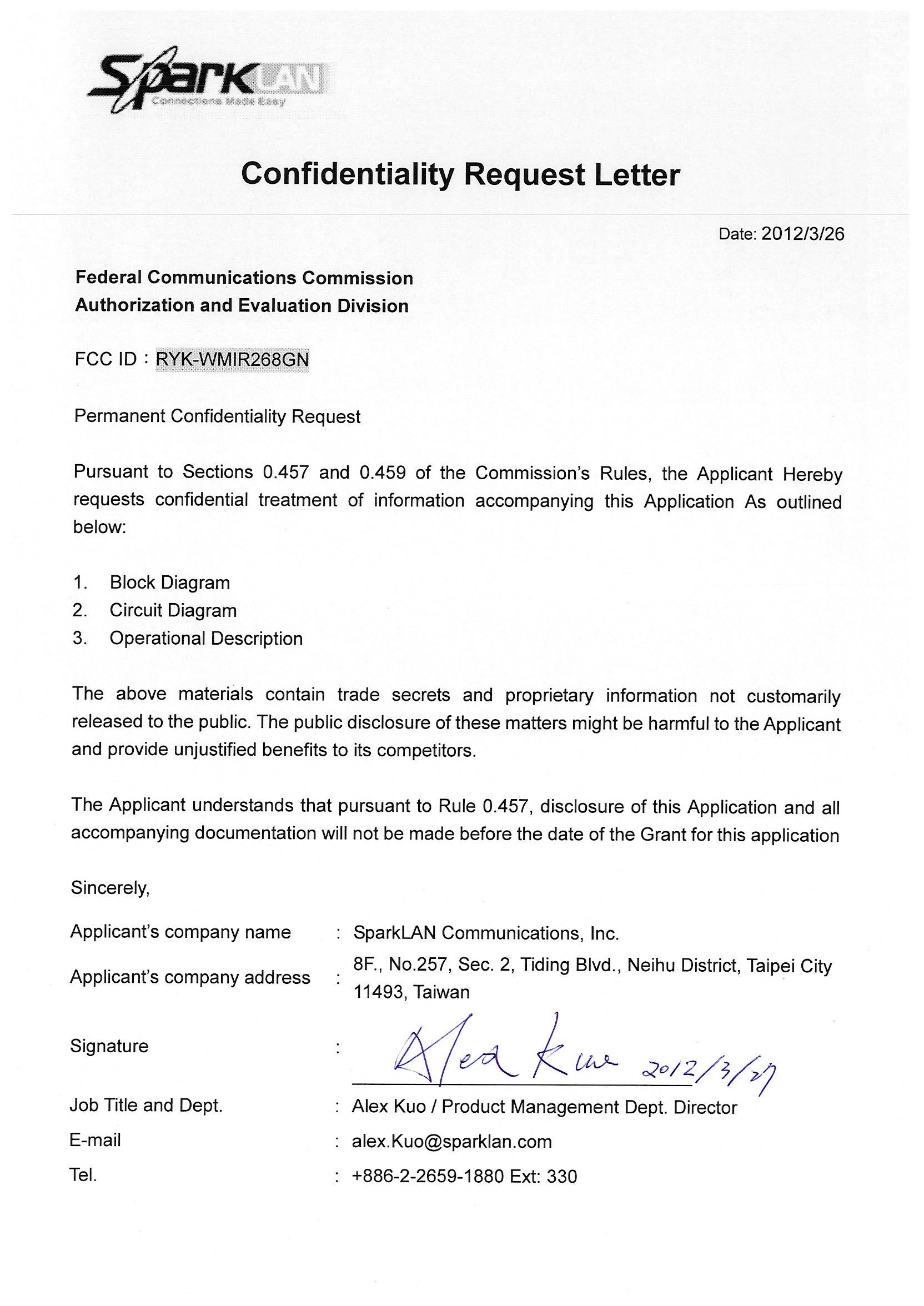

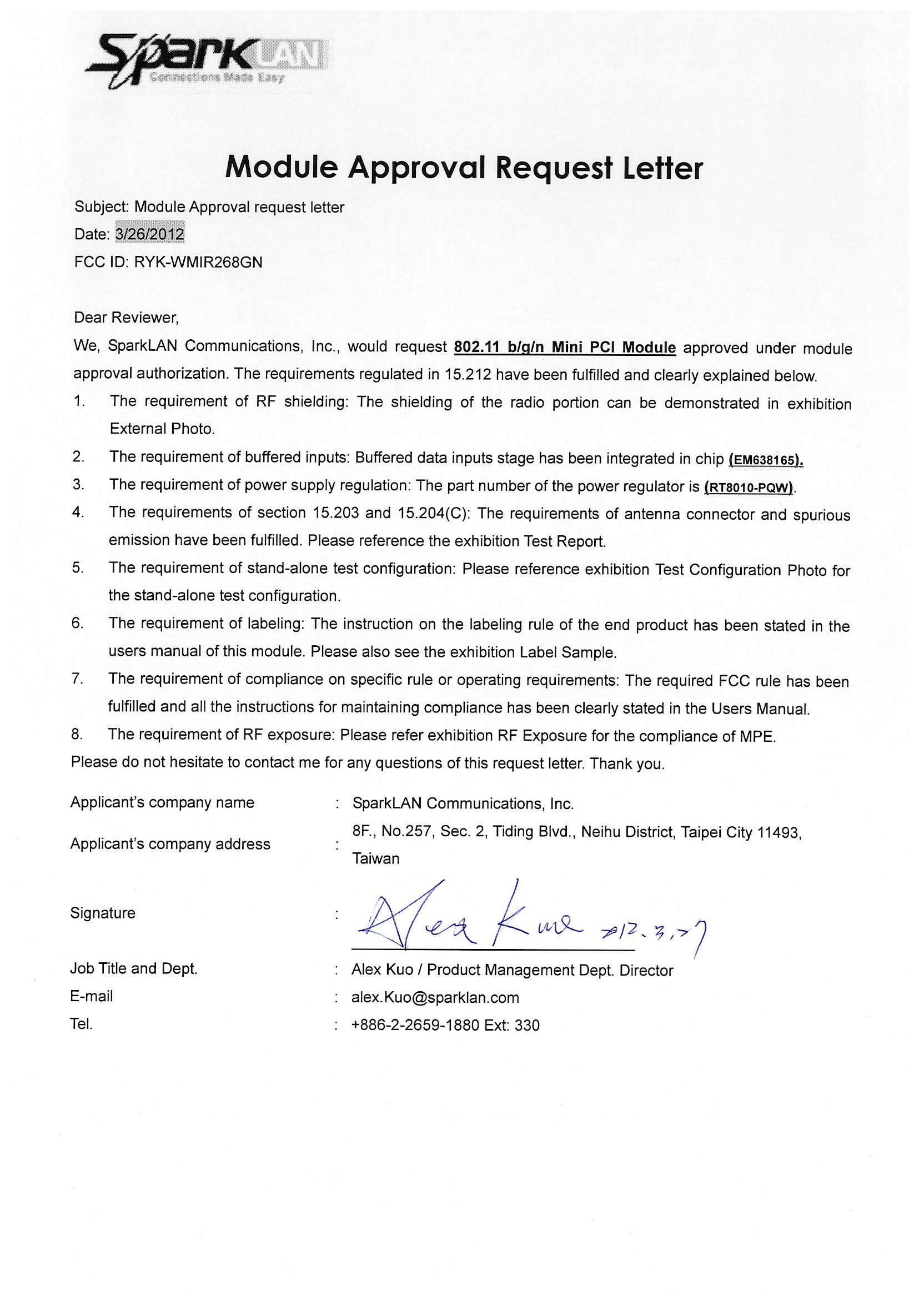

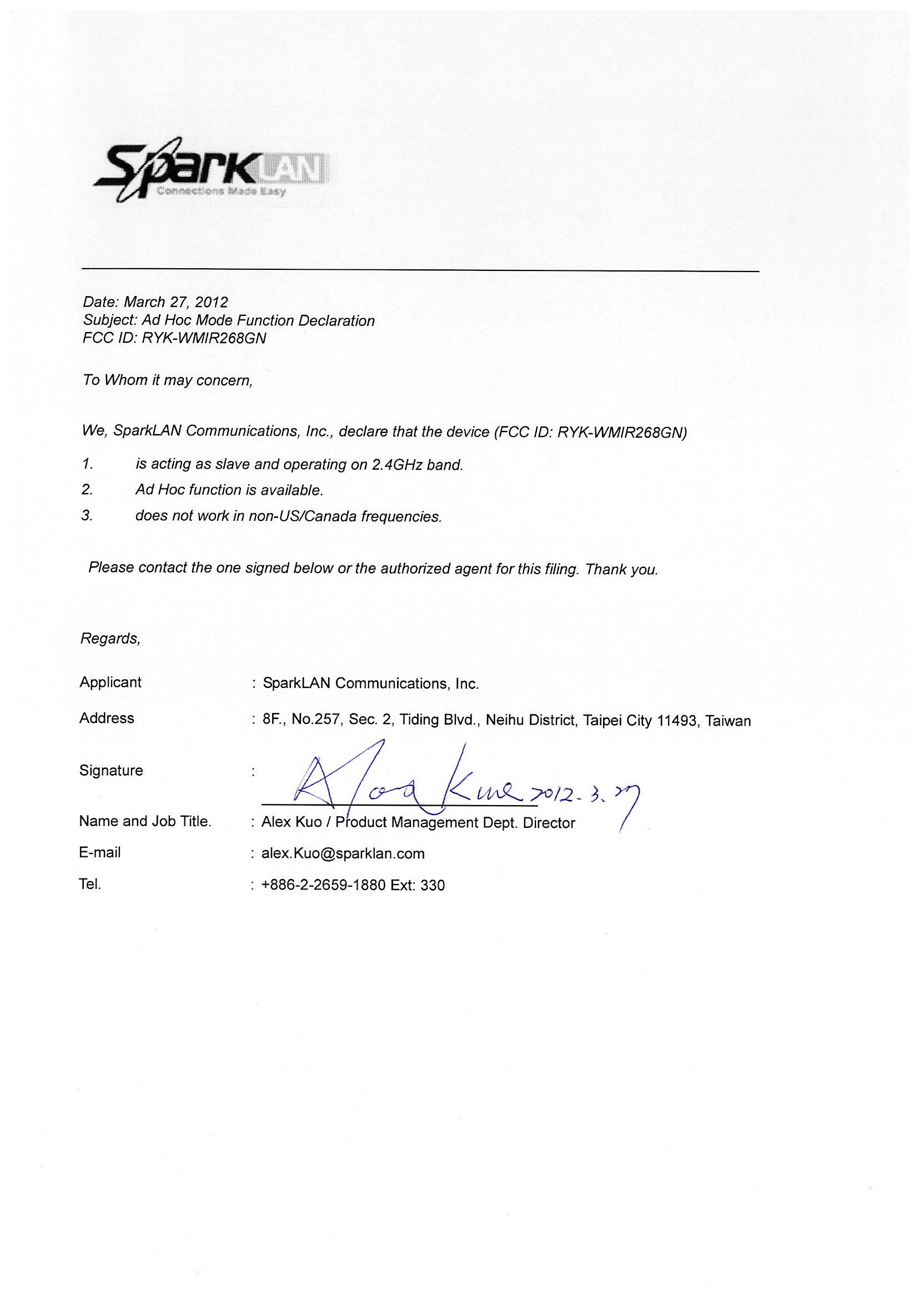

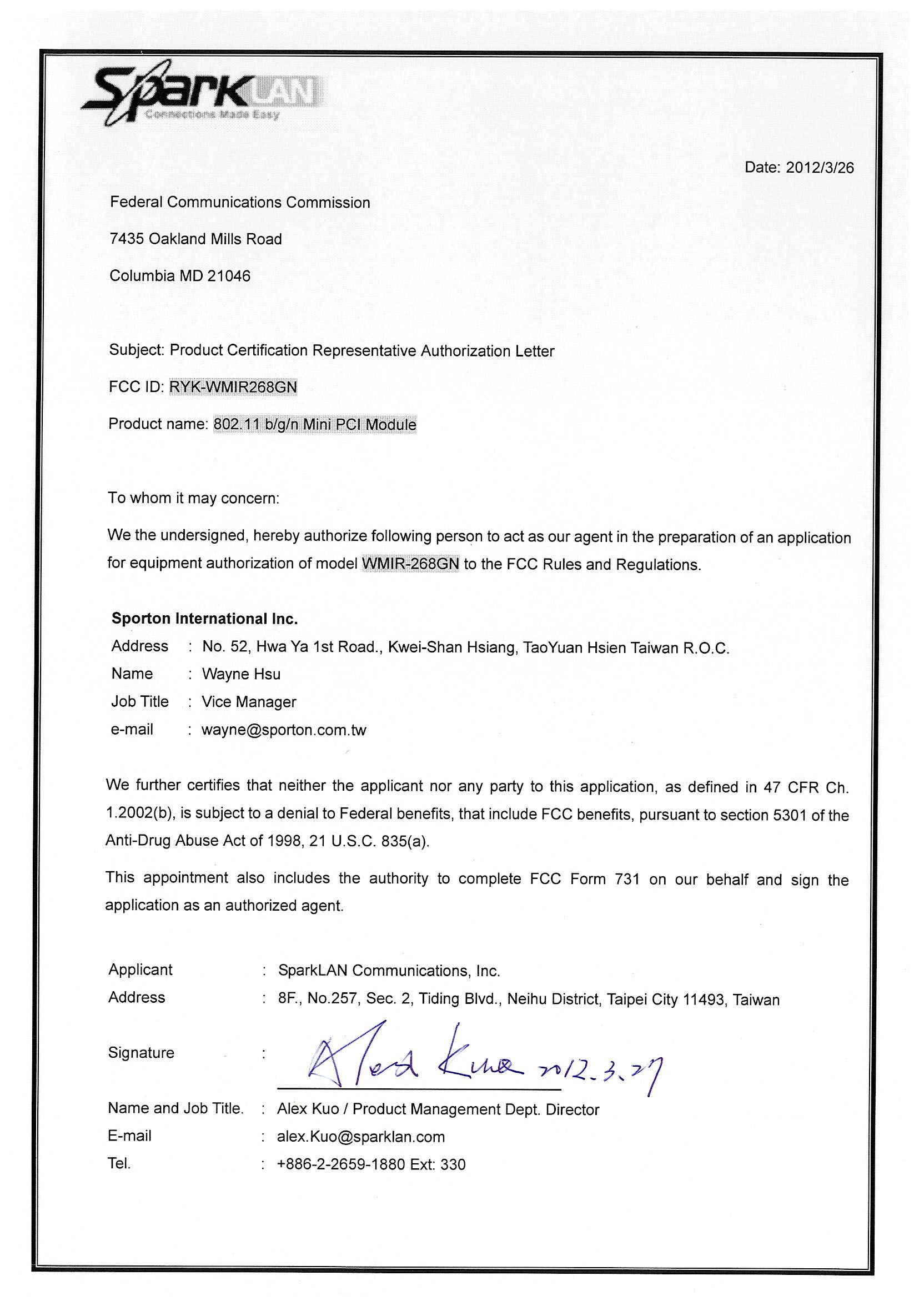

Cover Letter(s)

↗
↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

WMIR-268GN w w w . s p a r k l a n . c o m / s a l e s @ s p a r k l a n . c o m / + 8 8 6 - 2 - 2 6 5 9 - 1 8 8 0 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ■ Chipset: Ralink RT2880 + RT2820 ■ Host Interface: Mini PCI Type IIIA with MII ■ Antenna: 2 antennas to support 2T2R ■ Output Power up to 18dBm ■ Enhanced wireless security: 64/128-bits WEP, WPA, WPA2 ■ Linux Wider Coverage by MIMO 2T2R Technology The SparkLAN WMIR-268GN incorporates the latest MIMO 2T2R technology for stable networking; it supports up to 300Mbps downstream and 300Mbps upstream rates, which is an ideal choice of integrating with high performance AP or networking equipment. Enterprise level security With advanced security encryptions, such as 64/128-bits WEP, WPA, WPA2, the SparkLAN WMIR-268GN helps creating a secure and reliable wireless network. This device is the best choice for you to quickly and easily integrate with your wireless enabled applications. Feature Mechanical Dimension (mm) 802.11GN Single-Band Mini PCI Module Ralink RT2880 (MIPS CPU) + RT2820 Solution with MII Interface, 2T3R Application ■ Networking Equipment ■ Industrial Computers ■ Automation ■ Medical Device ■ POS (Point-of-Sale) System ■ Self-Service KIOSK ■ Gaming Machine WMIR-268GN w w w . s p a r k l a n . c o m / s a l e s @ s p a r k l a n . c o m / + 8 8 6 - 2 - 2 6 5 9 - 1 8 8 0 Application Specifications Ordering Info - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ■ WMIR-268GN 802.11b/g/n Mini PCI Module Standard 802.11b/g/n Chipset CPU/Mac/BB RT2880 (MIPS CPU) + RT2820 Host Interface Mini PCI, Type IIIA Radio Antenna 2 x U.FL connectors, 2T2R Operating Frequency 802.11b/g/n ISM Band: 2.400 ~ 2.4835GHz Modulation 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) Peak Output Power 802.11b : 23.45dBm@11Mbps 802.11g : 24.58dBm@54Mbps 802.11n HT20 : 27.72dBm@MCS8 802.11n HT40 : 25.70dBm @MCS8 Receive Sensitivity 802.11b : -87dBm ± 2dBm @11Mbps 802.11g : -76dBm ± 2dBm @ 54Mbps 802.11n HT20 : -75dBm ± 2dBm @ MCS7 802.11n HT40 : -72dBm ± 2dBm @ MCS7 Power consumption Continue TX Max 836mA Continue RX Max 691mA Operating Voltage DC 3.3V ± 10% Environmental Temperature Range 0 ~ 50°C (Operating) -20 ~ 80°C (Storing) Humidity (Non-Condensing) 5 ~ 90% (Operating) 5 ~ 95% (Storing) Physical Specification Dimensions 59.6mm x 44.60mm x 3.5mm (±0.5mm) Weight 7 g Software Driver Linux Security 64/128-bits WEP, WPA, WPA2 Related Product ■ WMIR-278GN 802.11b/g/n Mini PCI Module Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. The final end product must be labeled in a visible area with the following " Contains TX FCC ID: RYK-WMIR268GN". WMIR-268GN Mini PCI Module Quick Installiaton Guide Version 1.0 1 Setup 1. Find out the Driver, and setup RT2880_MII_ATE_UI.exe 2 Setup 2. Choose Ethernet Card 3 Setup 3. Select “Throughtput Test” tab, and enter [SSID], press Set, then press OK 4 Setup 4. Ping ipconfig to see if the module is functioning Antenna Info. Ant. No. Category Type Model Connector Type Gain (dBi) 1 External GSM&WIFI Antenna EPH-501 FAKRA SMB CRIMB JACK -1.14

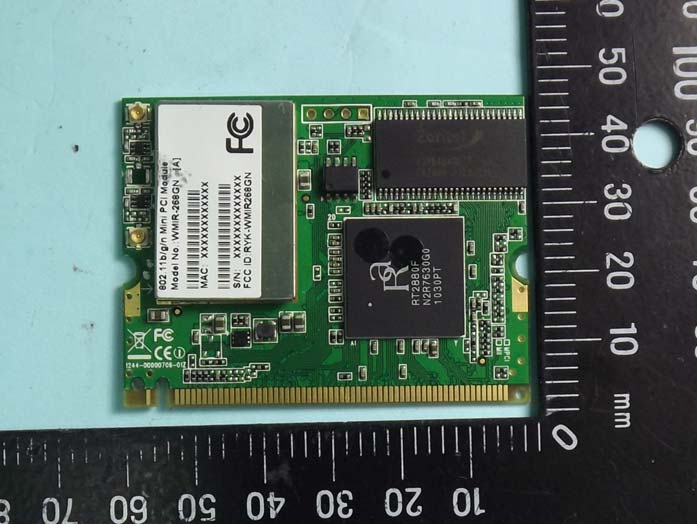

External Photos

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2012 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2012 FAX : 886-2-2696-2255

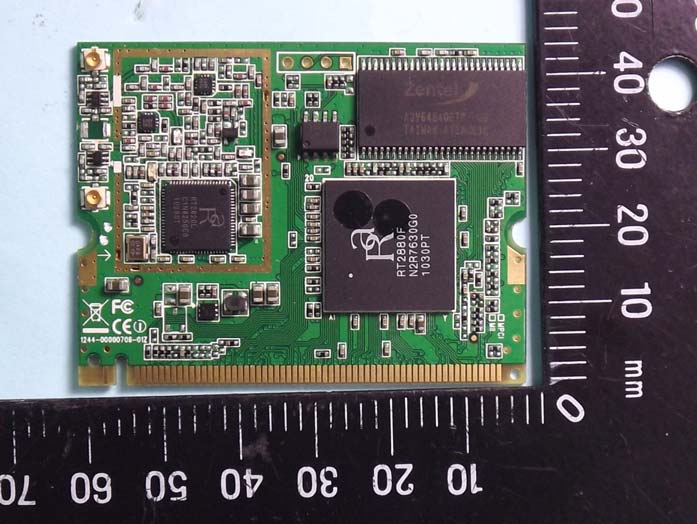

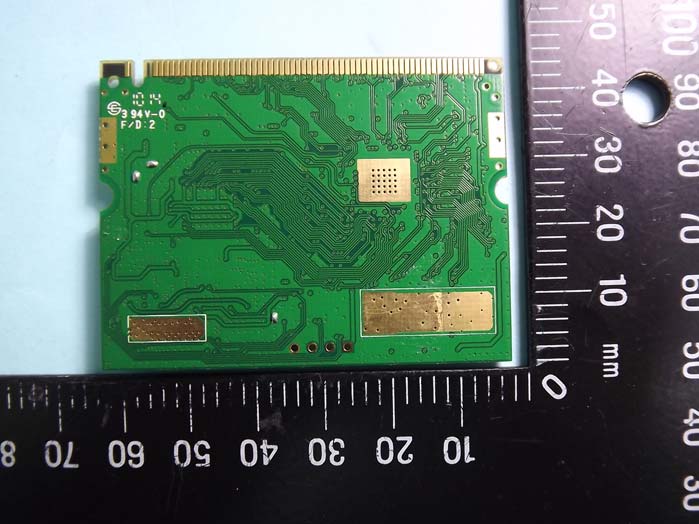

Internal Photos

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2012 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2012 FAX : 886-2-2696-2255

RF Exposure Info

Page No. : A1 of A3 FCC ID RYK-WMIR268GN FCC TEST REPORT Report No. : FR212701 Appendix A. RF Exposure Evaluation Page No. : A2 of A3 FCC ID RYK-WMIR268GN FCC TEST REPORT Report No. : FR212701 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Page No. : A3 of A3 FCC ID RYK-WMIR268GN FCC TEST REPORT Report No. : FR212701 1.3. Calculated Result and Limit Antenna Type : GSM&WIFI Antenna Operating Frequency (GHz) Min. User Distance (cm) Gain (dBi) Numeric Gain Output Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.437 20 -1.14 0.76913 27.72 591.5616 0.0906 The Peak Output Power worst-case show in this item for IEEE 802.11b/g/n.

Test Report

SPORTON International Inc. Report Format Version: a FCC TEST REPORT Report No. : FR212701 FCC RADIO TEST REPORT According to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment :802.11 b/g/n Mini PCI Module Brand Name :SparkLAN Model No. :WMIR-268GN Filing Type :New Application Applicant Manufacturer :SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan FCC ID :RYK-WMIR268GN Received Date :Jan. 30, 2012 Final Test Date :Mar. 01, 2012 Statement Test result included is only for the 802.11b/g/n part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-3-327-3456 Issued Date : Mar. 12, 2012 FAX : 886-3-318-0055 FCC ID : RYK-WMIR268GN FCC TEST REPORT Report No. : FR212701 Table of Contents 1 SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2 GENERAL INFORMATION ...................................................................................................................................... 3 2.1 Product Details .........................................................................................................................................................................................3 2.2 Table for Filed Antenna ............................................................................................................................................................................4 2.3 Table for Carrier Frequencies ..................................................................................................................................................................5 2.4 Table for Test Modes ...............................................................................................................................................................................5 2.5 Table for Testing Locations ......................................................................................................................................................................6 2.6 Table for Supporting Units .......................................................................................................................................................................6 2.7 Table for Parameters of Test Software Setting ........................................................................................................................................6 2.8 EUT Operation during Test ......................................................................................................................................................................7 2.9 Test Configuration ....................................................................................................................................................................................8 3 TEST RESULT ....................................................................................................................................................... 10 3.1 AC Power Line Conducted Emissions Measurement ............................................................................................................................10 3.2 Maximum Peak Output Power Measurement ........................................................................................................................................14 3.3 Power Spectral Density Measurement ...................................................................................................................................................17 3.4 6dB Spectrum Bandwidth Measurement ...............................................................................................................................................32 3.5 Radiated Emissions Measurement ........................................................................................................................................................46 3.6 Band Edge and Fundamental Emissions Measurement ........................................................................................................................76 3.7 Antenna Requirements ..........................................................................................................................................................................87 4 LIST OF MEASURING EQUIPMENTS .................................................................................................................. 88 5 TEST LOCATION ................................................................................................................................................... 90 6 TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 91 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE .......................................................................................... A3 APPENDIX B. TEST PHOTOS ................................................................................................................................. B7 APPENDIX C. PHOTOGRAPHS OF EUT ................................................................................................................ C6 SPORTON International Inc. Page No. : ii of ii TEL : 886-3-327-3456 Issued Date : Mar. 12, 2012 FAX : 886-3-318-0055 FCC ID : RYK-WMIR268GN FCC TEST REP…

Text truncated - open the document above for the full version.

Test Setup Photos

Page No. : B1 of B7 FCC ID RYK-WMIR268GN FCC TEST REPORT Report No. : FR212701 Appendix B. Test Photos Page No. : B2 of B7 FCC ID RYK-WMIR268GN FCC TEST REPORT Report No. : FR212701 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Page No. : B3 of B7 FCC ID RYK-WMIR268GN FCC TEST REPORT Report No. : FR212701 SIDE VIEW Page No. : B4 of B7 FCC ID RYK-WMIR268GN FCC TEST REPORT Report No. : FR212701 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW Page No. : B5 of B7 FCC ID RYK-WMIR268GN FCC TEST REPORT Report No. : FR212701 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW Page No. : B6 of B7 FCC ID RYK-WMIR268GN FCC TEST REPORT Report No. : FR212701 For radiated emissions above 1GHz FRONT VIEW REAR VIEW Page No. : B7 of B7 FCC ID RYK-WMIR268GN FCC TEST REPORT Report No. : FR212701 EUT take a close-up. FRONT VIEW REAR VIEW

Contact Information

Applicant

Grady Lin(Manager)
[email protected]+886-2-2659-1880Fax: +886-2-2659-5538

Test Firm

Sporton International Inc.Alex Chen
[email protected]886-3-327-3456Fax: 886-3-327-0973

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz372.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Output power listed is the maximum combined conducted output power as indicated in the filing. Approval is limited to OEM installation only. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Device is operating in a 2x2 Spatial Multiplexing MIMO configuration as described in this filing. When operating in 802.11n, 40 MHz mode, the operating frequency segment is limited to 2422 to 2452 MHz.
