RYK-WMIR269GN11gn mini-PCI card

User’s Guide 1 Wireless Network Card Series User’s Guide User’s Guide 2 WMIR-269GN 802.11b/g/n Mini-PCI Module Ralink RT2880, 2T2R Chipset CPU/ Mac/BB Processor Ralink RT2880 RF Chip Ralink RT2820 Memory 8Mbytes SDRAM Host Interface 32-bit mini-PCI (Non-standard) LED Indicator Power / Activity Radio Antenna 3x I-pex Connectors (2T/2R) [CON0:Tx0/Rx0, CON1:Tx1/Rx1, CON2:RX2] Operating Frequency
2.400 ~ 2.484GHz(Subject to Local Regulations) IEEE 802.11b：(DSSS)  5.5/11 Mbps(CCK),  2 Mbps(DQPSK),  1 Mbps(DBPSK) IEEE 802.11g：(OFDM/DSSS)  48/54 Mbps(QAM-64),  24/36 Mbps(QAM-16),  12/18 Mbps(QPSK), 6/9Mbps (BPSK) Modulation IEEE 802.11n：(OFDM/DSSS)  QAM-64,  QAM-16,  QPSK,  BPSK Output Powerv(peak power) 11g: 24 dBm 11b: 21 dBm 11N HT20: 25 dBm 11N HT40: 24.5 dBm 802.11b: -90dBm@1Mbps, ±2dB -88dBm@2Mbps, ±2dB [email protected] , ±2dB -83dBm@11Mbps, ±2dB Receive Sensitivity 802.11g: -86dBm@6Mbps, ±2dB -84dBm@9Mbps, ±2dB -82dBm@12Mbps , ±2dB -80dBm@18Mbps, ±2dB -78dBm@24Mbps, ±2dB -75dBm@36Mbps, ±2dB -72dBm@48Mbps , ±2dB -70dBm@54Mbps, ±2dB Receive Sensitivity 802.11n MCS HT20 HT40 0 -85dBm, ±2dB -83dBm, ±2dB 1 -83dBm, ±2dB -81dBm, ±2dB 2 -81dBm, ±2dB -79dBm, ±2dB 3 -80dBm, ±2dB -76dBm, ±2dB 4 -78dBm, ±2dB -72dBm, ±2dB 5 -74dBm, ±2dB -69dBm, ±2dB 6 -71dBm, ±2dB -65dBm, ±2dB 7 -67dBm, ±2dB -62dBm, ±2dB 8 -85dBm, ±2dB -83dBm, ±2dB 9 -83dBm, ±2dB -81dBm, ±2dB 10 -80dBm, ±2dB -78dBm, ±2dB 11 -78dBm, ±2dB -75dBm, ±2dB 12 -75dBm, ±2dB -71dBm, ±2dB 13 -71dBm, ±2dB -69dBm, ±2dB 14 -68dBm, ±2dB -64dBm, ±2dB 15 -65dBm, ±2dB -61dBm, ±2dB
SPECIFICATION Power consumption TX: 950mA@2Tx(Max.) RX: 800mA@3Rx(Max.) Operating Voltage DC 3.3V ± 5% CPU Core Voltage 1.2Vdc Driver Linux Environmental Temperature Humidity Operating 0 ~ 50°C 20% to 85% Non-Condensing Storage -20 ~ 80°C 10% to 90% Non-Condensing Physical Specification Dimensions 59.6x61.5x4.8 mm Weight 15g User’s Guide 3 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. User’s Guide 4 This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, 3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain change. As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: RYK-WMIR269GN”. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. User’s Guide 5 Canadian Regulatory Wireless Notice This device complies with RSS-210 of the Industry Canada Rules. Operati…

Text truncated - open the document above for the full version.

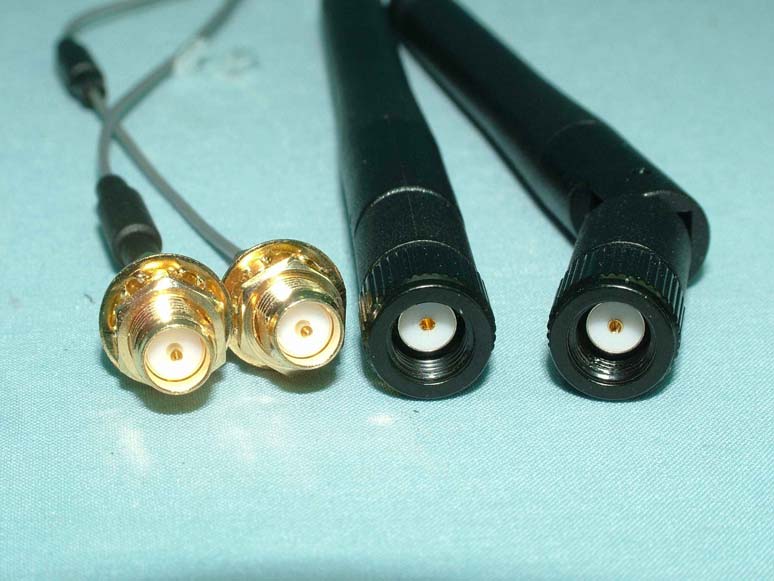

FCC ID: RYK-WMIR269GN Report No. : RF990714C01 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Aug. 31, 2010 Dear Application Examiner, SparkLAN Communications, Inc., It’s a 11gn mini-PCI card, FCC ID: RYK-WMIR269GN would like to have your authorization as a mobile device. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip RT2880. 3. “The modular transmitter must have its own power supply regulation part no.:. RT2880 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration”. The EUT is tested in a stand-alone configuration Mini PCI extender. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: RYK-WMIR269GN Report No. : RF990714C01 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Gary Chang Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Label Location

Page 4 Page 5

FCC ID: RYK-WMIR269GN Report No.: RF990714C01 Operational Description This device is an 11gn mini-PCI card, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 3.3Vdc from the host equipment. The antenna is Dipole antenna with UFL antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA990714C01 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990714C01 MODEL NO.: WMIR-269GN FCC ID: RYK-WMIR269GN ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: SparkLAN Communications, Inc. ADDRESS: 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan (R.O.C.) ISSUED BY : Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Report No.: SA990714C01 Report Format Version 3.0.1 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 25.8 2.0 20 0.120 1.00
