RYK-WMIR278GN11GN mini-PCI

User’s Guide 1 Wireless Network Card Series User’s Guide User’s Guide 2 Product Name 11Mbps/54Mbps/300Mbps 802.11b/g/n draft WLAN MIMO mini PCI card Model Number WMIR-278GN Host Interface Mini PCI type 3B Chipset solution Ralink, RT3062 ( MAC/BBP/RF) RF chain 2T2R for HT20, HT40 Guard interval ( GI ) Long/Short GI for both HT20 and HT40 Dimension 59.75mm*44.6mm*3.55mm Weight 7g Frequency Band 802.11b ISM band 2.400 ~ 2.484GHz (subject to local regulations) 802.11g ISM band 2.400 ~ 2.484GHz (subject to local regulations) 802.11n draft ISM band 2422 – 2452MHz (channel BW=40MHz) 2400 – 2483.5MHz (channel BW=20MHz) Number of Channel 802.11b USA and Canada – 11 Most European countries – 13 Japan – 14 France – 4 802.11g USA and Canada – 11 Most European countries – 13 Japan – 14 HT20 USA and Canada – 11 Most European countries – 13 WMIR-278GN 802.11b/g/n Mini-PCI Module  SPECIFICATION User’s Guide 3 Japan – 13 HT40 USA and Canada – 3~9 Most European countries – 3~9 Operating Voltage 3.3V ± 5% Spreading 802.11b Direct Sequence Spread Spectrum (DSSS) 802.11g Orthogonal Frequency Division Multiplexing (OFDM) HT20 Orthogonal Frequency Division Multiplexing (OFDM) Multiple-input/multiple-output (MIMO) HT40 Orthogonal Frequency Division Multiplexing (OFDM) Multiple-input/multiple-output (MIMO) Modulation 802.11g 64 QAM, 16 QAM, QPSK, BPSK 802.11b CCK, DQPSK, DBPSK HT20, HT40 64 QAM, 16 QAM, QPSK, BPSK Data Rate 802.11b 11, 5.5, 2, 1 Mbps per channel, auto fallback for extended range 802.11g 54, 48, 36, 24, 18, 12, 9, 6 Mbps per channel, auto fallback for extended range HT20 Refer to HT20 output power table HT40 Refer to HT40 output power table Antenna Two antenna connectors, Two antenna port for TX/RX. Transmitted power 802.11b 1Tx ~ 15 +/-1.5dBm@ch1~ch14 802.11g 1Tx ~ 14 +/-1.5dBm@ch1~ch14 HT20 please see the output power table for detail. tolerance: +/-1.5dBm HT40 User’s Guide 4 please see the output power table for detail. tolerance: +/-1.5dBm Receive Sensitivity Nominal Temp Range: 802.11b (1Rx) Typ. 1Mbps, -93dBm Typ. 2Mbps, -93dBm Typ. 5.5Mbps, -92dBm Typ. 11Mbps, -90dBm 802.11g (2Rx) Typ. 6Mbps, -93dBm Typ. 9Mbps, -93dBm Typ. 12Mbps, -92dBm Typ. 18Mbps, -90dBm Typ. 24Mbps, -87dBm Typ. 36Mbps, -84dBm Typ. 48Mbps, -80dBm Typ. 54Mbps, -78dBm HT20 (2Rx) Typ. MCS=0, -93dBm Typ. MCS=1, -91dBm Typ. MCS=2, -88dBm Typ. MCS=3, -86dBm Typ. MCS=4. -83dBm Typ. MCS=5, -79dBm Typ. MCS=6, -77dBm Typ. MCS=7, -75dBm Typ. MCS=8, -91dBm Typ. MCS=9, -88dBm Typ. MCS=10, -86dBm Typ. MCS=11, -83dBm Typ. MCS=12, -80dBm Typ. MCS=13, -75dBm Typ. MCS=14, -74dBm Typ. MCS=15, -72dBm HT40 (2Rx) Typ. MCS=0, -90dBm Typ. MCS=1, -88dBm Typ. MCS=2, -85dBm Typ. MCS=3, -83dBm Typ. MCS=4, -80dBm User’s Guide 5 Typ. MCS=5, -76dBm Typ. MCS=6, -74dBm Typ. MCS=7, -72dBm Typ. MCS=8, -88dBm Typ. MCS=9, -85dBm Typ. MCS=10, -83dBm Typ. MCS=11, -80dBm Typ. MCS=12, -77dBm Typ. MCS=13, -72dBm Typ. MCS=14, -71dBm Typ. MCS=15, -69dBm Power consumption (Average) 802.11b Continue TX : [email protected] Continue RX : [email protected] 802.11g Continue TX : [email protected] Continue RX : [email protected] HT20 Continue TX : [email protected] Continue RX : [email protected] HT40 Continue TX : [email protected] Continue RX : [email protected] LED indicator N/A Supplied Driver Windows 2000/XP 32/Vista 32/Win7 32, please refer to software spec in detail. Standards IEEE 802.11b, IEEE 802.11g i3standard, Wi-Fi compliant ,EWC 802.11n draft Temperature Range 0 ~ 55°C (Operating); -20 ~ 80°C (Storing) Humidity Operating Humidity 10% to 85% Non-Condensing Storage Humidity 5% to 90% Non-Condensing Network Protocol TCP/IP, IPX, NDIS4, and NDIS5x Management Utility Monitor Internet Access Status via UI System Requirements Laptop containing  miniPCI slot  64MB memory or greater  300MHz processor or greater Microsoft Windows 2000/XP 32/Vista 32/Win7 32 User’s Guide 6 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. User’s Guide 7 This devic…

Text truncated - open the document above for the full version.

FCC ID: RYK-WMIR278GN Report No. : RF 110126C19 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch February 25, 2011 Dear Application Examiner, SparkLAN Communications, Inc., It’s a 11gn mini-PCI card, FCC ID: RYK-WMIR278GN would like to have your authorization as a mobile device. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip RT3062. 3. “The modular transmitter must have its own power supply regulation part no.:. APL1117VC 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration”. The EUT is tested in a stand-alone configuration Mini PCI extender. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: RYK-WMIR278GN Report No. : RF 110126C19 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Gary Chang Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

Supecede letter

Page 1 CONSTRUCTION PHOTOS OF EUT

Page 2 Page 3

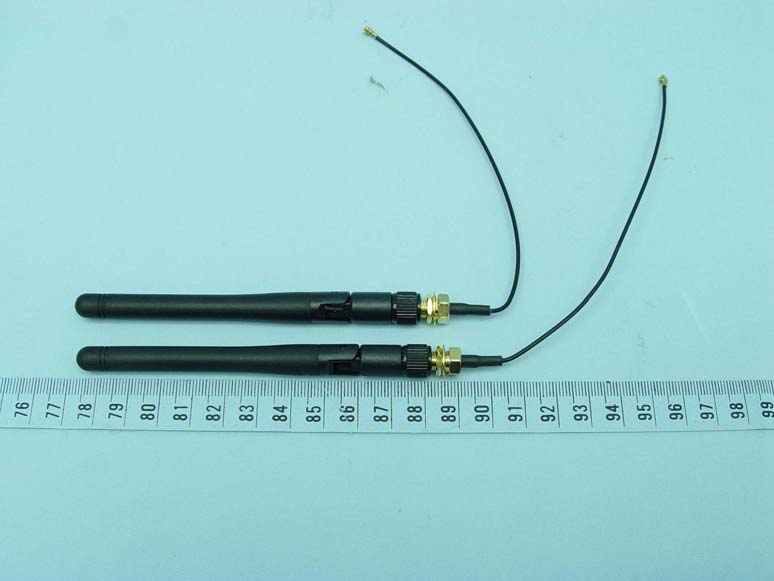

FCC ID: RYK-WMIR278GN Report No.: RF110126C19 Operational Description This device is an 11gn mini-PCI card, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 3.3Vdc from the host equipment. The antenna is Dipole antenna with UFL antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA110126C19 R1 Report Format Version 4.0.0 Cancels and replaces the report No.: SA110126C19 dated Feb. 23, 2011 1 RF EXPOSURE REPORT REPORT NO.: SA110126C19 R1 MODEL NO.: WMIR-278GN FCC ID: RYK-WMIR278GN ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: SparkLAN Communications, Inc. ADDRESS: 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Report No.: SA110126C19 R1 Report Format Version 4.0.0 Cancels and replaces the report No.: SA110126C19 dated Feb. 23, 2011 2 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release N/A Feb. 23, 2011 SA110126C19 R1 Change model name Mar. 01, 2011 Report No.: SA110126C19 R1 Report Format Version 4.0.0 Cancels and replaces the report No.: SA110126C19 dated Feb. 23, 2011 3 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 27.1 2 20 0.162 1.00

Report No.: RF110126C19 R1 1 Report Format Version 4.0.0 Cancels and replaces the report No.: RF110126C19 dated Feb. 23, 2011 FCC TEST REPORT REPORT NO.: RF110126C19 R1 MODEL NO.: WMIR-278GN FCC ID: RYK-WMIR278GN RECEIVED: Jan. 26, 2011 TESTED: Feb. 15 ~ Feb. 18, 2011 ISSUED: Mar. 01, 2011 APPLICANT: SparkLAN Communications, Inc. ADDRESS: 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 69 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: RF110126C19 R1 2 Report Format Version 4.0.0 Cancels and replaces the report No.: RF110126C19 dated Feb. 23, 2011 TABLE OF CONTENTS RELEASE CONTROL RECORD......................................................................................... 4 1. CERTIFICATION...................................................................................................... 5 2. SUMMARY OF TEST RESULTS ............................................................................. 6 2.1 MEASUREMENT UNCERTAINTY........................................................................... 6 3. GENERAL INFORMATION ...................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ........................................................................ 7 3.2 DESCRIPTION OF TEST MODES .......................................................................... 8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..................................................... 8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .......................... 9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 11 3.4 DESCRIPTION OF SUPPORT UNITS .................................................................. 11 4. TEST TYPES AND RESULTS ............................................................................... 12 4.1 RADIATED EMISSION MEASUREMENT ............................................................. 12 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT........................................... 12 4.1.2 TEST INSTRUMENTS........................................................................................... 13 4.1.3 TEST PROCEDURES ........................................................................................... 14 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 14 4.1.5 TEST SETUP......................................................................................................... 15 4.1.6 EUT OPERATING CONDITIONS .......................................................................... 15 4.1.7 TEST RESULTS .................................................................................................... 16 4.2 CONDUCTED EMISSION MEASUREMENT ........................................................ 29 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...................................... 29 4.2.2 TEST INSTRUMENTS........................................................................................... 29 4.2.3 TEST PROCEDURES ........................................................................................... 30 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 30 4.2.5 TEST SETUP......................................................................................................... 31 4.2.6 EUT OPERATING CONDITIONS .......................................................................... 31 4.2.7 TEST RESULTS .................................................................................................... 32 4.3 6dB BANDWIDTH MEASUREMENT..................................................................... 34 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................. 34 4.3.2 TEST INSTRUMENTS........................................................................................... 34 4.3.3 TEST PROCEDURE.............................................................................................. 34 4.3.4 DEVIATION FROM TEST STANDARD ................................................................. 34 4.3.5 TEST SETUP......................................................................................................... 35 4.3.6 EUT OPERATING CONDITIONS .......................................................................... 35 4.3.7 TEST RESULTS .................................................................................................... 36 4.4 MAXIMUM OUTPUT POWER ............................................................................... 40 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT................................ 40 4.4.2 INSTRUMENTS..................................................................................................... 40 4.4.3 TEST PROCEDURES ........................................................................................... 40 4.4.4 DEVIATION FROM TEST STANDARD ................................................................. 41 4.4.5 TEST SETUP......................................................................................................... 41 4.4.6 EUT OPERATING CONDITIONS .......................................................................... 41 4.4.7 TEST RESULTS ..........................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 3 RADIATED EMISSION TEST 4
