RYK-WPCR501Wireless-N Notebook Adapter

Wireless Network Cardbus Adapter User’s Guide Version 2.3 User’s Guide 1 Contents 1. Introduction ............................................................................................................... 2 2. Wireless LAN Basics................................................................................................. 3 3. Installation for Windows platform .............................................................................. 4 3.1. Installation Overview.............................................................................................. 4 3.2. Install Procedure for Windows ............................................................................... 5 3.3 Uninstall Procedure................................................................................................. 9 4. Configuration Utility................................................................................................. 10 4.1 Link Information .................................................................................................... 11 4.2 AP List................................................................................................................... 12 4.3 Profile Setting........................................................................................................ 14 4.4 About..................................................................................................................... 18 5. Appendix ................................................................................................................. 19 5.1 Use Wireless Zero configuration ........................................................................... 19 User’s Guide 2 1. Introduction Thank you for purchasing your Wireless LAN Adapter. This User’s Guide will assist you with the installation procedure. The package you have received should contain the following items: • Wireless LAN Cardbus Adapter • User’s Guide • Warranty Card Note: if anything is missing, please contact your vendor User’s Guide 3 2. Wireless LAN Basics Wireless LAN (Local Area Networks) systems offer a great number of advantages over a traditional, wired system. Wireless LANs (WLANs) are more flexible, easier to setup and manage and often more cost effective than their wired equivalence. Using radio frequency (RF) technology, WLANs transmit and receive data over the air, minimizing the need for wired connections. Therefore, WLANs combine data connectivity with user mobility, and, through simplified configuration, enable movable LANs. With wireless LANs, users can access shared information without looking for a place to plug in and network managers can set up or augment networks without installing or moving wires. Wireless LANs offer the following productivity, convenience and cost advantages over traditional wired networks: • Mobility - Wireless LAN systems can provide LAN users with access to real-time information anywhere in their organization. This mobility supports productivity and service opportunities not possible with wired networks. • Installation Speed and Simplicity - Installing a wireless LAN system can be fast and easy and can eliminate the need to pull cable through walls and ceilings. • Installation Flexibility - Wireless technology allows the network to go where wires cannot go. • Reduced Cost-of-Ownership - While the initial investment required for wireless LAN hardware might be higher than the cost of wired LAN hardware, overall installation expenses and life-cycle costs will be significantly lower. Long-term cost benefits are greatest in dynamic environments requiring frequent moves, adds, and changes. • Scalability - Wireless LAN systems can be configured in a variety of topologies to meet the needs of specific applications and installations. Configurations are easily changed and range from peer- to-peer to full infrastructure networks, also allow roaming over a broad area. User’s Guide 4 3. Installation for Windows platform The following section will assist you in installing wireless LAN Cardbus Adapter successfully. You will first install software (Utility) and then insert / attach the Wireless Cardbus LAN Adapter to your system, and finally set the network properties to accommodate resource sharing and select the type of wireless network that you wish to install. The Wireless LAN card can easily be installed and used, without bothering to connect cables for keeping your computer to use network resources. 3.1. Installation Overview Here are some steps you will perform in establishing your wireless network connection: z Install the Access Point at first. AP is needed in case of Infrastructure network mode. z Install the software using the Install CD. z Install the Wireless LAN Card. z Install the network protocol(s) required to communicate on your network. Most likely you will need the TCP/IP protocol. User’s Guide 5 3.2. Install Procedure for Windows 1. Insert the given Install CD in the CD-ROM, and wait for the Autorun prompt. If Autorun does not work, please browse the CD content and double click the “ Autorun.exe ”. 2. Click WPCR-501. 3. Follow the instruction to finish the installation. Note: Do not insert the WLAN Adapter until you are asked to do so, failure of which may result in unsuccessful installation of your WLAN device. User’s Guide 6 After complete the procedure, insert your WLAN card into PCMCIA slot of your system, and then system will detect new hardware. Select “Install the software automatically (Recommended) ”, and then click Next to continue. After copy the file to your system, then the setup is finish. 4. Click the right button of mouse on My Computer Æ Manage Æ Device Manager. Check whether it has WLAN adapter in one of the sockets or not. If you find Wireless 11n CardBus Adapter in one of the sockets, it means the card is detected properly. If you cannot find this adapter on device manager, please click the Action Æ Scan for hardware changes to search again. If t…

Text truncated - open the document above for the full version.

3Fl., No. 246, Sec. 1, Neihu Road., Neihu Chiu, Taipei Taiwan 114, R.O.C Phone: 02-2659-1880 FAX: 02-2659-5538 DECLARATION LETTER FCC ID: RYK-WPCR501 Date: Sep. 10, 2007 To whom it may concern: We, the undersigned, declare that the WPCR-501 ( FCC ID: RYK-WPCR501 ) doesn’t have“Ad Hoc on non-US frequencies＂ and/or “on DFS frequencies＂ Thank you. Sincerely, Mike Chen / CEO SparkLAN Communications, Inc. Tel: 02-2659-1880*100 Fax: 02-2659-5538 e-mail: [email protected] Web Site: http://www.sparklan.com

3Fl., No. 246, Sec. 1, Neihu Road., Neihu Chiu, Taipei Taiwan 114, R.O.C Phone: 02-2659-1880 FAX: 02-2659-5538 FCC ID: RYK-WPCR501 Date: Sep. 10, 2007 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Mike Chen / CEO SparkLAN Communications, Inc. Tel: 02-2659-1880*100 Fax: 02-2659-5538 e-mail: [email protected] Web Site: http://www.sparklan.com

3Fl., No. 246, Sec. 1, Neihu Road., Neihu Chiu, Taipei Taiwan 114, R.O.C Phone: 02-2659-1880 FAX: 02-2659-5538 AGENCY AUTHORIZATION LETTER FCC ID: RYK-WPCR501 Date: Sep. 10, 2007 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Mike Chen / CEO SparkLAN Communications, Inc. Tel: 02-2659-1880*100 Fax: 02-2659-5538 e-mail: [email protected] Web Site: http://www.sparklan.com

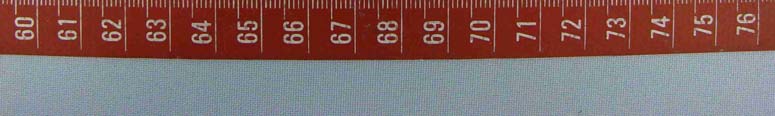

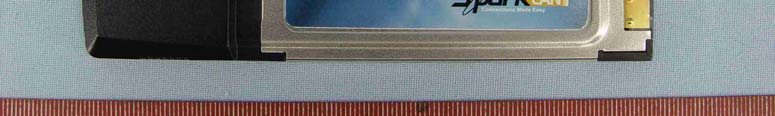

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 2

Page 3 Page 4

FCC ID: RYK-WPCR501 Report No.: RF951121L11B Operational Description This device is a Wireless-N Notebook Adapter, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is Printed Dipole antenna without connector. The other instruction, please have a look at the users manual.

Report no.: SA951121L11B 1 Report Format Version 2.0.6 Reference No.: 960903L09 SAR TEST REPORT REPORT NO.: SA951121L11B MODEL NO.: WPCR-501 RECEIVED: Nov. 21, 2006 TESTED: Feb. 26, 2007 ISSUED: Sep. 07, 2007 APPLICANT: SparkLAN Communications, Inc. ADDRESS: 3Fl., No. 246, Sec. 1, Neihu Road., Neihu Chiu, Taipei Taiwan 114, R.O.C ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 41 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report no.: SA951121L11B 2 Report Format Version 2.0.6 Reference No.: 960903L09 TABLE OF CONTENTS 1. CERTIFICATION...................................................................................................................... 3 2. GENERAL INFORMATION ...................................................................................................... 4 2.1 GENERAL DESCRIPTION OF EUT ........................................................................................ 4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS ......................................................... 5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ............................................................... 7 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ............................ 10 3. DESCRIPTION OF SUPPORT UNITS.................................................................................. 14 4. DESCRIPTION OF TEST MODES AND CONFIGURATIONS .............................................. 15 4.1. DESCRIPTION OF ANTENNA LOCATION ........................................................................... 15 4.2. DESCRIPTION OF ASSESSMENT POSITION..................................................................... 16 4.3. DESCRIPTION OF TEST MODE .......................................................................................... 17 4.4. SUMMARY OF TEST RESULTS ........................................................................................... 18 5. TEST RESULTS .................................................................................................................... 19 5.1 TEST PROCEDURES ...........................................................................................................19 5.2 MEASURED SAR RESULTS................................................................................................. 21 5.3 SAR LIMITS ........................................................................................................................... 25 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS .................................................................. 26 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY .................................................................... 28 6. SYSTEM VALIDATION .......................................................................................................... 29 6.1 TEST EQUIPMENT ............................................................................................................... 29 6.2 TEST PROCEDURE.............................................................................................................. 30 6.3 VALIDATION RESULTS......................................................................................................... 32 6.4 SYSTEM VALIDATION UNCERTAINTIES ............................................................................ 33 7. MEASUREMENT SAR PROCEDURE UNCERTAINTIES..................................................... 34 7.1. PROBE CALIBRATION UNCERTAINTY............................................................................... 34 7.2. ISOTROPY UNCERTAINTY.................................................................................................. 35 7.3. BOUNDARY EFFECT UNCERTAINTY................................................................................. 35 7.4. PROBE LINEARITY UNCERTAINTY .................................................................................... 36 7.5. READOUT ELECTRONICS UNCERTAINTY ........................................................................ 36 7.6. RESPONSE TIME UNCERTAINTY....................................................................................... 36 7.7. INTEGRATION TIME UNCERTAINTY .................................................................................. 37 7.8. PROBE POSITIONER MECHANICAL TOLERANCE ...........................................................38 7.9. PROBE POSITIONING.......................................................................................................... 38 7.10. PHANTOM UNCERTAINTY .................................................................................................. 39 7.11. DASY4 UNCERTAINTY BUDGET ........................................................................................ 40 8. INFORMATION ON THE TESTING LABORATORIES .......................................................... 41 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report no.: SA951121L11B 3 Report Format Version 2.0.6 Reference No.: 960903L09 1. CERTIFICATION PRODUCT: Wireless-N Notebook Adapter MODEL: WPCR-501 BRAND: SparkLAN APPLICANT: SparkLAN Communications, Inc. TESTED: Feb. 26, 2007 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093), RSS-102 FCC OET Bulletin 65, Supplement C (01-01) The above equipment (model: WPCR-501) have been tested by Advance Data Technology Corporation, and found compliance with the requirement of …

Text truncated - open the document above for the full version.

Report No.: RF951121L11B 1 Report Format Version 2.0.6 Reference No.: 960903L09 FCC TEST REPORT REPORT NO.: RF951121L11B MODEL NO.: WPCR-501 RECEIVED: Nov. 21, 2006 TESTED: Jan. 23 ~ Feb. 13, 2007 ISSUED: Sep. 07, 2007 APPLICANT: SparkLAN Communications, Inc. ADDRESS: 3Fl., No. 246, Sec. 1, Neihu Road., Neihu Chiu, Taipei Taiwan 114, R.O.C ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 104 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF951121L11B 2 Report Format Version 2.0.6 Reference No.: 960903L09 TABLE OF CONTENTS 1. CERTIFICATION ..................................................................................................................... 4 2. SUMMARY OF TEST RESULTS ............................................................................................ 5 2.1 MEASUREMENT UNCERTAINTY ......................................................................................... 5 3. GENERAL INFORMATION ..................................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT....................................................................................... 6 3.2 DESCRIPTION OF TEST MODES......................................................................................... 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST.................................................................... 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................................ 8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...................................................... 10 3.4 DESCRIPTION OF SUPPORT UNITS................................................................................. 10 4. TEST TYPES AND RESULTS .............................................................................................. 11 4.1 CONDUCTED EMISSION MEASUREMENT....................................................................... 11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.................................................... 11 4.1.2 TEST INSTRUMENTS .........................................................................................................11 4.1.3 TEST PROCEDURES ..........................................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD ................................................................................ 12 4.1.5 TEST SETUP........................................................................................................................ 13 4.1.6 EUT OPERATING CONDITIONS ......................................................................................... 13 4.1.7 TEST RESULTS ................................................................................................................... 14 4.2 RADIATED EMISSION MEASUREMENT ............................................................................ 32 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................... 32 4.2.2 TEST INSTRUMENTS .........................................................................................................33 4.2.3 TEST PROCEDURES ..........................................................................................................34 4.2.4 DEVIATION FROM TEST STANDARD ................................................................................ 34 4.2.5 TEST SETUP........................................................................................................................ 35 4.2.6 EUT OPERATING CONDITIONS ......................................................................................... 35 4.2.7 TEST RESULTS ................................................................................................................... 36 4.3 6dB BANDWIDTH MEASUREMENT ................................................................................... 51 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT................................................................. 51 4.3.2 TEST INSTRUMENTS .........................................................................................................51 4.3.3 TEST PROCEDURE............................................................................................................. 51 4.3.4 DEVIATION FROM TEST STANDARD ................................................................................ 51 4.3.5 TEST SETUP........................................................................................................................ 52 4.3.6 EUT OPERATING CONDITIONS ......................................................................................... 52 4.3.7 TEST RESULTS ................................................................................................................... 53 4.4 MAXIMUM PEAK OUTPUT POWER ................................................................................... 65 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................................... 65 4.4.2 INSTRUMENTS.................................................................................................................... 65 4.4.3 TEST PROCEDURES ..........................................................................................................65 Report No.: RF951121L11B 3 Report Format Version 2.0.6 Reference No.: 960903L09 4.4.4 DEVIATION FROM TEST STANDARD ..............................................................................…

Text truncated - open the document above for the full version.

Report No.: RF951121L11B 79 Report Format Version 2.0.6 Reference No.: 960903L09 DRAFT 802.11n (40MHz) OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 15.0Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25deg.C, 63% RH, 991hPa TESTED BY Long Chen RF POWER LEVEL IN 3kHz BW (mW) RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1CHAIN 0CHAIN 1 TOTAL POWER DENSITY (mW) TOTAL POWER DENSITY (dBm) MAX. LIMIT (dBm) PASS / FAIL 1 2422 0.009 0.009 -20.41 -20.60 0.018 -17.49 8 PASS 4 2437 0.010 0.009 -20.21 -20.32 0.019 -17.25 8 PASS 7 2452 0.009 0.009 -20.34 -20.59 0.018 -17.45 8 PASS FOR CHAIN 0: CH 1 Report No.: RF951121L11B 80 Report Format Version 2.0.6 Reference No.: 960903L09 CH 4 CH 7 Report No.: RF951121L11B 81 Report Format Version 2.0.6 Reference No.: 960903L09 FOR CHAIN 1: CH 1 CH 4 Report No.: RF951121L11B 82 Report Format Version 2.0.6 Reference No.: 960903L09 CH 7 Report No.: RF951121L11B 83 Report Format Version 2.0.6 Reference No.: 960903L09 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100kHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS For Single TX: DESCRIPTION & MANUFACTURER MODEL NO. SERIAL NO. CALIBRATED UNTIL R&S SPECTRUM ANALYZER FSP40 100040 Jun. 07, 2007 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. For Dual TX: DESCRIPTION & MANUFACTURER MODEL NO. SERIAL NO. CALIBRATED UNTIL Spectrum Analyzer FSP40 100269 Aug. 07, 2007 HORN Antenna BBHA 9120 D 9120D-563 Jul. 26, 2007 HORN Antenna BBHA 9170 BBHA9170242 Jan. 16, 2008 RF signal cable SUCOFLEX 104 218188/218189 Nov. 14, 2007 RF signal cable 8D-FB Cable-HYCH9-01 Mar. 08, 2007 Software ADT_Radiated_V7.6NA NA Antenna Tower 2070/2080 512.835.4684 NA Turn Table 2087-2.03 NA NA Antenna Tower &Turn Table Controller EMCO 2090 NA NA NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. Report No.: RF951121L11B 84 Report Format Version 2.0.6 Reference No.: 960903L09 4.6.3 TEST PROCEDURE For Single TX: The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 10Hz bandwidth from band edge. The band edges was measured and recorded. The spectrum plots (Peak RBW = VBW = 100kHz; Average RBW = 1MHz, VBW = 10Hz) are attached on the following pages. For Dual TX: a. The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 3 meter semi-anechoic chamber. The table was rotated 360 degrees to determine the position of the highest radiation. b. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. c. The antenna is a broadband antenna, and its height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. d. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters and the rotatable table was turned from 0 degrees to 360 degrees to find the maximum reading. e. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 100MHz bandwidth from band edge. The band edges was measured and recorded. The spectrum plots (Peak RBW = VBW = 100kHz; Average RBW = 1MHz, VBW = 10Hz) NOTE: The resolution bandwidth of test receiver/spectrum analyzer is 1 MHz and the video bandwidth is 10Hz for Average detection (AV) at frequency above 1GHz. 4.6.4 DEVIATION FROM TEST STANDARD No deviation Report No.: RF951121L11B 85 Report Format Version 2.0.6 Reference No.: 960903L09 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 4.6.6 TEST RESULTS The spectrum plots are attached on the following 24 images. D1 line indicates the highest level, and D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(d). 802.11b DSSS MODULATION: NOTE 1: The band edge emission plot of DSSS technique on the next page shows 49.46dBc between carrier maximum power and local maximum emission in restrict band (2.386080000GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 106.15dBuV/m (Peak), so the maximum field strength in restrict band is 106.15 – 49.46 = 56.69dBuV/m which is under 74dBuV/m limit. The band edge emission plot of DSSS technique on the next page shows 52.05dBc between carrier maximum power and local maximum emission in restrict band (2.386480000GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 101.63dBuV/m (Average), so the maximum field strength in restrict band is 101.63 – 52.05 = 49.58dBuV/m which is under 54dBuV/m limit. NOTE 2: The band edge emission plot of DSSS technique on the next second page shows 50.36dBc between carrier maximum power and local maximum emission in restrict band (2.488060000GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.7 is 106.36dBuV/m (Peak), so the maximum field strength in restrict band is 106.36 – 50.36= 56.00dBuV/m which is under 74dBuV/m limit. The band edge emission plot of DSSS technique on the next third page shows 53.69dBc between carrier maximum power and local maximum emission in restrict band (2.487660000GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.7 is 102.00dBuV/m (Average), so the maximum field strength in restrict band is 102.00 – 53.69 = 48.31dBuV/m which is under 54dBuV/m limit. Report No.: RF951121L11B 86 Report Format Version 2.0.6 Reference No.: 960903L09 Report No.: RF951121L11B 87 Report Format Version 2.0.6 Reference No.: 960903L09 Report …

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
