RYK-WPEA-121N802.11n, Dual Band, Wireless LAN PCI Express Half Mini Card

WPEA-121N (WPEA-121N/W) www.sparklan.com / [email protected] / +886-2-2659-1880 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ■ Chipset: Atheros AR9382 ■ Interface: Half Mini PCI Express ■ Wireless connection up to 300Mbps, 2T2R ■ Enhanced wireless security: 64/128-bits WEP, WPA, WPA2 ■ Support Windows 2000/ XP/ Vista/ Win 7, Linux Superior Performance with Longer Range SparkLAN WPEA-121N(WPEA-121N/W), embedded with Atheros AR9382 chipset, incorporated with Atheros XSPAN with Signal Sustain Technology (SST). It supports 2T2R (2 transmit 2 receive) MIMO technology, which delivers superior throughput up to 300Mbps and improves the overall Wi-Fi coverage area. Ideal for High-End Notebook The module adopts the latest 802.11n Dual-Band technology (2.4GHz and 5GHz). It targets enterprise and high-end consumer notebooks. The solution enables up to 6 times the throughput of 802.11a/g solutions. Industry-Leading Power Efficiency WPEA-121N(WPEA-121N/W), featuring Atheros’ highest level of 802.11n WLAN throughput, enables a high performance, cost effective, low power, and compact solution for developers to easily integrate with embedded computing platforms. Feature Mechanical Dimension Wireless-N Dual-Band Half Mini Card Highest Performance with Atheros AR9382 Solution, 2T2R Application ■ Notebook ■ Ultra Mobile PC ■ Networking Equipment ■ Digital Multimedia Device (Gaming Machine, HDTV) WPEA-121N (WPEA-121N/W) www.sparklan.com / [email protected] / +886-2-2659-1880 Specifications Ordering Info - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ■ WPEA-121N (WPEA-121N/W) Wireless-N Dual-Band Half Mini Card Standard 802.11a/b/g/n Chipset Mac/BB /RF Atheros AR9382 Host Interface Half Mini PCI Express Radio Antenna 2 x U.FL connectors, 2T2R Operating Frequency 802.11b/g/n ISM Band: 2.412 ~ 2.4835 GHz 802.11a ISM Band: 5.15 ~ 5.85 GHz Modulation 802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) Output Power (2T) 802.11a: 24.66dBm ± 1.5dBm 802.11b: 22.49dBm ± 1.5dBm 802.11g: 21.92dBm ± 1.5dBm 802.11gn HT20: 22.06dBm ± 1.5dBm@MCS15 802.11gn HT40: 20.77dBm ± 1.5dBm@MCS15 802.11an HT20: 24.86dBm ± 1.5dBm@MCS15 802.11an HT40: 24.63dBm ± 1.5dBm@MCS15 Receive Sensitivity (2R) 802.11a: -76dBm ±2dBm@54Mbps 802.11b: -85dBm ±2dBm@11Mbps 802.11g: -76dBm ±2dBm@54Mbps 802.11gn HT20: -75dBm ±2dBm@MCS7 802.11gn HT40: -71dBm ±2dBm@MCS7 802.11an HT20: -71dBm ±2dBm@MCS7 802.11an HT40: -71dBm ±2dBm@MCS7 Power consumption Continue TX Max 600mA Continue RX Max 240mA Operating Voltage DC 3.3 V ±10% I/O supply voltage Environmental Temperature Range 0 ~ 75°C (Operating) -40~85°C (Storing) Humidity (non-condensing) 5 ~ 90% (Operating) 5 ~ 95% (Storing) Physical Specification Dimensions 26.8 mm x 30 mm x 3.8mm Weight ≦9g Software Driver Windows 2000/ XP/ Vista/ Win 7, Linux Security 64/128-bits WEP, WPA, WPA2 Related Product ■ WPEA-111N 802.11a/b/g/n Half Mini Card WPEA-121N (WPEA-121N/W) www.sparklan.com / [email protected] / +886-2-2659-1880 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are desig ned to provi de reasonable protection against harmf ul interference in a residenti al installation. This equipment generates, uses and can ra diate radio frequency energy and, if not inst alled and used in accordance with the instructions, ma y ca use harmful int erference to radi o commun ications. Ho wever, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device co mplies with Part 15 of the F CC Rules/ Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device m ay not cause harmful interference, and (2) this d evice must accept any interference received, including interference that may cause undesired operation. This device is restricted to indoor use when operated in the 5.15 to 5.25 GHz frequency range. FCC/IC Radiation Exposure Statement: This equipment complies with FCC/ IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FCC LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: RYK-WPEA-121N ". The FCC part 15.19 statement below has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. IC LABEL OF THE END PRODUCT: This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna an…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 1 Rev 2.0 SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw 7/22/2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SPORTON International Inc. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: 802.11n,Dual Band, Wireless LAN PCI Express Half Mini Card Model Number: WPEA-121N FCC ID: RYK-WPEA-121N We affirm that between SIEMIC and SPORTON International Inc., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature: Name / title: Wayne Hsu / Vice Manager Contact information / address: No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. / Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw

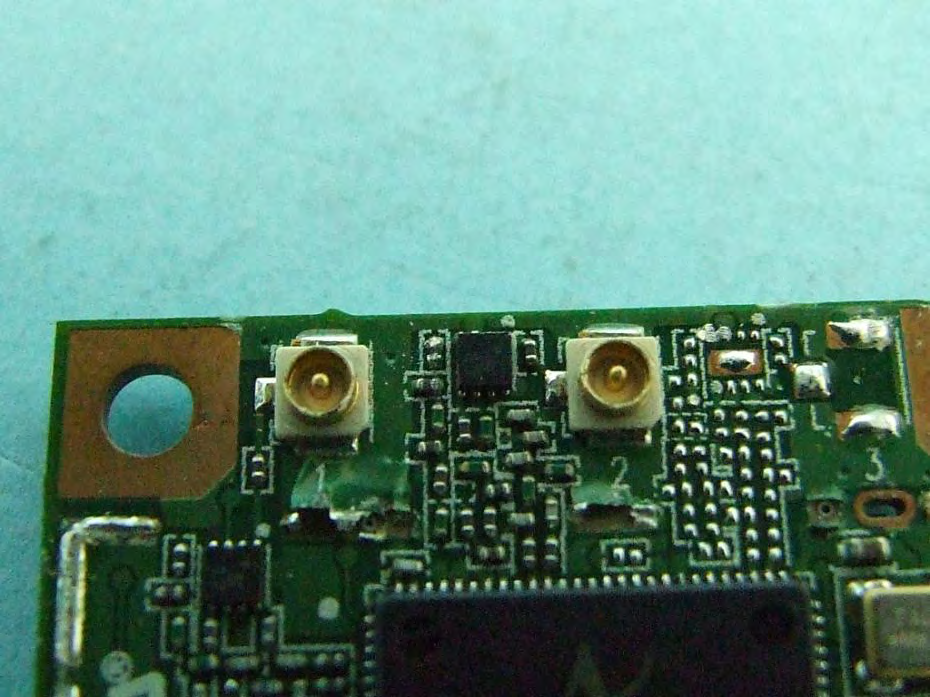

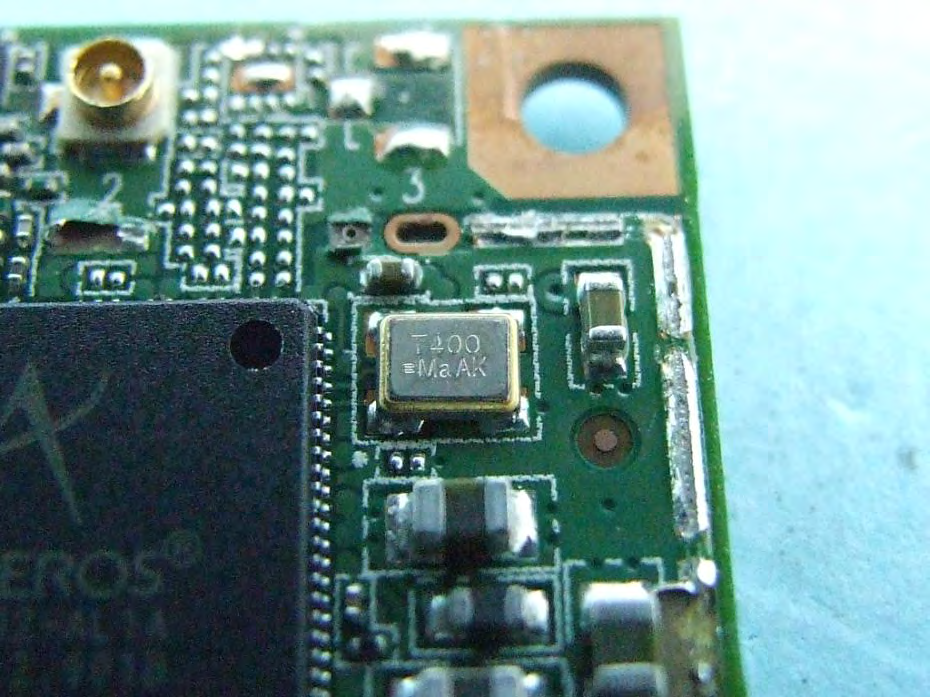

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2011 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2011 FAX : 886-2-2696-2255

Front label Back label MAC:000E8EXXXXX Model No.:WPEA-121N/W AR5BHB116 FCC ID:RYK-WPEA-121N IC:6158A-WPEA121NW SN:XXXXXXXXXXXX xxxxxxxxxxxxxxx xxxxxxxxxxxxxxx xxxxxxxxxxxxxxx Label location

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2011 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2011 FAX : 886-2-2696-2255

Page No. : A1 of A3 FCC ID : RYK-WPEA-121N F FCC TEST REPORT Report No. : FR131667-01AN Appendix A. Maximum Permissible Exposure Page No. : A2 of A3 FCC ID : RYK-WPEA-121N F FCC TEST REPORT Report No. : FR131667-01AN 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Page No. : A3 of A3 FCC ID : RYK-WPEA-121N F FCC TEST REPORT Report No. : FR131667-01AN 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11a port A: 17.65dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 2 1.584893 17.65 58.2103 0.0184 Max Conducted Power for IEEE 802.11a port B: 16.99dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 2 1.584893 16.99 50.0035 0.0158 IEEE 802.11a port A + port B Power Density = 0.0184 + 0.0158 = 0.0342 (mW/cm2) Max Conducted Power for IEEE 802.11n (20MHz) port A: 15.89dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 2 1.584893 15.89 38.8150 0.0122 Max Conducted Power for IEEE 802.11n (20MHz) port B: 16.65dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 2 1.584893 16.65 46.2381 0.0146 IEEE 802.11 n (20MHz) port A + port B Power Density = 0.0122 + 0.0146 = 0.0268 (mW/cm2) Max Conducted Power for IEEE 802.11n (40MHz) port A: 16.89dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 2 1.584893 16.89 48.8652 0.0154 Max Conducted Power for IEEE 802.11n (40MHz) port B: 15.98dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 2 1.584893 15.98 39.6278 0.0125 IEEE 802.11n port A + port B Power Density = 0.0154 + 0.0125 = 0.0279 (mW/cm2)

SPORTON International Inc. Report Format Version: a FCC/IC TEST REPORT Report No. : FZ131667-01 Dynamic Frequency Selection Test Report Equipment : 802.11n,Dual Band, Wireless LAN PCI Express Half Mini Card Model No. : WPEA-121N / WPEA-121N/W Brand Name : Sparklan Filing Type : New Application Applicant Manufacturer : SparkLAN Communications, Inc 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan. FCC ID : RYK-WPEA-121N IC ID : 6158A-WPEA121NW Test Standard(s) : 47 CFR FCC Part 15 Subpart E § 15.407 IC RSS-210 Section 6.2.2(q1) Test Freq. Range : 5250~5350 MHz / 5470~5725 MHz Received Date : Apr. 01, 2011 Final Test Date : Apr. 01, 2011 Submission Type : Original Equipment Operating Mode : Client (without radar detection function) Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in FCC OET Order 06-96A (2006) and 47 CFR FCC Part 15 Subpart E § 15.407 / IC RSS-210 Annex 9. The test equipment used to perform the test is calibrated and traceable to NML/ROC. ____________________________ Wayne Hsu / Vice Manager Reviewed Data: Dec. 31, 2005 SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Jul. 22, 2011 FAX : 886-2-2696-2255 FCC/IC TEST REPORT Report No. : FZ131667-01 Table of Contents 1 SUMMARY OF THE TEST RESULT ....................................................................................................................... 1 2 GENERAL INFORMATION ...................................................................................................................................... 2 2.1 Standard Requirement .............................................................................................................................................................................2 2.2 Product Specification Table .....................................................................................................................................................................2 2.3 Table for DFS Band Carrier Frequencies ................................................................................................................................................2 3 DFS DETECTION THRESHOLDS AND RADAR TEST WAVEFORMS ................................................................. 3 3.1 Interference Threshold values, Master or Client incorporating In-Service Monitoring .............................................................................3 3.2 DFS Response requirement values .........................................................................................................................................................3 3.3 Radar Test Waveforms Minimum Step ....................................................................................................................................................3 3.4 Short Pulse Radar Test Waveforms ........................................................................................................................................................4 3.5 Long Pulse Radar Test Waveform ...........................................................................................................................................................5 3.6 Frequency Hopping Radar Test Waveform .............................................................................................................................................8 3.7 Conducted Calibration Setup .................................................................................................................................................................10 3.8 Radar Waveform Calibration Procedure ................................................................................................................................................10 3.9 Calibration Deviation ..............................................................................................................................................................................10 4 TEST SETUP AND TEST RESULT ....................................................................................................................... 11 4.1 Test setup ..............................................................................................................................................................................................11 4.2 In-Service Monitoring for Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period Measurement ......26 4.3 Result of Channel Move Time & Channel Closing Transmission Time & Non-Occupancy Period ........................................................27 5 MEASURING INSTRUMENTS ............................................................................................................................... 44 SPORTON International Inc. Page No. : ii of ii TEL : 886-2-2696-2468 Issued Date : Jul. 22, 2011 FAX : 886-2-2696-2255 FCC/IC TEST REPORT Report No. : FZ131667-01 History of This Test Report Original Issue Date: Jul. 22, 2011 Report No.: FZ131667-01 □ No additional attachment. ■ Additional attachment were issued as following record: Attachment No. Issue Date Description FZ131667 May 02, 2011 Original. FZ131667-01 Jul. 22, 2011 Additional original filing power. SPORTON International Inc. Page No. : 1 of 44 TEL : 886-2-2696-2468 Issued Date : Jul. 22, 2011 FAX : 886-2-2696-2255 FCC/IC TEST REPORT Report No. : FZ131667-01 1 SUMMARY OF THE TEST RESULT Applied Standard: FCC OET Order 06-96A (2006) Part Appendix Description of Test Result 4.2 7.8.3 In-Service Monitoring for Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period Complies Note: Client without radar detection SPORTON Internat…

Text truncated - open the document above for the full version.

SPORTON International Inc. Report Format Version: b F FCC TEST REPORT Report No. : FR131667-01AN FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart E § 15.407 Equipment : 802.11n,Dual Band, Wireless LAN PCI Express Half Mini Card Model No. : WPEA-121N Brand Name : Sparklan Filing Type : New Application Applicant Manufacturer : SparkLAN Communications, Inc 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan. FCC ID : RYK-WPEA-121N Received Date : Mar. 22, 2011 Final Test Date : Jun. 09, 2011 Statement Test result included is only for the 802.11a/n (5150~5350MHz; 5470~5725MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Jun. 29, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA-121N F FCC TEST REPORT Report No. : FR131667-01AN Table of Contents 1 SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2 GENERAL INFORMATION ...................................................................................................................................... 3 2.1 Product Details .........................................................................................................................................................................................3 2.2 Table for Filed Antenna ............................................................................................................................................................................3 2.3 Table for Carrier Frequencies ..................................................................................................................................................................5 2.4 Table for Test Modes ...............................................................................................................................................................................6 2.5 Table for Testing Locations ......................................................................................................................................................................6 2.6 Table for Supporting Units .......................................................................................................................................................................6 2.7 Table for Parameters of Test Software Setting ........................................................................................................................................7 2.8 EUT Operation during Test ......................................................................................................................................................................7 2.9 Test Configuration ....................................................................................................................................................................................8 3 TEST RESULT ......................................................................................................................................................... 9 3.1 AC Power Line Conducted Emissions Measurement ..............................................................................................................................9 3.2 99% Occupied Bandwidth Measurement ...............................................................................................................................................13 3.3 Maximum Conducted Output Power Measurement ...............................................................................................................................45 3.4 Power Spectral Density Measurement ...................................................................................................................................................49 3.5 Peak Excursion Measurement ...............................................................................................................................................................81 3.6 Radiated Emissions Measurement ......................................................................................................................................................112 3.7 Band Edge and Fundamental Emissions Measurement ......................................................................................................................168 3.8 Frequency Stability Measurement .......................................................................................................................................................178 3.9 Antenna Requirements ........................................................................................................................................................................181 4 LIST OF MEASURING EQUIPMENTS ................................................................................................................ 182 5 TEST LOCATION ................................................................................................................................................. 184 6 TAF CERTIFICATE OF ACCREDITATION ......................................................................................................... 185 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE ................................................................................. A1 ~ A3 APPENDIX …

Text truncated - open the document above for the full version.

SPORTON International Inc. Page No. : 98 of 185 TEL : 886-2-2696-2468 Issued Date : Jun. 29, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA-121N F FCC TEST REPORT Report No. : FR131667-01AN Peak Excursion Plot on Configuration IEEE 802.11n (20MHz) Ant. A / 5700 MHz Ref 20 dBmAtt 30 dB ** Offset 2.3 dB A LVL Center5.7 GHzSpan40 MHz4 MHz/ * RBW 1 MHz SWT 100 ms 1 PK VIEW * 3DB VBW 300 kHz * *2 RM VIEW -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] 10.68 dBm 5.704240000 GHz 2 Delta 2 [T2 ] -7.21 dB -11.600000000 MHz Date: 1.JUN.2011 10:04:51 SPORTON International Inc. Page No. : 99 of 185 TEL : 886-2-2696-2468 Issued Date : Jun. 29, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA-121N F FCC TEST REPORT Report No. : FR131667-01AN Peak Excursion Plot on Configuration IEEE 802.11n (20MHz) Ant. B / 5180 MHz Ref 20 dBm 1.84 MHz Att 30 dB 1.84 MHz RBW 1 MHz 1.84 MHz * 1.84 MHz * 1.84 MHz Offset 2.3 dB 1.84 MHz Center5.18 GHz 1.84 MHz Span40 MHz 1.84 MHz 4 MHz/ 1.84 MHz A 1.84 MHz LVL 1.84 MHz SWT 100 ms 1.84 MHz 1 PK 1.84 MHz VIEW 1.84 MHz * 1.84 MHzVBW 300 kHz 1.84 MHz * 1.84 MHz * 1.84 MHz 2 RM 1.84 MHz VIEW 1.84 MHz 1.84 MHz 1.84 MHz 1.84 MHz 1.84 MHz 1.84 MHz 1.84 MHz 1.84 MHz 1.84 MHz 1.84 MHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1.84 MHz 1 Marker 1 [T1 ] 3.53 dBm 5.184640000 GHz 2 Delta 2 [T2 ] -7.34 dB 1.840000000 MHz DELTA MARKER 2 1.84 MHz Date: 1.MAY.2011 11:11:46 Peak Excursion Plot on Configuration IEEE 802.11n (20MHz) Ant. B / 5200 MHz Ref 20 dBm 12.64 MHz Att 30 dB 12.64 MHz * 12.64 MHz Offset 2.3 dB 12.64 MHz A 12.64 MHz LVL 12.64 MHz Center5.2 GHz 12.64 MHz Span40 MHz 12.64 MHz 4 MHz/ 12.64 MHz * 12.64 MHz RBW 1 MHz 12.64 MHz SWT 100 ms 12.64 MHz 1 PK 12.64 MHz VIEW 12.64 MHz * 12.64 MHzVBW 300 kHz 12.64 MHz * 12.64 MHz * 12.64 MHz 2 RM 12.64 MHz VIEW 12.64 MHz 12.64 MHz 12.64 MHz 12.64 MHz 12.64 MHz 12.64 MHz 12.64 MHz 12.64 MHz 12.64 MHz 12.64 MHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 12.64 MHz 1 Marker 1 [T1 ] 4.30 dBm 5.193200000 GHz 2 Delta 2 [T2 ] -7.11 dB 12.640000000 MHz DELTA MARKER 2 12.64 MHz Date: 1.MAY.2011 11:16:54 SPORTON International Inc. Page No. : 100 of 185 TEL : 886-2-2696-2468 Issued Date : Jun. 29, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA-121N F FCC TEST REPORT Report No. : FR131667-01AN Peak Excursion Plot on Configuration IEEE 802.11n (20MHz) Ant. B / 5240 MHz Ref 20 dBm -1.04 MHz Att 30 dB -1.04 MHz * -1.04 MHz Offset 2.3 dB -1.04 MHz A -1.04 MHz LVL -1.04 MHz Center5.24 GHz -1.04 MHz Span40 MHz -1.04 MHz 4 MHz/ -1.04 MHz * -1.04 MHz RBW 1 MHz -1.04 MHz SWT 100 ms -1.04 MHz 1 PK -1.04 MHz VIEW -1.04 MHz * -1.04 MHzVBW 300 kHz-1.04 MHz * -1.04 MHz * -1.04 MHz 2 RM -1.04 MHz VIEW -1.04 MHz-1.04 MHz-1.04 MHz-1.04 MHz-1.04 MHz-1.04 MHz-1.04 MHz-1.04 MHz-1.04 MHz-1.04 MHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 -1.04 MHz 1 Marker 1 [T1 ] 6.00 dBm 5.247440000 GHz 2 Delta 2 [T2 ] -7.74 dB -1.040000000 MHz DELTA MARKER 2 -1.04 MHz Date: 1.MAY.2011 11:59:37 Peak Excursion Plot on Configuration IEEE 802.11n (20MHz) Ant. B / 5260 MHz Ref 20 dBm 1.12 MHz Att 30 dB 1.12 MHz * 1.12 MHz Offset 2.3 dB 1.12 MHz A 1.12 MHz LVL 1.12 MHz Center5.26 GHz 1.12 MHz Span40 MHz 1.12 MHz 4 MHz/ 1.12 MHz * 1.12 MHz RBW 1 MHz 1.12 MHz SWT 100 ms 1.12 MHz 1 PK 1.12 MHz VIEW 1.12 MHz * 1.12 MHzVBW 300 kHz 1.12 MHz * 1.12 MHz * 1.12 MHz 2 RM 1.12 MHz VIEW 1.12 MHz 1.12 MHz 1.12 MHz 1.12 MHz 1.12 MHz 1.12 MHz 1.12 MHz 1.12 MHz 1.12 MHz 1.12 MHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1.12 MHz 1 Marker 1 [T1 ] 10.39 dBm 5.264880000 GHz 2 Delta 2 [T2 ] -6.83 dB 1.120000000 MHz DELTA MARKER 2 1.12 MHz Date: 1.MAY.2011 12:50:20 SPORTON International Inc. Page No. : 101 of 185 TEL : 886-2-2696-2468 Issued Date : Jun. 29, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA-121N F FCC TEST REPORT Report No. : FR131667-01AN Peak Excursion Plot on Configuration IEEE 802.11n (20MHz) Ant. B / 5280 MHz Ref 20 dBm 12.64 MHz Att 30 dB 12.64 MHz * 12.64 MHz Offset 2.3 dB 12.64 MHz A 12.64 MHz LVL 12.64 MHz Center5.28 GHz 12.64 MHz Span40 MHz 12.64 MHz 4 MHz/ 12.64 MHz * 12.64 MHz RBW 1 MHz 12.64 MHz SWT 100 ms 12.64 MHz 1 PK 12.64 MHz VIEW 12.64 MHz * 12.64 MHzVBW 300 kHz 12.64 MHz * 12.64 MHz * 12.64 MHz 2 RM 12.64 MHz VIEW 12.64 MHz 12.64 MHz 12.64 MHz 12.64 MHz 12.64 MHz 12.64 MHz 12.64 MHz 12.64 MHz 12.64 MHz 12.64 MHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 12.64 MHz 1 Marker 1 [T1 ] 11.42 dBm 5.273280000 GHz 2 Delta 2 [T2 ] -7.28 dB 12.640000000 MHz DELTA MARKER 2 12.64 MHz Date: 1.MAY.2011 12:53:19 Peak Excursion Plot on Configuration IEEE 802.11n (20MHz) Ant. B / 5320 MHz Ref 20 dBm 1.92 MHz Att 30 dB 1.92 MHz * 1.92 MHz Offset 2.3 dB 1.92 MHz A 1.92 MHz LVL 1.92 MHz Center5.32 GHz 1.92 MHz Span40 MHz 1.92 MHz 4 MHz/ 1.92 MHz * 1.92 MHz RBW 1 MHz 1.92 MHz SWT 100 ms 1.92 MHz 1 PK 1.92 MHz VIEW 1.92 MHz * 1.92 MHzVBW 300 kHz 1.92 MHz * 1.92 MHz * 1.92 MHz 2 RM 1.92 MHz VIEW 1.92 MHz 1.92 MHz 1.92 MHz 1.92 MHz 1.92 MHz 1.92 MHz 1.92 MHz 1.92 MHz 1.92 MHz 1.92 MHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1.92 MHz 1 Marker 1 [T1 ] 10.71 dBm 5.323760000 GHz 2 Delta 2 [T2 ] -7.36 dB 1.920000000 MHz DELTA MARKER 2 1.92 MHz Date: 1.MAY.2011 12:57:19 SPORTON International Inc. Page No. : 102 of 185 TEL : 886-2-2696-2468 Issued Date : Jun. 29, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA-121N F FCC TEST REPORT Report No. : FR131667-01AN Peak Ex…
