RYK-WPEA121N802.11n, Dual Band, Wireless LAN PCI Express Half Mini Card

WPEA-121N www.sparklan.com / [email protected] / +886-2-2659-1880 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ■ Chipset: Atheros AR9382 ■ Interface: Half Mini PCI Express ■ Wireless connection up to 300Mbps, 2T2R ■ Enhanced wireless security: 64/128-bits WEP, WPA, WPA2 ■ Support Windows 2000/ XP/ Vista/ Win 7, Linux Superior Performance with Longer Range SparkLAN WPEA-121N, embedded with Atheros AR9382 chipset, incorporated with Atheros XSPAN with Signal Sustain Technology (SST). It supports 2T2R (2 transmit 2 receive) MIMO technology, which delivers superior throughput up to 300Mbps and improves the overall Wi-Fi coverage area. Ideal for High-End Notebook The module adopts the latest 802.11n Dual-Band technology (2.4GHz and 5GHz). It targets enterprise and high-end consumer notebooks. The solution enables up to 6 times the throughput of 802.11a/g solutions. Industry-Leading Power Efficiency WPEA-121N, featuring Atheros’ highest level of 802.11n WLAN throughput, enables a high performance, cost effective, low power, and compact solution for developers to easily integrate with embedded computing platforms. Feature Mechanical Dimension Wireless-N Dual-Band Half Mini Card Highest Performance with Atheros AR9382 Solution, 2T2R Application ■ Notebook ■ Ultra Mobile PC ■ Networking Equipment ■ Digital Multimedia Device (Gaming Machine, HDTV) WPEA-121N www.sparklan.com / [email protected] / +886-2-2659-1880 Specifications Ordering Info - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ■ WPEA-121N Wireless-N Dual-Band Half Mini Card Standard 802.11a/b/g/n Chipset Mac/BB /RF Atheros AR9382 Host Interface Half Mini PCI Express Radio Antenna 2 x U.FL connectors, 2T2R Operating Frequency 802.11b/g/n ISM Band: 2.412 ~ 2.4835 GHz 802.11a ISM Band: 5.15 ~ 5.85 GHz Modulation 802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) Output Power (2T) 802.11a: 24.66dBm ± 1.5dBm 802.11b: 22.49dBm ± 1.5dBm 802.11g: 21.92dBm ± 1.5dBm 802.11gn HT20: 22.06dBm ± 1.5dBm@MCS15 802.11gn HT40: 20.77dBm ± 1.5dBm@MCS15 802.11an HT20: 24.86dBm ± 1.5dBm@MCS15 802.11an HT40: 24.63dBm ± 1.5dBm@MCS15 Receive Sensitivity (2R) 802.11a: -76dBm ±2dBm@54Mbps 802.11b: -85dBm ±2dBm@11Mbps 802.11g: -76dBm ±2dBm@54Mbps 802.11gn HT20: -75dBm ±2dBm@MCS7 802.11gn HT40: -71dBm ±2dBm@MCS7 802.11an HT20: -71dBm ±2dBm@MCS7 802.11an HT40: -71dBm ±2dBm@MCS7 Power consumption Continue TX Max 600mA Continue RX Max 240mA Operating Voltage DC 3.3 V ±10% I/O supply voltage Environmental Temperature Range 0 ~ 75°C (Operating) -40~85°C (Storing) Humidity (non-condensing) 5 ~ 90% (Operating) 5 ~ 95% (Storing) Physical Specification Dimensions 26.8 mm x 30 mm x 3.8mm Weight ≦9g Software Driver Windows 2000/ XP/ Vista/ Win 7, Linux Security 64/128-bits WEP, WPA, WPA2 Related Product ■ WPEA-111N 802.11a/b/g/n Half Mini Card WPEA-121N www.sparklan.com / [email protected] / +886-2-2659-1880 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules/ Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device is restricted to indoor use when operated in the 5.15 to 5.25 GHz frequency range. FCC/IC Radiation Exposure Statement: This equipment complies with FCC/ IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FCC LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: RYK-WPEA121N ". The FCC part 15.19 statement below has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. IC LABEL OF THE END PRODUCT: This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains tran…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 1 Rev 2.0 SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw 4/27/2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SPORTON International Inc. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: 802.11n, Dual Band, Wireless LAN PCI Express Half Mini Card Model Number: WPEA-121N FCC ID: RYK-WPEA121N We affirm that between SIEMIC and SPORTON International Inc., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature: Name / title: Wayne Hsu / Vice Manager Contact information / address: No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. / Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw

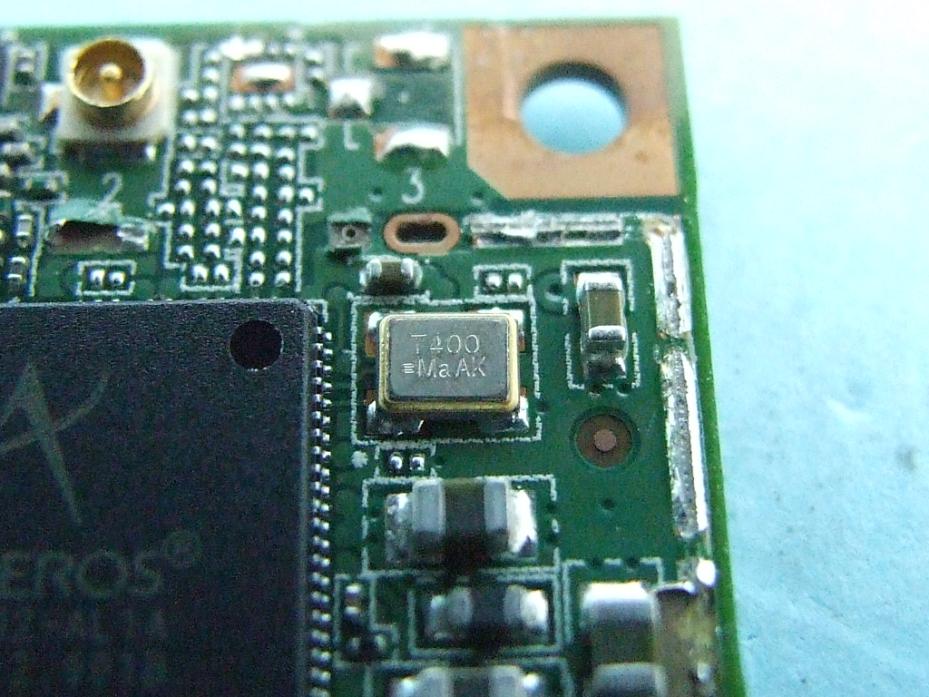

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255

MAC:000E8EXXXXX Model No.:WPEA-121N/W AR5BHB116 FCC ID:RYK-WPEA121N IC:6158A-WPEA121N SN:XXXXXXXXXXXX Label location

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 22, 2011 FAX : 886-2-2696-2255

Page No. : A1 of A3 FCC ID : RYK-WPEA121N F FCC TEST REPORT Report No. : FR131667AN Appendix A. Maximum Permissible Exposure Page No. : A2 of A3 FCC ID : RYK-WPEA121N F FCC TEST REPORT Report No. : FR131667AN 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Page No. : A3 of A3 FCC ID : RYK-WPEA121N F FCC TEST REPORT Report No. : FR131667AN 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11a port A: 17.65dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 2 1.584893 17.65 58.2103 0.0184 Max Conducted Power for IEEE 802.11a port B: 15.98dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 2 1.584893 15.98 39.6278 0.0125 IEEE 802.11a port A + port B Power Density = 0.0184 + 0.0125 = 0.0309 (mW/cm2) Max Conducted Power for IEEE 802.11n (20MHz) port A: 10.96dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 2 1.584893 10.96 12.4738 0.0039 Max Conducted Power for IEEE 802.11n (20MHz) port B: 13.84dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 2 1.584893 13.84 24.2103 0.0076 IEEE 802.11 n (20MHz) port A + port B Power Density = 0.0039 + 0.0076 = 0.0115 (mW/cm2) Max Conducted Power for IEEE 802.11n (40MHz) port A: 11.52dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 2 1.584893 11.52 14.1906 0.0045 Max Conducted Power for IEEE 802.11n (40MHz) port B: 15.64dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 2 1.584893 15.64 36.6438 0.0116 IEEE 802.11n port A + port B Power Density = 0.0045 + 0.0116 = 0.0161 (mW/cm2)

SPORTON International Inc. Report Format Version: b FCC TEST REPORT Report No. : FR131667AN FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart E i 15.407 Equipment: 802.11n,Dual Band, Wireless LAN PCI Express Half Mini Card Model No. : WPEA-121N Brand Name : Sparklan Filin g Type : New Application Applicant Manufacturer : SparkLAN Communications, Inc 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei Cit y 11493, Taiwan. FCC ID : RYK-WPEA121N Received Date : Mar. 19, 2011 Final Test Date : May 01, 2011 Statement Test result included is only for the 802.11a/n (5150~5350MHz; 5470~5725MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Table of Contents 1 SUMMARY OF THE TEST RESULT .......................................................................................................................2 2 GENERAL INFORMATION ......................................................................................................................................3 2.1 Product Details .........................................................................................................................................................................................3 2.2 Table for Filed Antenna ............................................................................................................................................................................3 2.3 Table for Carrier Frequencies ..................................................................................................................................................................5 2.4 Table for Test Modes ...............................................................................................................................................................................6 2.5 Table for Testing Locations ......................................................................................................................................................................6 2.6 Table for Supporting Units .......................................................................................................................................................................6 2.7 Table for Parameters of Test Software Setting ........................................................................................................................................7 2.8 EUT Operation during Test ......................................................................................................................................................................7 2.9 Test Configuration ....................................................................................................................................................................................8 3 TEST RESULT .........................................................................................................................................................9 3.1 AC Power Line Conducted Emissions Measurement ..............................................................................................................................9 3.2 99% Occupied Bandwidth Measurement ...............................................................................................................................................13 3.3 Maximum Conducted Output Power Measurement ...............................................................................................................................45 3.4 Power Spectral Density Measurement ...................................................................................................................................................49 3.5 Peak Excursion Measurement ...............................................................................................................................................................81 3.6 Radiated Emissions Measurement ......................................................................................................................................................112 3.7 Band Edge and Fundamental Emissions Measurement ......................................................................................................................168 3.8 Frequency Stability Measurement .......................................................................................................................................................178 3.9 Antenna Requirements ........................................................................................................................................................................181 4 LIST OF MEASURING EQUIPMENTS ................................................................................................................182 5 TEST LOCATION .................................................................................................................................................184 6 TAF CERTIFICATE OF ACCREDITATION .........................................................................................................185 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE ................................................................................. A1 ~ A3 APPENDIX B. TEST PHOTOS ....…

Text truncated - open the document above for the full version.

SPORTON International Inc. Page No. : 125 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Vertical SPORTON International Inc. Page No. : 126 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Final Test Date Mar. 24, 2011 Test Site No. 03CH02-HY Temperature 23ɗ Humidity 51.5% Test Engineer Daniel Configuration 802.11a Ch. 56 Horizontal SPORTON International Inc. Page No. : 127 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Vertical SPORTON International Inc. Page No. : 128 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Final Test Date Mar. 24, 2011 Test Site No. 03CH02-HY Temperature 23ɗ Humidity 51.5% Test Engineer Daniel Configuration 802.11a Ch. 64 Horizontal SPORTON International Inc. Page No. : 129 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Vertical SPORTON International Inc. Page No. : 130 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Final Test Date Mar. 24, 2011 Test Site No. 03CH02-HY Temperature 23ɗ Humidity 51.5% Test Engineer Daniel Configuration 802.11a Ch. 100 Horizontal SPORTON International Inc. Page No. : 131 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Vertical SPORTON International Inc. Page No. : 132 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Final Test Date Mar. 24, 2011 Test Site No. 03CH02-HY Temperature 23ɗ Humidity 51.5% Test Engineer Daniel Configuration 802.11a Ch. 116 Horizontal SPORTON International Inc. Page No. : 133 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Vertical SPORTON International Inc. Page No. : 134 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Final Test Date Mar. 24, 2011 Test Site No. 03CH02-HY Temperature 23ɗ Humidity 51.5% Test Engineer Daniel Configuration 802.11a Ch. 140 Horizontal SPORTON International Inc. Page No. : 135 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Vertical SPORTON International Inc. Page No. : 136 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Final Test Date Mar. 23, 2011 Test Site No. 03CH02-HY Temperature 23ɗ Humidity 51.5% Test Engineer Daniel Configuration 802.11n Ch. 36 (20MHz) Horizontal SPORTON International Inc. Page No. : 137 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Vertical SPORTON International Inc. Page No. : 138 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Final Test Date Mar. 22, 2011 Test Site No. 03CH02-HY Temperature 23ɗ Humidity 51.5% Test Engineer Daniel Configuration 802.11n Ch. 40 (20MHz) Horizontal SPORTON International Inc. Page No. : 139 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Vertical SPORTON International Inc. Page No. : 140 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Final Test Date Mar. 22, 2011 Test Site No. 03CH02-HY Temperature 23ɗ Humidity 51.5% Test Engineer Daniel Configuration 802.11n Ch. 48 (20MHz) Horizontal SPORTON International Inc. Page No. : 141 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Vertical SPORTON International Inc. Page No. : 142 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Final Test Date Mar. 22, 2011 Test Site No. 03CH02-HY Temperature 23ɗ Humidity 51.5% Test Engineer Daniel Configuration 802.11n Ch. 52 (20MHz) Horizontal SPORTON International Inc. Page No. : 143 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Vertical SPORTON International Inc. Page No. : 144 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Final Test Date Mar. 22, 2011 Test Site No. 03CH02-HY Temperature 23ɗ Humidity 51.5% Test Engineer Daniel Configuration 802.11n Ch. 56 (20MHz) Horizontal SPORTON International Inc. Page No. : 145 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Vertical SPORTON International Inc. Page No. : 146 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Final Test Date Mar. 22 2011 Test Site No. 03CH02-HY Temperature 23ɗ Humidity 51.5% Test Engineer Daniel Configuration 802.11n Ch. 64 (20MHz) Horizontal SPORTON International Inc. Page No. : 147 of 185 TEL : 886-2-2696-2468 Issued Date : May 02, 2011 FAX : 886-2-2696-2255 FCC ID : RYK-WPEA121N FCC TEST REPORT Report No. : FR131667AN Vertical SPORTON International Inc. Page No. : 148 of 185 T…

Text truncated - open the document above for the full version.

Page No. : B1 of B7 FCC ID : RYK-WPEA121N F FCC TEST REPORT Report No. : FR131667AN Appendix B. Test Photos Page No. : B2 of B7 FCC ID : RYK-WPEA121N F FCC TEST REPORT Report No. : FR131667AN 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Page No. : B3 of B7 FCC ID : RYK-WPEA121N F FCC TEST REPORT Report No. : FR131667AN SIDE VIEW Page No. : B4 of B7 FCC ID : RYK-WPEA121N F FCC TEST REPORT Report No. : FR131667AN 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW Page No. : B5 of B7 FCC ID : RYK-WPEA121N F FCC TEST REPORT Report No. : FR131667AN For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW Page No. : B6 of B7 FCC ID : RYK-WPEA121N F FCC TEST REPORT Report No. : FR131667AN For radiated emissions above 1GHz FRONT VIEW REAR VIEW Page No. : B7 of B7 FCC ID : RYK-WPEA121N F FCC TEST REPORT Report No. : FR131667AN EUT with test fixture take a close-up. FRONT VIEW REAR VIEW
