RYK-WPEA128N802.11abgn Mini PCIe module

WPEA-128N PRODUCT SPECIFICATION Standard IEEE 802.11abgn Chipset solution Atheros AR9380-AL1A Radio stream 3T3R Antenna Type / con. 3 U.FL connectors Bus Interface PCI Express Form Factor Mini PCIe Data Rate IEEE 802.11b: 11, 5.5,2,1Mbps IEEE 802.11g: 54, 48, 36, 24, 18, 12, 9, 6Mbps IEEE 802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n: MCS 0 to 23 for HT20MHz MCS 0 to 23 for HT40MHz Media Access Control CSMA/CA with ACK Spreading /Modulation Techniques 802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g: OFDM (BPSK,QPSK,16-QAM,64-QAM) 802.11n: OFDM (BPSK,QPSK,16-QAM,64-QAM) Frequency Range 2.4GHz: 11b/g/n: 2.400 ~ 2.4835GHz 5GHz: 11a/n: 5.180 ~ 5.825GHz Transmit Output Power (Tolerance: +/-2dBm) 802.11a: 12dBm ± 2dBm@54Mbps 802.11b: 17dBm ± 2dBm@11Mbps 802.11g: 16dBm ± 2dBm@54Mbps 802.11gn HT20: 16dBm ± 2dBm@MCS0 802.11gn HT20: 15dBm ± 2dBm@MCS7 802.11gn HT40: 15dBm ± 2dBm@MCS0 802.11gn HT40: 14dBm ± 2dBm@MCS7 802.11an HT20: 15dBm ± 2dBm@MCS0 802.11an HT20: 12dBm ± 2dBm@MCS7 802.11an HT40: 14dBm ± 2dBm@MCS0 802.11an HT40: 11dBm ± 2dBm@MCS7 Receiver Sensitivity (Tolerance: +/-2dBm) 802.11a: -81dBm ≤ 2dBm@54Mbps 802.11b: -92dBm ≤ 2dBm@11Mbps 802.11g: -82dBm ≤ 2dBm@54Mbps 802.11gn HT20: -79dBm ≤ 2dBm@MCS7 802.11gn HT40: -76dBm ≤ 2dBm@MCS7 802.11an HT20: -78dBm ≤ 2dBm@MCS7 802.11an HT40: -74dBm ≤ 2dBm@MCS7 Operating Voltage DC 3.3V +/- 5% Power Consumption TX Mode: 760mA(Max) RX Mode: 220mA(Max), Associated Idle: 190 mA Temperature Range 0° ~ +50°C (Operating), -20°~+60°C (Storing) Humidity (non-condensing) 10~90%(Operating), 5~90%(Storing) Security WEP / WPA / WPA2 OS supported Windows XP/Vista/Win7/ Linux Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Country Code selection feature to be disabled for products marketed to the US/CANADA Operation of this device is restricted to indoor use only This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, 3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain change. As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: RYK-WPEA128N”. Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Antenna Model Antenna Type Connector 2400~2483.5MHz 5150~5250MHz 5725~5850MHz GEC6200 Dipole RP-SMA Plug 3dbi 5dbi 5 dBi RFA-25-T42-M32-N Dipole RP-SMA Plug 2.9 dBi 4.5 dBi 4.5dBi

RF_734_00, Issue 1 Modular Approval Request FCC (per DA 00-1407) FCC ID: RYK-WPEA128N Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. The modular has a shielding Case. Please refer to EUT Photo. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The component number is AR9380 3. The modular transmitter must have its own power supply regulation. The component number is RT8010 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. The antenna connector is RP- SMA plug. And no external amplifier will be used with this modular. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. This modular is tested under stand-alone configuration. Please refer to Test setup photo. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL 1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. The modular transmitter is labeled with its own FCC ID number. Please refer to label sample and label location. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modular complies with this requirement. Please refer to user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The device complies with this requirement. Please refer to RF exposure report. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): __________________ Date: ___03 November 2014____ Signature: ___________________________

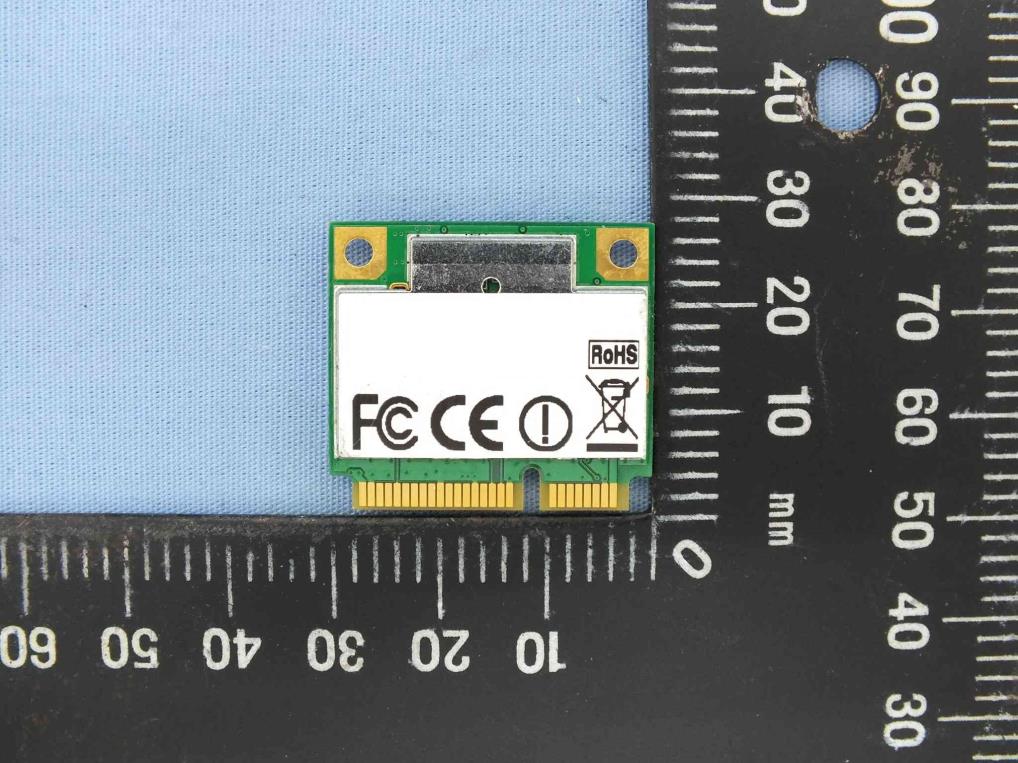

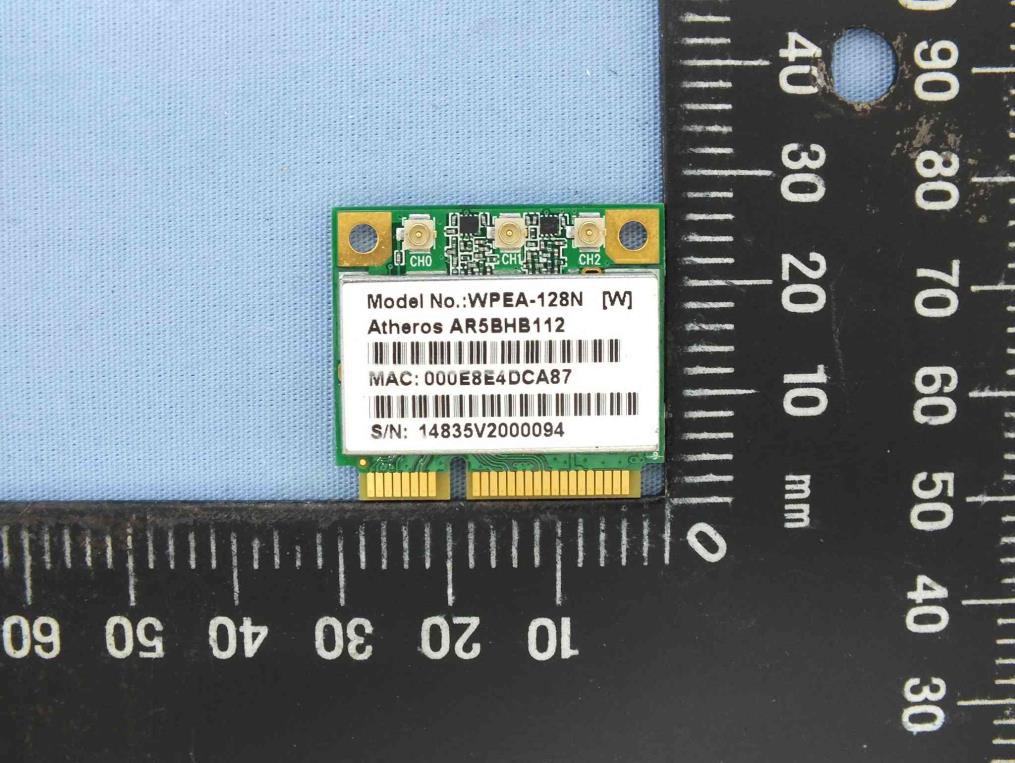

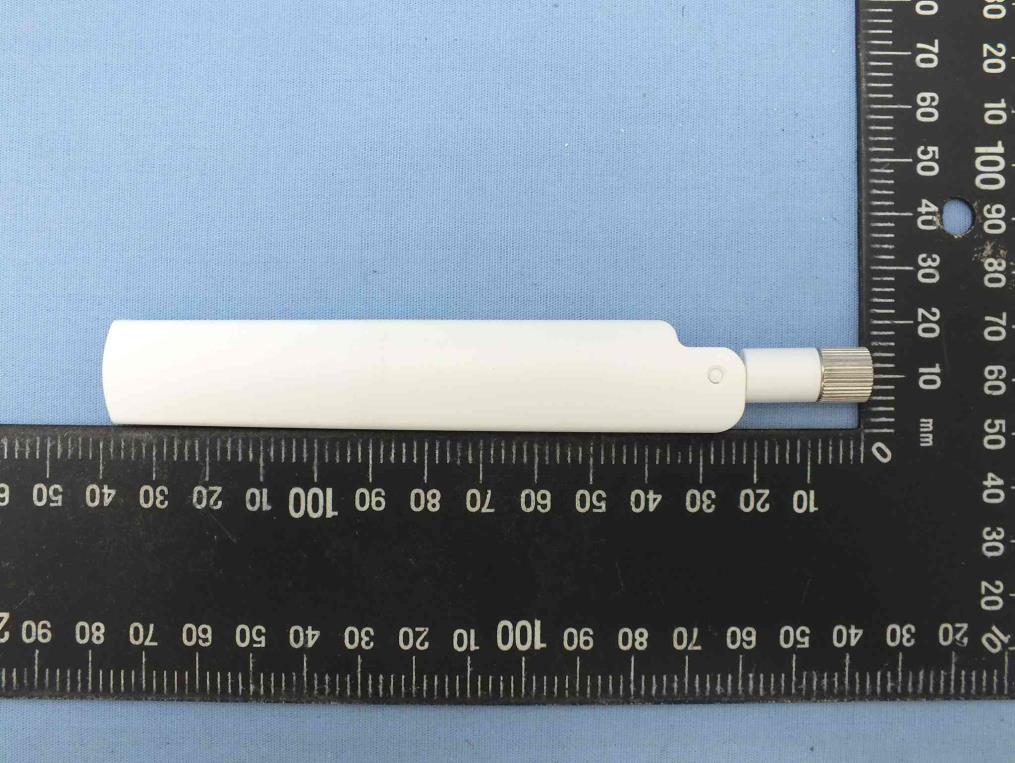

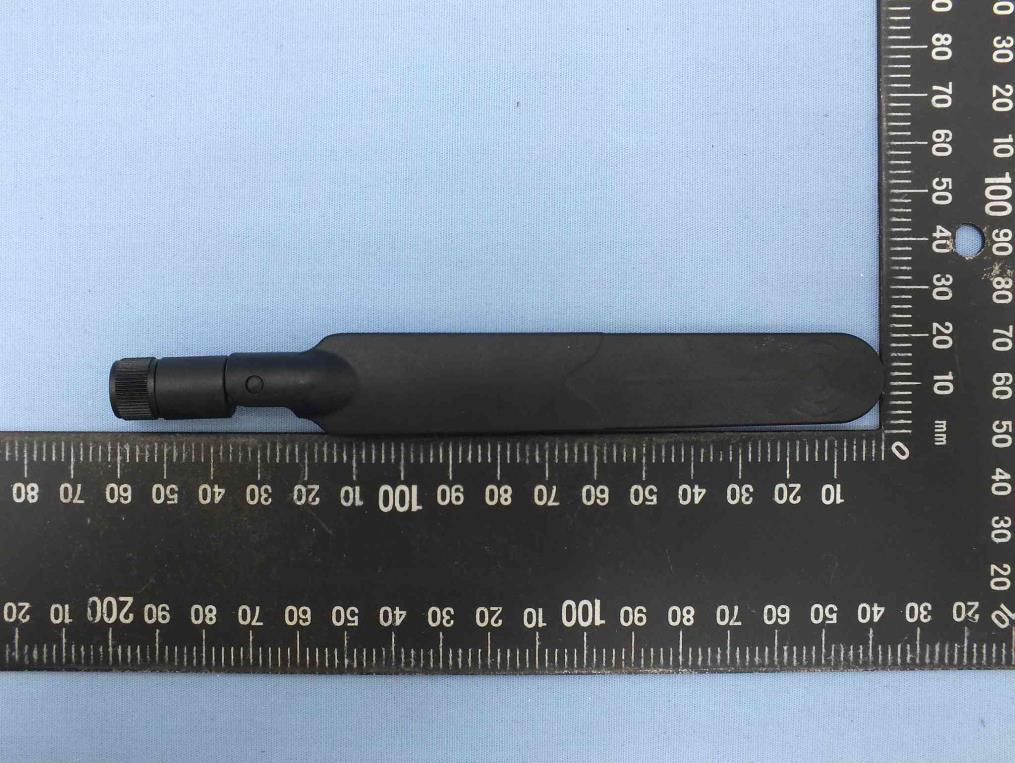

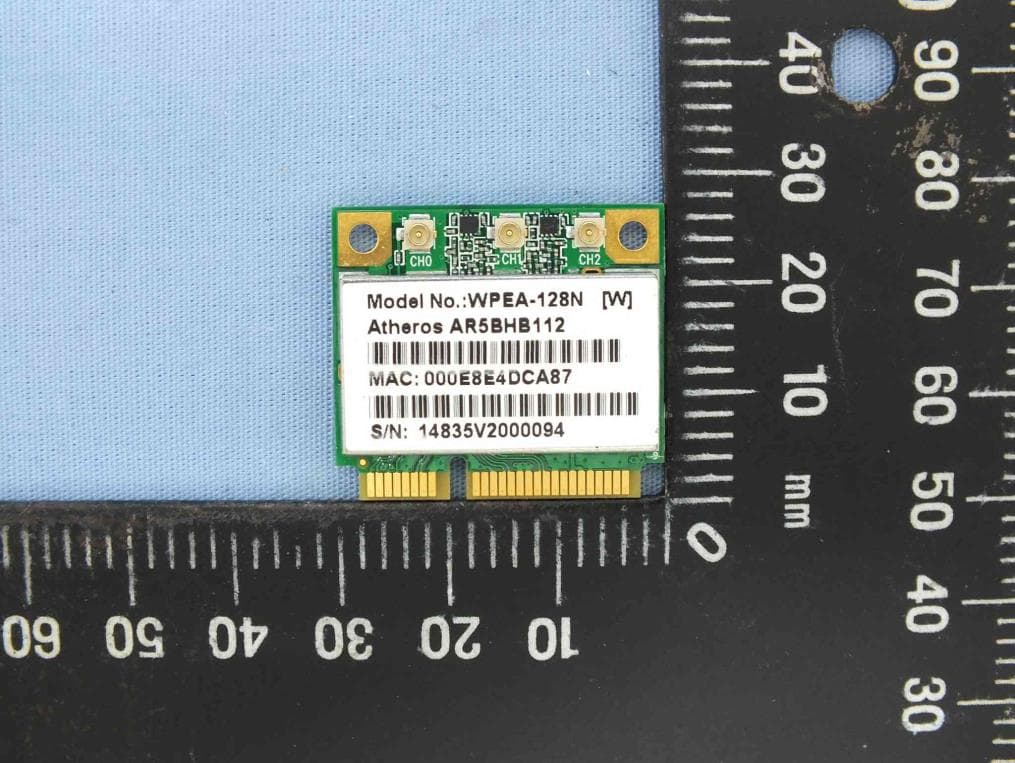

Project No.: 470302-01 Page No. : 1 of 9 Photographs of EUT GEC6200 Dipole antenna RFA-25-T42-M32-N Dipole antenna Project No.: 470302-01 Page No. : 2 of 9 Project No.: 470302-01 Page No. : 3 of 9 Project No.: 470302-01 Page No. : 4 of 9 Project No.: 470302-01 Page No. : 5 of 9 Project No.: 470302-01 Page No. : 6 of 9 Project No.: 470302-01 Page No. : 7 of 9
