RYK-WRTR300Wireless MIMO Pre-N AP Router

User’s Guide 0 Wireless 802.11 Pre-N AP Router User’s Manual Version 1.0 User’s Guide 1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The WRTR-300( FCC ID: RYK-WRTR300 ) is limited in CH1~CH11 for 2.4 GHz by specified firmware controlled in U.S.A. User’s Guide 2 Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording, or otherwise without the prior writing of the publisher. AUG. 2005 User’s Guide 3 Contents 1. Introduction..............................................................................................................4 2. Safety Notification....................................................................................................5 3. Hardware Installation...............................................................................................6 4. How to Configuring the Pre-N MIMO Router..........................................................9 4.1 Setup – Basic Setup.............................................................................................10 4.2 Setup – DDNS.......................................................................................................13 4.3 Setup – MAC Address Clone...............................................................................15 4.4 Wireless – Basic Wireless Settings....................................................................16 4.5 Wireless – Wireless Security...............................................................................17 4.6 Wireless – Wireless MAC Filter...........................................................................18 4.7 Wireless – Advanced Wireless Settings.............................................................19 4.8 Security.................................................................................................................21 4.9 Application & Gaming – Port Range Forwarding...............................................22 4.10 Application & Gaming – Port Range Triggering...............................................23 4.11 Application & Gaming – DMZ.............................................................................24 4.12 Administration – Management..........................................................................25 4.13 Administration – Log..........................................................................................26 4.14 Administration – Diagnostics............................................................................27 4.15 Administration – Factory Defaults....................................................................28 4.16 Administration – Firmware Upgrade.................................................................29 4.17 Status – Router...................................................................................................30 4.18 Status – Local Network......................................................................................32 4.19 Status – Wireless Network.................................................................................33 5. Troubleshooting – Q & A.......................................................................................34 User’s Guide 4 1. Introduction Thank you for purchasing your Wireless 802.11 Pre-N AP Router. This user guide will assist you with the installation procedure. The package you have received should contain the following items: ß Wireless 802.11 Pre-N AP Router ß Quick Installation Guide ß User Manual CD-ROM ß Detachable Antenna ß Universal AC/DC Power Adapter ß RJ-45 Network Cable Note: if anything is missing, please contact your vendor User’s Guide 5 2. Safety Notification Your Wireless AP Router should be placed in a safe and secure location. To ensure proper operation, please keep the unit away from water and other damaging elements. Please read the user manual thoroughly before you install the device. The device should only be repaired by authorized and qualified personnel. ß Please do not try to open or repair the device yours…

Text truncated - open the document above for the full version.

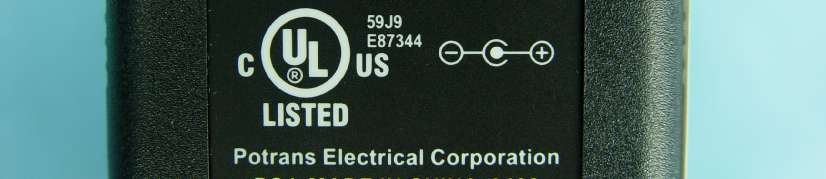

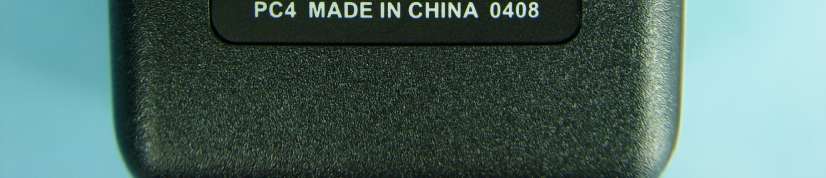

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID : RYK-WRTR300 Label Location

WRTR-300 BL_112105 (455x430x16M jpeg)

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: RYK-WRTR300 Report No. RF941027L05 Operational Description This device is a Wireless MIMO Pre-N AP router which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna with quick R- SAM antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The EUT provides three RF chains, only one chain with transmitter function, and two receiver chains. The other instruction, please have a look at the users manual.

FCC ID: RYK-WRTR300 Report No: SA941027L05 1 RF EXPOSURE REPORT REPORT NO.: SA941027L05 MODEL NO.: WRTR-300 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: SparkLAN Communications, Inc. ADDRESS: 3Fl., No. 246, Sec. 1, Neihu Road., Neihu Chiu, Taipei Taiwan 114, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: RYK-WRTR300 Report No: SA941027L05 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: RYK-WRTR300 Report No: SA941027L05 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: RYK-WRTR300 Report No: SA941027L05 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.11dBi or 1.626(numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b DSSS modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241216.0320.0051.0 6243731.7690.0101.0 11246240.3650.0131.0 802.11g OFDM modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241225.5860.0081.0 6243731.7690.0101.0 11246240.4580.0131.0

FCC ID: RYK-WRTR300 Report No.: RF941027L051Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF941027L05 MODEL NO.: WRTR-300 RECEIVED: Oct. 27, 2005 TESTED: Nov. 01 ~ Nov. 17, 2005 ISSUED: Nov. 18, 2005 APPLICANT: SparkLAN Communications, Inc. ADDRESS: 3Fl., No. 246, Sec. 1, Neihu Road., Neihu Chiu, Taipei Taiwan 114, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 64 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: RYK-WRTR300 Report No.: RF941027L052Report Format Version 2.0.4 TABLE OF CONTENTS 1.CERTIFICATION...........................................................................................................4 2.SUMMARY OF TEST RESULTS ..................................................................................5 2.1MEASUREMENT UNCERTAINTY................................................................................5 3.GENERAL INFORMATION ...........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT .............................................................................6 3.2 DESCRIPTION OF TEST MODES ...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................9 3.2.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 11 3.2.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 11 4. TEST TYPES AND RESULTS ....................................................................................12 4.1 CONDUCTED EMISSION MEASUREMENT .............................................................12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...........................................12 4.1.2 TEST INSTRUMENTS................................................................................................12 4.1.3 TEST PROCEDURES ................................................................................................13 4.1.4 DEVIATION FROM TEST STANDARD.......................................................................13 4.1.5 TEST SETUP..............................................................................................................14 4.1.6 EUT OPERATING CONDITIONS ...............................................................................14 4.1.7 TEST RESULTS .........................................................................................................15 4.2 RADIATED EMISSION MEASUREMENT ..................................................................21 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................21 4.2.2 TEST INSTRUMENTS................................................................................................22 4.2.3 TEST PROCEDURES ................................................................................................23 4.2.4 DEVIATION FROM TEST STANDARD.......................................................................24 4.2.5 TEST SETUP..............................................................................................................24 4.2.6 EUT OPERATING CONDITIONS ...............................................................................24 4.2.7 TEST RESULTS .........................................................................................................25 4.3 6dB BANDWIDTH MEASUREMENT..........................................................................32 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................32 4.3.2 TEST INSTRUMENTS................................................................................................32 4.3.3 TEST PROCEDURE...................................................................................................33 4.3.4 DEVIATION FROM TEST STANDARD.......................................................................33 FCC ID: RYK-WRTR300 Report No.: RF941027L053Report Format Version 2.0.4 4.3.5 TEST SETUP..............................................................................................................33 4.3.6 EUT OPERATING CONDITIONS ...............................................................................33 4.3.7 TEST RESULTS .........................................................................................................34 4.4 MAXIMUM PEAK OUTPUT POWER..........................................................................40 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ..........................40 4.4.2 INSTRUMENTS..........................................................................................................40 4.4.3 TEST PROCEDURES ................................................................................................41 4.4.4 DEVIATION FROM TEST STANDARD.......................................................................41 4.4.5 TEST SETUP..............................................................................................................41 4.4.6 EUT OPERATING CONDITIONS ...............................................................................41 4.4.7 TEST RESULTS ...............................................................................................…

Text truncated - open the document above for the full version.

FCC ID: RYK-WRTR300 Report No.: RF941027L0561Report Format Version 2.0.4 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: RYK-WRTR300 Report No.: RF941027L0562Report Format Version 2.0.4 RADIATED EMISSION TEST
