RYK-WUBR101Wireless 802.11g Compact USB dongle

User’s Guide 1 Wireless Network Card Series User’s Guide Version 2.1 User’s Guide 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device complies with FCC RF Exposure limits set forth for an uncontrolled environment, under 47 CFR 2.1093 paragraph (d)(2). This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment has been SAR-evaluated for use in laptops (notebooks) with side slot configuration. SparkLAN declares that the following products are limited in CH1~CH11 for 2.4 GHz by specified firmware controlled in U.S.A. Model Name FCC ID WL-685R RYK-0685R04070 WL-611R PQP-WP233G WL-660R PQP-WI233G WUBR-101 RYK-WUBR101 User’s Guide 3 Copyright statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording, or otherwise without the prior writing of the publisher. May 2005 User’s Guide 4 Contents 1. Introduction ............................................................................................................... 5 2. Wireless LAN Basics................................................................................................. 6 3. Installation for Windows platform .............................................................................. 7 3.1. Installation Overview.............................................................................................. 8 3.2. Install Procedure for Windows ............................................................................... 9 3.3 Uninstall Procedure............................................................................................... 14 4. Configuration Utility................................................................................................. 15 4.1 Link Information .................................................................................................... 16 4.2 AP List................................................................................................................... 18 4.3 Profile Setting........................................................................................................ 19 4.4 About..................................................................................................................... 23 5. Appendix ................................................................................................................. 24 User’s Guide 5 1. Introduction Thank you for purchasing your Wireless LAN Adapter. This User’ s Guide will assist you with the installation procedure. The package you have received should contain the following items: • Wireless LAN Adapter • Quick Installation Guide • CD containing Wireless network adapter utility & drivers and User’s Guide Note: if anything is missing, please contact your vendor Note: This manual is valid for all Wireless LAN adapters, such as PC Card, USB, mini-USB, PCI adapter, mini-PCI...etc. User’s Guide 6 2. Wireless LAN Basics Wireless LAN (Local Area Networks) systems offer a great number of advantages over a traditional, wired system. Wireless LANs (WLANs) are more flexible, easier to setup and manage and often more cost effective than their wired equivalence. Using radio frequency (RF) technology, WLANs transmit and receive data over the air, minimizing the need for wired connections. Thus, WLANs combine data connectivity with user mobility, and, through simplified configuration, enable movable LANs. With wireless LANs, users can access shared information without looking for a place to plug in and network managers can set up or augment networks without installing or moving wires. Wireless LANs offer the following productivity, convenience and cost advantages over traditional wired networks: • Mobility - Wireless LAN systems can provide LAN users with access to real-time information anywhere in their organization. This mobility supports productivity and service opportunities not possible with wired networks. • Installation Speed and Simplicity - Installing a wireless LAN system can be fast and easy and can eliminate the need to pull cable through walls and ceilings. • Installation Flexibility - Wireless technology allows the network to go where wires cannot go. • Reduced Cost-of-Owners…

Text truncated - open the document above for the full version.

From: [email protected] [mailto:[email protected]] Sent: Thursday, April 13, 2006 7:19 PM To: steve.cheng Subject: Re : TCB Review Comments for (A06-0413e- RYK-WUBR101- SparkLAN 11gUSBDongle) Dear Steve Q1: typo, revised report uploaded. Q2: Refer to old dipole cal. Please see revised report for new cal data Thanks for your assistance! Best Regards Wendy Liao Wendy Liao (廖意紋)/ ADT Corp. TEL: 03-318-3232 EXT 1625 FAX: 03-318-5050 Email: [email protected] 地址:桃園縣龜山鄉文化村華亞二路１９號 "steve.cheng" <steve.cheng@nacs emc.com> 收件人 Wendy Liao <[email protected]>, 2006/04/14 上午 [email protected] 09:11 副本抄送 吳佳鑫 <[email protected]> 主旨 TCB Review Comments for (A06-0413e- RYK-WUBR101- SparkLAN 11g USBDongle) TCB Review Comments for (A06-0413e- RYK-WUBR101- SparkLAN 11g USB Dongle) -SAR- Question #1: SAR report, P.18 & 19, conducted power (DSSS portion) does not agree with EMC test report. Please re-check. (Embedded image moved to file: pic23811.gif) Question #2: SAR report, p.27, validation dipole value 12.2 (1g) is based on 2004/08/23 cal data and This dipole is already expired. Please explain. (Embedded image moved to file: pic31322.gif) Best regards, Steve Cheng

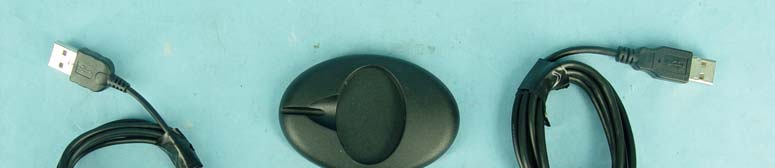

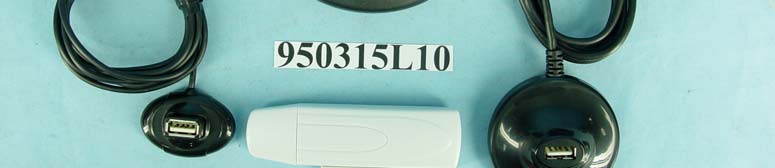

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Label Location.jpg (1500 x 1125 x 24)

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

FCC ID: RYK-WUBR101 Report No. RF950315L10 Operational Description This device is a Wireless 802.11g Compact USB Dongle which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is Dipole antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

Report no.: SA950315L101Report Format Version 2.0.3 SAR TEST REPORT REPORT NO.: SA950315L10 MODEL NO.: WUBR-101 RECEIVED: Mar. 15, 2006 TESTED: Mar. 23, 2006 ISSUED: Mar. 27, 2006 APPLICANT: SparkLAN Communications, Inc. ADDRESS: 3Fl., No. 246, Sec. 1, Neihu Road., Neihu Chiu, Taipei Taiwan 114, R.O.C ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 36 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report no.: SA950315L102Report Format Version 2.0.3 TABLE OF CONTENTS 1.CERTIFICATION.......................................................................................................3 2.GENERAL INFORMATION........................................................................................4 2.1GENERAL DESCRIPTION OF EUT..........................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS............................................5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM..................................................5 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION..................8 3.DESCRIPTION OF SUPPORT UNITS....................................................................12 4.DESCRIPTION OF TEST MODES AND CONFIGURATIONS.................................13 4.1.DESCRIPTION OF ANTENNA LOCATION..............................................................13 4.2.DESCRIPTION OF ASSESSMENT POSITION.......................................................14 4.3.DESCRIPTION OF TEST MODE............................................................................15 4.4.SUMMARY OF TEST RESULTS.............................................................................15 5.TEST RESULTS......................................................................................................16 5.1TEST PROCEDURES.............................................................................................16 5.2MEASURED SAR RESULTS...................................................................................18 5.3SAR LIMITS............................................................................................................20 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS.....................................................21 5.5TEST EQUIPMENT FOR TISSUE PROPERTY.......................................................23 6.SYSTEM VALIDATION............................................................................................24 6.1TEST EQUIPMENT.................................................................................................24 6.2TEST PROCEDURE...............................................................................................25 6.3VALIDATION RESULTS..........................................................................................27 6.4SYSTEM VALIDATION UNCERTAINTIES...............................................................28 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES........................................29 7.1.PROBE CALIBRATION UNCERTAINTY.................................................................29 7.2.ISOTROPY UNCERTAINTY....................................................................................30 7.3.BOUNDARY EFFECT UNCERTAINTY...................................................................30 7.4.PROBE LINEARITY UNCERTAINTY.......................................................................31 7.5.READOUT ELECTRONICS UNCERTAINTY...........................................................31 7.6.RESPONSE TIME UNCERTAINTY.........................................................................31 7.7.INTEGRATION TIME UNCERTAINTY....................................................................32 7.8.PROBE POSITIONER MECHANICAL TOLERANCE..............................................33 7.9.PROBE POSITIONING............................................................................................33 7.10.PHANTOM UNCERTAINTY....................................................................................34 7.11.DASY4 UNCERTAINTY BUDGET...........................................................................35 8.INFORMATION ON THE TESTING LABORATORIES.............................................36 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report no.: SA950315L103Report Format Version 2.0.3 1. CERTIFICATION PRODUCT: Wireless 802.11g Compact USB Dongle MODEL: WUBR-101 BRAND: SparkLAN APPLICANT: SparkLAN Communications, Inc. TESTED: Mar. 23, 2006 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093), RSS-102 FCC OET Bulletin 65, Supplement C (01-01) The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY :, DATE:Mar. 27, 2006 Rebecca Huang TECHNICAL ACCEPTANCE:, DATE:Mar. 27, 2006 Responsible for RF Stanely Hsu APPROVED BY:, DATE:Mar. 27, 2006 Gary Chang / Supervisor Report no.: SA950315L104Report Format Version 2.0.3 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless 802.11g Compact USB Dongle MODEL NO. WUBR-101 FCC ID RYK-WUBR101 POWER SU…

Text truncated - open the document above for the full version.

A - 1 APPENDIX A: TEST DATA Liquid Level Photo MSL 2450MHz D=150mm A - 2 Date/Time: 2006/3/23 09:47:57 Test Laboratory: Advance Data Technology W820DI1-11b-CH01-Moed 1 DUT: Wireless 802.11b/g Compact USB Dongle ; Type: WUBR-101 ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.99 mho/m; ε r = 53; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Dipole Antenna ; Air temp. : 21.6 degrees ; Liquid temp. : 20.8 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 160 Low Channel 1/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.483 mW/g Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.13 V/m Peak SAR (extrapolated) = 1.01 W/kg SAR(1 g) = 0.469 mW/g; SAR(10 g) = 0.230 mW/g Maximum value of SAR (measured) = 0.511 mW/g A - 3 Date/Time: 2006/3/23 10:05:21 Test Laboratory: Advance Data Technology W820DI1-11b-CH06-Moed 1 DUT: Wireless 802.11b/g Compact USB Dongle ; Type: WUBR-101 ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 2.02 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Dipole Antenna ; Air temp. : 21.6 degrees ; Liquid temp. : 20.8 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 160 Mid Channel 6/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.512 mW/g Mid Channel 6/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.28 V/m Peak SAR (extrapolated) = 1.09 W/kg SAR(1 g) = 0.499 mW/g; SAR(10 g) = 0.243 mW/g Maximum value of SAR (measured) = 0.543 mW/g A - 4 Date/Time: 2006/3/23 09:30:00 Test Laboratory: Advance Data Technology W820DI1-11b-CH11-Moed 1 DUT: Wireless 802.11b/g Compact USB Dongle ; Type: WUBR-101 ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 2.05 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Dipole Antenna ; Air temp. : 21.6 degrees ; Liquid temp. : 20.8 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 160 High Channel 11/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.655 mW/g High Channel 11/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.79 V/m Peak SAR (extrapolated) = 1.35 W/kg SAR(1 g) = 0.615 mW/g; SAR(10 g) = 0.299 mW/g Maximum value of SAR (measured) = 0.671 mW/g A - 5 Date/Time: 2006/3/23 10:25:21 Test Laboratory: Advance Data Technology W820DI1-11g-CH11-Mode 2 DUT: Wireless 802.11b/g Compact USB Dongle ; Type: WUBR-101 ; Test Frequency: 2462 MHz Communication System: 802.11g ; Frequency: 2462 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 2.05 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Dipole Antenna ; Air temp. : 21.6 degrees ; Liquid temp. : 20.8 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 2005/8/17 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23 ; Postprocessing SW: SEMCAD, V1.8 Build 160 High Channel 11/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.130 mW/g High Channel 11/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.05 V/m Peak SAR (extrapolated) = 0.278 W/kg SAR(1 g) = 0.115 mW/g; SAR(10 g) = 0.059 mW/g Maximum value of SAR (measured) = 0.126 mW/g A - 6 Date/Time: 2006/3/23 13:20:13 Test Laboratory: Advance Data Technology C600-11b-CH01-Mode 3 DUT: Wireless 802.11b/g Compact USB Dongle ; Type: WUBR-101 ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.99 mho/m; ε r = 53; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 8 mm (The edge side of the EUT to the Phantom) Antenna type : Dipole Antenna ; Air temp. : 21.6 degrees ; Liquid temp. : 20.8 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510 ; Calibrated: 20…

Text truncated - open the document above for the full version.

B - 1 APPENDIX B: ADT SAR MEASUREMENT SYSTEM C - 1 APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION D4: SYSTEM VALIDATION DIPOLE D4：DAE3 (Cal Date：August 17.2005) APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

Report No.: RF950315L101Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950315L10 MODEL NO.: WUBR-101 RECEIVED: Mar. 15, 2006 TESTED: Mar. 16 ~ Mar. 20, 2006 ISSUED: Mar. 22, 2006 APPLICANT: SparkLAN Communications, Inc. ADDRESS: 3Fl., No. 246, Sec. 1, Neihu Road., Neihu Chiu, Taipei Taiwan 114, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 69 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950315L102Report Format Version 2.0.4 Table of Contents 1CERTIFICATION........................................................................................................4 2SUMMARY OF TEST RESULTS................................................................................5 2.1MEASUREMENT UNCERTAINTY..............................................................................5 3GENERAL INFORMATION.........................................................................................6 3.1GENERAL DESCRIPTION OF EUT...........................................................................6 3.2DESCRIPTION OF TEST MODES.............................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST.........................................................7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..............................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...........................................10 3.4DESCRIPTION OF SUPPORT UNITS.....................................................................10 4TEST TYPES AND RESULTS..................................................................................11 4.1CONDUCTED EMISSION MEASUREMENT............................................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................................11 4.1.2TEST INSTRUMENTS..............................................................................................11 4.1.3TEST PROCEDURES..............................................................................................12 4.1.4DEVIATION FROM TEST STANDARD.....................................................................12 4.1.5TEST SETUP...........................................................................................................13 4.1.6EUT OPERATING CONDITIONS.............................................................................13 4.1.7TEST RESULTS.......................................................................................................14 4.2RADIATED EMISSION MEASUREMENT.................................................................20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...............................................20 4.2.2TEST INSTRUMENTS..............................................................................................21 4.2.3TEST PROCEDURES..............................................................................................22 4.2.4DEVIATION FROM TEST STANDARD.....................................................................22 4.2.5TEST SETUP...........................................................................................................23 4.2.6EUT OPERATING CONDITIONS.............................................................................23 4.2.7TEST RESULTS.......................................................................................................24 4.36dB BANDWIDTH MEASUREMENT........................................................................33 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT......................................................33 4.3.2TEST INSTRUMENTS..............................................................................................33 4.3.3TEST PROCEDURE.................................................................................................34 4.3.4DEVIATION FROM TEST STANDARD.....................................................................34 4.3.5TEST SETUP...........................................................................................................34 4.3.6EUT OPERATING CONDITIONS.............................................................................34 4.3.7TEST RESULTS.......................................................................................................35 4.4MAXIMUM PEAK OUTPUT POWER........................................................................41 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.........................41 Report No.: RF950315L103Report Format Version 2.0.4 4.4.2TEST INSTRUMENTS..............................................................................................41 4.4.3TEST PROCEDURES..............................................................................................42 4.4.4DEVIATION FROM TEST STANDARD.....................................................................42 4.4.5TEST SETUP...........................................................................................................42 4.4.6EUT OPERATING CONDITIONS.............................................................................42 4.4.7TEST RESULTS.......................................................................................................43 4.5POWER SPECTRAL DENSITY MEASUREMENT....................................................44 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..................................44 4.5.2TEST INSTRUMENTS..................................................................................…

Text truncated - open the document above for the full version.

Report No.: RF950315L1062Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST _ TEST MODE A Report No.: RF950315L1063Report Format Version 2.0.4 CONDUCTED EMISSION TEST _ TEST MODE B Report No.: RF950315L1064Report Format Version 2.0.4 CONDUCTED EMISSION TEST _ TEST MODE C Report No.: RF950315L1065Report Format Version 2.0.4 RADIATED EMISSION TEST _ TEST MODE A Report No.: RF950315L1066Report Format Version 2.0.4 RADIATED EMISSION TEST _ TEST MODE B Report No.: RF950315L1067Report Format Version 2.0.4 RADIATED EMISSION TEST _ TEST MODE C
