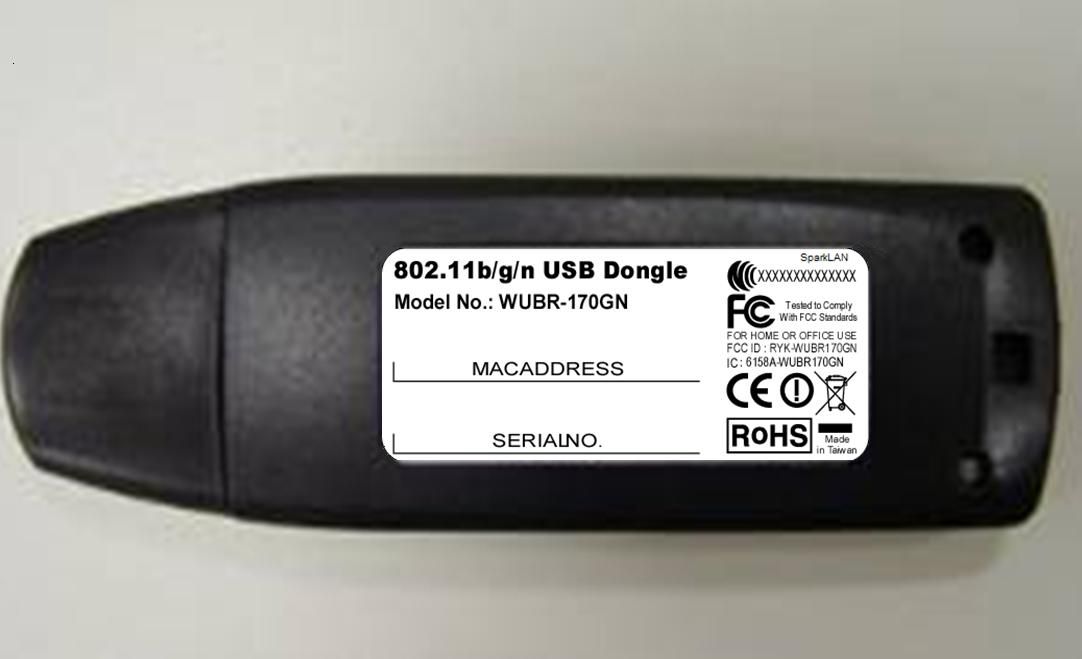

RYK-WUBR170GN802.11b/g/n USB Dongle

WUBR-170GN Wireless-GN USB Dongle User’s Manual Version 1.0 1 Contents 1. Package Contents........................................................................................................... 3 2. WLAN Adapter Quick installation Guide.......................................................................... 4 3. Network Card Installation ................................................................................................ 4 4. Connect to Wireless Access Point .................................................................................. 8 2 Copyright statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording, or otherwise without the prior writing of the publisher. August 2010 3 1. Package Contents Before you starting to use this wireless network card, please check if there’s anything missing in the package, and contact your dealer of purchase to claim for missing items: Package Contents Please make sure you have the following in the box: ♦ Wireless-GN USB Dongle ♦ Protection Cap ♦ Quick installation guide ♦ User manual / device driver CDROM Note: if anything is missing, please contact your vendor 4 2. WLAN Adapter Quick installation Guide Please follow the following instructions to use Ralink configuration utility to connect to wireless access point. 3. Network Card Installation 1. Insert the USB wireless network card into an empty USB 2.0 port of your computer when computer is switched on. Never use force to insert the card, if you feel it’s stuck, flip the card over and try again. 2. The following message will appear on your computer, click ‘Cancel’. 5 3. Turn “On” your computer. Insert the Driver CD then wait for the Autorun prompt like below. 4. If Autorun does not work, please browse the CD content and double click the “ Autorun.exe ”. 5. Click the “Driver” for beginning the installation. 6. Click “Next” and then follow the instructions on the screen to continue the installation. 6 7. You can choose the configuration tool used to configure the wireless network card here. It’s recommended to select ‘Ralink Configuration Tool’, which provides fully access to all function of this wireless network card. If you prefer to use the wireless configuration tool provided by Windows XP or Vista, please select ‘Microsoft Zero Configuration Tool’,then click ‘Next’. If you see ‘Found New Hardware’ message again, please ignore it and wait. 7 8. When you see this message, please click ‘Finish’ to complete the driver installation process. 8 4. Connect to Wireless Access Point 1. After installation is complete, wireless configuration utility will be shown as an icon at the lower-right corner of your windows desktop. Please click the icon by right mouse key, and select ‘Launch Config Utilities’. 2. Configuration utility will scan for wireless access points automatically, and all found access points will be displayed. Please select an access point you wish to connect, and click ‘Connect’. If the wireless access point you want to connect does not show here, please click ‘Rescan’ 9 3. If the wireless access point uses encryption, you have to input WEP passphrase or WPA preshared key. Please ask the owner of the wireless access point you want to connect, and input the correct passphrase / preshared key here, then click ‘OK’. If the value you inputted here is wrong, you will not be able to connect to wireless access point. Authentication type is selected automatically, please don’t change it. 10 4. If the wireless access point is successfully connected, you’ll see a ‘‘Status’ (SSID and MAC address of the wireless access point or wireless device you connected to) message displayed at the lower-left corner of wireless configuration utility window. Click ‘X’ to exit. 11

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 1 Rev 2.0 SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw 2010/09/24 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SORTON International Inc. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: 802.11b/g/n USB Dongle Model name: FCC ID : RYK-WUBR170GN We affirm that between SIEMIC and SPORTON International Inc., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature: Name / title: Wayne Hsu / Vice Manager Contact information / address: No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. / Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw

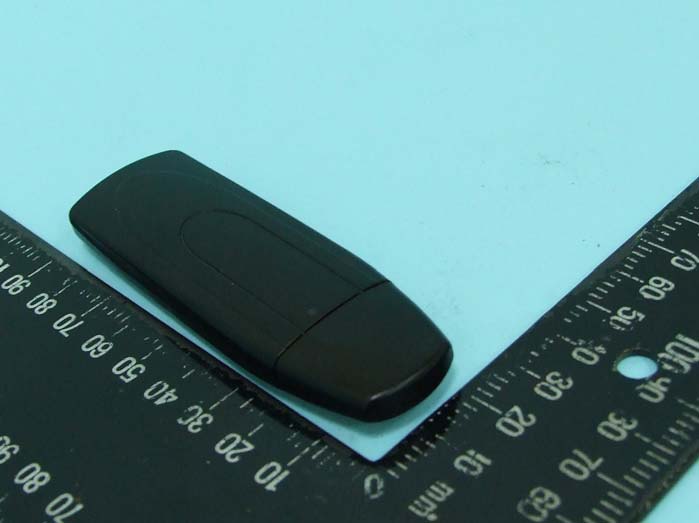

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B1 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 20, 2010 FAX : 886-2-2696-2255 APPENDIX B. Photographs of EUT

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B2 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 20, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B3 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 20, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B4 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 20, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B5 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 20, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B6 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 20, 2010 FAX : 886-2-2696-2255

SPORTON INTERNATIONAL INC. Page Number : 1 of 30 TEL : 886-3-327-3456 Report Issued Date : Sep. 24, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RYK-WUBR170GN FCC SAR Test Report Report No. : FA082409 FCC SAR Test Report APPLICANT : SparkLAN Communications, Inc. EQUIPMENT : 802.11b/g/n USB Dongle BRAND NAME : SparkLAN MODEL NAME : WUBR-170GN FCC ID : RYK-WUBR170GN STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Aug. 24, 2010 and completely tested on Sep. 20, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 30 TEL : 886-3-327-3456 Report Issued Date : Sep. 24, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RYK-WUBR170GN FCC SAR Test Report Report No. : FA082409 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 8 4.1 Introduction ....................................................................................................................................................... 8 4.2 SAR Definition .................................................................................................................................................. 8 5. SAR Measurement System ........................................................................................................................................ 9 5.1 E-Field Probe...................................................................................................................................................10 5.1.1 E-Field Probe Specification ...................................................................................................................10 5.1.2 E-Field Probe Calibration ....................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3 Robot ............................................................................................................................................................... 11 5.4 Measurement Server .......................................................................................................................................12 5.5 Phantom ..........................................................................................................................................................13 5.6 Device Holder ..................................................................................................................................................14 5.7 Data Storage and Evaluation ...........................................................................................................................16 5.7.1 Data Storage ...…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No.: FR082409AC SPORTON International Inc. Report Format Version: a FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : 802.11b/g/n USB Dongle Model No. : WUBR-170GN Brand Name : SparkLAN Filing Type : New Application Applicant : SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei, Taiwan FCC ID: RYK-WUBR170GN Manufacturer : Ampak Technology Co., Ltd. NO.1 Jen Ai Road, Hsinchu Industrial Park, Hukou, HsinChu, Taiwan Received Date : Aug. 19, 2010 Final Test Date : Sep. 15, 2010 Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No.: FR082409AC SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Sep. 20, 2010 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR170GN Table of Contents 1 SUMMARY OF THE TEST RESULT ...................................................................................................................... 2 2 GENERAL INFORMATION ..................................................................................................................................... 3 2.1 Product Details ........................................................................................................................................................................................ 3 2.2 Table for Filed Antenna ........................................................................................................................................................................... 3 2.3 Table for Carrier Frequencies ................................................................................................................................................................. 3 2.4 Table for Test Modes .............................................................................................................................................................................. 3 2.5 Table for Testing Locations ..................................................................................................................................................................... 4 2.6 Table for Supporting Units ....................................................................................................................................................................... 4 2.7 Table for Parameters of Test Software Setting ....................................................................................................................................... 4 2.8 EUT Operation during Test ..................................................................................................................................................................... 4 2.9 Test Configuration ................................................................................................................................................................................... 5 3 TEST RESULT ........................................................................................................................................................ 7 3.1 AC Power Line Conducted Emissions Measurement .............................................................................................................................. 7 3.2 Maximum Conducted Output Power Measurement .............................................................................................................................. 11 3.3 Power Spectral Density Measurement .................................................................................................................................................. 13 3.4 6dB Spectrum Bandwidth Measurement ............................................................................................................................................... 19 3.5 Radiated Emissions Measurement ........................................................................................................................................................ 25 3.6 Band Edge and Fundamental Emissions Measurement ....................................................................................................................... 43 3.7 Antenna Requirements .......................................................................................................................................................................... 48 4 LIST OF MEASURING EQUIPMENTS ................................................................................................................. 49 5 TEST LOCATION .................................................................................................................................................. 51 6 TAF CERTIFICATE OF ACCREDITATION .......................................................................................................... 52 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A6 APPENDIX B. PHOTOGRAPHS OF EUT ....................................................................................................... B1 ~ B6 FCC TEST REPORT Report No.: FR082409AC SPORTON International Inc. Page No. : ii of ii TEL : 886-2-2696-2468 Issued Date : Sep. 20, 2010 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR170GN History of This Test Report Or…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No.: FR082409AI SPORTON International Inc. Report Format Version: a FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : 802.11b/g/n USB Dongle Model No. : WUBR-170GN Brand Name : SparkLAN Filing Type : New Application Applicant : SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei, Taiwan FCC ID: RYK-WUBR170GN Manufacturer : Ampak Technology Co., Ltd. NO.1 Jen Ai Road, Hsinchu Industrial Park, Hukou, HsinChu, Taiwan Received Date : Aug. 19, 2010 Final Test Date : Sep. 15, 2010 Statement Test result included is only for the 802.11n of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No.: FR082409AI SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Sep. 20, 2010 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR170GN Table of Contents 1 SUMMARY OF THE TEST RESULT ...................................................................................................................... 2 2 GENERAL INFORMATION ..................................................................................................................................... 3 2.1 Product Details ........................................................................................................................................................................................ 3 2.2 Table for Filed Antenna ........................................................................................................................................................................... 3 2.3 Table for Carrier Frequencies ................................................................................................................................................................. 4 2.4 Table for Test Modes .............................................................................................................................................................................. 5 2.5 Table for Testing Locations ..................................................................................................................................................................... 5 2.6 Table for Supporting Units ....................................................................................................................................................................... 5 2.7 Table for Parameters of Test Software Setting ....................................................................................................................................... 6 2.8 EUT Operation during Test ..................................................................................................................................................................... 6 2.9 Test Configuration ................................................................................................................................................................................... 7 3 TEST RESULT ........................................................................................................................................................ 9 3.1 AC Power Line Conducted Emissions Measurement .............................................................................................................................. 9 3.2 Maximum Conducted Output Power Measurement .............................................................................................................................. 13 3.3 Power Spectral Density Measurement .................................................................................................................................................. 15 3.4 6dB Spectrum Bandwidth Measurement ............................................................................................................................................... 21 3.5 Radiated Emissions Measurement ........................................................................................................................................................ 27 3.6 Band Edge and Fundamental Emissions Measurement ....................................................................................................................... 45 3.7 Antenna Requirements .......................................................................................................................................................................... 50 4 LIST OF MEASURING EQUIPMENTS ................................................................................................................. 51 5 TEST LOCATION .................................................................................................................................................. 53 6 TAF CERTIFICATE OF ACCREDITATION .......................................................................................................... 54 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A6 APPENDIX B. PHOTOGRAPHS OF EUT ....................................................................................................... B1 ~ B6 FCC TEST REPORT Report No.: FR082409AI SPORTON International Inc. Page No. : ii of ii TEL : 886-2-2696-2468 Issued Date : Sep. 20, 2010 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR170GN History of This Test Report Original …

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No.: FR082409AI Page No. : A1 of A6 FCC ID : RYK-WUBR170GN Appendix A. Test Photos FCC TEST REPORT Report No.: FR082409AI Page No. : A2 of A6 FCC ID : RYK-WUBR170GN 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR082409AI Page No. : A3 of A6 FCC ID : RYK-WUBR170GN SIDE VIEW FCC TEST REPORT Report No.: FR082409AI Page No. : A4 of A6 FCC ID : RYK-WUBR170GN 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR082409AI Page No. : A5 of A6 FCC ID : RYK-WUBR170GN For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR082409AI Page No. : A6 of A6 FCC ID : RYK-WUBR170GN For radiated emissions above 1GHz FRONT VIEW REAR VIEW
