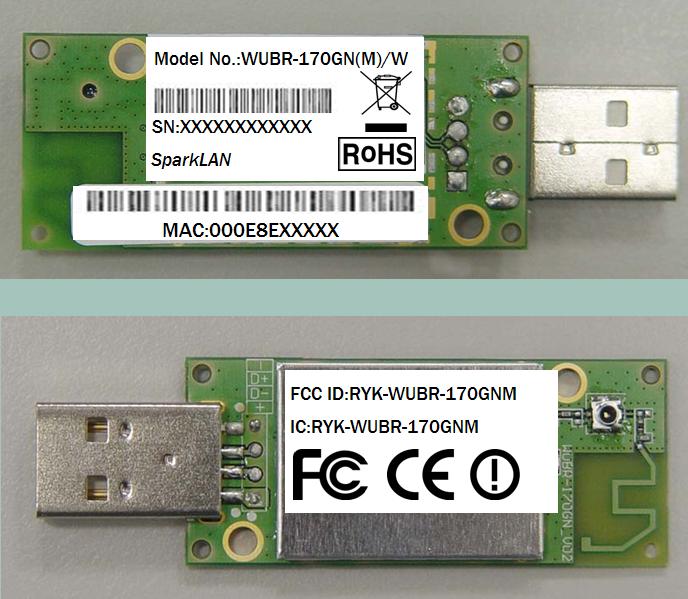

RYK-WUBR170GNM802.11b/g/n USB module

WUBR-170GN Wireless-GN USB Module User’s Manual Version 1.0 1 Contents 1. Package Contents........................................................................................................... 3 2. WLAN Adapter Quick installation Guide.......................................................................... 4 3. Network Card Installation ................................................................................................ 4 4. Connect to Wireless Access Point .................................................................................. 7 2 Copyright statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording, or otherwise without the prior writing of the publisher. September 2010 3 1. Package Contents Before you starting to use this wireless usb module, please check if there’s anything missing in the package, and contact your dealer of purchase to claim for missing items: Package Contents Please make sure you have the following in the box: ♦ Wireless-GN USB Module Note: if anything is missing, please contact your vendor 4 2. WLAN Adapter Quick installation Guide Please follow the following instructions to use Ralink configuration utility to connect to wireless access point. 3. Network Card Installation 1. Insert the USB wireless module into an empty USB 2.0 port of your computer when computer is switched on. Never use force to insert the card, if you feel it’s stuck, flip the card over and try again. 2. The following message will appear on your computer, click ‘Cancel’. 3. Turn “On” your computer. Insert the Driver CD then wait for the Autorun prompt like below. 4. If Autorun does not work, please browse the CD content and double click the 5 “ Autorun.exe ”. 5. Click the “Driver” for beginning the installation. 6. Click “Next” and then follow the instructions on the screen to continue the installation. 7. You can choose the configuration tool used to configure the wireless network card here. It’s recommended to select ‘Ralink Configuration Tool’, which provides fully access to all function of this wireless network card. If you prefer to use the wireless configuration tool provided by Windows XP or Vista, please select ‘Microsoft Zero Configuration Tool’,then click ‘Next’. If you see ‘Found New Hardware’ message again, please ignore it and wait. 6 8. When you see this message, please click ‘Finish’ to complete the driver installation process. 7 4. Connect to Wireless Access Point 1. After installation is complete, wireless configuration utility will be shown as an icon at the lower-right corner of your windows desktop. Please click the icon by right mouse key, and select ‘Launch Config Utilities’. 2. Configuration utility will scan for wireless access points automatically, and all found access points will be displayed. Please select an access point you wish to connect, and click ‘Connect’. If the wireless access point you want to connect does not show here, please click ‘Rescan’ 8 3. If the wireless access point uses encryption, you have to input WEP passphrase or WPA preshared key. Please ask the owner of the wireless access point you want to connect, and input the correct passphrase / preshared key here, then click ‘OK’. If the value you inputted here is wrong, you will not be able to connect to wireless access point. Authentication type is selected automatically, please don’t change it. 9 4. If the wireless access point is successfully connected, you’ll see a ‘‘Status’ (SSID and MAC address of the wireless access point or wireless device you connected to) message displayed at the lower-left corner of wireless configuration utility window. Click ‘X’ to exit. 10 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for a/an population/uncontrolled environme…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 1 Rev 2.0 SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw 2010/09/24 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SORTON International Inc. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: 802.11b/g/n USB module Model name: FCC ID : RYK-WUBR170GNM We affirm that between SIEMIC and SPORTON International Inc., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature: Name / title: Wayne Hsu / Vice Manager Contact information / address: No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. / Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw

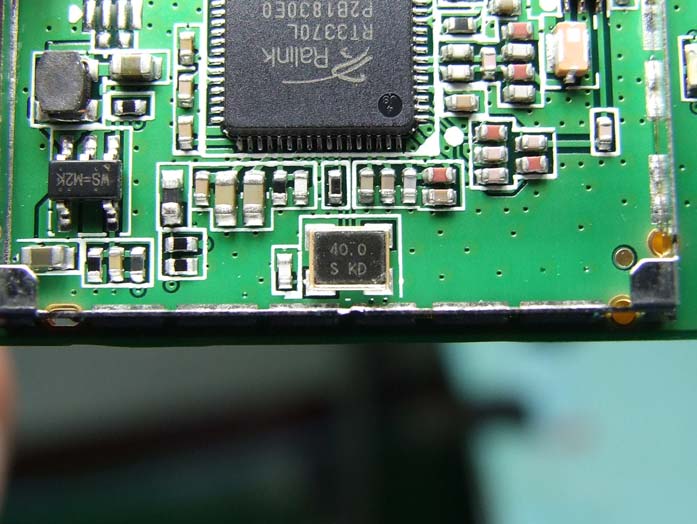

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 20, 2010 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 20, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 20, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 20, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 20, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 20, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 20, 2010 FAX : 886-2-2696-2255

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 20, 2010 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 20, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 20, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 20, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 20, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 20, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 20, 2010 FAX : 886-2-2696-2255

FCC TEST REPORT Report No.: FR082409-01AC Page No. : A1 of A3 FCC ID : RYK-WUBR170GNM Appendix A. Maximum Permissible Exposure FCC TEST REPORT Report No.: FR082409-01AC Page No. : A2 of A3 FCC ID : RYK-WUBR170GNM 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC TEST REPORT Report No.: FR082409-01AC Page No. : A3 of A3 FCC ID : RYK-WUBR170GNM 1.3. Calculated Result and Limit Antenna Type : Printed Antenna Max Conducted Power for 802.11b/g: 18.22 dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 2.5 1.778279 18.22 66.3743 0.0235 Antenna Type : Dipole Antenna Max Conducted Power for 802.11b/g: 18.22 dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 2 1.584893 18.22 66.3743 0.0209

FCC TEST REPORT Report No.: FR082409-01AI Page No. : A1 of A3 FCC ID : RYK-WUBR170GNM Appendix A. Maximum Permissible Exposure FCC TEST REPORT Report No.: FR082409-01AI Page No. : A2 of A3 FCC ID : RYK-WUBR170GNM 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC TEST REPORT Report No.: FR082409-01AI Page No. : A3 of A3 FCC ID : RYK-WUBR170GNM 1.3. Calculated Result and Limit Antenna Type : Printed Antenna Max Conducted Power for 802.11n (20MHz): 17.73 dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 2.5 1.778279 17.73 59.2925 0.0210 Antenna Type : Dipole Antenna Max Conducted Power for 802.11n (20MHz): 17.73 dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 2 1.584893 17.73 59.2925 0.0187 Antenna Type : Printed Antenna Max Conducted Power for 802.11n (40MHz): 15.56 dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 2.5 1.778279 15.56 35.9749 0.0127 Antenna Type : Dipole Antenna Max Conducted Power for 802.11n (40MHz): 15.56 dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 2 1.584893 15.56 35.9749 0.0113
