RYK-WUBR507N802.11abgn Wireless USB Module

www.sparklan.com / [email protected] / +886-2-2659-1880 WUBR-507N (M) Latest 802.11n Wi-Fi Technology SparkLAN WUBR-507N(M) is an 802.11n Wi-Fi USB module, which is backward compatible with 802.11a/b/g standard. With advanced 2T2R MIMO technology, WUBR-507N(M) delivers ultimate wireless data rate for up to 300Mbps. It is designed properly for any wireless enabled devices with standard 6-Pin connector USB Type A (optional). Secure Wireless Connection WUBR-507N(M) also features advanced WEP encryption, WPA, and WPA2 to help to protect data over wireless communication without sacrificing the performance. ■ Chipsets: Ralink RT3572 ■ Compliant with 802.11a/b/g/n Dual-Band standard ■ Interface: 6-Pin or USB 2.0 Type A (optional) ■ Antenna: 2 x U.FL connector ■ Speeds up to 300Mbps ■ Advanced security: 64/128-bits WEP, WPA, WPA2 ■ Support Windows 2000/ XP/ Win CE/ Vista/ Win7, Linux, MAC - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Feature 802.11a/b/g/n USB Module 6-Pin or Type A Connection with Ralink RT3572, 2T2R Mechanical Dimension (mm) Application ■ Networking Equipment ■ USB Dongle ■ Industrial Computers ■ Medical Device ■ POS (Point-of-Sale) System ■ Self-Service KIOSK ■ Gaming Machine ■ Consumer Electronics www.sparklan.com / [email protected] / +886-2-2659-1880 WUBR-507N (M) Specifications Ordering Info - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ■ WUBR-507N(M) 802.11a/b/g/n USB Module WUBR-507N(M) U.FL+6-Pin WUBR-507N(MU) U.FL+USB Type A WUBR-507N(P) Printed Antenna +USB Type A WUBR-507N(P6) Printed Antenna +6-Pin Related Product ■ WUBR-506N 802.11a/b/g/n dual band USB Module ■ WUBR-125GN 802.11b/g/n USB Module Standard 802.11a/b/g/n Chipset Mac/BB/RF Ralink RT3572 Host Interface 6-Pin Connector (Pin 1: v+, Pin 2: D-, Pin 3: D+, Pin 4: GND, Pin 5: LED, Pin 6: RF) or Type A (optional) Radio Antenna 2 x U.FL connector (2T2R) Operating Frequency 802.11a ISM Band: 5.1 ~ 5.8GHz 802.11g ISM Band: 2.4 ~ 2.4835GHz Modulation 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) Output Power 802.11a: 11dBm ± 1.5dBm@54Mbps 802.11b: 16dBm ± 1.5dBm@11Mbps 802.11g: 13dBm ± 1.5dBm@54Mbps 802.11an HT20: 10dBm ± 1.5dBm 802.11an HT40 : 10dBm ± 1.5dBm 802.11gn HT20: 12dBm ± 1.5dBm 80.211gn HT20 : 12dBm ± 1.5dBm Receive Sensitivity 802.11a: -72dBm ±2dBm 802.11b: -86dBm ±2dBm 802.11g: -72dBm ±2dBm 802.11an HT20: -68dBm ±2dBm 802.11an HT40 : -65dBm ±2dBm 802.11gn HT20: -68dBm ±2dBm 802.11gn HT40 : -65dBm ±2dBm Power consumption Continue TX Max 400mA@2TX Continue RX Max 250mA@2RX Operating Voltage DC 5V ± 10% Environmental Temperature Range 0 ~ 60°C (Operating) -20 ~ 70°C (Storing) Humidity (Non-Condensing) 5 ~ 90% (Operating) 5 ~ 95% (Storing) Physical Specification Dimensions 60mm X 25mm (±0.5mm) Weight TBD Software Driver Windows 2000/XP/ WinCE/ Vista,/ Win7, Linux, MAC Security 64/128-bits WEP, WPA, WPA2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device is restricted to indoor use when operated in the 5.15 to 5.25 GHz frequency range. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: RYK-WUBR507N ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is s…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 1 Rev 2.0 SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw 11/23/2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SPORTON International Inc. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: 802.11abgn Wireless USB Module Model Number: WUBR-507N FCC ID: RYK-WUBR507N We affirm that between SIEMIC and SPORTON International Inc., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature: Name / title: Wayne Hsu / Vice Manager Contact information / address: No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. / Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw

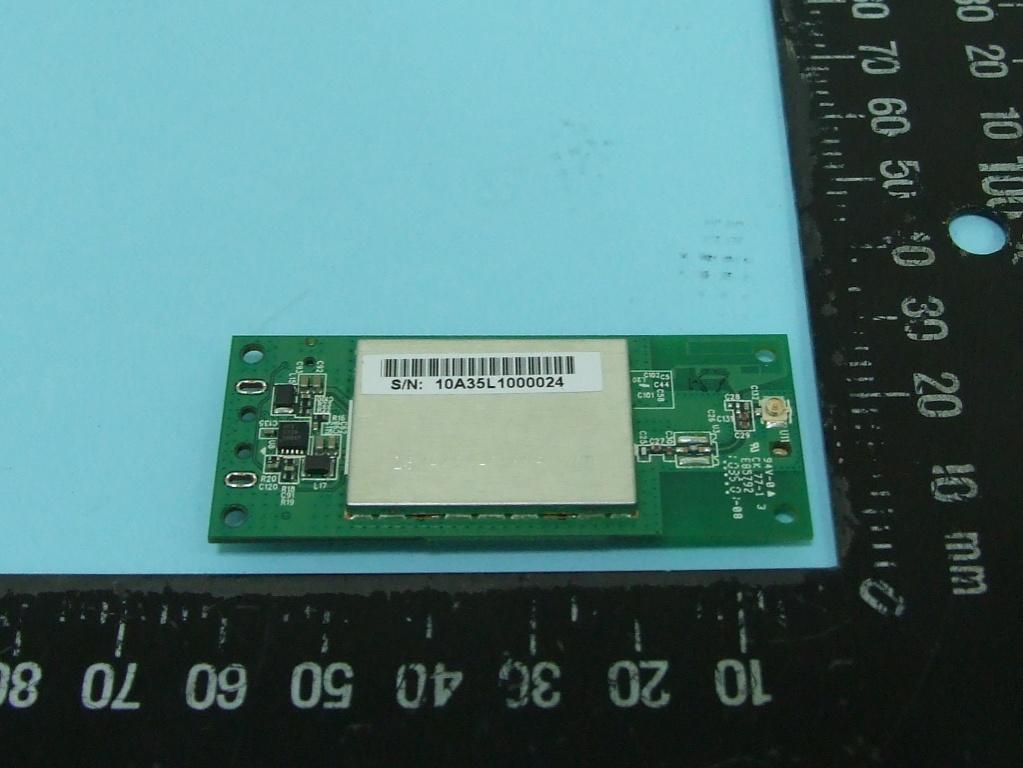

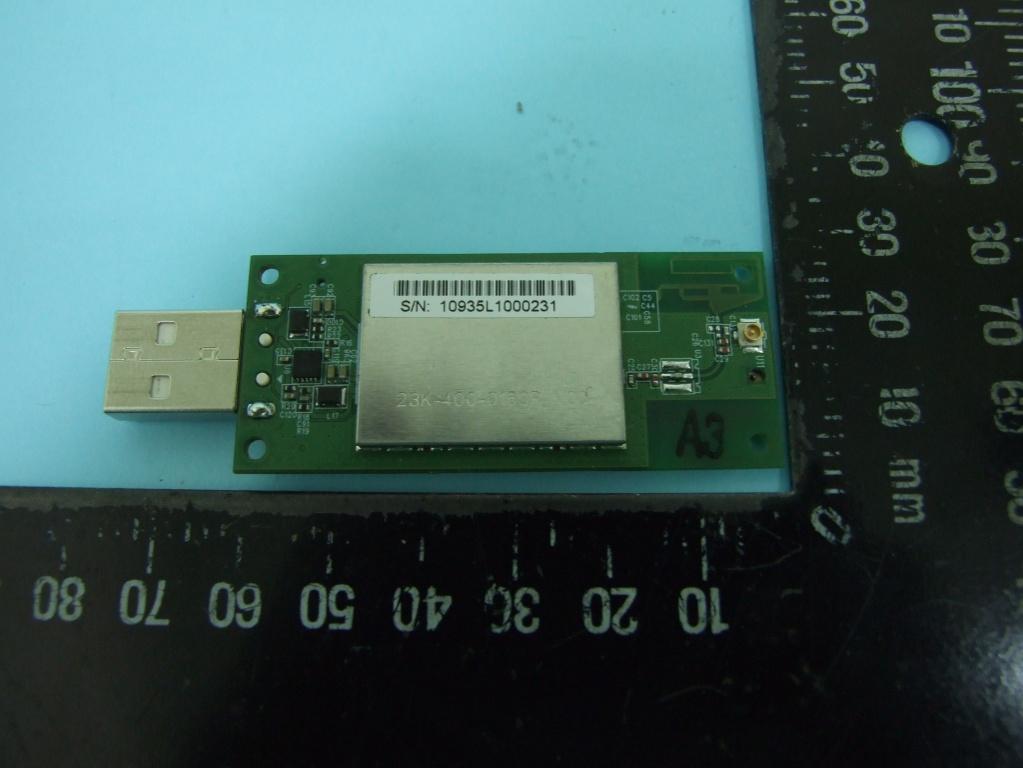

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255

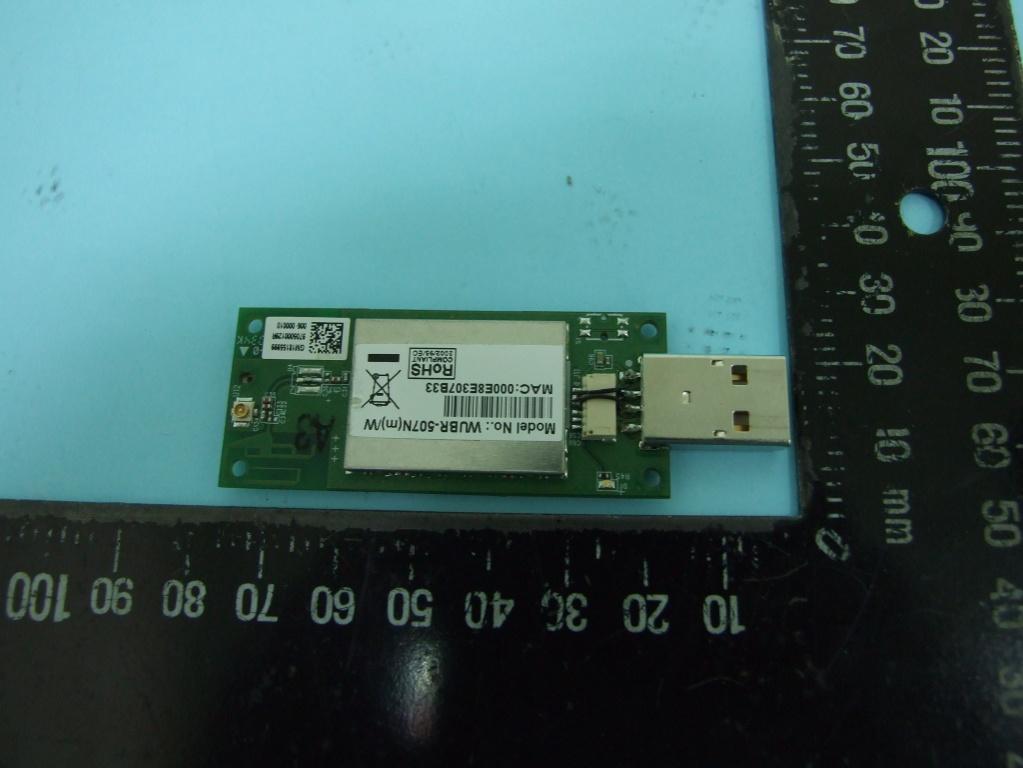

Model No.:WUBR-507N(M)/W SN:XXXXXXXXXXXX MAC:000E8EXXXXX FCC ID:RYK-WUBR507N FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT Label location

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C8 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C9 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C10 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C11 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C12 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C13 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C13 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C14 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C13 OF C17 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C14 OF C17 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C15 OF C17 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C16 OF C17 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C13 OF C17 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C14 OF C17 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C15 OF C17 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C16 OF C17 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255

FCC TEST REPORT Report No.: FR0O1817AC Page No. : A1 of A3 FCC ID : RYK-WUBR507N Appendix A. Maximum Permissible Exposure FCC TEST REPORT Report No.: FR0O1817AC Page No. : A2 of A3 FCC ID : RYK-WUBR507N 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC TEST REPORT Report No.: FR0O1817AC Page No. : A3 of A3 FCC ID : RYK-WUBR507N 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11a: 11.76dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 2 1.584893 11.76 14.9968 0.0047 Max Conducted Power for IEEE 802.11b/g: 18.95dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 2 1.584893 18.95 78.5236 0.0248

FCC TEST REPORT Report No.: FR0O1817AI Page No. : A1 of A3 FCC ID : RYK-WUBR507N Appendix A. Maximum Permissible Exposure FCC TEST REPORT Report No.: FR0O1817AI Page No. : A2 of A3 FCC ID : RYK-WUBR507N 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC TEST REPORT Report No.: FR0O1817AI Page No. : A3 of A3 FCC ID : RYK-WUBR507N 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11n (20MHz): 11.77dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 2 1.584893 11.77 15.0314 0.0047 Max Conducted Power for IEEE 802.11n (40MHz): 11.68dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 2 1.584893 11.68 14.7231 0.0046 Max Conducted Power for IEEE 802.11n (20MHz): 20.42dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 2 1.584893 20.42 110.1539 0.0347 Max Conducted Power for IEEE 802.11n (40MHz): 19.01dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 2 1.584893 19.01 79.6159 0.0251

FCC TEST REPORT Report No.: FR0O1817AC Page No. : A1 of A3 FCC ID : RYK-WUBR507N Appendix A. Maximum Permissible Exposure FCC TEST REPORT Report No.: FR0O1817AC Page No. : A2 of A3 FCC ID : RYK-WUBR507N 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC TEST REPORT Report No.: FR0O1817AC Page No. : A3 of A3 FCC ID : RYK-WUBR507N 1.3. Calculated Result and Limit Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11a: 11.76dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 3.27 2.123244 11.76 14.9968 0.0063 Max Conducted Power for IEEE 802.11b/g: 18.95dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 1.87 1.538155 18.95 78.5236 0.0240

FCC TEST REPORT Report No.: FR0O1817AI Page No. : A1 of A3 FCC ID : RYK-WUBR507N Appendix A. Maximum Permissible Exposure FCC TEST REPORT Report No.: FR0O1817AI Page No. : A2 of A3 FCC ID : RYK-WUBR507N 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC TEST REPORT Report No.: FR0O1817AI Page No. : A3 of A3 FCC ID : RYK-WUBR507N 1.3. Calculated Result and Limit Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11n (20MHz): 11.77dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 3.27 3.27 2.123244 11.77 15.0314 Max Conducted Power for IEEE 802.11n (40MHz): 11.68dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 3.27 2.123244 11.68 14.7231 0.0062 Max Conducted Power for IEEE 802.11n (20MHz): 20.42dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 1.87 1.538155 20.42 110.1539 0.0337 Max Conducted Power for IEEE 802.11n (40MHz): 19.01dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 1.87 1.538155 19.01 79.6159 0.0244

FCC TEST REPORT Report No.: FR0O1817AC Page No. : A1 of A3 FCC ID : RYK-WUBR507N Appendix A. Maximum Permissible Exposure FCC TEST REPORT Report No.: FR0O1817AC Page No. : A2 of A3 FCC ID : RYK-WUBR507N 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC TEST REPORT Report No.: FR0O1817AC Page No. : A3 of A3 FCC ID : RYK-WUBR507N 1.3. Calculated Result and Limit Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11a: 11.76dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 -1.52 0.704693 11.76 14.9968 0.0021 Max Conducted Power for IEEE 802.11b/g: 18.95dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 -2 0.630957 18.95 78.5236 0.0099

FCC TEST REPORT Report No.: FR0O1817AI Page No. : A1 of A3 FCC ID : RYK-WUBR507N Appendix A. Maximum Permissible Exposure FCC TEST REPORT Report No.: FR0O1817AI Page No. : A2 of A3 FCC ID : RYK-WUBR507N 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC TEST REPORT Report No.: FR0O1817AI Page No. : A3 of A3 FCC ID : RYK-WUBR507N 1.3. Calculated Result and Limit Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11n (20MHz): 11.77dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 -1.52 0.704693 11.77 15.0314 0.0021 Max Conducted Power for IEEE 802.11n (40MHz): 11.68dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 -1.52 0.704693 11.68 14.7231 0.0021 Max Conducted Power for IEEE 802.11n (20MHz): 20.42dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 -2 0.630957 20.42 110.1539 0.0138 Max Conducted Power for IEEE 802.11n (40MHz): 19.01dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 -2 0.630957 19.01 79.6159 0.0100

FCC TEST REPORT Report No.: FR0O1817AC SPORTON International Inc. Report Format Version: a FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : 802.11abgn Wireless USB Module Model No. : WUBR-507N(M); WUBR-507N(MU) Brand Name : SparkLAN Filing Type : New Application Applicant : SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei, Taiwan FCC ID : RYK-WUBR507N Manufacturer : SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei, Taiwan Received Date : Oct. 04, 2010 Final Test Date : Nov. 12, 2010 Statement Test result included is only for the dipole antenna 802.11a/b/g (5725~5850 MHz / 2400~2483.5MHz) part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No.: FR0O1817AC SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507N Table of Contents 1 SUMMARY OF THE TEST RESULT .......................................................................................................................2 2 GENERAL INFORMATION ......................................................................................................................................3 2.1 Product Details .................................................................................................................................................................................... 3 2.2 Table for Filed Antenna ....................................................................................................................................................................... 3 2.3 Table for Carrier Frequencies .............................................................................................................................................................. 4 2.4 Table for Test Modes .......................................................................................................................................................................... 4 2.5 Table for Testing Locations ................................................................................................................................................................. 4 2.6 Table for Supporting Units ................................................................................................................................................................... 5 2.7 Table for Parameters of Test Software Setting .....................................................…
