  1. Home/
  2. SparkLAN Communications, Inc./
  3. RYK-WUBR507NLFG

RYK-WUBR507NLFG802.11abgn USB Module

SparkLAN Communications, Inc.
802.11abgn USB Module - FCC ID RYK-WUBR507NLFG - SparkLAN Communications, Inc.
Click to zoom

Application Details

Equipment Class
NII - Unlicensed National Information Infrastructure TX
Date of Grant
Apr 11, 2012
Application Purpose
Original Equipment
Date of Application
Apr 11, 2012
Equipment Note
802.11abgn USB Module
Frequency Range
5610.00000000 - 5670.00000000
Company
SparkLAN Communications, Inc.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

WUBR-507N(LFG) 802.11a/b/g/n USB Module Quick Installiaton Guide Version 1.0 1 Contents 1. Package Contents........................................................................................................... 3 2 . WLAN Adapter Quick installation Guide.......................................................................... 4 3. Network Card Installation................................................................................................ 4 4. Connect to Wireless Access Point .................................................................................. 9 2 Copyright statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording, or otherwise without the prior writing of the publisher. November 2010 3 1. Package Contents Before you starting to use this wireless network card, please check if there’s anything missing i n the package, and contact your dealer of purchase to claim for missing items: Package Contents Please make sure you have the following in the box: ♦ WUBR-507N(LFG) USB Module ♦ Driver / QIG CDROM Note: if anything is missing, please contact your vendor 4 2. WLAN Adapter Quick installation Guide Please follow the following instructions to use Ralink config utility to connect to wireless access p oint. 3. Network Card Installation 1. Install the WUBR-507N(LFG) USB Module into your computer. Nev e r use force to insert the card, if you feel it’s stuck, flip the card over and try again. 5 2. If he following message appear on your computer, click ‘Cancel’. 3. Insert the Driver CD then wait for the Autorun prompt. 6 4. If Autorun does not work, please browse the CD content and double click the “Autorun.exe”. 5. Click the “Driver” for beginning the installation. 6. Click “Next” and then follow the instructions on the screen to continue the installation. 7 7. When you see this message, please click “Finish” to complete the driver installation process. 8 9 4. Connect to Wireless Access Point 1. A fter installation is complete, a small Ralink icon appears in the notifications area of the taskbar. You can double click it to maximize the RaUI dialog box. 2. When starting RaUI, the system will connect to the AP with best signal strength without setting a profile or matching a profile setting. When starting RaUI, it will issue a scan command to a wireless NIC. After two seconds, the AP list will be updated with the results of a BSS list scan. The AP list includes most used fields, such as SSID, network type, channel used, wireless mode, security status and the signal percentage. The arrow icon indicates the connected BSS or IBSS network. The dialog box is shown below. You could click the two buttons which red arrow pointed to open the “Site Survey” and “Link Information” page to show detail information. 3. You could follow the steps to connect to the AP which you want to connect (Example to 10 Configure Connection with WPA2-PSK). a. Select the AP and click “Connect” icon . b. Authentication/Encryption function appears. 11 c. Select WPA2-PSK as the Authentication Type. Select TKIP or AES encryption. Enter the WPA Pre-Shared Key. d. Click "OK". Be careful, if the WPA Pre-Shared Key entered is not correct, you won’t be able to exchange any data frames, even though the AP can be connected. 12 4. At last, if you want to know more using method of RaUI, you could refer to the help file by click the question mark at the top right corner of RaUI to open it. www.sparklan.com / [email protected] / +886-2-2659- 1880 WUBR-507N (M) Latest 802.11n Wi-Fi Technology SparkLAN WUBR-507N(M) is an 802.11n Wi-Fi USB module, which is backward compatible with 802.11a/b/g standard. With advanced 2T2R MIMO technology, WUBR-507N(M) delivers ultimate wireless data rate for up to 300Mbps. It is designed properly for any wireless enabled devices with standard 6-Pin connector USB Type A (optional). Secure Wireless Connection WUBR-507N(M) also features advanced WEP encryption, WPA, and WPA2 to help to protect data over wireless communication without sacrificing the performance. ■ Chipsets: Ralink RT3572 ■ Compliant with 802.11a/b/g/n Dual-Band standard ■ Interface: 6-Pin or USB 2.0 Type A (optional) ■ Antenna: 2 x U.FL connector ■ Speeds up to 300Mbps ■ Advanced security: 64/128-bits WEP, WPA, WPA2 ■ Support Windows 2000/ XP/ Win CE/ Vista/ Win7, Linux, MAC - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Feature 802.11a/b/g/n USB Module 6-Pin or Type A Connection with Ralink RT3572, 2T2R Mechanical Dimension (mm) Application ■ Networking Equipment ■ USB Dongle ■ Industrial Computers ■ Medical Device ■ POS (Point-of-Sale) System ■ Self-Service KIOSK ■ Gaming Machine ■ Consumer Electronics www.sparklan.com / [email protected] / +886-2-2659- 1880 WUBR-507N (M) Specifications Ordering Info - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ■ WUBR-507N(M) 802.11a/b/g/n USB Module WUBR-507N(M) U.FL+6-Pin WUBR-507N(MU) U.FL+USB Type A WUBR-507N(P) Printed Antenna +USB Type A WUBR-507N(P6) Printed Antenna +6-Pin Related Product ■ WUBR-506N 802.11a/b/g/n dual band USB Module ■ WUBR-125GN 802.11b/g/n USB Module Standard 802.11a/b/g/n Chipset Mac/BB/RF Ralink RT3572 Host Interface 6-Pin Connector (Pin 1: v+, Pin 2: D-, Pin 3: D+, Pin 4: GND, Pin 5: LED, Pin 6: RF) or Type A (optional) Radio Antenna 2 x U.FL connector (2T2R) Operating Frequency 802.11a ISM Band: 5.1 ~ 5.8GHz 802.11g ISM Band: 2.4 ~ 2.4835GHz Modulation 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) Output Power 802.11a: 11dBm ± 1.5dBm@54Mbps 802.11b: 16dBm ± 1.5dBm@11Mbps 802.11g: 1…

Text truncated - open the document above for the full version.

External Photos

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 27, 2012 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C8 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C9 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C10 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 27, 2012 FAX : 886-2-2696-2255

ID Label/Location Info

Model No.:WUBR-507N(LFG) MAC: XXXXXXXXXXXX SN: XXXXXXXXXXXXX IC:6158A-WUBR507N FCC ID:RYK-WUBR507NLFG FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C14 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2010 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT Label location

Internal Photos

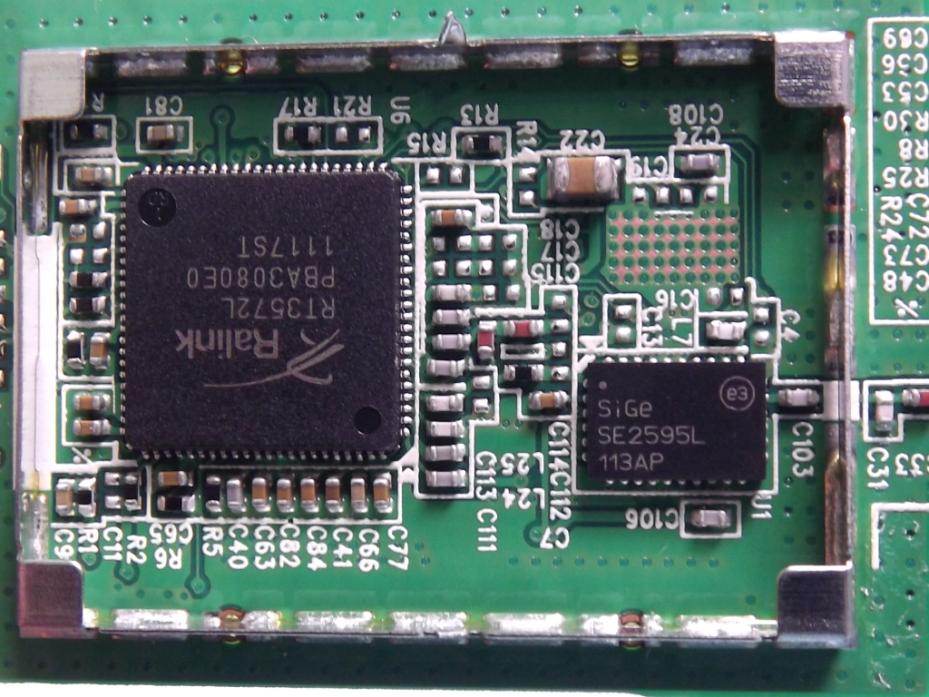

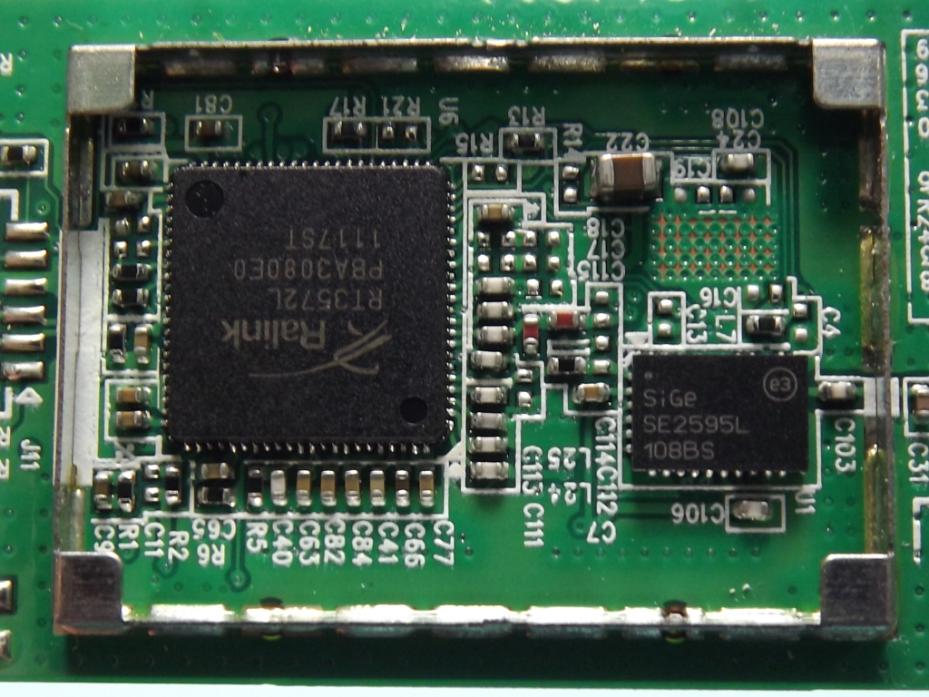

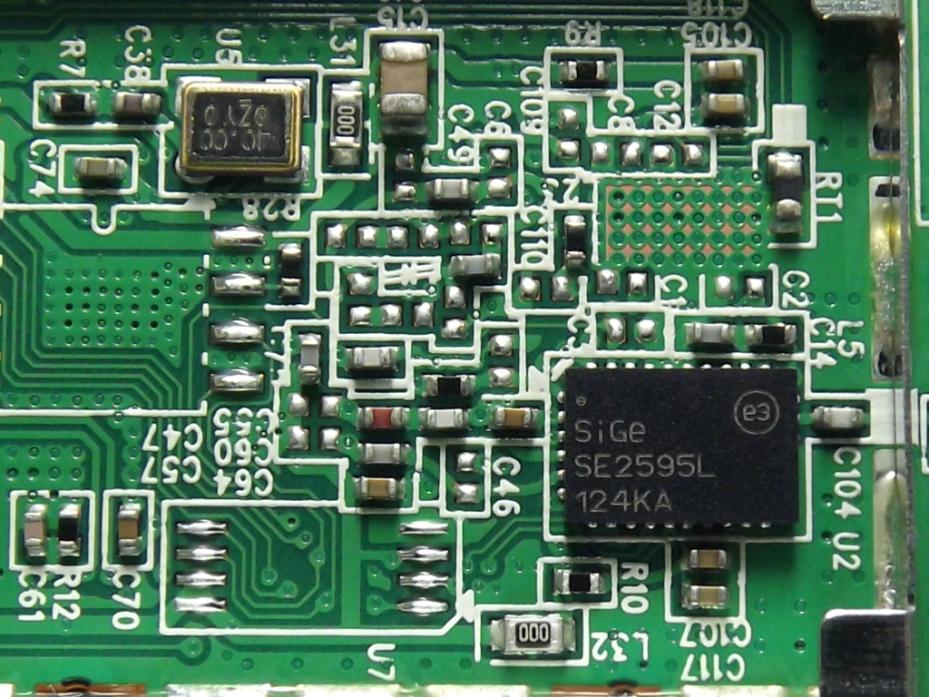

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 27, 2012 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C8 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C9 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C10 OF C10 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 27, 2012 FAX : 886-2-2696-2255

RF Exposure Info

Page No. : A1 of A3 FCC ID : RYK-WUBR507NLFG FCC TEST REPORT Report No. : FR210523-01AN A V Appendix A. Maximum Permissible Exposure Page No. : A2 of A3 FCC ID : RYK-WUBR507NLFG FCC TEST REPORT Report No. : FR210523-01AN A V 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with IC RSS-102 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Page No. : A3 of A3 FCC ID : RYK-WUBR507NLFG FCC TEST REPORT Report No. : FR210523-01AN A V 1.3. Calculated Result and Limit Antenna Type : Printed Antenna Max Conducted Power for IEEE 802.11a: 11.93dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 3.33 2.152782 11.93 15.5955 0.0049 Max Conducted Power for IEEE 802.11n (20MHz/40MHz): 12.49dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 3.33 2.152782 12.49 17.7419 0.0056

Test Report

FCC TEST REPORT Report No.: FZ210523-01 SPORTON International Inc. Report Format Version: a Dynamic Frequency Selection Test Report Equipment : 802.11abgn Wireless USB Module Model No. : WUBR-507N(LFG) Brand Name : SparkLAN Filing Type : New Application Applicant : SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan FCC ID : RYK-WUBR507NLFG Manufacturer : SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan Test Standard(s) : 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range : 5250~5350 MHz / 5470~5725 MHz Received Date : Nov. 01, 2010 Final Test Date : Nov. 01, 2010 Submission Type : Original Equipment Operating Mode : Client (without radar detection function) Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in FCC OET Order 06-96A (2006) and 47 CFR FCC Part 15 Subpart E § 15.407. The test equipment used to perform the test is calibrated and traceable to NML/ROC. ____________________________ Wayne Hsu / Assistant Manager Reviewed Data: Dec. 31, 2005 FCC TEST REPORT Report No.: FZ210523-01 SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 Table of Contents 1 SUMMARY OF THE TEST RESULT .......................................................................................................................1 2 GENERAL INFORMATION ......................................................................................................................................2 2.1 Standard Requirement ........................................................................................................................................................................ 2 2.2 Product Specification Table ................................................................................................................................................................. 2 2.3 Table for DFS Band Carrier Frequencies ............................................................................................................................................ 2 3 DFS DETECTION THRESHOLDS AND RADAR TEST WAVEFORMS .................................................................3 3.1 Interference Threshold values, Master or Client incorporating In-Service Monitoring ........................................................................... 3 3.2 DFS Response requirement values ..................................................................................................................................................... 3 3.3 Radar Test Waveforms Minimum Step ................................................................................................................................................ 4 3.4 Short Pulse Radar Test Waveforms .................................................................................................................................................... 4 3.5 Long Pulse Radar Test Waveform ....................................................................................................................................................... 5 3.6 Frequency Hopping Radar Test Waveform ......................................................................................................................................... 8 3.7 Conducted Calibration Setup ............................................................................................................................................................. 10 3.8 Radar Waveform Calibration Procedure ............................................................................................................................................ 10 3.9 Calibration Deviation ......................................................................................................................................................................... 10 4 TEST SETUP AND TEST RESULT ...................................................................................................................... 11 4.1 Test setup ......................................................................................................................................................................................... 11 4.2 In-Service Monitoring for Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period Measurement ...... 21 4.3 Result of Channel Move Time & Channel Closing Transmission Time & Non-Occupancy Period ...................................................... 22 5 MEASURING INSTRUMENTS .............................................................................................................................. 35 APPENDIX A. TEST PHOTOS ....................................................................................................................... A1 ~ A1 FCC TEST REPORT Report No.: FZ210523-01 SPORTON International Inc. Page No. : ii of ii TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 History of This Test Report Original Issue Date: Mar. 27, 2012 Report No.: FZ210523-01 ■ No additional attachment. □ Additional attachment were issued as following record: Attachment No. Issue Date Description FCC TEST REPORT Report No.: FZ210523-01 SPORTON International Inc. Page No. : 1 of 35 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 1 SUMMARY OF THE TEST RESULT Applied Standard: FCC OET Order 06-96A (2006) Part Appendix Description of Test Result 4.2 7.8.3 In-Service Monitoring for Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period Complies Note: Client without radar detection FCC TEST REP…

Text truncated - open the document above for the full version.

Test Report

SPORTON International Inc. Report Format Version: a F FCC TEST REPORT Report No. : FR210523-01AN FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart E § 15.407 Equipment : 802.11abgn Wireless USB Module Brand Name : SparkLAN Model No. : WUBR-507N(LFG) Filing Type : New Application Applicant : SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan FCC ID : RYK-WUBR507NLFG Manufacturer : SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei City 11493, Taiwan Received Date : Nov. 08, 2010 Final Test Date : Jan. 30, 2012 Statement Test result included is only for the printed antenna 802.11a/n (5150~5350MHz; 5470~5725MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN Table of Contents 1 SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2 GENERAL INFORMATION ...................................................................................................................................... 3 2.1 Product Details ................................................................................................................................................................................... 3 2.2 Table for Filed Antenna ....................................................................................................................................................................... 4 2.3 Table for Carrier Frequencies ............................................................................................................................................................. 5 2.4 Table for Test Modes .......................................................................................................................................................................... 6 2.5 Table for Testing Locations ................................................................................................................................................................. 6 2.6 Table for Supporting Units .................................................................................................................................................................. 7 2.7 Table for Parameters of Test Software Setting .................................................................................................................................... 7 2.8 EUT Operation during Test ................................................................................................................................................................. 8 2.9 Test Configuration ............................................................................................................................................................................... 8 3 TEST RESULT ....................................................................................................................................................... 10 3.1 AC Power Line Conducted Emissions Measurement ........................................................................................................................ 10 3.2 99% Occupied Bandwidth Measurement ........................................................................................................................................... 14 3.3 Maximum Conducted Output Power Measurement ........................................................................................................................... 64 3.4 Power Spectral Density Measurement .............................................................................................................................................. 68 3.5 Peak Excursion Measurement .......................................................................................................................................................... 95 3.6 Radiated Emissions Measurement .................................................................................................................................................. 122 3.7 Band Edge and Fundamental Emissions Measurement .................................................................................................................. 178 3.8 Frequency Stability Measurement ................................................................................................................................................... 188 3.9 Antenna Requirements ................................................................................................................................................................... 191 4 LIST OF MEASURING EQUIPMENTS ................................................................................................................ 192 5 TEST LOCATION ................................................................................................................................................. 194 6 TAF CERTIFICATE OF ACCREDITATION ......................................................................................................... 195 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE .............................................................…

Text truncated - open the document above for the full version.

Test Report

SPORTON International Inc. Page No. : 128 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN 3.6.9 Results for Radiated Emissions (1GHz~40GHz) For Single Chain: Final Test Date Jan. 18, 2012 Test Site No. 03CH02-HY Temperature 20°C Humidity 66% Test Engineer Streak Configuration 802.11a Ch. 36 Horizontal SPORTON International Inc. Page No. : 129 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN Vertical SPORTON International Inc. Page No. : 130 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN Final Test Date Jan. 18, 2012 Test Site No. 03CH02-HY Temperature 20°C Humidity 66% Test Engineer Streak Configuration 802.11a Ch. 40 Horizontal SPORTON International Inc. Page No. : 131 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN Vertical SPORTON International Inc. Page No. : 132 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN Final Test Date Jan. 18, 2012 Test Site No. 03CH02-HY Temperature 20°C Humidity 66% Test Engineer Streak Configuration 802.11a Ch. 48 Horizontal SPORTON International Inc. Page No. : 133 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN Vertical SPORTON International Inc. Page No. : 134 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN Final Test Date Jan. 18, 2012 Test Site No. 03CH02-HY Temperature 20°C Humidity 66% Test Engineer Streak Configuration 802.11a Ch. 52 Horizontal SPORTON International Inc. Page No. : 135 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN Vertical SPORTON International Inc. Page No. : 136 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN Final Test Date Jan. 18, 2012 Test Site No. 03CH02-HY Temperature 20°C Humidity 66% Test Engineer Streak Configuration 802.11a Ch. 56 Horizontal SPORTON International Inc. Page No. : 137 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN Vertical SPORTON International Inc. Page No. : 138 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN Final Test Date Jan. 19, 2012 Test Site No. 03CH02-HY Temperature 20°C Humidity 66% Test Engineer Streak Configuration 802.11a Ch. 64 Horizontal SPORTON International Inc. Page No. : 139 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN Vertical SPORTON International Inc. Page No. : 140 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN Final Test Date Jan. 19, 2012 Test Site No. 03CH02-HY Temperature 20°C Humidity 66% Test Engineer Streak Configuration 802.11a Ch. 100 Horizontal SPORTON International Inc. Page No. : 141 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN Vertical SPORTON International Inc. Page No. : 142 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN Final Test Date Jan. 19, 2012 Test Site No. 03CH02-HY Temperature 20°C Humidity 66% Test Engineer Streak Configuration 802.11a Ch. 116 Horizontal SPORTON International Inc. Page No. : 143 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN Vertical SPORTON International Inc. Page No. : 144 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN Final Test Date Jan. 19, 2012 Test Site No. 03CH02-HY Temperature 20°C Humidity 66% Test Engineer Streak Configuration 802.11a Ch. 140 Horizontal SPORTON International Inc. Page No. : 145 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN Vertical SPORTON International Inc. Page No. : 146 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN For Two Chains: Final Test Date Jan. 19, 2012 Test Site No. 03CH02-HY Temperature 20°C Humidity 66% Test Engineer Streak Configuration 802.11n Ch. 36 (20MHz) Horizontal SPORTON International Inc. Page No. : 147 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN Vertical SPORTON International Inc. Page No. : 148 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN Final Test Date Jan. 19, 2012 Test Site No. 03CH02-HY Temperature 20°C Humidity 66% Test Engineer Streak Configuration 802.11n Ch. 40 (20MHz) Horizontal SPORTON International Inc. Page No. : 149 of 195 TEL : 886-2-2696-2468 Issued Date : Mar. 27, 2012 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AN Vertical S…

Text truncated - open the document above for the full version.

Test Setup Photos

Page No. : 1 of 1 FCC TEST REPORT Report No. : FZ210523-01 1 Photographs of DFS Test Configuration FRONT VIEW

Test Setup Photos

Page No. : B1 of B7 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AC Appendix B. Test Photos Page No. : B2 of B7 FCC ID : RYK-WUBR507NLFG F FCC TEST REPORT Report No. : FR210523-01AC 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Page No. : B3 of B7 FCC ID : RYK-WUBR507N…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Grady Lin(Manager)
[email protected]+886-2-2659-1880Fax: +886-2-2659-5538

Test Firm

Sporton International Inc.Alex Chen
[email protected]886-3-327-3456Fax: 886-3-327-0973

Technical Specifications

#Rule PartsFrequency RangePower Output
615E5.61 GHz - 5.67 GHz16.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Output Power listed is the maximum combined conducted peak output power as indicated in the filing. This OEM module is approved for use in products operating as mobile transmitting device. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. Grantee shall provide installation and operating instructions for satisfying RF exposure requirements to OEM integrators and installers. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Device is operating in a 2T2R Spatial Multiplexing MIMO configuration as described in this filing. This transmitter is restricted to indoor use only within the 5.15-5.25 GHz band. When operating in 802.11n, 40 MHz mode, the operating frequency segment is limited to 5190 to 5230 MHz, 5270 to 5310 MHz and 5510 to 5670 MHz accordingly.
