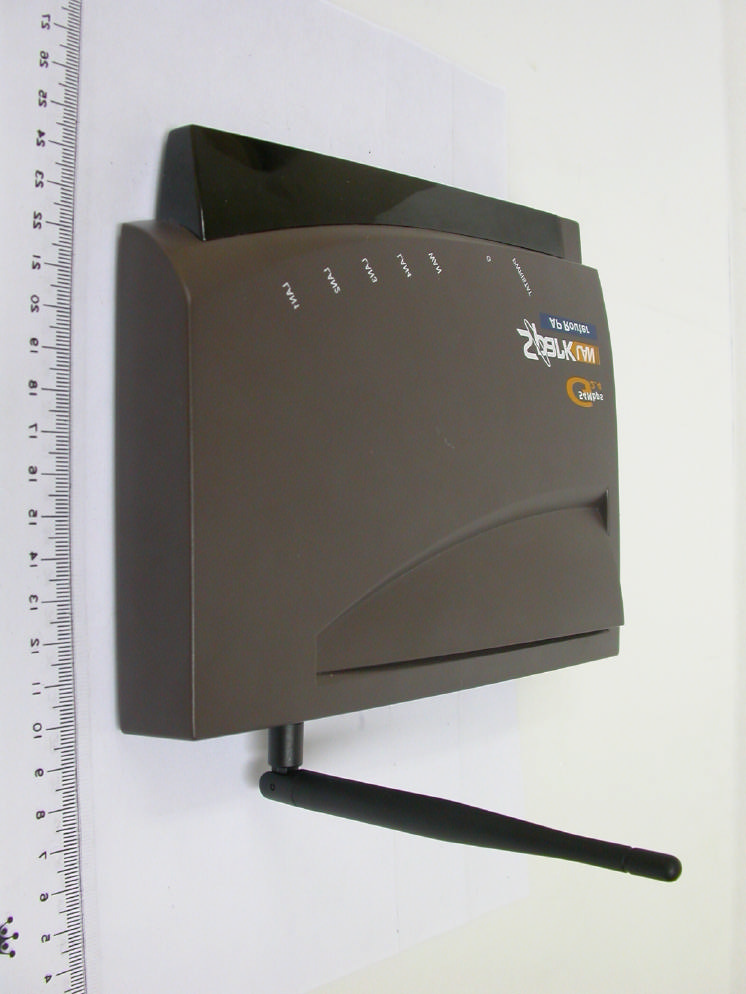

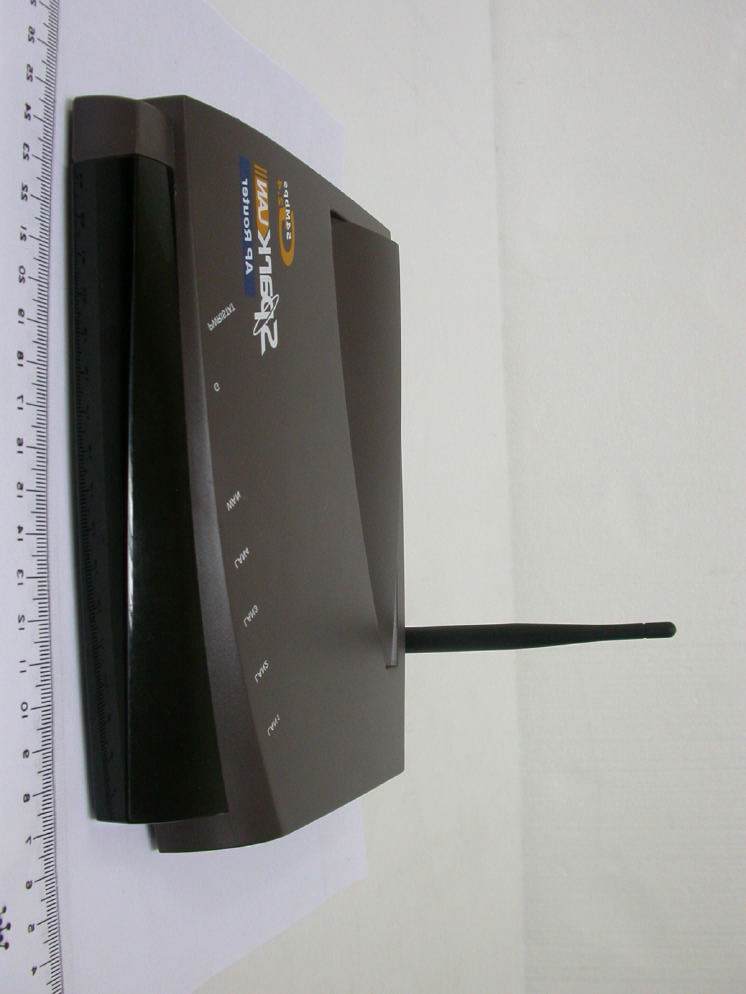

RYK230200403MWireless Router

Wireless 11g High Speed AP Router 802.11g/802.11b Wireless Access Point Broadband Internet Access 4-Port Switching Hub User's Guide Model No.: WX-6615M Table of Contents CHAPTER 1 INTRODUCTION.............................................................................................1 Wireless Router Features.................................................................................................1 Package Contents..............................................................................................................3 Physical Details.................................................................................................................. 4 CHAPTER 2 INSTALLATION...............................................................................................6 Requirements..................................................................................................................... 6 Procedure...........................................................................................................................6 CHAPTER 3 SETUP................................................................................................................8 Overview............................................................................................................................8 Configuration Program....................................................................................................9 Setup Wizard...................................................................................................................11 LAN Screen......................................................................................................................14 Wireless Screen................................................................................................................16 Password Screen..............................................................................................................20 CHAPTER 4 PC CONFIGURATION..................................................................................21 Overview.......................................................................................................................... 21 Windows Clients..............................................................................................................21 Macintosh Clients............................................................................................................33 Linux Clients.................................................................................................................... 33 Other Unix Systems.........................................................................................................33 Wireless Station Configuration......................................................................................34 CHAPTER 5 OPERATION AND STATUS.........................................................................35 Operation......................................................................................................................... 35 Status Screen.................................................................................................................... 35 Connection Status - PPPoE............................................................................................37 Connection Status - PPTP..............................................................................................39 Connection Status - L2TP...............................................................................................40 Connection Status - Telstra Big Pond............................................................................41 Connection Details - SingTel RAS.................................................................................42 Connection Details - Fixed/Dynamic IP Address.........................................................44 CHAPTER 6 ADVANCED FEATURES..............................................................................46 Overview.......................................................................................................................... 46 Access Control.................................................................................................................46 Dynamic DNS (Domain Name Server)..........................................................................53 Advanced Internet Screen..............................................................................................55 Virtual Servers.................................................................................................................59 WAN Port Configuration...............................................................................................63 CHAPTER 7 ADVANCED ADMINISTRATION...............................................................66 Overview.......................................................................................................................... 66 Config File........................................................................................................................67 Logs...................................................................................................................................68 Network Diagnostics.......................................................................................................70 Options.............................................................................................................................71 PC Database.....................................................................................................................73 Remote Admin.................................................................................................................77 Routing.............................................................................................................................78 Security....................................................................…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. 4F-2, No. 28, Lane 78, Xing-Ai Rd. Nei-hu, Taipei City 114 Taiwan R.O.C 11478284-2F Tel:886-2-2792-3366 Fax:886-2-2792-1100 To whom it may concern: We would like to apply for the FCC certification for WX-6615M wireless 11g high speed AP Router. Please find out all detail information in other files. Please contact me if any problem. Thank you very much. Claire Wu Exclusive Certification Corp. TEL: +886-2-2792-3366 # 204 FAX: +886-2-2792-1100 E-mail: [email protected]

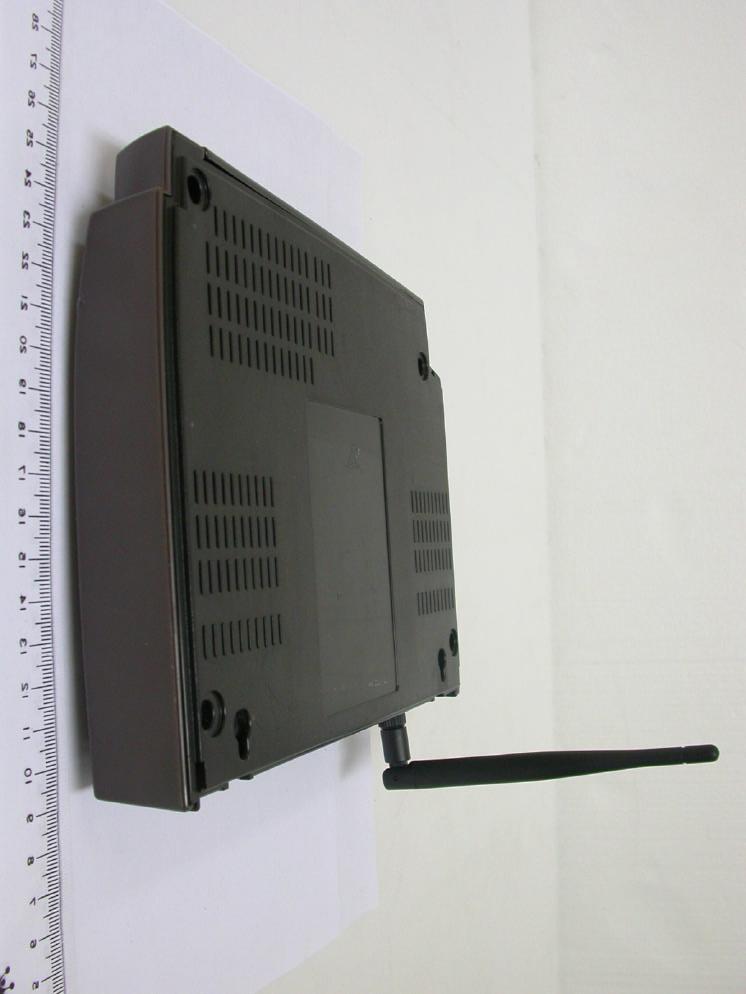

The ID label shows on the next page will be applied on the square area of the back side of the unit (see the photo above). Materials: 75 Wireless 11g High Speed AP Router Model No.: FCC ID : RYK230200403M WX-6615M ! SparkLAN Communications, Inc.

04030302-A 04030302-A

Part Number Date Subject pages3 WX-6615M Operation Principle 1. CPU, U6, 88W8510 have a 32-bit RISC processor integrated, operation frequency is 160MHz. It needs an external 44MHz crystal for reference frequency; this crystal is also used for RF module. This chip is responsible to control RF-Baseband Transceiver (88W8000G), Flash IC and LED. This chip also has MII interface integrated to communicate with 10/100 Ethernet Switch. 2. FLASH, U13, AM29LV800BT-70EC, 8Mbits Flash, bottom sector, 70ns. It is used to store the normal and test firmware. 3. Integrated 2.4GHz ISM Band RF-Baseband Transceiver, U9, 88W8000G which is integrated all RF-Baseband receive and Transmit function. On-Chip Power Amplifier (PA) with up to +20 dBm output power at the antenna port. It is also integrated programmable frequency synthesizers with integrated VCOs, I/Q generation and CMOS up/down conversion mixers. 4. 10/100 Ethernet Switch, U10, 88E6060 support automatic MDI/MDIX crossover for 100BASE-TX and 10 BASE-T ports. Port 5 has dedicated, always on, MAC Mode (Forward) and PHY Mode (Reverse) RMII/MII/SNI interface for management and firewall applications. Each port works at 10Mbps or 100Mbp, full-duplex or half-duplex mode (forced or auto-negotiated). Flexible LED support for Link, Speed, Duplex Mode, Collision, and TX/RX Activities. 5. Power part: there are several regulators are used on the board.U18,HW2596 is used to transfer DC12V to DC5V,U17, AZ1084S-3 is used to transfer DC5V to DC3V3; U1, U8 AME8805 are used to transfer DC3V3 to DC2V5; U20, 1117-ADJ is used to transfer DC3V3 to DC1V62. The core of CPU is operate at 1.5V. 6. LED part: LED Color Controlled byDescription Power Green FW On - power on Off - no power Status Red FW On - Error condition. Off - Normal operation Blinking - This LED blinks during start up. 100 OrangeHW On - Link at 100Mbps Off - Link at 10Mbps LAN Link/Act Green HW Blinking - receiving/ transmitting data WAN Green HW On - WAN connection is established Off - No WAN connection available Blinking - data is being transmitted or received via the WAN port. WLAN Green FW On - Wireless connection available; Wireless Access Point is ready for use. Off - No Wireless connection available. Blinking - Data is transmitted or received via the Wireless access point. This includes "network traffic" as well as user data. 7. Switch button, SW1, it is used to reset the 88W8510. 8. Multi-layer Chip Band-Pass Filters, BP2,BP1, BF2520-B2R4CABT, Freq. Range: 2.4~2.5GHz; IL@BW: 2.5dB 9. GaAs IC SPDT Switch, U7, HWS314, features low insertion loss and positive voltage operation with very low DC power consumption. 10. Router which operates in the 2.4 GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 05, 2004 1 of 1 FCC ID: RYK230200403M FCC Test Report: FI04030302-A 1.1. Test Result of RF Exposure Evaluation . Product: Wireless Router . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 2.0dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: IEEE 802.11b Test Date: Apr. 02, 2004 Temperature: 24 Humidity: 65 Channel Channel Frequency (MHz) Output Power to Antenna (mW) 20 cm allowable Distance ®From Skin (cm) 01 2412 31.40 .011 06 2437 45.92 .016 11 2462 41.20 .015 Modulation Standard: IEEE 802.11g Test Date: Apr. 02, 2004 Temperature: 24 Humidity: 65 Channel Channel Frequency (MHz) Output Power to Antenna (mW) 20 cm allowable Distance ®From Skin (cm) 01 2412 15.31 .005 06 2437 23.17 .008 11 2462 20.55 .007 The distance r (4 th column) is 20 cm separation requirement. So, RF exposure limit warning or SAR test are not required.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 05, 2004 1 of 58 FCC ID: RYK230200403M FCC Test Report: FI04030302-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart B & C Applicant SparkLAN Communications, Ins. Address 3FL, No. 246, Sec. 1, Neihu Chiu, Taipei Taiwan 114, Taiwan R.O.C Equipment Wireless 11g High Speed AP Router Model No. WX-6615M FCC ID RYK230200403M Trade Name SparkLAN † The test result refers exclusively to the test presented test model / sample. † Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 05, 2004 2 of 58 FCC ID: RYK230200403M FCC Test Report: FI04030302-A Contents 1. Report of Measurements and Examinations..................................................................................4 1.1. List of Measurements and Examinations.............................................................................4 1.2. Antenna Requirements......................................................................................................5 1.3. Test of Conducted Emission...............................................................................................6 1.4. Test of Radiated Emission.................................................................................................8 1.5. 6dB Bandwidth.................................................................................................................9 1.6. Maximum Peak Output Power............................................................................................9 1.7. Band Edges Measurement..............................................................................................10 1.8. Power Spectral Density...................................................................................................10 1.9. Restricted Bands of Operation.........................................................................................11 1.10. Labeling Requirement.....................................................................................................11 1.11. RF Exposure..................................................................................................................12 2. Test Configuration of Equipment under Test................................................................................14 2.1. Test Mode......................................................................................................................14 2.2. Description of Test System..............................................................................................14 2.3. Connection Diagram of Test System.................................................................................15 2.4. Feature of Equipment under Test.....................................................................................15 2.5. History of this test report..................................................................................................15 3. General Information of Test........................................................................................................16 4. Test Result and Data.................................................................................................................17 4.1. Antenna Requirement.....................................................................................................17 4.2. Test Result of Conducted Emission..................................................................................18 4.3. Test Result of Radiated Emission.....................................................................................31 4.4. 6dB Bandwidth Measurement Data..................................................................................46 4.5. Peak Output Power Measurement Data............................................................................50 4.6. Band Edges Measurement Data......................................................................................50 4.7. Power Spectral Density Measurement Data.........................................! 4.8. Test Result of RF Exposure Evaluation.............................................................................57 5. List of Measuring Equipment Used.............................................................................................58 Appendix A. Photographs of EUT........................................................................ .............A1 ~ A4 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 05, 2004 3 of 58 FCC ID: RYK230200403M FCC Test Report: FI04030302-A CERTIFICATE OF COMPLIANCE according to FCC Rules and Regulations Part 15 Subpart B & C Applicant SparkLAN Communications, Ins. Address 3FL, No. 246, Sec. 1, Neihu Chiu, Taipei Taiwan 114, Taiwan R.O.C Equipment Wireless 11g High Speed AP Router Model No. WX-6615M FCC ID RYK230200403M I HEREBY CERTIFY THAT : The measurements shown in this test report were made in accordance with the procedures given in ANSI C63.4. The equipment was passed the test performed according to FCC Rules and Regulations Part 15 Subpart B & C (2002). The test was carried out on Apr. 05, 2004 at Exclusive Certification Corp. Signature Anson Chou / Manager Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 05, 2004 4 of 58 FCC ID: RYK230200403M FCC Test Report: FI04030302-A 1. Report of Measurements and Examinations 1.1. List of Measurements and Examinations FCC Rule . Description of Test Result 15.203 . Antenna Requirement Pass 15.207 . Conducted Emission Pass 15.209 . Radiated Emission Pass 15.247(a)(2) . 6dB Bandwidth Pass 15.247(b) . Maximum Peak Output Power Pass 15.247(c) . 100kHz Bandwidth of Frequency Band Edges Pass 15.247(d) . Power Spectral Density Pass 1.1307 1.1310 2.1091 2.1093 . RF Exposure Compliance Pass Te…
