S2Y-WLAN-11B-GSDIO Wireless Lan Card

Wireless/Internet SDIO WLAN card SDIO WLAN Card User’s Manual ver. 1.24 WLAN-11b 802.1 1b TM www.spectec.com.tw WLAN-11b 0012E6000506 FCC ID:S2YMINIWLAN 11 B W L A N - 1 1 b / g S D I O W L A N C a r d w w w .s p e c t e c .c o m . t w 2 Installation Procedure < First, connect PDA to your computer with a USB wire. < Main menu window will pop up when you insert the WLAN-11b Installation CD by autorun: 3 < Choose the desired Language, then click OK. < The Installation menu will automatically appear on the screen. < Click Next 1 2 4 4 5 6 7 8 < Enter user information, then click Next. < Chose Setup type, then click Next 5 < The driver will be installed automatically. < Click Yes to proceed with installation. Click OK to finish installation. < Click Finish to complete the driver installation process. 9 10 11 6 How to take a SDIO WLAN card out of a PDA < Check the direction of the card. Insert the card with the label side facing the front of the PDA until it clicks. # Different PDAs may have different drives. Make sure the direction is correct to avoid damaging the PDA’s SD drive. < When removing the SDIO WLAN card from a PDA, simply press down on the card until it clicks. The card will rise up for easy removal. DO NOT PULL by force, or the slot may be damaged. < This card is designed to be locked into the slot. Forcefully pulling the card out will not only damage this auto pop-out function, but also the slot and the wireless card. Pull out Card rises, then pull out Press down Inserting the SDIO WLAN Card into a PDA * Please do not keep inserting & removing the card, different PDAs needs an interval of 5 to 7 seconds to process. 1 2 WLAN-11b 802.1 1b TM www.spectec.com.tw WLAN-11b 802.1 1b TM www.spectec.com.tw 12 WLAN-11b 0012E6000506 FCC ID:S2YMINIWLAN 11 B WLAN-11b 802.1 1b TM www.spectec.com.tw WLAN-11b 802.1 1b TM www.spectec.com.tw WLAN-11b 802.1 1b TM www.spectec.com.tw WLAN-11b 0012E6000506 FCC ID:S2YMINIWLAN 11 B 7 How to Connect < After install the software, start path as Start\Programs. < After inserting the card into the PDA, click Start. Click Programs on the pull-down menu, then select .(Only built-in 11b card for PCC2003) < Click to open the WLAN Utility window. WLAN-11b 802.1 1b TM www.spectec.com.tw 2 8 In “Radio” page of WLAN Utility, you may check S/W Radio Off/on for Enable/ Disable Wi-Fi card, or you can also find a shortcut icon at the lower right hand corner of the screen. < Click , shortcut icon to switch on/off Wi-Fi radio 9 How to Connect Ad-hoc 1. In WLAN Utility, select Ad-Hoc Channel (must be channel1). 2. Click OK to exit WLAN Utility. 3. Remove the card from PDA, then re-insert the card. 4. Go to PDA system: Settings\Connections\ Network Cards. 5. Click Add New. 6. Type in the name (ex. aa). 7. Check the “This is a device-to-device (ad-hoc) connection” box. 8. Click OK. The input name (ex. aa) will be added to the Network Address. *Ad-hoc channel is a “Point-to-point” network segment. It provides you with a temporary LAN environment. In Settings, select the network name that you would like to remove. Wait 2 seconds for the ‘Remove Settings’ pop-up window to appear. How to Remove Settings 1 PS:PS: Ch Channe 1anne 12 is the channel in A2 is the channel in Americamerica 2 4 5 6 7 8 3 WLAN-11b 802.1 1b TM www.spectec.com.tw

10 Wireless/Internet Speed Dial < Click 1. Make quick changes to the wireless card On/Off function. 2. “Open” to go directly to WLAN Utility screen for more information. WLAN Utility has 3 features (Status/Radio/About): *Status - Shows SSID, IP Address, Mac Address, Signal Strength, and Signal Quality information. *Radio - Enable/Disable Wi-Fi card and Power Saving mode selections. < Click On enables wireless network functions. < Click Off disables wireless network functions. < Ad Hoc Channel: Select ad hoc channels (1~11). Power Saving: < Disable: No power saving. < Enable (Max): Maximum power saving. May affect download speed. < Enable (Fast): No affect on the download speed (recommend). 11 *About -- Shows SPECTEC connections info. < Driver: Current version of driver you installed. < Utility: Current version of utility you installed. < SPECTEC Web Site: http//:www.spectec.com.tw < Technical Support: [email protected] WLAN-11b 802.1 1b TM www.spectec.com.tw WLAN-11b 802. 11 b TM www .spectec.com.tw 12 < From Start Menu/Settings/ Connections/Network Cards, select icon for a pull-down menu. Click Settings to go into the Settings/Connections window. < Click and hold Connect for2 seconds, then click OK. All available network selections will available network selections will appear. To Select Networks Manually After inserting Mini SDIO WLAN card into PDA, if the icon does not appear on the upper window, the network may be connected manually. 1 13 CD info < Click Browse Contents button to review all the files on CD 1 < Review all the files list on CD 1 14 Contact Us < Click Contact Us button to review our information. 1 Contact Information 1 Download the newest SD Device, please go to SPECTEC website: http://www.spectec.com.tw 1. Driver (cab fi le) Take out the WLAN card, click “reset”, connect computer through Microsoft Active Sync,download Driver cab fi le copy to any list of PDA, click Yesto fi nish install. 2. Utility (.exe install) a. Cconnect Active Sync to PC b. Copy Utility 235.exe to myDevice/windows/startmenu/programs c. The icon will show up in Program. 3. Auto run: a. dowload compress fi le: ReleasedCD20050625ST125n235-2.rar b. connect Active Sync to PC c. Decompress fi le - ReleasedCD20050625ST125n235-2.rar c. Decompress fi le - ReleasedCD20050625ST125n235-2.rar d. The Autorun menu will show up (please see P2~P5 d. The Autorun menu will show up (please see P2~P5 Installation steps) 4. User Manul download (Adobe PDF) Please go to the addreess - http://www.adobe.com/ http://www.adobe.com/ products/acrobat/readstep2.html to download free products/acrobat/readstep2.html to download free Adobe Reader software Click Save 1 How to Upgrade Software 15 How to Install Software 1 WLAN-11b 802.1 1b TM www.spectec.com.tw 16 AP Compatibility List Test condition and test environment DUT: WLAN-11b * Measurements: mbps RX: Receiver TX: Sender * Test Environment : Night without Raining C ~ 32 C Distance from 5m ~ 30m * Collect data tool : Windows CE Platform Builder 5.0 performance monitor tool * Test Environment : Night without Raining C ~ 32 Vendor A cct on ASUS At hero s BENQ BEL KIN Bu ff alo Model IG 2004W W L- 500b WL- 530g A R5002AP AW L700 F 5D7230 AG54 WLA- L11G-L Rate T X RX TX RX T X RX TX RX TX RX TX RX TX RX TX RX Auto Rate 1.55 2 .62 1.71 2.88 1.49 2 .43 1.61 2.84 1 .67 2.39 1 .59 2.43 1 .61 2.82 1 .66 2.90 Vendor C isco Coreg a DLink Ge mt ek I ntere poc h Intersil Lin ks ys Model AP 1220 WLB ARGP D Li nk 624 D Li nk 724 W X-1500 series IWE- 1100A I SL39300 W RK 54G Rate T X RX TX RX TX RX T X RX TX RX TX RX T X RX TX RX Auto Rate 1.67 2 .87 1.67 2 .67 1.63 2 .80 1.63 2 .80 1.61 2 .44 1.60 2.44 1 .70 2.91 1 .64 2.78 Vendor Maxim OriNoCo PCI Proxi m RA YT AC SMC 3Com Model WA P- G5 4A A P- 200 BL W- 04gm A P 600 DS2400 WBR 14- G XJ AC K AP 2000 Rate T X RX T X RX T X RX TX RX T X RX TX RX TX RX T X RX Auto Rate 1.63 2 .89 1.56 2 .73 1.63 2 .80 1.63 2 .79 1.64 2 .67 1.67 2 .43 1.60 2 .78 1.68 2.78 Vendor Synnex MSI AboCom SENAO ZERO ONE Model LM-WCAS3040 R G54G2 WB1 04 k NL-2511SR+ A F411W Rate TX RX TX R X TX RX TX R X TX R X Auto Rate 1.59 2 .77 1.60 2 .65 1.69 2 .87 1.66 2 .49 1.54 2 .69 Frequently Ask Question Q: After installing the CD-ROM, how many fi les will be installed onto the device? A: After installation, some dll fi les are installed in My Device\Windows, and the WLAN Utility in Programs. However, these fi les are quite small, and total about 300 KB. Q: How do I temporarily stop the wireless/internet connection? A: You can click on the “Off” button in WLAN Utility. When all 5 blue bars are white, Wi-Fi is disabled. Selecting the “On” setting will reconnect you to the internet. Q: What do the 5 bars from “WLAN Utility” indicate? A: These 5 bars show the strength of the signals. More blue bars indicate stronger signals, while all white bars indicate no connection. Q: Why can’t I browse the web page even though the card has an IP address? A: When connecting to the internet with a weak signal, CRC may have too many errors to allow viewing a web page. Please try your connection around strong signals. Q: Can your Wi-Fi card be used for internet phone such as Skype? A: Yes, our Wi-Fi card can be used with Skype software. We suggest to use in an empty fi eld, and with wired headphones for better results. 17 Warranty hank you for your purchase of our product. For Spectec’s quality service, please read the following for your rights. 1. Warranty period is 1 year, starting from the date of original purchase. Please provide original purchase receipt with purchase date when inquiring for service. 2. This product has passed all quality control and AP tests for quality assurance. We suggest to use it with the AP list, and other accepted industry-standard equipments. 3. If the damage is resulted from product design, defects in material or poor workmanship, we will repair or exchange your product. 4. This warranty does not cover failures resulted from accidents, misuse, abuse, neglec…

Text truncated - open the document above for the full version.

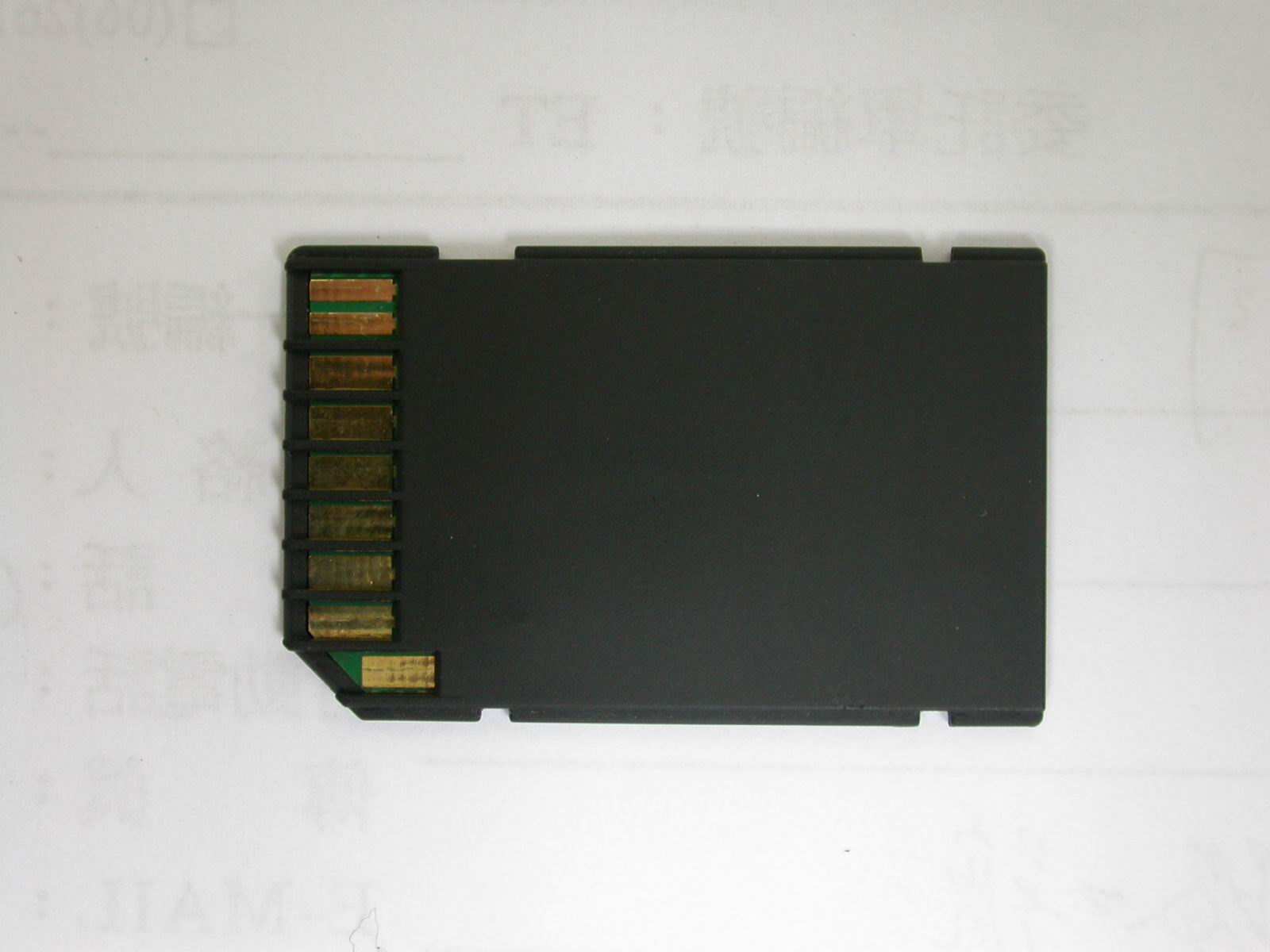

ETC Report No.: 06-01-MAS-059-02 Page A1 of A1 FCC ID. :S2Y-WLAN-11B-G ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

FCC ID Label & Location

ETC Report No.: 06-01-MAS-059-02 Page B1 of B1 FCC ID. :S2Y-WLAN-11B-G ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Front view of PCB 2. Rear view of PCB

ETC Report No. : 06-01-MAS-059-02 Sheet 1 of 71 Sheets FCC ID. :S2Y-WLAN-11B-G Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: 06-01-MAS-059-02 Client: Spectec Computer Co.,Ltd Product: SDIO Wireless Lan Card Model: SDW-821 FCC ID: S2Y-WLAN-11B-G Manufacturer/supplier: Spectec Computer Co.,Ltd. Date test item received: 2006/01/06 Date test campaign completed: 2006/01/09 Date of issue: 2006/01/16 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 71 pages Total number of pages of photos: External photos 1 pages Internal photos 1 pages Setup photos 3 pages Test Engineer Checked By Approved By James Mark Joe Hsieh ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WENMING RD., LESHAN TSUEN, GUISHAN SHIANG, TAOYUAN COUNTY, TAIWAN 33383, R.O.C.TAIWAN, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 ETC Report No. : 06-01-MAS-059-02 Sheet 2 of 71 Sheets FCC ID. :S2Y-WLAN-11B-G Rev. No 1.0 Client : Spectec Computer Co.,Ltd Address : 6F No.92 Nanking E. Rd. Sec.5 , Taipei , Taiwan , R.O.C Manufacturer : Spectec Computer Co.,Ltd Address : 6F No.92 Nanking E. Rd. Sec.5 , Taipei , Taiwan , R.O.C EUT : SDIO Wireless Lan Card Trade name : Spectec Model No. : SDW-821 Power Source : 3.3V DC Regulations applied : FCC 47 CFR, Part 15 Subpart C (2005) The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following: 1 ISO9001: TüV Product Service 2 ISO/IEC 17025: BSMI, CNLA, DGT, NVLAP, CCIBLAC, UL, Compliance 3 Filing: FCC, Industry Canada, VCCI 4 MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through CNLA 5 FCC Registration Number: 90588, 91094, 91095 NVLAP Lab Code 200133-0 ETC Report No. : 06-01-MAS-059-02 Sheet 3 of 71 Sheets FCC ID. :S2Y-WLAN-11B-G Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ................................................................................................................ 5 1.1 Product Description................................................................................................................................5 1.2 Characteristics of Device.......................................................................................................................5 1.3 Test Methodology..................................................................................................................................5 1.4 Test Facility............................................................................................................................................5 2 PROVISIONS APPLICABLE ............................................................................................................... 6 2.1 Definition...............................................................................................................................................6 2.2 Requirement for Compliance.................................................................................................................7 2.3 Restricted Bands of Operation...............................................................................................................9 2.4 Labeling Requirement............................................................................................................................9 2.5 User Information..................................................................................................................................10 3. SYSTEM TEST CONFIGURATION ................................................................................................. 11 3.1 Devices for Tested System...................................................................................................................11 4 CONDUCTED EMISSION MEASUREMENT................................................................................. 12 4.1 Standard Applicable.............................................................................................................................12 4.2 Measurement Procedure.......................................................................................................................12 4.3 Conducted Emission Data....................................................................................................................13 4.4 Result Data Calculation........................................................................................................................25 4.5 Conducted Measurement Equipment...................................................................................................25 5 ANTENNA REQUIREMENT ............................................................................................................. 26 5.1 Standard Applicable.............................................................................................................................26 5.2 Antenna Construction and Directional Gain........................................................................................26 6 EMISSI…

Text truncated - open the document above for the full version.

ETC Report No.:06-01-MAS-059-02 Sheet 1 of 3 Sheets FCC ID. :S2Y-WLAN-11B-G Radiated Measurement Photos x-axis ETC Report No.:06-01-MAS-059-02 Sheet 2 of 3 Sheets FCC ID. :S2Y-WLAN-11B-G y-axis z-axis ETC Report No.:06-01-MAS-059-02 Sheet 3 of 3 Sheets FCC ID. :S2Y-WLAN-11B-G Conduction Measurement Photos
