S4A00RC45PIR+RF Remote

Page 1 v3 Entone RAP (Remote Antenna Package) Installation Guide The Entone RAP (Remote Antenna Package) contains a radio frequency URC (Universal Remote Control) and a TRAM (TV Remote Antenna Module). By installing the Entone RAP, you can control the Entone STB in a remote room and enjoy TV service from Entone STB anywhere in your home. The Entone RAP contains the following components: Entone RF URC Entone radio frequency URC (Universal Remote Control) 2 x AA size batteries for the URC TRAM TV Remote Antenna Module 1. TRAM Installation (in remote room) Please follow the following diagram to install the TRAM. The TRAM is used to enhance the URC radio frequency transmission using the TV coax cable network in your home. Plug the TRAM into the TV coax network wall outlet. Connect the TV coax cable to the TRAM and the TV. 2. Connecting STB to the TV coax network Connect the Entone STB to the TV coax network wall outlet according to whether you are using an Entone Janus F1 or Amulet F1 STB. 2.1 Janus F1 Connection Connect the Janus F1 “MATV” output to the TV coax network as shown. 2.2 Amulet F1 Connection Connect the Amulet F1 “ANTENNA OUTPUT” and “COAX” output to the TV coax network as shown using a 3- way splitter (which is not provided). Page 2 v3 3. Remote Registration You may need to register the Entone URC to the STB before you can use the URC. The URC registration procedures may vary for different middleware and TV service running in the Entone STB. Please refer to the TV service user guide for detailed URC registration procedures. Below lists the general URC registration procedures (NOTE: Refer to your TV service user guide for exact URC registration procedures): 3.1 Start the URC registration in the Entone STB by the following procedure:
Press and hold the “OK” button on the STB front panel for 5 seconds until the touch panel backlight is flashing. The STB is now in URC registration mode. NOTE: If registration is not completed in 30 seconds, the touch panel backlight will stop flashing. 3.2 Start the URC registration mode in the URC by the following procedure:
Press “STB” button once on the URC.
Press and hold the “STB” button on the URC for 5 seconds until the “STB” button backlight is on.
Press “STB” button once again. Both the “STB” and “AUX” button backlight will illuminate.
Press “1” or “2” to register the URC to stream 1 or stream 2 (depending on the middleware). Upon successful registration, the STB POWER indicator will flash once and the touch panel backlight will stop flashing. Note:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment

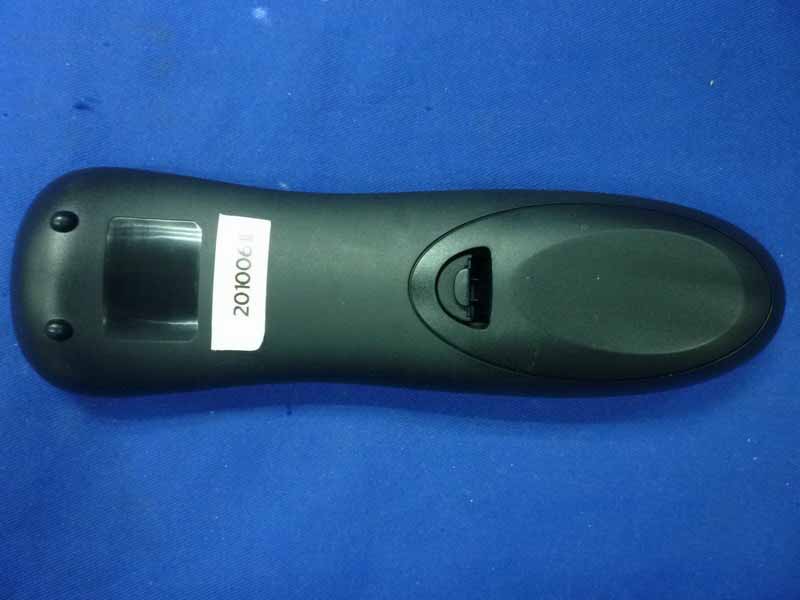

FCC ID:S4A00RC45P Page 9-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10142 9. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT

Label Location

FCC ID:S4A00RC45P Page 9-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10142 Figure 3 General Appearance of the EUT Figure 4 Inside of the EUT FCC ID:S4A00RC45P Page 9-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10142 Figure 5 Inside of the EUT Figure 6 Inside of the EUT FCC ID:S4A00RC45P Page 9-4 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10142 Figure 7 Inside of the EUT Figure 8 Inside of the EUT

FCC ID:S4A00RC45P Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10142 APPLICATION FOR CERTIFICATION On Behalf of Entone Technologies (HK)Limited IR+RF Remote Model Number: RC45P FCC ID: S4A00RC45P Prepared for : Entone Technologies (HK)Limited Level 23,Langham Place,8 Argyle Street,Kowloon,Hong Kong Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F10142 Date of Test ： Jun.28~29, 2010 Date of Report ： Jun.30, 2010 FCC ID:S4A00RC45P Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10142 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS .................................................................. 1-1 1.1. Description of Standards and Results.............................................................................................1-1 2. GENERAL INFORMATION .................................................................................................. 2-1 2.1. Description of Device (EUT) .........................................................................................................2-1 2.2. Test Facility....................................................................................................................................2-2 2.3. Measurement Uncertainty (95% confidence levels, k=2) ..............................................................2-2 3. POWER LINE CONDUCTED EMISSION TEST................................................................ 3-1 4. RADIATED EMISSION TEST ............................................................................................... 4-1 4.1. Test Equipment ..............................................................................................................................4-1 4.2. Block Diagram of Test Setup .........................................................................................................4-1 4.3. Radiated Emission Limit ................................................................................................................4-2 4.4. EUT Configuration on Test............................................................................................................4-3 4.5. Operating Condition of EUT..........................................................................................................4-3 4.6. Test Procedure................................................................................................................................4-3 4.7. Radiated Emission Test Results .....................................................................................................4-4 5. STOP TRANSMITTING TIME TEST .................................................................................. 5-1 5.1. Test Equipment ..............................................................................................................................5-1 5.2. Limit ...............................................................................................................................................5-1 5.3. Test Results ....................................................................................................................................5-1 6. 20 DB BANDWITH TEST ....................................................................................................... 6-1 6.1. Test Equipment ..............................................................................................................................6-1 6.2. Test Results ....................................................................................................................................6-1 7. DEVIATION TO TEST SPECIFICATIONS ........................................................................ 7-1 8. PHOTOGRAPH........................................................................................................................ 8-1 8.1. Photos of Radiated Emission Test (In Anechoic Chamber) ...........................................................8-1 9. PHOTOGRAPH OF EUT........................................................................................................ 9-1 FCC ID:S4A00RC45P Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10142 1-1 1. SUMMARY OF STANDARDS AND RESULTS 1.1. Description of Standards and Results The EUT have been tested according to the applicable standards as referenced below. EMISSION Description of Test Item Standard Results Conducted Emission Test FCC Part 15C: 15.231 ANSI C63.10: 2009 N/A Radiated Emission Test FCC Part 15C: 15.231 ANSI C63.10: 2009 PASS Stop Transmitting Time Test FCC Part 15C: 15.231 PASS 20 dB Bandwidth Test FCC Part 15C: 15.231 ANSI C63.10: 2009 PASS N/A is an abbreviation for Not Applicable. FCC ID:S4A00RC45P Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10142 2-1 2. GENERAL INFORMATION 2.1. Description of Device (EUT) Description : IR+RF Remote Model Number : RC45P Operation frequency : 433.92MHz Modulation : FSK and ASK Power Supply : DC 3V (Note: New batteries were used for all test) Applicant : Entone Technologies (HK)Limited Block A,19/F, Prince Industrial Building, 106 King Fuk Street, San Po Kong, Kowloon Date of Test : Jun.28~29, 2010 Date of Receipt : Jun.26, 2010 Sample Type : Prototype production FCC ID:S4A00RC45P Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10142 2-2 2.2. Test Facility Site Description Name of Firm : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park,Nantou, Shenzhen, Guangdong, China 3m Anechoic Chamber : Mar.31, 2009 File on Federal Communication Commission Registration Number: 90454 3m & 10m Anechoic Chamber : Dec.30,2009 File on Federal Communication Commission Registration Number: 794232 EMC Lab. : Accredited by DATech, German Registration Number: DAT-P-091/99-01 Feb. 02, 2009 Accredited by NVLAP, USA NVLAP Code: 200372-0 Apr…

Text truncated - open the document above for the full version.

FCC ID:S4A00RC45P Page 8-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10142 8. PHOTOGRAPH 8.1. Photos of Radiated Emission Test (In Anechoic Chamber) Frequency Range: 30-1000MHz FCC ID:S4A00RC45P Page 8-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10142 Frequency Range: Above 1000MHz
