S4A50-0100-RT-22High Definition IP TV receiver

AriA 5 MediA receiver Quick Start Guide Quick Start Guide aria Media receiver 1 cOPYriGHt ©2015 entone, inc. all rights reserved. this document contains proprietary information protected by copyright. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of entone, inc., 20863 Stevens creek Blvd, Suite 300, cupertino, ca 95014, u.S.a. diScLaiMer iF tHiS PrOduct directS YOu tO cOPY MateriaLS, YOu MuSt Have PerMiSSiON FrOM tHe cOPY- riGHt OWNer OF tHe MateriaLS tO avOid viOLatiNG tHe LaW WHicH cOuLd reSuLt iN daMaGeS Or OtHer reMedieS. tradeMarkS entone and the tagline “connecting the Home” are trademarks of entone, inc. all other trademarks or registered trademarks belong to their respective owners. this item incorporates copy protection technology that is protected by u.S. patents and other intellec- tual property rights of rovi corporation. reverse engineering and disassembly are prohibited. cHaNGeS the material in this document is for information only and is subject to change without notice. While rea- sonable efforts have been made in the preparation of this document to assure its accuracy, entone, inc. assumes no liability resulting from the use of the information contained herein. entone, inc. reserves the right to make changes in the product design without reservation and without notification to its users. P/N: 99-709404-01 - v0.2 table of contents OvervieW 2 Safety instructions 4 What’s included 6 Front Panel 7 rear Panel cONNectiNG videO 8 High-definition tvs 9 Standard-definition tvs cONNectiNG a udiO 10 Stereo cONNectiNG tv SOurce 11 cable or antenna cONNectiNG NetWOrk 12 ethernet POWeriNG uP 13 Setting up remote control 13 using ir extender receiver 14 connecting to Power Source 15 declaration of conformity Quick Start Guide Quick Start Guide aria Media receiver aria Media receiver 32 important Safety instructions • WarNiNG: to reduce the risk of fire or electric shock, do not expose this ap- paratus to rain or moisture. • the apparatus shall not be exposed to dripping or splashing and that no ob- jects filled with liquids, such as vases, shall be placed on the apparatus. • read these instructions. • keep these instructions. • Heed all warnings. • Follow all instructions. • do not use this apparatus near water. • clean only with dry cloth. • do not block any ventilation openings. install in accordance with the manu- facturer’s instructions. • do not defeat the safety purpose of the polarized or grounding-type plug. a polarized plug has two blades with one wider than the other. a grounding type plug has two blades and a third grounding prong. the wide blade or the third prongs are provided for your safety. if the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. • Only use attachments/accessories specified by the manufacturer. • unplug this apparatus during lightning storms or when unused for long peri- ods of time. • refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the ap- paratus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. • to reduce the risk of electric shock, dO NOt remove cover or back panel. No user serviceable parts inside. refer servicing to qualified personnel. important Safety instructions (continued) • to help prevent electric shock, plug the power cable into properly grounded sources. use only properly grounded extension cords and adaptors, if they are needed. • the ac main plug is used as the disconnect device, the disconnect device shall remain readily operable. • Make sure nothing is lying on any of the cables. • Be sure the cables are located where they will not be stepped on or tripped over. • do not spill food or liquids onto the unit. • do not push any objects into the free slots. doing so will damage the unit, can cause fire or electrical shock, and can short out interior components. • do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • do not block cooling vents. • do not place the equipment in a closed-in wall unit. • When you disconnect a cable, pull on its connector or on its strain relief loop, not on the cable itself. Some cables have a connector with locking tabs; if you are disconnecting this type of cable, press in on the locking tabs before disconnecting the cables. • When you connect a cable, make sure both connectors are correctly oriented and aligned before connecting to avoid bending connector pins. • For PLuGGaBLe eQuiPMeNt, the socket-outlet should be installed near the equipment for easy access. • changes or modifications not expressly approved by the party responsible could void the user’s authority to operate this device. Operating information Operating temperature: 0 °c (32 °F) to 45 °c (113 °F) Quick Start Guide Quick Start Guide aria Media receiver aria Media receiver 54 What’s included ir remote control* (Optional) 2 Batteries for remote control (Optional) aria Quick Start Guideremote control Guide* (Optional) aria Media receiver ethernet cable (Optional) HdMi cable (Optional) additional items that may be required (not included): • ethernet cable • HdMi cable • rF coaxial cable • Network router ac Power adapter* *the remote control may vary and is dependent on your service provider.*the ac Power adapter may vary and is dependent on your service provider. ir extender receiver (Optional) diN-to-rca cable (Optional) Quick Start Guide Quick Start Guide aria…

Text truncated - open the document above for the full version.

Entone Technologies (HK) Limited Level 28, Saxon Tower, 7 Cheung Shun Street, Lai Chi Kok, Hong Kong Tel +852 3148 3500 Fax +852 3148 3588 www.entone.com May 12, 2014 To Whom It May Concern: Authorization for the applications of compliance programs We, hereby, authorize Prime Electronics And Satellites Incorporation (“Prime”) to manage the applications of compliance programs such as CE and FCC regarding the products that are designed and manufactured by Prime for Entone Technologies (HK) Ltd. (“Entone”) and to sign on behalf of Entone on the relevant application documents. This authorization expires together with Electronics Design and Manufacturing Services Agreement signed between Prime and Entone on March 2, 2012. Thank you very much. For and on behalf of Entone Technologies (HK) Ltd., _______________________________ Carson Cheng General Manager, Hong Kong Tel: +852 3148-3521 Fax: +852 3148-3588 Email: [email protected]

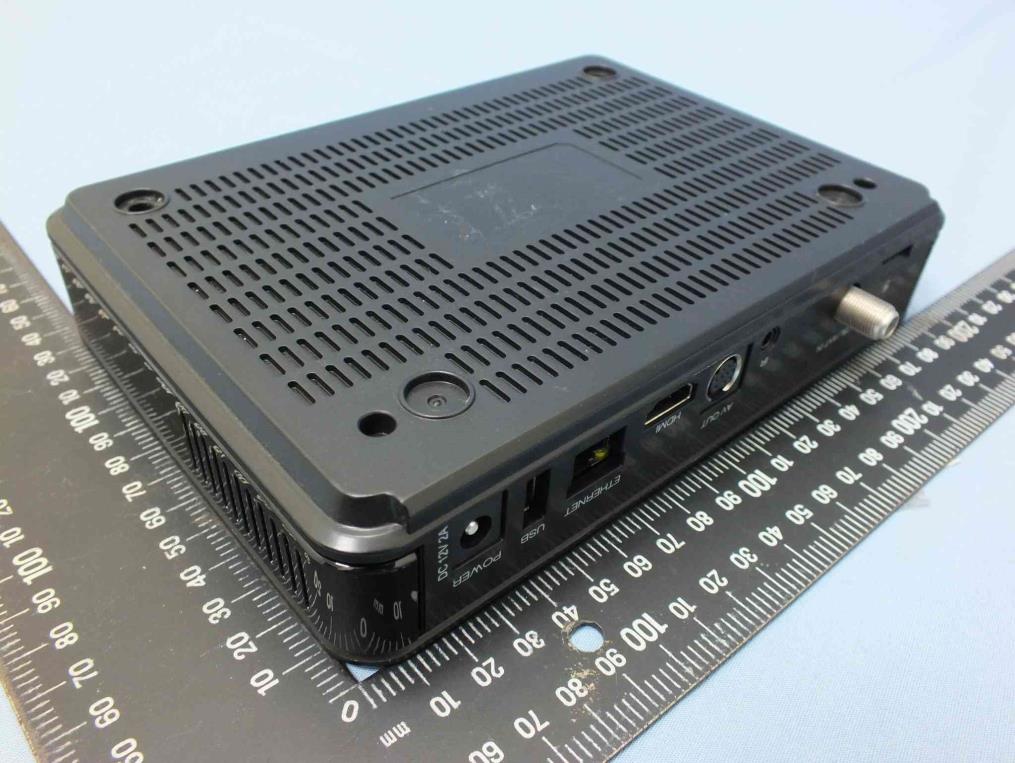

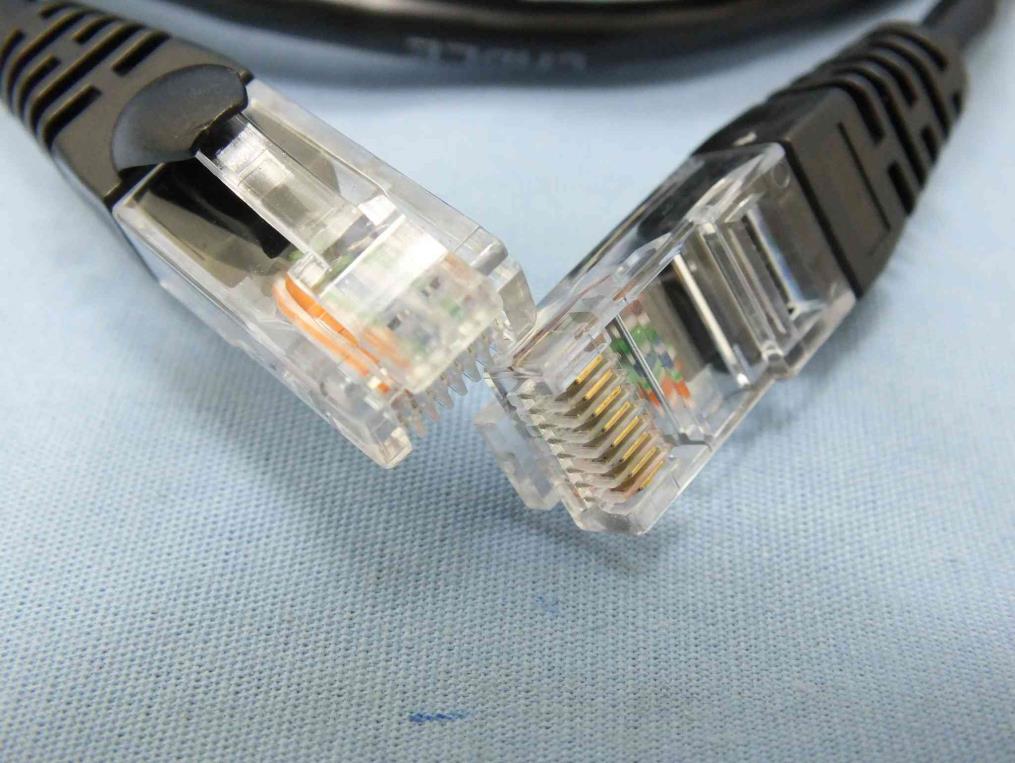

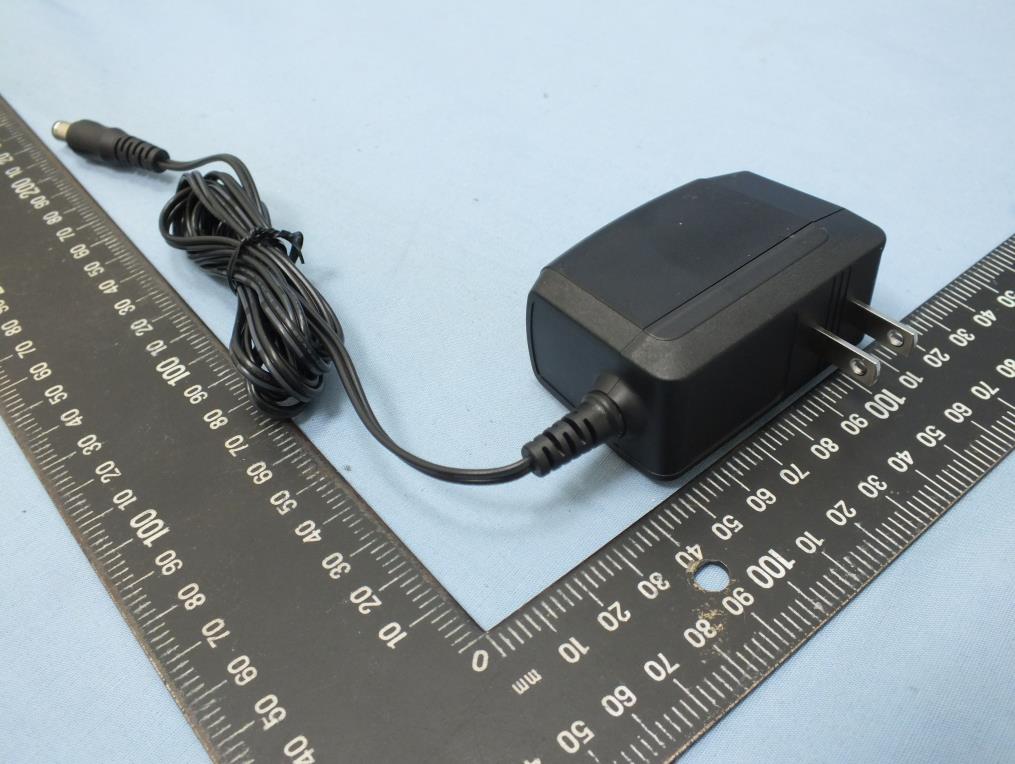

Project No.: EP530501 Page No. : 1 of 30 Photographs of EUT With WiFi function Project No.: EP530501 Page No. : 2 of 30 Project No.: EP530501 Page No. : 3 of 30 Project No.: EP530501 Page No. : 4 of 30 Project No.: EP530501 Page No. : 5 of 30 Project No.: EP530501 Page No. : 6 of 30 Project No.: EP530501 Page No. : 7 of 30 W/O WiFi function Project No.: EP530501 Page No. : 8 of 30 Project No.: EP530501 Page No. : 9 of 30 Project No.: EP530501 Page No. : 10 of 30 Project No.: EP530501 Page No. : 11 of 30 Project No.: EP530501 Page No. : 12 of 30 Project No.: EP530501 Page No. : 13 of 30

LABEL LOGO CDNJ-75831-ENTONE W/WIFI A-2 CDNJ-75831-ENTONE W/WIFI LHE-15-XXXX 2015/03/26 袁龙 59.0X29.0 26009-B5918 26009-B5918-A 95-940470-01A 131208 Input voltage 12V DC 2A POWER 24W MFG Date: Aria 551c 95-940470-01A 59.0mm 29.0mm 131208 FCC ID: S4A50-0100-RT-22 131208 Input voltage 12V DC 2A POWER 24W MFG Date: Aria 551c 95-940470-01A FCC ID: S4A50-0100-RT-22 Input voltage 12V DC 2A POWER 24W MFG Date: Aria 551c 59.0mm 29.0mm FCC ID: S4A50-0100-RT-22

Project No.: EP530501 Page No. : 14 of 30 With WiFi function Project No.: EP530501 Page No. : 15 of 30 Project No.: EP530501 Page No. : 16 of 30 Project No.: EP530501 Page No. : 17 of 30 Project No.: EP530501 Page No. : 18 of 30 Project No.: EP530501 Page No. : 19 of 30 Project No.: EP530501 Page No. : 20 of 30 Project No.: EP530501 Page No. : 21 of 30 Project No.: EP530501 Page No. : 22 of 30 Project No.: EP530501 Page No. : 23 of 30 Project No.: EP530501 Page No. : 24 of 30 Project No.: EP530501 Page No. : 25 of 30 W/O WiFi function Project No.: EP530501 Page No. : 26 of 30 Project No.: EP530501 Page No. : 27 of 30 Project No.: EP530501 Page No. : 28 of 30 Project No.: EP530501 Page No. : 29 of 30 Project No.: EP530501 Page No. : 30 of 30

Report No.: FA530501 Page : 1 of 6 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : S4A50-0100-RT-22 Equipment : High Definition IP TV receiver Model No. : Aria 5XYzzzzzz (where “X” can be 0-9, “Y” can be 0-9; “zzzzzz” can be any combination of “0-9” , “a-z”,”-“, “/” or blank) (Please refer to section 1.1.1 for more details) Brand Name : Entone Applicant : Entone Technologies(HK) Limited Address : Level 28,Saxon Tower 7 Cheung Shun Street,Lai Chi Kok,Kowloon,Hong Kong Standard : 47 CFR FCC Part 2.1091 Received Date : Mar. 05, 2015 Tested Date : Mar. 09 ~ Mar. 13, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA530501 Page : 2 of 6 Report Version: Rev. 01 Table of Contents 1. GENERAL DESCRIPTION .................................................................................................................... 4 1.1 Information .............................................................................................................................................. 4 2. MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 5 2.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 5 2.2 MPE EVALUATION FORMULA ............................................................................................................. 5 2.3 MPE EVALUATION RESULTS .............................................................................................................. 5 3. TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA530501 Page : 3 of 6 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA530501 Rev. 01 Initial issue Jul. 28, 2015 Report No.: FA530501 Page : 4 of 6 Report Version: Rev. 01 1. General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name Description Entone Aria 5XYzzzzzz High Definition IP TV receiver where “X” can be 0-9, “Y” can be 0-9; “zzzzzz” can be any combination of “0-9” , “a-z”,”-“, “/” or blank  All models are electrically identical, different model names are for marketing purpose.  The above models, model Aria 551c was selected as a representative one for the final test and only its data was recorded in this report. Report No.: FA530501 Page : 5 of 6 Report Version: Rev. 01 2. MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 2.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 2.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 2.3 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 23.89 3.48 20 0.109 1 Report No.: FA530501 Page : 6 of 6 Report Version: Rev. 01 3. Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR530501 Page : 1 of 63 Report Version: Rev. 01 FCC Test Report FCC ID : S4A50-0100-RT-22 Equipment : High Definition IP TV receiver Model No. : Aria 5XYzzzzzz (where “X” can be 0-9, “Y” can be 0-9; “zzzzzz” can be any combination of “0-9” , “a-z”,”-“, “/” or blank) (Please refer to section 1.1.1 for more details) Brand Name : Entone Applicant : Entone Technologies(HK) Limited Address : Level 28,Saxon Tower 7 Cheung Shun Street,Lai Chi Kok,Kowloon,Hong Kong Standard : 47 CFR FCC Part 15.247 Received Date : Mar. 05, 2015 Tested Date : Mar. 09 ~ Mar. 13, 2015 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR530501 Page : 2 of 63 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Test Standards ..................................................................................................................................... 10 1.6 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION ..................................................................................................................... 11 2.1 Testing Condition ................................................................................................................................. 11 2.2 The Worst Test Modes and Channel Details ....................................................................................... 11 3 TRANSMITTER TEST RESULTS ........................................................................................................ 12 3.1 Conducted Emissions ........................................................................................................................... 12 3.2 6dB and Occupied Bandwidth .............................................................................................................. 15 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 20 3.5 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 22 3.6 Emissions in Non-Restricted Frequency Bands ................................................................................... 50 4 TEST LABORATORY INFORMATION ............................................................................................... 63 Report No.: FR530501 Page : 3 of 63 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR530501 Rev. 01 Initial issue Jul. 28, 2015 Report No.: FR530501 Page : 4 of 63 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.379MHz 39.65 (Margin -8.65dB) - AV Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 2387.00MHz 53.00 (Margin -1.00dB) – AV 2483.50MHz 53.00 (Margin -1.00dB) – AV Pass 15.247(b)(3) Maximum Output Power Max Power [dBm]: 28.89 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR530501 Page : 5 of 63 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name Description Entone Aria 5XYzzzzzz High Definition IP TV receiver where “X” can be 0-9, “Y” can be 0-9; “zzzzzz” can be any combination of “0-9” , “a-z”,”-“, “/” or blank  All models are electrically identical, different model names are for marketing purpose.  The above models, model Aria 551c was selected as a representative one for the final test and only its data was recorded in this report. 1.1.2 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 2400-2483.5 b 2412-2462 1-11 [11] 1 1-11 Mbps 2400-2483.5 g 2412-2462 1-11 [11] 1 6-54 Mbps 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 2 MCS 0-15 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 2 MCS 0-15 Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. Note 4: 802.11b/g has no TX diversity function. The signal is only transmitted through TX chain 1. 1.1.3 Antenna Details Ant. No. Model Type Connector Gain (dBi) Remark 1 MAG. LAYERS / MSA-3410-2G4A8-A1 PIFA UFL 3.36 --- 2 MAG. LAYERS / MSA-3410-2G4A8-A2 PIFA UFL 3.48 --- 1.1.4 Power Suppl…

Text truncated - open the document above for the full version.

Report No.: FR530501 Page: : 1 of 3 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test Report No.: FR530501 Page: : 2 of 3 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR530501 Page: : 3 of 3 Report Version: Rev. 01 Radiated Emission Above 1GHz Test
