S4A39-0008-01-00wireless 802.11bgn module

INTRODUCTION ______________________________________________________________ Congratulations on your purchase of this Wireless LAN (IEEE 802.11n) module (model name: 39-0008-01-00) which was embedded in Magi Interactive CATV DVR. This manual helps to get familiar with the Wireless LAN (IEEE 802.11n) module. This manual contains detailed specification of this product. Please keep this manual for future reference. With a Wireless LAN (IEEE 802.11n) module, a set top box can communicate with another computer in a wireless way. Wireless LAN (IEEE 802.11n) can wirelessly transmit and receive data, and provides users with an access to real-time information anywhere in their organization. The Wireless LAN (IEEE 802.11n) configuration is suitable for a small number of users, to full infrastructure networks of thousands of users that allow roaming around a broad area. Tecsihnical Specifications. RF PRODUCT SPEC Frequency range 2400MHz ~ 2474MHz (FCC Spec.) Channel spacing 5MHz Channel List 2412~2462MHz(FCC SPEC.) Modulation type / technology CCK, DQPSK, DBPSK for DSSS 64QAM, 16QAM, QPSK, BPSK for OFDM L.O. frequency of receiver Data Rate 802.11b: 11.0/ 5.5/ 2.0/ 1.0Mbps 802.11g: 54.0/ 48.0/ 36.0/ 24.0/ 18.0/ 12.0/ 9.0/ 6.0Mbps 802.11n: up to 150Mbps Duty Cycle RF power (conducted power or EIRP) Conducted Average power ( power meter ) Antenna type & gain PIFA, Peak 2.3dBi antenna connector I-pex Continue TX/RX method s/w Single carrier method s/w EUT with normal function for EMC test Power supply (電池 / Adapter / From PC) 5Vdc for PC (400mA Max) Operating Temperature Description of product: EUT/Accessories/cable Applied standard Special requirement Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: S4A39-0008-01-00”. The grantee's FCC ID can be used only when all FCC compliance requirements are met. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Industry Canada statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Radiation Exposure Statement: This equipment complies with IC radiation expos…

Text truncated - open the document above for the full version.

FCC ID: S4A39-0008-01-00 Report No.: RF121109C12 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch December 11, 2012 Dear Application Examiner, Entone Technologies (HK) Limited, device: wireless 802.11bgn module, FCC ID: S4A39-0008-01-00 would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data input. It is integrated in chip Marvell RTL8188CU. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is Marvell RTL8188CU. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: S4A39-0008-01-00 Report No.: RF121109C12 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Robert Huang Senior Engineer Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

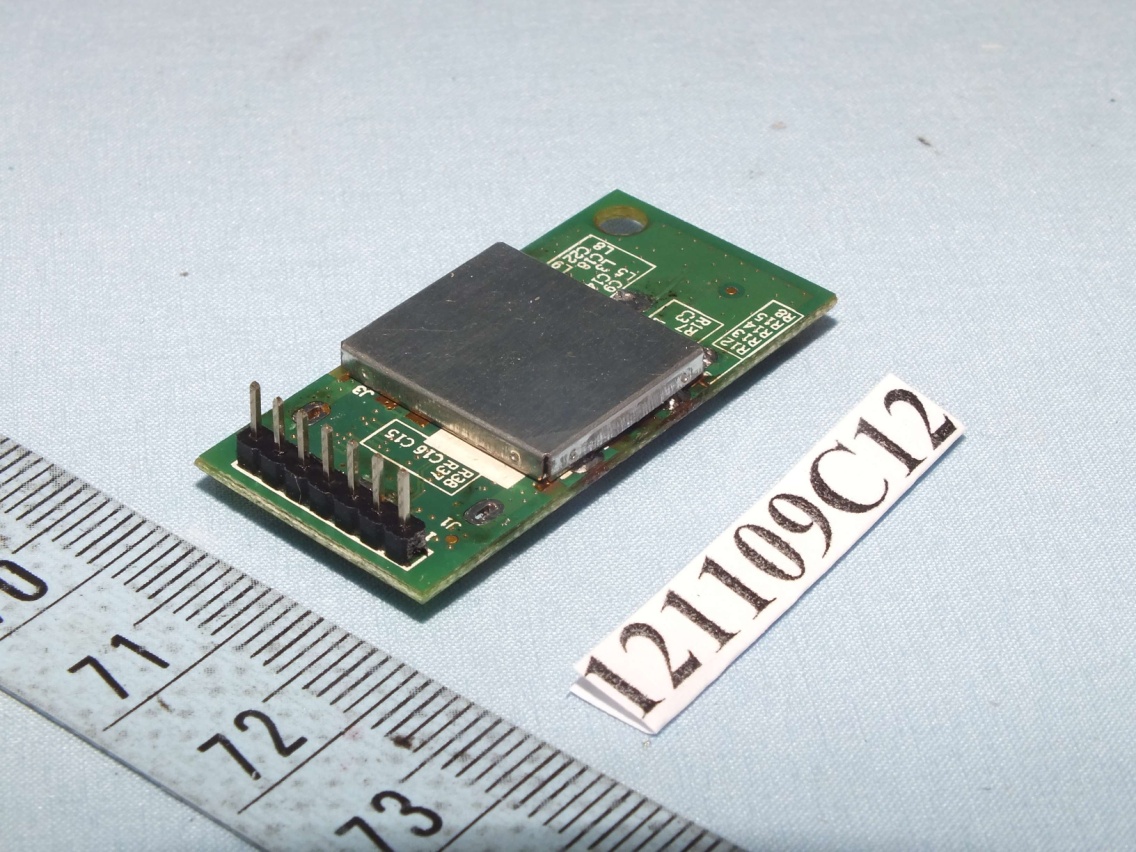

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 3 Page 4 Page 5 Page 6

FCC ID: S4A39-0008-01-00 Report No.: RF121109C12 Operational Description This device is a Wireless 802.11bgn module, which operates in 2.4GHz bands; the maximum data rate could be up to 150Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by DC 5V from host equipment. The antenna is PIFA antenna with I-PEX connector. The other instruction, please have a look at the users manual.

Report No.: SA121109C12 of 5 Report Format Version 5.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA121109C12 MODEL NO.: 39-0008-01-00 FCC ID: S4A39-0008-01-00 RECEIVED: Nov. 08, 2012 TESTED: Nov. 08 ~ Nov. 12, 2012 ISSUED: Nov. 16, 2012 APPLICANT: Entone Technologies (HK) Limited ADDRESS: Level 28, Saxon Tower 7 Cheung Shun Street, Lai Chi Kok, Kowloon, Hong Kong ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. Report No.: SA121109C12 of 5 Report Format Version 5.0.0 2 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................................ 3 1. CERTIFICATION ............................................................................................................................. 4 2. RF EXPOSURE ............................................................................................................................... 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................................ 5 2.2 MPE CALCULATION FORMULA .................................................................................................... 5 2.3 CLASSIFICATION ........................................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ................................................. 5 Report No.: SA121109C12 of 5 Report Format Version 5.0.0 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA121109C12 Original release Nov. 16, 2012 Report No.: SA121109C12 of 5 Report Format Version 5.0.0 5 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 24.54 2.3 20 0.096 1

Report No.: RF121109C12 1 of 43 Report Format Version 5.0.0 FCC TEST REPORT REPORT NO.: RF121109C12 MODEL NO.: 39-0008-01-00 FCC ID: S4A39-0008-01-00 RECEIVED: Nov. 08, 2012 TESTED: Nov. 08 ~ Nov. 12, 2012 ISSUED: Nov. 16, 2012 APPLICANT: Entone Technologies (HK) Limited ADDRESS: Level 28, Saxon Tower 7 Cheung Shun Street, Lai Chi Kok, Kowloon, Hong Kong ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF121109C12 2 of 43 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................................ 4 1. CERTIFICATION ............................................................................................................................ 5 2. SUMMARY OF TEST RESULTS ................................................................................................... 6 2.1 MEASUREMENT UNCERTAINTY ................................................................................................ 6 3. GENERAL INFORMATION ............................................................................................................ 7 3.1 GENERAL DESCRIPTION OF EUT .............................................................................................. 7 3.2 DESCRIPTION OF TEST MODES ................................................................................................ 8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ................................................ 9 3.3 DESCRIPTION OF SUPPORT UNITS ........................................................................................ 11 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST ......................................................................... 11 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................. 11 4. TEST TYPES AND RESULTS ..................................................................................................... 12 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ..................................................... 12 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................... 12 4.1.2 TEST INSTRUMENTS ................................................................................................................. 13 4.1.3 TEST PROCEDURES ................................................................................................................. 14 4.1.4 DEVIATION FROM TEST STANDARD ....................................................................................... 14 4.1.5 TEST SETUP ............................................................................................................................... 15 4.1.6 EUT OPERATING CONDITIONS ................................................................................................ 15 4.1.7 TEST RESULTS .......................................................................................................................... 16 4.2 CONDUCTED EMISSION MEASUREMENT .............................................................................. 26 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................................... 26 4.2.2 TEST INSTRUMENTS ................................................................................................................. 26 4.2.3 TEST PROCEDURES ................................................................................................................. 27 4.2.4 DEVIATION FROM TEST STANDARD ....................................................................................... 27 4.2.5 TEST SETUP ............................................................................................................................... 27 4.2.6 EUT OPERATING CONDITIONS ................................................................................................ 27 4.2.7 TEST RESULTS .......................................................................................................................... 28 4.3 6dB BANDWIDTH MEASUREMENT .......................................................................................... 30 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................................................ 30 4.3.2 TEST SETUP ..............…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
