S4A99-970201-00WiFi Dongle

Kamai 500 Dual-banD Wi-Fi aDapter Quick Start Guide What’s included WARNING: The Kamai 500 Dual-band Wi-Fi adapter should not be installed in Desktop/notebook Computer. pC/laptop will not recognized this device when con- nected to uSb port. Kamai 500 Dual-band Wi-Fi adapter Quick Start Guide installation 1. Connect the Wi-Fi adapter to uSb port on Kamai 500 Set-top-box. 2. powering up the Kamai. 3. Configure the Kamai to use Wireless network.* added range and performance For added range and performance, you can turn up the antenna for increased Wi-Fi performance. NOTE: You may adjust the angle of the antenna for the best performance. COpYriGHt ©2013 entone, inc. all rights reserved. entone,Kamai and “connecting the home” are registered trademarks of entone, inc. all other trademarks or regis- tered trademarks belong to their respective owners. p/n: 99-709704-00 - V1.1 NOTE: Contact your service provider for more details and instructions about the wireless network configura- tion. Declaration of Conformity to ensure proper use of this product, please read this manual carefully and retain it for future reference. Should the unit require maintenance, contact an authorized service location.to prevent fire or shock hazard, do not expose this product to rain or moisture. t o reduce the risk of electric shock, DO n Ot remove the cover or back. n o user serviceable parts are inside. For servicing refer to qualified personnel.Declaration of Conformity (u nited States Only) This device complies with p art 15 of the FCC r ules. Operation is subject to the following con- ditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equip-ment has been tested and found to comply with the limits for a Class b digital device, pursuant to p art 15 of the Federal Communication Commission (FCC) r ules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communi-cations. However, there is no guarantee that interference will not occur in a particular installa-tion. i f this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment OFF and O n, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment to a different circuit from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.FCC Caution: a ny changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.radiation e xposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.For product available in the uSa/Canada market, only channel 1~11 can be operated. Selec-tion of other channels is not possible.This device is restricted to indoor use when operated in the 5.15 to 5.25 GHz frequency range. • FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel m obile Satellite systems. •This device will not permit operations on channels 116-128 for 11na and 120-128 for 11a which overlap the 5600 -5650MHz band.

Declaration of product Date: 2013/4/5 Dear Sir, We, Entone Technologies (HK) Limited, declare under our responsibility that the following product is: Brand name: Entone Model Name: Kamai 500 Dual-band Wi-Fi Adapter FCC ID: S4A99-970201-00 Product name: WiFi Dongle The WiFi dongle is used only as part of a STB and is not to be used for PC/NB. The Wi-Fi dongle does not provide any driver for installation in PC/NB. Applicant : Entone Technologies (HK) Limited Address : Level 28, Saxon Tower, 7 Cheung Shun Street, Lai Chi Kok, Hong Kong Signature : On behalf of Entone Technologies (HK) Limited _______________________________________ Name and Job Title. : Carson Cheng / General Manager, Hong Kong E-mail : [email protected] Tel. : +852 3148-3521

Power of Attorney Subject: Authorization on behalf of Entone Technologies (HK) Limited for the US Federal Communications Commission Office of Engineering and Technology and Other FCC Programs and Offices FCC ID: S4A99-970201-00 1. I, Carson Cheng, am General Manager for Entone Technologies (HK) Limited and Applicant/Grantee Contact of Record for Entone Technologies (HK) Limited. I am duly authorized by Entone Technologies (HK) Limited to make this Authorization on Entone Technologies (HK) Limited’s behalf. 2. This Authorization will designate the person named below to act on my behalf and Entone Technologies (HK) Limited’s behalf as authorized agent and representative for this project, with the additional power to designate one or more third party agents for Entone Technologies (HK) Limited with regard to particular matters and applications. All acts carried out and requests made by this named representative relating to any matter before the FCC, including requests for confidentiality, shall have the same effect as mine. Name: Steven Wang Title: Safety Dept Manager Address: 9F, No.129, Hsing Te Rd., Sanchung Dist., New Taipei City 241, Taiwan, R.O.C. Telephone: +886-2-29957953 Ext. 301 Fax: +886-2-29957954 E-mail: [email protected] 3. Questions about the scope and effect of this Authorization should be addressed as follows: Name: Carson Cheng Title: General Manager Address: Level 28, Saxon Tower, 7 Cheung Shun Street, Lai Chi Kok, Hong Kong Telephone: +852 3148-3500 Fax: +852 3148-3588 E-mail: [email protected] I declare under penalty of perjury that the foregoing is true and correct, and that this Authorization was executed at Hong Kong on the date indicated below my signature. Applicant : Entone Technologies (HK) Limited Address : Level 28, Saxon Tower, 7 Cheung Shun Street, Lai Chi Kok, Hong Kong Signature : _________________________________4/23/2013 Name and Job Title. : Carson Cheng / General Manager

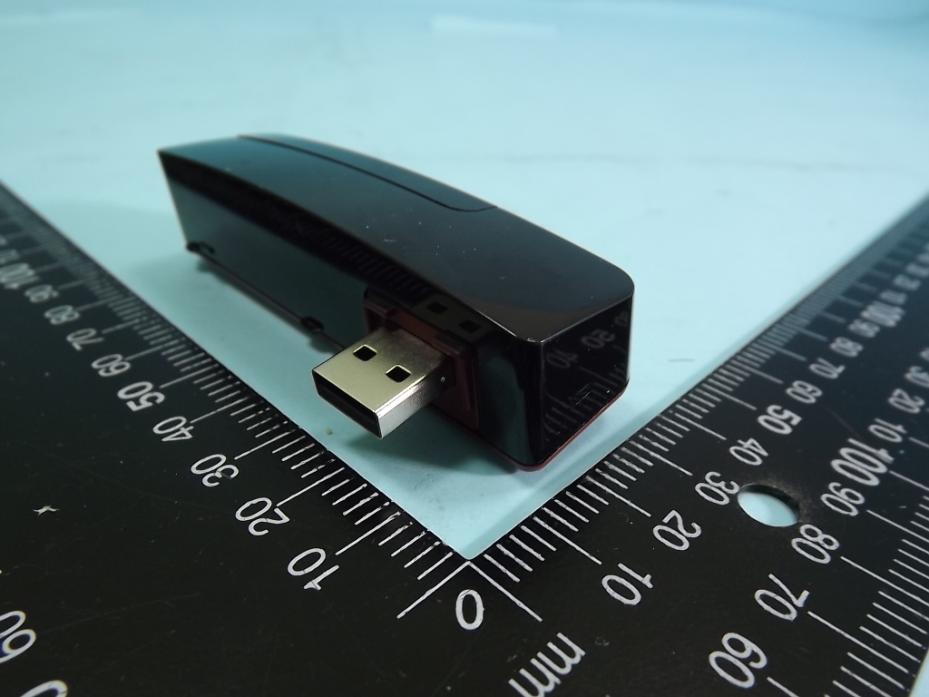

FCC Test Report Report No. : EP322147 SPORTON International Inc. PAGE NUMBER : B1 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Jul. 15, 2013 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP322147 SPORTON International Inc. PAGE NUMBER : B2 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Jul. 15, 2013 FAX : 886-3-327-0973

C828000545001L Compliance Label P2 C828000545001L-01 反银特多龙 PART NO. Wendy 130625 40mm 7mm Dual-band Wi-Fi Adapter FCC ID:S4A99-970201-00 MA C : E 0 9 1 5 3 8 B 9 A 2 C

FCC Test Report Report No. : EP322147 SPORTON International Inc. PAGE NUMBER : B3 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Jul. 15, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP322147 SPORTON International Inc. PAGE NUMBER : B4 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Jul. 15, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP322147 SPORTON International Inc. PAGE NUMBER : B5 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Jul. 15, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP322147 SPORTON International Inc. PAGE NUMBER : B6 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Jul. 15, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP322147 SPORTON International Inc. PAGE NUMBER : B7 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Jul. 15, 2013 FAX : 886-3-327-0973 Ant. No.1 Ant. No.3 FCC Test Report Report No. : EP322147 SPORTON International Inc. PAGE NUMBER : B8 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Jul. 15, 2013 FAX : 886-3-327-0973 Antenna No.2 FCC Test Report Report No. : EP322147 SPORTON International Inc. PAGE NUMBER : B9 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Jul. 15, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP322147 SPORTON International Inc. PAGE NUMBER : B10 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Jul. 15, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP322147 SPORTON International Inc. PAGE NUMBER : B11 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Jul. 15, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP322147 SPORTON International Inc. PAGE NUMBER : B12 OF B12 TEL : 886-3-327-3456 ISSUED DATE : Jul. 15, 2013 FAX : 886-3-327-0973

FCC EMF Test Report Report No. : FR322147 SPORTON INTERNATIONAL INC. Page No. : 1 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC EMF Test Report Report No. : FR322147 SPORTON INTERNATIONAL INC. Page No. : 2 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC EMF Test Report Report No. : FR322147 SPORTON INTERNATIONAL INC. Page No. : 3 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure (2.4G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location b 1 1 Correlated 17.73 N/A g 1 1 Correlated 13.56 N/A n (HT20) 2 2 Uncorrelated 18.24 N/A n (HT40) 2 2 Uncorrelated 16.95 N/A n (HT20) 3 3 Uncorrelated 18.90 N/A n (HT40) 3 3 Uncorrelated 18.74 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Power Level 1 RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 Chain- Port 3 Sum Chain Gain (dBi) EIRP Power PD (S) (mW/cm²) 11B-20M 1 - 17.73 - 17.73 2.07 19.80 0.01900 11G-20M 1 - 13.56 - 13.56 2.07 15.63 0.00727 11N2.4G-20M 2 15.31 15.14 - 18.24 2.14 20.38 0.02169 11N2.4G-40M 2 14.16 13.70 - 16.95 2.14 19.09 0.01612 11N2.4G-20M 3 13.89 13.94 14.52 18.90 2.16 21.06 0.02539 11N2.4G-40M 3 13.95 13.74 14.26 18.74 2.16 20.90 0.02447 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains FCC EMF Test Report Report No. : FR322147 SPORTON INTERNATIONAL INC. Page No. : 4 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Result of Maximum Permissible Exposure (5.8G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location a 1 1 Correlated 9.97 N/A n(HT20 2 2 Uncorrelated 15.76 N/A n(HT40) 2 2 Uncorrelated 14.91 N/A n(HT20 3 3 Uncorrelated 14.77 N/A n(HT40) 3 3 Uncorrelated 14.28 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Power Level 1 RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 Chain- Port 3 Sum Chain Gain (dBi) EIRP Power PD (S) (mW/cm²) 11A5.8G-20M 1 - - 9.97 9.97 4.60 14.57 0.00569 11N5.8G-20M 2 12.49 12.99 - 15.76 4.51 20.27 0.02116 11N5.8G-40M 2 11.55 12.23 - 14.91 4.51 19.42 0.01698 11N5.8G-20M 3 9.10 10.41 10.37 14.77 4.54 19.31 0.01743 11N5.8G-40M 3 8.51 9.41 10.39 14.28 4.54 18.82 0.01515 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains FCC EMF Test Report Report No. : FR322147 SPORTON INTERNATIONAL INC. Page No. : 5 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.5 Result of Maximum Permissible Exposure (5.2G~5.6G) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5150-5250 a 5180-5240 36-48 [4] 1…

Text truncated - open the document above for the full version.

FCC DFS Test Report Report No. : FZ322147 SPORTON INTERNATIONAL INC. Page No. : 1 of 20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC DFS Test Report Equipment : WiFi Dongle Brand Name : Entone Model No. : Kamai 500 Dual-band Wi-Fi Adapter FCC ID : S4A99-970201-00 Standard : 47 CFR FCC Part 15.407 Applicant : Entone Technologies (HK) Limitted Level 28, Saxon Tower, 7 Cheung Shun Street, Lai Chi Kok, HongKong Manufacturer : XAVi Technologies Corporation 9F, No.129, Hsing Te Rd., Sanchung Dist., New Taipei City 241, Taiwan, R.O.C. DFS Operate Mode : Client without radar detection The product sample received on Feb. 25, 2013 and completely tested on Mar. 22, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in FCC 06-96 Appendix and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC DFS Test Report Report No. : FZ322147 SPORTON INTERNATIONAL INC. Page No. : 2 of 20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 6 1.3 Testing Applied Standards ..................................................................................................................... 6 1.4 Testing Location Information .................................................................................................................. 6 1.5 Measurement Uncertainty ...................................................................................................................... 6 2 TEST CONFIGURATION OF EUT......................................................................................................... 7 2.1 DFS and TPC Information ...................................................................................................................... 7 2.2 The Worst Case Measurement Configuration ........................................................................................ 7 3 DYNAMIC FREQUENCY SELECTION (DFS) TEST RESULT ............................................................. 8 3.1 General DFS Information ....................................................................................................................... 8 3.2 Radar Test Waveform Calibration ........................................................................................................ 10 3.3 In-service Monitoring ............................................................................................................................ 16 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 20 APPENDIX A. TEST PHOTOS FCC DFS Test Report Report No. : FZ322147 SPORTON INTERNATIONAL INC. Page No. : 3 of 20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications (FCC 06-96 Appendix) Report Clause Ref. Std. Clause Description Measured Limit Result - 7.8.1 DFS: UNII Detection Bandwidth Measurement N/A (Client w/o test) 80% of the 99% BW N/A - 7.8.2.1 DFS: Initial Channel Availability Check Time N/A (Client w/o test) CAC ≥ 60 sec N/A - 7.8.2.2 DFS: Radar Burst at the Beginning of the Channel Availability Check Time N/A (Client w/o test) Detection Threshold: -64 dBm N/A - 7.8.2.3 DFS: Radar Burst at the End of the Channel Availability Check Time N/A (Client w/o test) Detection Threshold: -64 dBm N/A 3.3 7.8.3 DFS: In-Service Monitoring for Channel Move Time (CMT) CMT < 10sec CMT ≤ 10sec Complied 3.3 7.8.3 DFS: In-Service Monitoring for Channel Closing Transmission Time (CCTT) CCTT < 60 ms CCTT ≤ 60 ms starting at CMT 200ms Complied 3.3 7.8.3 DFS: In-Service Monitoring for Non-Occupancy Period (NOP) NOP > 30 min NOP ≥ 30 min Complied - 7.8.4 DFS: Statistical Performance Check N/A (Client w/o test) Table 5 - 7 (KDB 905462) N/A - 5.8.1 DFS: Uniform Spreading N/A (Client w/o this function) Uniform Spreading for DFS Band N/A 3.1.4 8.1 User Access Restrictions Manufacturer attestation NOT accessible to user DFS controls Complied FCC DFS Test Report Report No. : FZ322147 SPORTON INTERNATIONAL INC. Page No. : 4 of 20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FZ322147 Rev. 01 Initial issue of report Jul. 15, 2013 FCC DFS Test Report Report No. : FZ322147 SPORTON INTERNATIONAL INC. Page No. : 5 of 20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number 5250-5350 a 5260-5320 52-64 [4] 5470-5725 5500-5700 100-140 [7] 5250-5350 n (HT-20) 5260-5320 52-64 [4] 5470-5725 5500-5700 100-140 [7] 5250-5350 n (HT-40) 5270-5310 54-62 [2] 5470-5725 5510-5670 102-134 [3] Note 1: IEEE Std. 802.11-2007 modulation consists of IEEE Std. 802.11a-1999. Note 2: IEEE Std. 802.11n-2009 modulation consists of HT-20 and HT-40 (HT: High Throughput). Then EUT support HT-20 and HT-40. Note 3: 20dB bandwidth not falls completely or partly within the 5600 MHz to 5650 MHz band. Following channel frequencies could not be used for 5600 MHz to 5650 MHz band: 20MHz mode [MHz]: 5600, 5620, 5640 40MHz mode [MHz]: 5590, 5630 1.1.2 Antenna Information Ante…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR322147AN SPORTON INTERNATIONAL INC. Page No. : 1 of 151 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : WiFi Dongle Brand Name : Entone Model No. : Kamai 500 Dual-band Wi-Fi Adapter FCC ID : S4A99-970201-00 Standard : 47 CFR FCC Part 15.407 Operating Band : 5150 MHz – 5250 MHz 5250 MHz – 5350 MHz 5470 MHz – 5725 MHz FCC Classification : NII Applicant : Entone Technologies (HK) Limitted Level 28, Saxon Tower, 7 Cheung Shun Street, Lai Chi Kok, HongKong Manufacturer : XAVi Technologies Corporation 9F, No.129, Hsing Te Rd., Sanchung Dist., New Taipei City 241, Taiwan, R.O.C. Operate Mode : Client without radar detection The product sample received on Feb. 25, 2013 and completely tested on Jun. 11, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR322147AN SPORTON INTERNATIONAL INC. Page No. : 2 of 151 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 8 1.3 Testing Applied Standards ..................................................................................................................... 8 1.4 Testing Location Information .................................................................................................................. 8 1.5 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION OF EUT ...................................................................................................... 10 2.1 The Worst Case Modulation Configuration .......................................................................................... 10 2.2 The Worst Case Power Setting Parameter .......................................................................................... 10 2.3 The Worst Case Measurement Configuration ...................................................................................... 12 2.4 Test Setup Diagram ............................................................................................................................. 13 3 TRANSMITTER TEST RESULT .......................................................................................................... 15 3.1 AC Power-line Conducted Emissions .................................................................................................. 15 3.2 Emission Bandwidth ............................................................................................................................. 18 3.3 RF Output Power .................................................................................................................................. 25 3.4 Peak Power Spectral Density ............................................................................................................... 37 3.5 Peak Excursion .................................................................................................................................... 46 3.6 Transmitter Radiated Bandedge Emissions ......................................................................................... 48 3.7 Transmitter Radiated Unwanted Emissions ......................................................................................... 57 3.8 Frequency Stability ............................................................................................................................. 148 4 TEST EQUIPMENT AND CALIBRATION DATA .............................................................................. 150 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR322147AN SPORTON INTERNATIONAL INC. Page No. : 3 of 151 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna RequirementAntenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.3934400MHz 27.58 (Margin 20.41dB) - AV 38.47 (Margin 19.52dB) - QP FCC 15.207 Complied 3.2 15.407(a) Emission Bandwidth Bandwidth [MHz] 20M:23.85 / 40M:41.84 Information only Complied 3.3 15.407(a) RF Output Power (Maximum Conducted Output Power) Power [dBm] 5150-5250MHz:16.22 5250-5350MHz:15.88 5470-5725MHz:15.82 Power [dBm] 5150-5250MHz:17 5250-5350MHz:24 5470-5725MHz:24 Complied 3.4 15.407(a) Peak Power Spectral Density PPSD [dBm/MHz] 5150-5250MHz:3.45 5250-5350MHz:3.73 5470-5725MHz:4.63 PPSD [dBm/MHz] 5150-5250MHz:4 5250-5350MHz:11 5470-5725MHz:11 Complied 3.5 15.407(a) Peak Excursion 8.91 dB 13 dB Complied 3.6 15.407(b) Transmitter Bandedge Emissions Restricted Bands [dBuV/m at 1.0m]: 5350.030MHz 70.97 (Margin12.57dB) - PK 57.04 (Margin 6.50dB) - AV Non-Restricted Bands: ≤ -27dBm (68.3dBuV/m@3m) Restricted Bands: FCC 15.209 Complied 3.7 15.407(b) Transmitter Unwanted Emissions Restricted Bands [dBuV/m at 1.5m]: 6996.000MHz 61.51 (Margin 22.00dB) - PK 61.44 (Margin 2.10dB) - AV Non-Restricted Bands: ≤ -27dBm (68.3dBuV/m@3m) Restricted Bands: FCC 15.209 Complied 3.8 15.407(g) Freq…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR322147AN SPORTON INTERNATIONAL INC. Page No. : 89 of 151 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Transmitter Radiated Unwanted Emissions (Above 1GHz) Modulation Mode HT40 Test Freq. (MHz) 5190 N TX 3 Polarization H Note 1: “>20dB” means spurious emission levels that exceed the level of 20 dB below the applicable limit. Note 2: “N/F” means Nothing Found spurious emissions (No spurious emissions were detected.) Note 3: Measurement receive antenna polarization: H (Horizontal), V (Vertical) Note 4: For restricted bands, the peak measurement is fully sufficient, as the max field strength as measured with the Peak-Detector meets the AV-Limit so that the AV level does not need to be reported in addition. FCC Test Report Report No. : FR322147AN SPORTON INTERNATIONAL INC. Page No. : 90 of 151 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Transmitter Radiated Unwanted Emissions (Above 1GHz) Modulation Mode HT40 Test Freq. (MHz) 5230 N TX 3 Polarization V Note 1: “>20dB” means spurious emission levels that exceed the level of 20 dB below the applicable limit. Note 2: “N/F” means Nothing Found spurious emissions (No spurious emissions were detected.) Note 3: Measurement receive antenna polarization: H (Horizontal), V (Vertical) Note 4: For restricted bands, the peak measurement is fully sufficient, as the max field strength as measured with the Peak-Detector meets the AV-Limit so that the AV level does not need to be reported in addition. FCC Test Report Report No. : FR322147AN SPORTON INTERNATIONAL INC. Page No. : 91 of 151 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Transmitter Radiated Unwanted Emissions (Above 1GHz) Modulation Mode HT40 Test Freq. (MHz) 5230 N TX 3 Polarization H Note 1: “>20dB” means spurious emission levels that exceed the level of 20 dB below the applicable limit. Note 2: “N/F” means Nothing Found spurious emissions (No spurious emissions were detected.) Note 3: Measurement receive antenna polarization: H (Horizontal), V (Vertical) Note 4: For restricted bands, the peak measurement is fully sufficient, as the max field strength as measured with the Peak-Detector meets the AV-Limit so that the AV level does not need to be reported in addition. FCC Test Report Report No. : FR322147AN SPORTON INTERNATIONAL INC. Page No. : 92 of 151 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 3.7.8 Transmitter Radiated Unwanted Emissions (Above 1GHz) for 5250-5350MHz Transmitter Radiated Unwanted Emissions (Above 1GHz) Modulation Mode 11a Test Freq. (MHz) 5260 N TX 1 Polarization V Note 1: “>20dB” means spurious emission levels that exceed the level of 20 dB below the applicable limit. Note 2: “N/F” means Nothing Found spurious emissions (No spurious emissions were detected.) Note 3: Measurement receive antenna polarization: H (Horizontal), V (Vertical) Note 4: For restricted bands, the peak measurement is fully sufficient, as the max field strength as measured with the Peak-Detector meets the AV-Limit so that the AV level does not need to be reported in addition. FCC Test Report Report No. : FR322147AN SPORTON INTERNATIONAL INC. Page No. : 93 of 151 TEL : 886-3-327-3456 Repor…

Text truncated - open the document above for the full version.
