S9PHSC1000Wireless Grid Controller

Handset and Charger Installation Instructions Model HSC2000 Handset Kit InGrid Handset Kit Contents HSC1000 Handset CHC1000 Charging Cradle PSC0101 Power Supply Belt Clip IG80 Ni-MH Rechargeable Battery Pack Install the Handset and Charger Connect Battery Pack -- The battery pack is shipped in the Handset, but it is not connected. a) Open the battery compartment and remove the battery b) Insert the battery plug into the two-pin jack, and insert the battery. Note: The jack is keyed so that the plug can only be inserted in one direction. Be careful not to crimp wire. c) Replace the battery cover. d) The handset display will illuminate when battery is connected. Attach Belt Clip – Snap the Belt Clip onto the sides of the Handset. Connect Charging Cradle – Connect the Charging Cradle power supply to the bottom of the charging cradle and to the electrical wall outlet. Charge Handset – Place the Handset in the Charging Cradle. When properly seated on the cradle, the amber light on the front of the cradle will be illuminated. 1. Immediately place the Handset in the Charging Cradle that came packed with the Handset. THE HANDSET MUST CHARGE AT LEAST 2 HOURS PRIOR TO ATTEMPTING ANY SECURITY SYSTEM INSTALLATION. IT MUST CHARGE 12 HOURS BEFORE MAKING PHONE CALLS. 2. The phone system comes with various settings pre- defined from the factory. Should you want to change these settings we suggest waiting until after you activate your system. These settings include, ring tones, ring volume, distinctive ringing, display contrast etc. Note: o Use only InGrid IG80 rechargeable battery packs supplied with your various Home Protection components. o Replacement battery packs are also available through the InGrid’s customer service at 1-877- INGRID7 or on-line at www.InGridHome.com Use only the supplied AC power adapter. Do not use any other adapter. o Place the power cord so that it does not create a trip hazard or where it could become pinched and create an electrical hazard. o Do NOT use AC power outlets that are controlled by a wall switch Add the Handset to your InGrid System These devices may be added to the InGrid System up to the number shown in the table: Device Device Maximum System Maximum Handsets 6 Consoles 4 9* Grid Extenders 4 *The system will allow a maximum of 9 Handset/Console or Grid Extender combinations After the Handset and Charger are installed, use a Handset or Console that is already registered on the System to enter the Security Menu and follow the steps for installing new hardware. Enter the Security Menu After installing the hardware, enter Menu on your Handset or Console. o Scroll to Setup and press SELECT o Scroll to Security and press SELECT o Enter Master Code and press SELECT Add the Handset 1. Using the scroll and SELECT buttons on your existing Handset or Console, navigate to GC or Handset (Menu/Setup/Security/GC or Handset/<Add New>). SELECTBACK <Add New> GCs or Handset 2. Press the SELECT key to <Add New>. The system will begin searching for the new Handset or Console you are looking to add. 3. On the New Handset or Console press the SEARCH key. 4. The system will inform you when it has found and added the Handset via the display and an audio signal. Press OK when you have been informed that the Handset or Console has been added. 5. You will then be given the option to edit the default name. FCC Information FCC Part 15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes and modifications to this product not expressly approved by InGrid, Inc. could void not only the user’s authority to operate this device, but also the limited warranty. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, three is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: o Reorient or relocate the receiving antenna o Reorient or relocate and increase the separation between the equipment and receiver o Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Some cordless telephones operate at frequencies that may cause interference to nearby TVs or VCRs. To minimize or prevent such interference, the base or the cordless telephone should not be placed near or on top of a TV or VCR. If interference is experienced, move the cordless telephone further away from the TV or VCR. This will often reduce, or eliminate, interference. Consult an experienced radio/TV technician for help if these measures do not eliminate the interference. This equipment should be serviced only by Ingrid, Inc. or its authorized agents. FCC RF Exposure Warning This product complies with FCC radiation exposure limits set forth for an uncontrolled environment. To comply with FCC RF exposure requirements the base unit must be installed and operated with this antenna located 20 cm or more between the antenna and all person’s body (excluding extremities of hands, wrist and feet). The Handset unit may be carried and operated with only the specific provided belt- clip. Other non-tested belt-clips or similar body-worn accessories must be avoided. The base and Handset units must not be co…

Text truncated - open the document above for the full version.

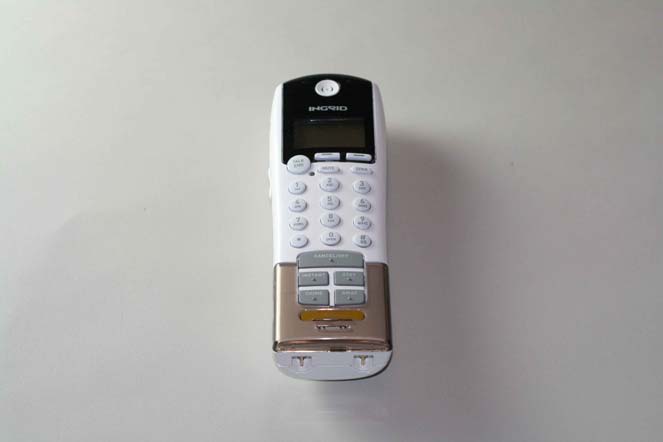

Exhibit 3 S9PHSC1000 Page 1 of 2 Exterior Front Exterior Front (In Charger) Exhibit 3 S9PHSC1000 Page 2 of 2 External Back w/Clip Exterior Back (In Charger)

Exhibit 1 S9PHSC1000 7083A-HSC1000 Label Details Battery Instructions

Exhibit 9 S9PHSC1000 Interior Photos (1 of 2) Battery Compartment PCBA Bottom View 2.4 GHz Antennas Battery Connector Speaker Headphone Connector Exhibit 9 S9PHSC1000 Interior Photos (2 of 2) PCBA Keypad View Charging Contacts LCD

Company: InGrid, Inc. FCC ID: S9PHSC1000 Model: HSC1000 DUT Type: Portable 2.4 GHz Cordless Handset (Grid Controller) Tx Freq.: 2401.056 - 2482.272 MHz 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 1 of 48 Date(s) of Evaluation June 21-22, 2007 Test Report Serial No. 051407S9P-T831-S15T Report Revision No. Revision 1.0 Report Issue Date July 18, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 RF EXPOSURE EVALUATION SPECIFIC ABSORPTION RATE S S S A A A R R R T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T FOR INGRID, INC. PORTABLE 2.4 GHz CORDLESS HANDSET (GRID CONTROLLER) Test Report Serial No. 051407S9P-T831-S15T Test Report Revision No. Revision 1.0 (Initial Release) Test Lab and Location Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 21-364 Lougheed Road Kelowna, B.C. V1X 7R8 Canada DEVICE IDENTIFIER(S) FCC ID: S9PHSC1000 Model(s): HSC1000 TEST STANDARD(S) & PROCEDURE(S) APPLIED FCC OET Bulletin 65, Supplement C (01-01) Industry Canada RSS-102 Issue 2 IEEE 1528-2003 Certificate No. 2470.01 Testing and Report By: Cheri Frangiadakis Celltech Labs Inc. Test Report Reviewed By: Jonathan Hughes Celltech Labs Inc. Company: InGrid, Inc. FCC ID: S9PHSC1000 Model: HSC1000 DUT Type: Portable 2.4 GHz Cordless Handset (Grid Controller) Tx Freq.: 2401.056 - 2482.272 MHz 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 2 of 48 Date(s) of Evaluation June 21-22, 2007 Test Report Serial No. 051407S9P-T831-S15T Report Revision No. Revision 1.0 Report Issue Date July 18, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 Celltech Labs Inc. declares under its sole responsibility that this wireless portable device complies with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), Industry Canada RSS-102 Issue 2 and IEEE Standard 1528-2003 for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab and Location CELLTECH LABS INC. Testing and Engineering Services 21-364 Lougheed Road Kelowna, B.C. V1X 7R8 Canada Tel.: 250-765-7650 Fax: 250-765-7645 e-mail: [email protected] web site: www.celltechlabs.com Company Information INGRID, INC. 1055 Westlakes Drive, Suite 300 Berwyn, PA 19312 United States FCC IDENTIFIER: S9PHSC1000 Model Name/No.: HSC1000 Standard(s) Applied: FCC 47 CFR §2.1093; Health Canada Safety Code 6 Procedure(s) Applied: FCC OET Bulletin 65, Supplement C (01-01) Industry Canada RSS-102 Issue 2 IEEE 1528-2003 FCC Device Classification: Part 15 Spread Spectrum Transmitter (DSS) IC Device Classification: Low Power License-Exempt Radiocommunication Device (RSS-210) Device Description: 2.4 GHz Cordless Handset (Grid Controller) Transmit Frequency Range(s): 2401.056 - 2482.272 MHz (ISM Band) Mode(s) of Operation: TDMA/TDD Communication Protocol: DECT Modulation Type: GFSK Max. Duty Cycle Tested: 16 % (Source-Based Time-Averaged) Max. RF Output Power Tested: 101.2 dBuV/m - Field Strength (2442.528 MHz) Battery Type(s) Tested: Ni-MH 3.6 V, 800 mAh (Model: IG800) Antenna Type(s) Tested: Dual Internal Fixed Wire Element Body-worn Accessories Tested: Plastic Belt-Clip Audio Accessories Tested: Noise Canceling Headset (Plantronics M215) Max. SAR Level(s) Evaluated: Head: 0.148 W/kg (1g average) Body: 0.136 W/kg (1g average) Test Report Approved By: Sean Johnston Celltech Labs Inc. Company: InGrid, Inc. FCC ID: S9PHSC1000 Model: HSC1000 DUT Type: Portable 2.4 GHz Cordless Handset (Grid Controller) Tx Freq.: 2401.056 - 2482.272 MHz 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 3 of 48 Date(s) of Evaluation June 21-22, 2007 Test Report Serial No. 051407S9P-T831-S15T Report Revision No. Revision 1.0 Report Issue Date July 18, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION ___________________________________________________________________ 4 2.0 DESCRIPTION of DEVICE UNDER TEST (DUT)_________________________________________ 4 3.0 SAR MEASUREMENT SYSTEM ______________________________________________________ 5 4.0 MEASUREMENT SUMMARY ________________________________________________________ 6 5.0 DETAILS OF SAR EVALUATION _____________________________________________________ 7 DETAILS OF SAR EVALUATION (Cont.) __________________________________________________ 8 6.0 EVALUATION PROCEDURES _______________________________________________________ 8 EVALUATION PROCEDURES (Cont.)_____________________________________________________ 9 7.0 SYSTEM PERFORMANCE CHECK __________________________________________________ 10 8.0 SIMULATED EQUIVALENT TISSUES _________________________________________________ 11 9.0 SAR SAFETY LIMITS _____________________________________________________________ 1…

Text truncated - open the document above for the full version.

www.nemko.com FCC Part 15 Subpart C, 15.247 : October 2006 Test Report: 83533-7TRFWL Applicant: Ingrid Inc. 920 Cassatt Rd. Suite 220 Berwyn, PA 19312 USA Apparatus: HSC1000 FCC ID: S9PHSC1000 In Accordance With: FCC Part 15 Subpart C, 15.247 FHSS System and Digitally Modulated Radiators 902-928MHz, 2400 - 2483.5 MHz, 5725-5850MHz Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Jason Nixon, Telecom Specialist Date: July 27, 2007 Total Number of Pages: 31 Nemko Canada Inc. REPORT SUMMARY Report Number: 83533-7TRFWL FCC ID: S9PHSC1000 Specification: FCC Part 15 Subpart C, 15.247 Page 2 of 31 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. Radiated tests were conducted in accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: HSC1000 Specification: FCC Part 15 Subpart C, 15.247 Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Heng Lin EMC / Wireless Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Nemko Canada Inc. REPORT SUMMARY Report Number: 83533-7TRFWL FCC ID: S9PHSC1000 Specification: FCC Part 15 Subpart C, 15.247 Page 3 of 31 TABLE OF CONTENTS Report Summary......................................................................................................................................... 2 Section 1 : Equipment Under Test............................................................................................................. 4 1.1 Product Identification .................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Technical Specifications of the EUT ..........................................................................................................4 Section 2 : Test Conditions......................................................................................................................... 5 2.1 Specifications .............................................................................................................................................5 2.2 Deviations From Laboratory Test Procedures ............................................................................................5 2.3 Test Environment .......................................................................................................................................5 2.4 Test Equipment...........................................................................................................................................5 Section 3 : Observations ............................................................................................................................. 6 3.1 Modifications Performed During Assessment ............................................................................................6 3.2 Record Of Technical Judgements ...............................................................................................................6 3.3 EUT Parameters Affecting Compliance .....................................................................................................6 3.4 Test Deleted................................................................................................................................................6 3.5 Additional Observations .............................................................................................................................6 Section 4 : Results Summary ..................................................................................................................... 7 4.1 FCC Part 15 Subpart C : Test Results ........................................................................................................8 Appendix A : Test Results .......................................................................................................................... 9 Clause 15.207(a) Powerline Conducted Emissions ...............................................................................................9 Clause 15.209(a) Radiated Emissions within Restricted Bands ..........................................................................11 Clause 15.247(a)(1) Frequency hopping systems ................................................................................................15 Clause 15.247(a)(1)(iii) Frequency hopping systems operating in the 2400-2483.5 MHz band .........................16 Clause 15.247(b)(1) Maximum peak output power of Frequency hopping systems operating in the 2400-2483.5 MHz band and 5725-5850 MHz band ...........................................................................................................21 Clause 15.247(d) Radiated Emissions Not in Restricted Bands ..........................................................................24 Appendix B : Setup Photographs ........................................................…

Text truncated - open the document above for the full version.

Applicant: Ingrid Inc. Apparatus: HSC1000 FCC ID: S9PHSC1000 Field Strength Measurement: Ch. Freq. MHz Pol V/H ANT. Rx dBμV Cable loss dB Ant Factor dB F.S. dBuV/m low 2401.0560 Horn2 V 79.8 5.5 28.4 98.5 2401.0560 Horn2 H 78.5 5.5 28.5 99.1 mid 2442.5280 Horn2 V 78.1 5.4 28.4 101.2 2442.5280 Horn2 H 77.6 5.4 28.5 100.6 hi 2482.2720 Horn2 V 80.1 5.5 28.4 100.6 2482.2720 Horn2 H 78.1 5.5 28.5 100.5 Signature: Date: June 25, 2007 Name and Title: Heng Lin, EMC / Wireless Specialist
