S9ZTEW432BRP802.11g Wireless Broadband Router

i Regulatory notes and statements Wireless LAN, Health and Authorization for use Radio frequency electromagnetic energy is emitted from Wireless LAN devices. The energy levels of these emissions however are far much less than the electromagnetic energy emissions from wireless devices like for example mobile phones. Wireless LAN devices are safe for use frequency safety standards and recommendations. The use of Wireless LAN devices may be restricted in some situations or environments for example: ·On board of airplanes, or ·In an explosive environment, or ·In case the interference risk to other devices or services is perceived or identified as harmful In case the policy regarding the use of Wireless LAN devices in specific organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial plants, private buildings etc.) is not clear, please ask for authorization to use these devices prior to operating the equipment. Regulatory Information/disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The Manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, of the substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the ii equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. We declare that the product is limited in CH1~CH11 by specified firmware controlled in the USA. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. iii TABLE OF CONTENT ABOUT THIS GUIDE.................................................................................................. 1 Purpose ................................................................................................................... 1 Overview of this User’s Guide ............................................................................... 1 I NTRODUCTION......................................................................................................... 2 Applications:........................................................................................................... 2 Features: ................................................................................................................. 3 U NPACKING AND SETUP............................................................................................ 4 Unpacking .............................................................................................................. 4 Setup ....................................................................................................................... 4 H ARDWARE INSTALLATION....................................................................................... 5 Front Panel ............................................................................................................. 5 Rear Panel............................................................................................................... 6 Hardware connections ............................................................................................ 6 Connect the Router using LAN............................................................................ 7 Connect the Router using Wireless LAN ............................................................. 7 Check the installation........................................................................................... 8 PC NETWORK TCP/IP SETTING................................................................................ 9 Windows 95/98/ME................................................................................................ 9 Windows 2000...................................................................................................... 10 Windows XP.....................................................…

Text truncated - open the document above for the full version.

31 If WPA-PSK is selected, please set the PSK key in the pass phrase field. The pass phrase should be 8 characters at least. 32 2.2.3 Advanced This screen enables user to configure advanced wireless functions. Beacon Interval: Type the beacon interval in the text box. User can specify a value from 1 to 1000. The default beacon interval is 100. RTS Threshold: Type the RTS (Request-To-Send) threshold in the text box. This value stabilizes data flow. If data flow is irregular, choose values between 256 and 2432 until data flow is normalized. Fragmentation Threshold: Type the fragmentation threshold in the text box. If packet transfer error rates are high, choose values between 256 and 2432 until packet transfer rates are minimized. (NOTE: set this fragmentation threshold value may diminish system performance.) DTIM Interval: Type a DTIM (Delivery Traffic Indication Message) interval in the text box. User can specify a value between 1 and 65535. The default value is 3. TX Rates (Mbps): Select one of the wireless communications transfer rates, measured in megabytes per second, based upon the speed of wireless adapters connected to the WLAN. 33 2.3 Status This selection enables user to view the status of the router LAN, WAN connections, and view logs and statistics pertaining to connections and packet transfers. 2.3.1 Device Information This screen enables user to view the router LAN, Wireless and WAN configuration. Firmware Version: Displays the latest build of the router firmware interface. After updating the firmware in Tools - Firmware, check this to ensure that the firmware was successfully updated. LAN: This field displays the router's LAN interface MAC address, IP address, subnet mask, and DHCP server status. Click “DHCP Table” to view a list of client stations currently connected to the router LAN interface. Wireless: Displays the router's wireless connection information, including the router's wireless interface MAC address, the connection status, the SSID status, which channel is being used, and whether WEP is enabled or not. 34 WAN: This field displays the router's WAN interface MAC address, DHCP client status, IP address, subnet mask, default gateway, and DNS. Click “DHCP Release” to release all IP addresses assigned to client stations connected to the WAN via the router. Click “DHCP Renew” to reassign IP addresses to client stations connected to the WAN. 2.3.2 Log This screen enables user to view a running log of router system statistics, events, and activities. The log displays up to 200 entries. Older entries are overwritten by new entries. The Log screen commands are as follows: Click “First Page” to view the first page of the log Click “Last Page” to view the final page of the log Click “Previous Page” to view the page just before the current page Click “Next Page” to view the page just after the current page Click “Clear Log” to delete the contents of the log and begin a new log Click “Refresh” to renew log statistics 35 Time: Displays the time and date that the log entry was created. Message: Displays summary information about the log entry. Source: Displays the source of the communication. Destination: Displays the destination of the communication. Note: Displays the IP address of the communication 36 2.3.3 Log Setting This screen enables user to set router logging parameters. SMTP Server: Type the SMTP server address for the email that the log will be sent to in the next field. Send to: Type an email address for the log to be sent to. Click “Email Log Now” to immediately send the current log. Syslog Server: Type the IP address of the Syslog Server if user wants the router to listen and receive incoming Syslog messages. Log Type: Enables user to select what items will be included in the log: ● System Activity: Displays information related to router operation. ● Debug Information: Displays information related to errors and system malfunction. ● Attacks: Displays information about any malicious activity on the network. ● Dropped Packets: Displays information about packets that have not been transferred successfully. ● Notice: Displays important notices by the system administrator. 37 2.3.4 Statistic This screen displays a table that shows the rate of packet transmission via the router LAN and WAN ports (in bytes per second). Click “Reset” to erase all statistics and begin logging statistics again. 38 2.3.5 Wireless This screen enables user to view information about wireless devices that are connected to the wireless router. Connected Time: Displays how long the wireless device has been connected to the LAN via the router. MAC Address: Displays the devices wireless LAN interface MAC address. 39 2.4 Routing This selection enables user to set how the router forwards data: Static and Dynamic. Routing Table enables user to view the information created by the router that displays the network interconnection topology. 2.4.1 Static It enables user to set parameters by which the router forwards data to its destination if user’s network has a static IP address. Network Address: Type the static IP address user’s network uses to access the Internet. User’s ISP or network administrator provides user with this information. Network Mask: Type the network (subnet) mask for user’s network. If user does not type a value here, the network mask defaults to 255.255.255.255. User’s ISP or network administrator provides user with this information. Gateway Address: Type the gateway address for network. User’s ISP or network administrator provides user with this information. Interface: Select an interface, WAN or LAN, to connect to the Internet. 40 Metric: Select which metric that user want to apply to this configuration. Add: Click to add the configuration to the static IP address table at the bottom of the page. Update: Select one of the entries in the static IP address table at the bottom of the page and, after changing parameters, click “Update” to confirm the changes. Delete: Select one of the e…

Text truncated - open the document above for the full version.

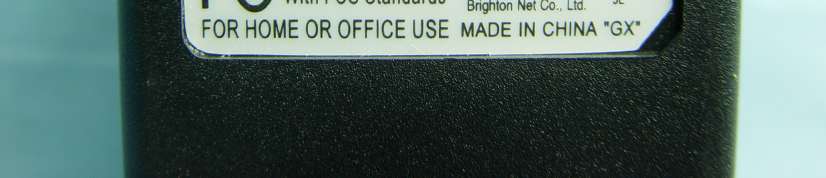

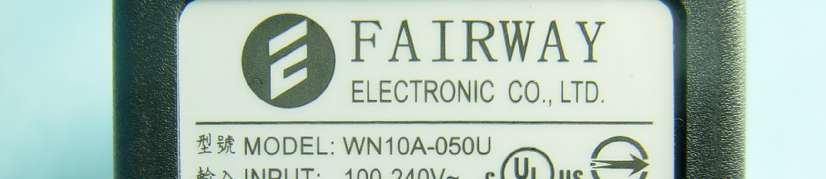

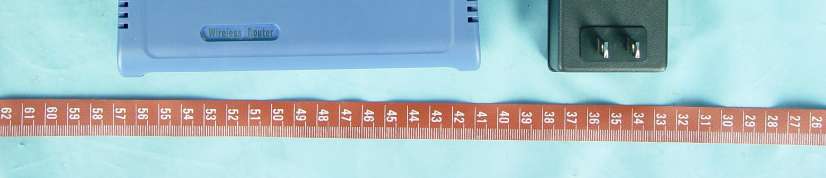

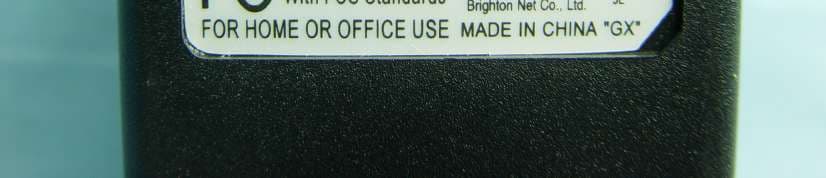

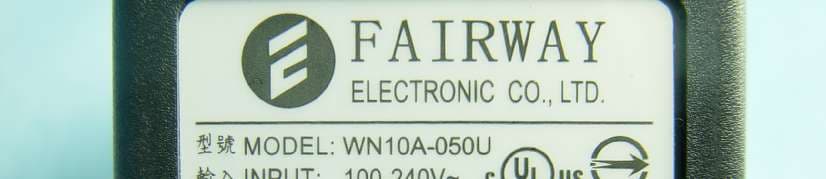

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID .: S9ZTEW432BPR Label Location

MADE IN xxxxxx This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference and (2)this device must accept any interference received, including interference that may cause undesired operation. 0560 FCC ID:S9ZTEW430APB 59.00 mm Power Input: 7.5V / 1A MAC: 000000000000/# TEW-430APB H/W:C1.0R CAYYWW30XXXXX TEW-430APB H/W:C1.0R CAYYWW30XXXXX MADE IN XX This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference and (2)this device must accept any interference received, including interference that may cause undesired operation. 3 9 . 0 0 m m 0560 FCC ID: S9ZTEW432BRP 59.00 mm Power Input: 5V2.5A IC:6337A-432BRP LAN MAC: XXXXXXXXXXXX WAN MAC: XXXXXXXXXXXX/# TEW-432BRP/x H/W:B2.0R CAYYWW32XXXXX

Page 4 Page 5 Page 6

FCC ID: S9ZTEW432BRP Report No. RF931018L03E Operational Description This device is an 802.11g Wireless Broadband Router which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna with RSMA connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: S9ZTEW432BRP Report No: SA931018L03E 1 RF EXPOSURE REPORT REPORT NO.: SA931018L03E MODEL NO.: TEW-432BRP ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: TRENDware International Inc. ADDRESS: 3135 Kashiwa Street, Torrance, CA 90505 United States ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. FCC ID: S9ZTEW432BRP Report No: SA931018L03E 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: S9ZTEW432BRP Report No: SA931018L03E 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm-separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. FCC ID: S9ZTEW432BRP Report No: SA931018L03E 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585(numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm : For DSSS: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241256.2340.0181.0 6243756.4940.0181.0 11246256.3640.0181.0 For OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241240.7380.0131.0 6243739.8110.0131.0 11246235.4810.0111.0

Report No.: RF931018L03E1Report Format Version 2.0.4 Reference No.: 950613L06 FCC TEST REPORT REPORT NO.: RF931018L03E MODEL NO.: TEW-432BRP RECEIVED: Oct. 07, 2004 TESTED: Oct. 07 ~ Oct. 13, 2004 Aug. 16, 2005 (for Conducted and Radiated emission test (below 1GHz) ) ISSUED: Jun. 16, 2006 APPLICANT: TRENDware International Inc. ADDRESS: 3135 Kashiwa Street, Torrance, CA 90505 United States ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 61 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF931018L03E2Report Format Version 2.0.4 Reference No.: 950613L06 Table of Contents 1CERTIFICATION..............................................................................................................4 2SUMMARY OF TEST RESULTS......................................................................................5 2.1MEASUREMENT UNCERTAINTY...................................................................5 3GENERAL INFORMATION..............................................................................................6 3.1GENERAL DESCRIPTION OF EUT.................................................................6 3.2DESCRIPTION OF TEST MODES...................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST.............................................7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL...................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS................................10 3.4DESCRIPTION OF SUPPORT UNITS...........................................................10 4TEST TYPES AND RESULTS........................................................................................11 4.1CONDUCTED EMISSION MEASUREMENT.................................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT...............................11 4.1.2TEST INSTRUMENTS...................................................................................11 4.1.3TEST PROCEDURES....................................................................................12 4.1.4DEVIATION FROM TEST STANDARD..........................................................12 4.1.5TEST SETUP.................................................................................................13 4.1.6EUT OPERATING CONDITIONS...................................................................13 4.1.7TEST RESULTS.............................................................................................14 4.2RADIATED EMISSION MEASUREMENT......................................................20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT....................................20 4.2.2TEST INSTRUMENTS...................................................................................21 4.2.3TEST PROCEDURES....................................................................................22 4.2.4DEVIATION FROM TEST STANDARD..........................................................22 4.2.5TEST SETUP.................................................................................................23 4.2.6EUT OPERATING CONDITIONS...................................................................23 4.2.7TEST RESULTS.............................................................................................24 4.36dB BANDWIDTH MEASUREMENT.............................................................31 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT...........................................31 4.3.2TEST INSTRUMENTS...................................................................................31 4.3.3TEST PROCEDURE......................................................................................32 4.3.4DEVIATION FROM TEST STANDARD..........................................................32 4.3.5TEST SETUP.................................................................................................32 Report No.: RF931018L03E3Report Format Version 2.0.4 Reference No.: 950613L06 4.3.6EUT OPERATING CONDITIONS...................................................................32 4.3.7TEST RESULTS.............................................................................................33 4.4MAXIMUM PEAK OUTPUT POWER.............................................................39 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..............39 4.4.2TEST INSTRUMENTS...................................................................................39 4.4.3TEST PROCEDURES....................................................................................40 4.4.4DEVIATION FROM TEST STANDARD..........................................................40 4.4.5TEST SETUP.................................................................................................40 4.4.6EUT OPERATING CONDITIONS...................................................................40 4.4.7TEST RESULTS.............................................................................................41 4.5POWER SPECTRAL DENSITY MEASUREMENT.........................................42 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT......................42 4.5.2TEST INSTRUMENTS...................................................................................42 4.5.3TEST PROCEDURE......................................................................................43 4.5.4DEVIATION FROM TEST STANDARD..........................................................43 4.5.5TEST SETUP...........................................................…

Text truncated - open the document above for the full version.

Report No.: RF931018L03E1Report Format Version 2.0.4 Reference No.: 950613L06 1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF931018L03E2Report Format Version 2.0.4 Reference No.: 950613L06 RADIATED EMISSION TEST
