Request for non-disclosure RF_501_02 TRENDware International Inc. 20675 Manhattan Place, Torrance, CA, 90501 U.S.A. To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for non-disclosure (FCC ID:S9ZTEWMP1U) Reference number: TEW-MP1U Date: 2008/03/20 Dear FCC TCB, Persuant to 47 CFR Section 0.459(a) & (b), TRENDware International Inc. hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: ( S9ZTEWMP1U) a. Schematic diagrams b. Operational description c. Block Diagram Above materials contain secrets, proprietary and technical information, which would customarily be quarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. TRENDware International Inc. understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Wen Tsai/ Sr. Product Manager Signature:

RF_160, Issue 02 Declaration of Authorization We Name: TRENDware International Inc. Address: 20675 Manhattan Place, City: Torrance, CA 90501, Country: U.S.A. Declare that: Name Representative of agent: Delia Feng. (1) Agent Company name: Exclusive Certification Corporation Address: 4F-2, No.28 Lang 78, Xing-Ai Rd. City: Nei-hu Taipei City 114 Country Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: Wireless Printer Server Type designation: TEW-MP1U Trademark: TRENDnet on our behalf. Date: 2008/03/20 City: Torrance Name: Wen Tsai Function: Sr. Product Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 17, 2008 1 of 8 FCC Test Report: FI07080701-B Appendix A. Photographs of EUT 07080701-B 07080701-B

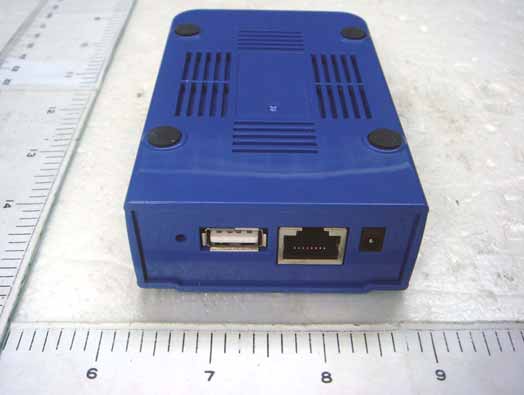

Label & Location

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 17, 2008 2 of 8 FCC Test Report: FI07080701-B 07080701-B Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 17, 2008 3 of 8 FCC Test Report: FI07080701-B 07080701-B 07080701-B Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 17, 2008 4 of 8 FCC Test Report: FI07080701-B 07080701-B Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 17, 2008 5 of 8 FCC Test Report: FI07080701-B 07080701-B 07080701-B Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 17, 2008 6 of 8 FCC Test Report: FI07080701-B Adapter: DSA-15P-05 US 050100 07080701-B 07080701-B Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 17, 2008 7 of 8 FCC Test Report: FI07080701-B 07080701-B Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 17, 2008 8 of 8 FCC Test Report: FI07080701-B 07080701-B 07080701-B

1.1. Test Result of RF Exposure Evaluation . Product: Wireless Printer Server . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 1.8 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance (1) Modulation Standard: IEEE 802.11b (11Mbps) Test Date: Jul. 27, 2007 Temperature: 25 Humidity: 65 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 19.28 0.026 06 2437 19.22 0.025 11 2462 19.08 0.024 (2) Modulation Standard: IEEE 802.11g (6Mbps) Test Date: Jul. 27, 2007 Temperature: 25 Humidity: 65 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 16.38 0.013 06 2437 16.45 0.013 11 2462 16.47 0.013 The MPE is calculated as 0.026 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. For 2412-2462 MHz, the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 17, 2008 1 of 55 FCC Test Report: FI07080701-B FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Applicant : TRENDware International, Inc. Address : 20675 Manhattan Place, Torrance, CA 90501, U.S.A. Equipment : Wireless Printer Server Model No. : TEW-MP1U FCC ID : S9ZTEWMP1U Trade Name : TRENDnet Laboratory Accreditation ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 17, 2008 2 of 55 FCC Test Report: FI07080701-B Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test............................................................................................... 6 2.2 RF Specifications ....................................................................................................................... 6 2.3 Test Mode & Test Software ........................................................................................................ 7 2.4 Description of Test System......................................................................................................... 7 2.5 Connection Diagram of Test System.......................................................................................... 8 2.6 General Information of Test........................................................................................................ 9 2.7 Measurement Uncertainty .......................................................................................................... 9 2.8 History of this test report ..........................................................................................................10 3. Antenna Requirements..................................................................................................................... 11 3.1 Standard Applicable ................................................................................................................. 11 3.2 Antenna Construction and Directional Gain............................................................................. 11 4. Test of Conducted Emission............................................................................................................12 4.1 Test Limit..................................................................................................................................12 4.2 Test Procedures.......................................................................................................................12 4.3 Typical Test Setup ...................................................................................................................13 4.4 Measurement equipment ......................................................................................................... 13 4.5 Test Result and Data................................................................................................................14 4.6 Test Photographs .....................................................................................................................16 5. Test of Radiated Emission ...............................................................................................................17 5.1 Test Limit..................................................................................................................................17 5.2 Test Procedures.......................................................................................................................18 5.3 Typical Test Setup ....................................................................................................................19 5.4 Measurement equipment ......................................................................................................... 19 5.5 Test Result and Data................................................................................................................20 5.6 Test Photographs .....................................................................................................................36 6. 6dB Bandwidth Measurement Data .................................................................................................37 6.1 Test Limit ..................................................................................................................................37 6.2 Test Procedures .......................................................................................................................37 6.3 Test Setup Layout ....................................................................................................................37 6.4 Measurement equipment ......................................................................................................... 37 6.5 Test Result and Data................................................................................................................37 7. Maximum Peak Output Power .........................................................................................................41 7.1 Test Limit ................................................................................................…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 17, 2008 16 of 55 FCC Test Report: FI07080701-B 4.6 Test Photographs Front View Rear View Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 17, 2008 36 of 55 FCC Test Report: FI07080701-B 5.6 Test Photographs Front View Rear View
