S9ZTEW432BRPD54Mbps Wireless G Broadband Router

i Regulatory notes and statements Wireless LAN, Health and Authorization for use Radio frequency electromagnetic energy is emitted from Wireless LAN devices. The energy levels of these emissions however are far much less than the electromagnetic energy emissions from wireless devices like for example mobile phones. The use of Wireless LAN devices may be restricted in some situations or environments for example: ·Onboard airplanes, or ·In an explosive environment, or ·In case the interference risk to other devices or services is perceived or identified as harmful In case the policy regarding the use of Wireless LAN devices in specific organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial plants, private buildings etc.) is not clear, please ask for authorization to use these devices prior to operating the equipment. Regulatory Information/disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The Manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, of the substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: EN 60 950-1: 2001 +A11: 2004 Safety of Information Technology Equipment EN 50385: 2002 Product standard to demonstrate the compliance of radio base stations and fixed terminal stations for wireless telecommunication systems with the basic restrictions or the reference levels related to human exposure to radio frequency electromagnetic fields (110MHz - 40 GHz) - General public EN 300 328 V1.7.1 (2006-10) Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive EN 301 489-1 V1.6.1 (2005-09) Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements EN 301 489-17 V1.2.1 (2002-08) Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. 0560 Česky [Czech] [Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] …

Text truncated - open the document above for the full version.

20675 Manhattan Place, Torrance, CA 90501, USA TEL.: (310961-5500 FAX: (310)961-5511 Date: 2007-11-15 General Declaration We, TRENDware International Inc. declares that the device does not have “Ad Hoc on non-US frequencies” and/or “on DFS frequencies” while applying for the following product. Trademark: TRENDnet Model name: TEW-432BRP FCC ID: S9ZTEW432BRPD If you have any questions regarding the declaration, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------- Wen Tsai /Sr. Product Manager TRENDware International Inc. / TRENDnet TEL.: (310)961-5500 FAX: (310)961-5511 [email protected]

Date:2007-11-15 FCC ID: S9ZTEW432BRPD Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ___________________________________ Wen Tsai /Sr. Product Manager TRENDware International Inc. / TRENDnet TEL.: (310)961-5500 FAX: (310)961-5511 [email protected] 20675 Manhattan Place, Torrance, CA 90501, USA TEL.: (310)961-5500 FAX: (310)961-5511

C:\Users\Wen\Desktop\Temp\Cameo\POA-FCC.doc Seite 1 von 1 AUTHORIZATION LETTER 2007-11-14 To whom it may concern: We, the undersigned, TRENDware International Inc. hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf in all matters relating to all processes required FCC Part 15C and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------- Wen Tsai /Sr. Product Manager TRENDware International Inc / TRENDnet TEL.: (310)961-5500 FAX: (310)961-5511 [email protected] 20675 Manhattan Place, Torrance, CA 90501, USA TEL.: (310)961-5500 FAX: (310)961-5511

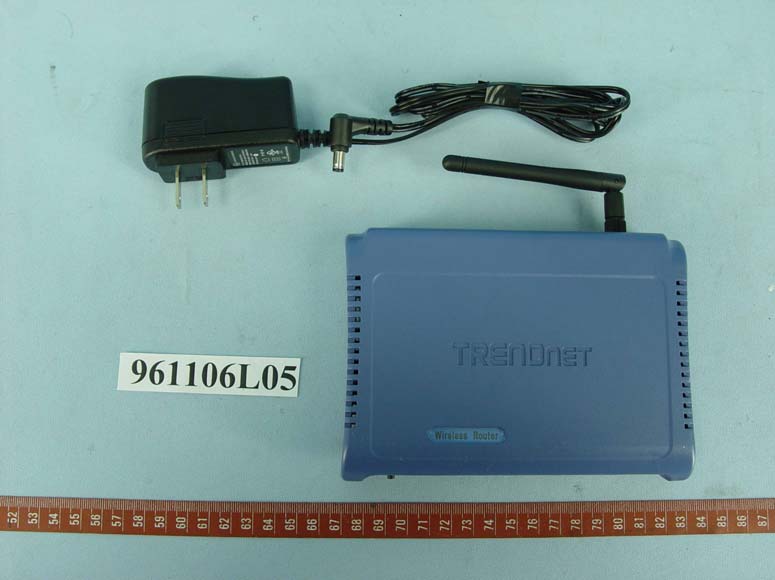

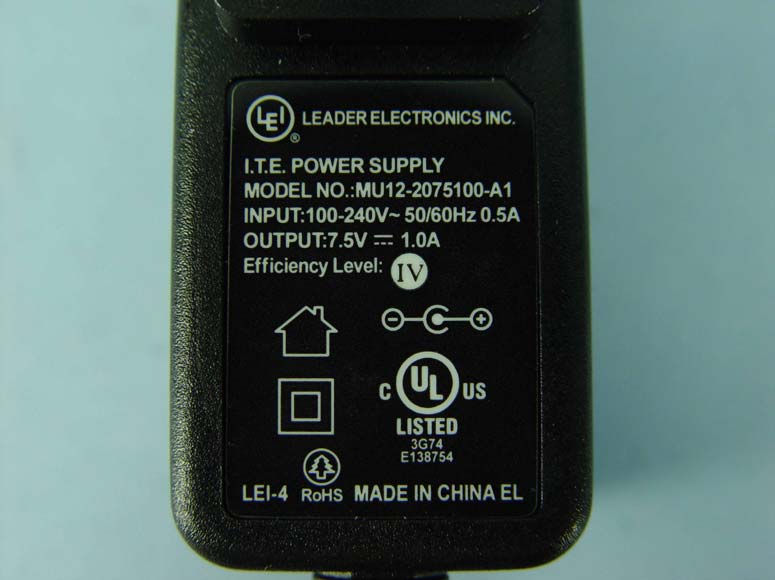

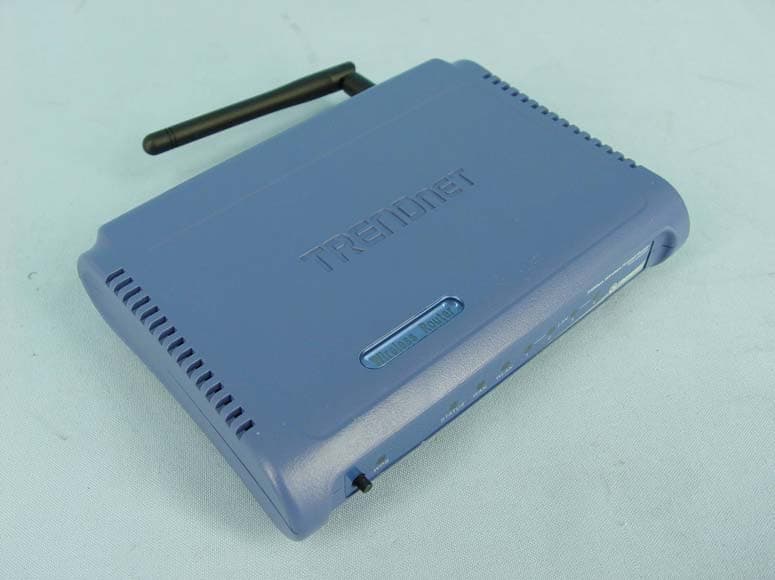

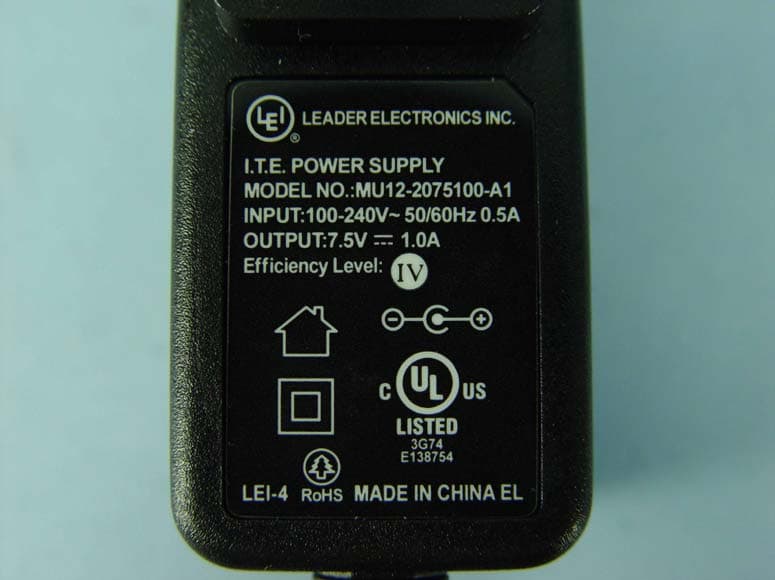

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID .: S9ZTEW432BRPD Label Location

Page 4 Page 5 Page 6

FCC ID: S9ZTEW432BRPD Report No. RF961106L05 Operational Description This device is a 54Mbps Wireless G Broadband Router in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna with IPEX connector. The other instruction, please have a look at the users manual.

FCC ID: S9ZTEW432BRPD Report No: SA961106L05 1 RF EXPOSURE REPORT REPORT NO.: SA961106L05 MODEL NO.: TEW-432BRP ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : TRENDware International Inc. ADDRESS : 20675 Manhattan Place, Torrance, CA 90501, USA ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: S9ZTEW432BRPD Report No: SA961106L05 2 RF EXPOSURE MEASUREMENT (MOBILE DEVICE) 1. INTRODUCTION In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF EXPOSURE LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) (A)LIMITS FOR OCCUPATIONAL / CONTROL EXPOSURES 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: S9ZTEW432BRPD Report No: SA961106L05 3 3. FRIIS FORMULA Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT OPERATING CONDITION The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: S9ZTEW432BRPD Report No: SA961106L05 4 6. TEST RESULTS 6.1 ANTENNA GAIN The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.58489(numeric). 6.2 OUTPUT POWER INTO ANTENNA & RF EXPOSURE VALUE AT DISTANCE 20cm: 802.11b DSSS MODULATION CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 45.186 16.55 0.014 1.000 6 2437 51.168 17.09 0.016 1.000 11 2462 56.754 17.54 0.018 1.000 802.11g OFDM MODULATION CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 63.533 18.03 0.020 1.000 6 2437 61.094 17.86 0.019 1.000 11 2462 57.412 17.59 0.018 1.000

Report No.: RF961106L05 1 Report Format Version 2.0.6 FCC TEST REPORT REPORT NO.: RF961106L05 MODEL NO.: TEW-432BRP RECEIVED: Nov. 06, 2007 TESTED: Nov. 08 ~ Nov. 16, 2007 ISSUED: Nov. 19, 2007 APPLICANT : TRENDware International Inc. ADDRESS : 20675 Manhattan Place, Torrance, CA 90501, USA ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 53 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF961106L05 2 Report Format Version 2.0.6 Table of Contents 1 CERTIFICATION...........................................................................................................4 2 SUMMARY OF TEST RESULTS ..................................................................................5 2.1 MEASUREMENT UNCERTAINTY................................................................................5 3 GENERAL INFORMATION ...........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT .............................................................................6 3.2 DESCRIPTION OF TEST MODES ...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ..............................................9 3.4 DESCRIPTION OF SUPPORT UNITS .......................................................................10 4 TEST TYPES AND RESULTS .................................................................................... 11 4.1 RADIATED EMISSION MEASUREMENT .................................................................. 11 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................ 11 4.1.2 TEST INSTRUMENTS................................................................................................12 4.1.3 TEST PROCEDURES ................................................................................................13 4.1.4 DEVIATION FROM TEST STANDARD.......................................................................13 4.1.5 TEST SETUP..............................................................................................................14 4.1.6 EUT OPERATING CONDITIONS ...............................................................................14 4.1.7 TEST RESULTS .........................................................................................................15 4.2 CONDUCTED EMISSION MEASUREMENT .............................................................22 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...........................................22 4.2.2 TEST INSTRUMENTS................................................................................................22 4.2.3 TEST PROCEDURES ................................................................................................23 4.2.4 DEVIATION FROM TEST STANDARD.......................................................................23 4.2.5 TEST SETUP..............................................................................................................24 4.2.6 EUT OPERATING CONDITIONS ...............................................................................24 4.2.7 TEST RESULTS .........................................................................................................25 4.3 6dB BANDWIDTH MEASUREMENT..........................................................................27 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................27 4.3.2 TEST INSTRUMENTS................................................................................................27 4.3.3 TEST PROCEDURE...................................................................................................27 4.3.4 DEVIATION FROM TEST STANDARD.......................................................................27 4.3.5 TEST SETUP..............................................................................................................28 4.3.6 EUT OPERATING CONDITIONS ...............................................................................28 4.3.7 TEST RESULTS .........................................................................................................29 4.4 MAXIMUM PEAK OUTPUT POWER..........................................................................33 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ..........................33 4.4.2 TEST INSTRUMENTS................................................................................................33 4.4.3 TEST PROCEDURES ................................................................................................34 4.4.4 DEVIATION FROM TEST STANDARD.......................................................................34 4.4.5 TEST SETUP..............................................................................................................34 4.4.6 EUT OPERATING CONDITIONS ...............................................................................34 Report No.: RF961106L05 3 Report Format Version 2.0.6 4.4.7 TEST RESULTS .........................................................................................................35 4.5 POWER SPECTRAL DENSITY MEASUREMENT .....................................................36 4.5…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
