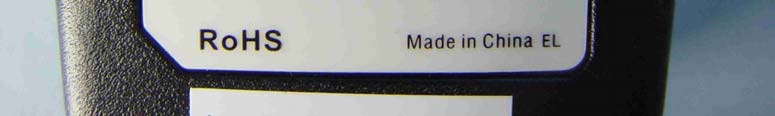

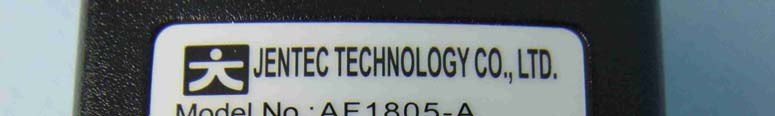

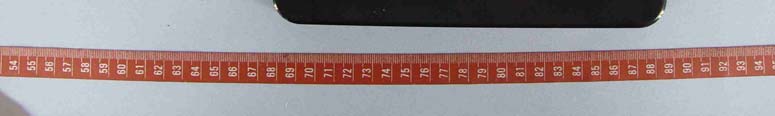

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID .: S9ZTEW632BRP Label Location

Page 4 Page 5

FCC ID: S9ZTEW632BRP Report No. RF960815L14A Operational Description This device is a 300Mbps Wireless N Home Router, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by adapter. The antenna is dipole antenna with R-SMA connector. The other instruction, please have a look at the users manual.

FCC ID: S9ZTEW632BRP Report No: SA960815L14A Reference No.: 961203L14 1 RF EXPOSURE REPORT REPORT NO.: SA960815L14A MODEL NO.: TEW-632BRP ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: TRENDware International Inc. ADDRESS: 20675 Manhattan Place, Torrance, CA 90501, USA ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. FCC ID: S9ZTEW632BRP Report No: SA960815L14A Reference No.: 961203L14 2 RF EXPOSURE MEASUREMENT (MOBILE DEVICE) 1. INTRODUCTION In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF EXPOSURE LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) (A)LIMITS FOR OCCUPATIONAL / CONTROL EXPOSURES 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: S9ZTEW632BRP Report No: SA960815L14A Reference No.: 961203L14 3 3. FRIIS FORMULA Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT OPERATING CONDITION The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. CLASSIFICATION The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: S9ZTEW632BRP Report No: SA960815L14A Reference No.: 961203L14 4 6. TEST RESULTS 6.1 ANTENNA GAIN The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.5849(numeric). 6.2 OUTPUT POWER INTO ANTENNA & RF EXPOSURE VALUE AT DISTANCE 20cm: 802.11b DSSS MODULATION CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 1 2412 50.119 17.00 0.016 1.0 6 2437 51.523 17.12 0.016 1.0 11 2462 51.761 17.14 0.016 1.0 802.11g OFDM MODULATION CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 1 2412 51.642 17.13 0.016 1.0 6 2437 50.466 17.03 0.016 1.0 11 2462 50.699 17.05 0.016 1.0 FCC ID: S9ZTEW632BRP Report No: SA960815L14A Reference No.: 961203L14 5 DRAFT 802.11n (20MHz) OFDM MODULATION PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) CHAN. CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1CHAIN 0CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 1 2412 32.434 32.659 15.11 15.14 65.09318.14 0.021 1.0 6 2437 32.359 32.659 15.10 15.14 65.01818.13 0.021 1.0 11 2462 32.137 31.915 15.07 15.04 64.05218.07 0.020 1.0 DRAFT 802.11n (40MHz) OFDM MODULATION PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) CHAN. CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1CHAIN 0CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 1 2422 12.647 12.823 11.02 11.08 25.47014.06 0.008 1.0 4 2437 12.853 12.823 11.09 11.08 25.67614.10 0.008 1.0 7 2452 12.618 12.677 11.01 11.03 25.29514.03 0.008 1.0

Report No.: RF960815L14A 1 Report Format Version 2.0.6 Reference No.: 961203L14 FCC TEST REPORT REPORT NO.: RF960815L14A MODEL NO.: TEW-632BRP RECEIVED: Aug. 01, 2007 TESTED: Aug. 16 ~ Sep. 01, 2007 ISSUED: Dec. 04, 2007 APPLICANT: TRENDware International Inc. ADDRESS: 20675 Manhattan Place, Torrance, CA 90501, USA ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 106 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF960815L14A 2 Report Format Version 2.0.6 Reference No.: 961203L14 TABLE OF CONTENTS 1. CERTIFICATION ......................................................................................................4 2. SUMMARY OF TEST RESULTS ..............................................................................5 2.1 MEASUREMENT UNCERTAINTY............................................................................5 3. GENERAL INFORMATION.......................................................................................6 3.1 GENERAL DESCRIPTION OF EUT .........................................................................6 3.2 DESCRIPTION OF TEST MODES ...........................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ......................................................8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...........................9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ......................................... 11 3.4 DESCRIPTION OF SUPPORT UNITS....................................................................12 4. TEST TYPES AND RESULTS ................................................................................13 4.1 CONDUCTED EMISSION MEASUREMENT..........................................................13 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.......................................13 4.1.2 TEST INSTRUMENTS............................................................................................13 4.1.3 TEST PROCEDURES ............................................................................................14 4.1.4 DEVIATION FROM TEST STANDARD ..................................................................14 4.1.5 TEST SETUP..........................................................................................................15 4.1.6 EUT OPERATING CONDITIONS ...........................................................................15 4.1.7 TEST RESULTS .....................................................................................................16 4.2 RADIATED EMISSION MEASUREMENT...............................................................34 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................34 4.2.2 TEST INSTRUMENTS............................................................................................35 4.2.3 TEST PROCEDURES ............................................................................................36 4.2.4 DEVIATION FROM TEST STANDARD ..................................................................36 4.2.5 TEST SETUP..........................................................................................................37 4.2.6 EUT OPERATING CONDITIONS ...........................................................................37 4.2.7 TEST RESULTS .....................................................................................................38 4.3 6dB BANDWIDTH MEASUREMENT ......................................................................53 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ...................................................53 4.3.2 TEST INSTRUMENTS............................................................................................53 4.3.3 TEST PROCEDURE...............................................................................................53 4.3.4 DEVIATION FROM TEST STANDARD ..................................................................53 4.3.5 TEST SETUP..........................................................................................................54 4.3.6 EUT OPERATING CONDITIONS ...........................................................................54 4.3.7 TEST RESULTS .....................................................................................................55 4.4 MAXIMUM PEAK OUTPUT POWER ......................................................................67 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ......................67 Report No.: RF960815L14A 3 Report Format Version 2.0.6 Reference No.: 961203L14 4.4.2 INSTRUMENTS......................................................................................................67 4.4.3 TEST PROCEDURES ............................................................................................67 4.4.4 DEVIATION FROM TEST STANDARD ..................................................................67 4.4.5 TEST SETUP..........................................................................................................68 4.4.6 EUT OPERATING CONDITIONS ...........................................................................68 4.4.7 TEST RESULTS .....................................................................................................69 4.5 POWER SPECTRAL DENSITY MEASUREMENT .................................................71 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ..............................71 4.5.2 TEST INSTRUMENTS................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
