S9ZTEW445UB108Mbps 11g wireless USB2.0 Adaptor

108Mbps 802.11g High Power Wireless USB 2.0 Adapter 2 Table of Contents 1 INTRODUCTION ................................................................................................................... 3 1.1 FEATURES & BENEFITS............................................................................................................. 3 1.2 PACKAGE CONTENTS................................................................................................................ 4 1.3 USB ADAPTER DESCRIPTION.................................................................................................... 4 1.4 SYSTEM REQUIREMENTS.......................................................................................................... 4 1.5 APPLICATIONS.......................................................................................................................... 5 1.6 NETWORK CONFIGURATION...................................................................................................... 6 a) Ad hoc (peer-to-peer) Mode .................................................................................................... 6 b) Infrastructure Mode ................................................................................................................. 7 2 INSTALL DRIVERS & CLIENT UTILITY .................................................................................. 8 2.1 BEFORE YOU BEGIN................................................................................................................. 8 2.2 INSTALLING THE DRIVERS......................................................................................................... 8 3 USING THE CLIENT UTILITY ................................................................................................ 20 3.1 CURRENT STATUS.................................................................................................................. 20 3.2 PROFILE MANAGEMENT.......................................................................................................... 21 3.2.1 Scan for available networks ..................................................................................... 22 3.2.2 Create a New Profile................................................................................................ 23 3.2.3 Security .................................................................................................................... 24 3.2.3.1 Security Disabled..........................................................................................................24 3.2.3.2 WPA / WPA2– TLS, TTLS .............................................................................................25 3.2.3.3 WPA/WPA2 – PEAP (EAP-GTC) ..................................................................................27 3.2.3.4 WPA/WPA2 – PEAP (EAP-MSCHAP-V2).....................................................................29 3.2.3.5 WPA/WPA2 – LEAP......................................................................................................31 3.2.3.6 WPA/WPA2 – EAP-FAST..............................................................................................32 3.2.3.7 WPA/WPA2 – Passphrase ............................................................................................34 3.2.3.8 802.1x – TLS, TTLS......................................................................................................34 3.2.3.9 802.1x – PEAP (EAP-GTC) ..........................................................................................36 3.2.3.10 802.1x – PEAP (EAP-MSCHAP-V2).............................................................................38 3.2.3.11 802.1x – LEAP..............................................................................................................40 3.2.3.12 802.1x – EAP-FAST......................................................................................................42 3.2.3.13 Pre-Shared Key (Static WEP) .......................................................................................44 3.2.4 Advanced Settings ................................................................................................... 46 3.2.4.1 Infrastructure Settings...................................................................................................46 3.2.4.2 Ad Hoc Settings ............................................................................................................47 3.3 DIAGNOSTICS......................................................................................................................... 48 3.4 ENABLE / DISABLE RADIO....................................................................................................... 50 3.5 DISABLE TRAY ICON............................................................................................................... 52 3.6 DISPLAY SETTINGS................................................................................................................. 52 4 UNINSTALL THE DRIVERS & CLIENT UTILITY .................................................................. 54 APPENDIX A – SPECIFICATIONS ............................................................................................... 56 APPENDIX B – FCC INTERFERENCE STATEMENT ................................................................. 57 108Mbps 802.11g High Power Wireless USB 2.0 Adapter 3 1 Introduction This 108Mbps 802.11g High-Gain Wireless USB Adapter supports the IEEE 802.11b/g (2.4GHz) protocol. It provides a high-speed wireless connection with data rates up to 108Mbps. To protect your wireless connectivity, the high-speed wireless USB adapter supports 64/128/152-bit WEP data encryption and WPA. Dynamic Frequency Selection (DFS) puts your network on the clearest channel in your location. With this high-speed wireless USB adapter, you will experience the best wireless connectivity available. This chapter describes the features & benefits, package co…

Text truncated - open the document above for the full version.

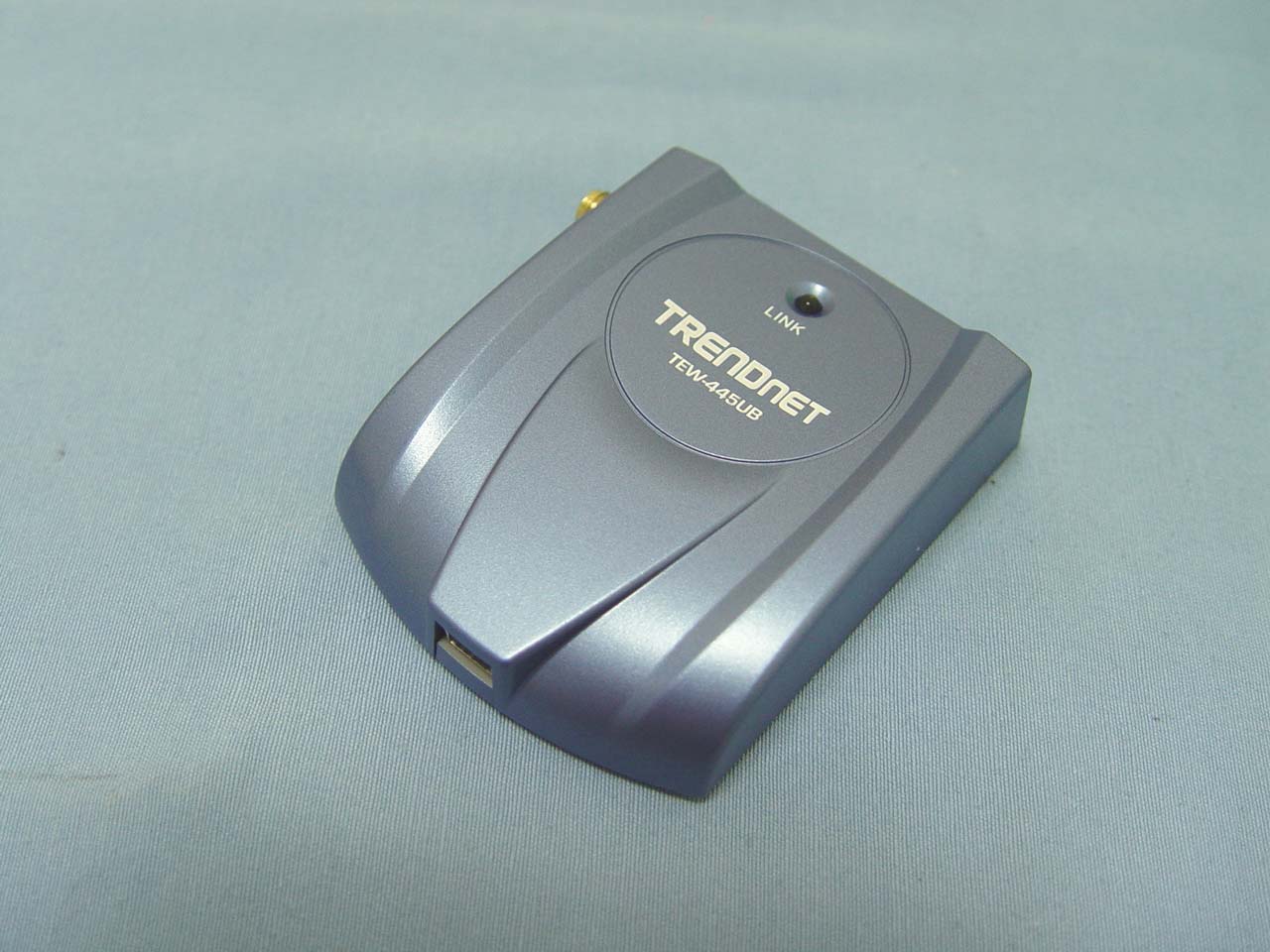

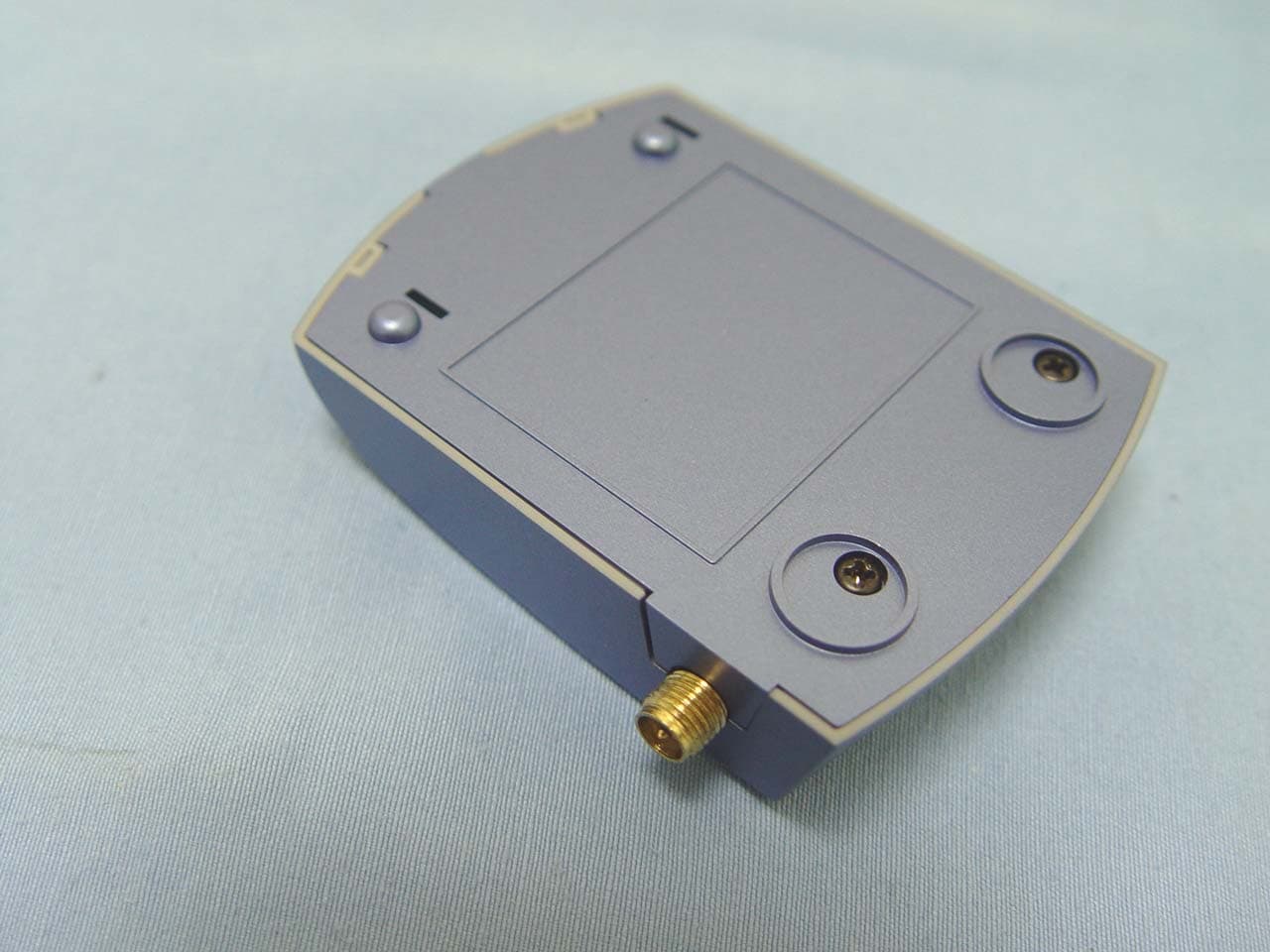

Compliance Certification Services Inc. Reference No.: 50830003 Report No: 61012002 Date of Issue: October 14, 2006 Page 1 Total Page: 4 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Reference No.: 50830003 Report No: 61012002 Date of Issue: October 14, 2006 Page 2 Rev.00

FCC ID: S9ZTEW445UB

Compliance Certification Services Inc. Reference No.: 50830003 Report No: 61012002 Date of Issue: October 14, 2006 Page 3 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Reference No.: 50830003 Report No: 61012002 Date of Issue: October 14, 2006 Page 4 Rev.00

APPROVAL SHEET CUSTOMER MODEL NO.: JOYMAX MODEL NO.: IWX-241XSAXX-101 DESCRIPTION: 2.4GHz Swivel Antenna REV.: 00 DATE.: 2005/07/07 Joymax ApprovalCustomer Approval Tel:+886-3-4335698 Fax:+886-3-4335798 . 4335799 E-Mail:[email protected] No.5, Dong Yuan Rd.2, Jhongli Industrial Park, Jhongli City, Tao Yuan, Taiwan, R.O.C. Http://www.joymax.com.tw 5 CUSTOMER : Item Page 1. Drawing 2. Test report Electrical test 3. Connector SMA Plug 4 PE .Packing Index. 1-1 2-1 3-1 2005/07/0700 ContentDateRev. Modification History: Mechanical Properties Operating Temp Weight Whip Connector 2065 11 g (est ) PU/PC Brass Frequency Range Impedance Polarization Radiation V.S.W.R. Electrical Properties Gain 2.4/2.4835 GHz 2.0 2dBi Omni Vertical 50 Model. IWX-241XSAXX-101 Test Report Electrical Test Return loss V.S.W.R. 2-1 3-1 Connector Reverse SMA Plug 1) Impedance 2) Frequency Range 3) V.S.W.R. 4) Working Voltage 5) Dielectric Withstanding 6)Voltage Insulation Resistance 7) Contact Resistance 8) Insertion Loss(2.4GHz) Electrical Properties 1) Recommended coupling nut torque 2) Coupling nut retention force 3) Contact captivation axial Mechanical Properties 4.0 in.lbs.8.8 in.lbs. 50 lbs. 5 lbs. Environmental Ratings 1) Operating Temperature 2) Thermal Shock 3) Corrosion 4) Shock 5) Vibration 6) Moisture Resistance 65165 MIL-STD-202, Method 107, Condition B MIL-STD-202, Method 101, Condition B MIL-STD-202, Method 213, Condition I MIL-STD-202, Method 204, Condition D MIL-STD-202, Method 106 Material Specifications 1) Body 2) Contact 3) Insulator The connector is a SMA plug join on the antenna. 50 ohm 0~10 GHz 1.5 (Max.) 250 Vrms 670 Vrms 2000Megohm Center contact: 3.0 Milliohm (Max.) Outer contact: 2.0 Milliohm (Max.) 0.3 dB Brass Per JIS H3250 C3604 BD, Black chrome Plated Beryllium Copper Per QQ-C-530, Gold Plated Per MIL-G-45204 PTFE Fluorocarbon Per ASTM D 1710

Compliance Certification Services Inc. Reference No.: 50830003 Report No.: 61012002-RP1 FCC ID: S9ZTEW445UB Date of Issue: October 14, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 68 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 108Mbps 11g wireless USB2.0 Adaptor Model: TEW-445UB Trade Name: TRENDware Issued to TRENDware International, Inc. 3135 Kashiwa Street, Torrance, CA 90505, USA Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Reference No.: 50830003 Report No.: 61012002-RP1 FCC ID: S9ZTEW445UB Date of Issue: October 14, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES 9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................17 7.3 AVERAGE POWER............................................................................................................................22 7.4 BAND EDGES MEASUREMENT ................................................................................................27 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................40 7.6 RADIO FREQUENCY EXPOSURE........................................................................................................45 7.7 SPURIOUS EMISSIONS ................................................................................................................47 7.8 POWERLINE CONDUCTED EMISSIONS...............................................................................................63 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ..............................................................................66 Compliance Certification Services Inc. Reference No.: 50830003 Report No.: 61012002-RP1 FCC ID: S9ZTEW445UB Date of Issue: October 14, 2006 Page 4 Rev. 00 2. EUT DESCRIPTION Product 108Mbps 11g wireless USB2.0 Adaptor Trade Name TRENDware Model Number TEW-445UB Model Discrepancy N/A Power Supply Powered from host device Frequency Range 2412 ~ 2462 MHz Transmit Power IEEE 802.11b Base mode: 21.12 dBm IEEE 802.11g Base mode: 18.84 dBm IEEE 802.11g Turbo mode: 22.67 dBm Modulation Technique IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: DSSS (CCK, DQPSK, DBPSK) + OFDM (QPSK, BPSK, 16-QAM, 64-QAM) Transmit Data Rate IEEE 802.11b Base mode: 11, 5.5, 2, 1 Mbps IEEE 802.11g Base mode: 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11g Turbo mode: 108, 96, 72, 54 Mbps Number of Channels 11 Channels Antenna Specification Antenna Type / Gain Dipole Antenna / 2.0 dBi Remark: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: S9ZTEW445UB filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Reference No.: 50830003 Report No.: 61012002-RP1 FCC ID: S9ZTEW445UB Date of Issue: October 14, 2006 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Reference No.: 50830003 Report No.: 61012002-RP1 FCC ID: S9ZTEW445UB Date of Issue: October 14, 2006 Page 66 Rev. 00 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. Reference No.: 50830003 Report No.: 61012002-RP1 FCC ID: S9ZTEW445UB Date of Issue: October 14, 2006 Page 67 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. Reference No.: 50830003 Report No.: 61012002-RP1 FCC ID: S9ZTEW445UB Date of Issue: October 14, 2006 Page 68 Rev. 00 Powerline Conducted Emissions Setup Photos
