S9ZTEW603PI108Mbps 802.11g MIMO Wireless PCI Adapter

1 108Mbps 802.11g MIMO Wireless PCI Adapter TEW-603PI User Manual 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. TRENDnet declares that TEW-603PI, ( FCC ID: S9ZTEW603PI ) is limited in CH1~CH11 for 2.4 GHz by specified firmware controlled in U.S.A. 3 CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. This transmitter must not be co-located or operation in conjunction with any other antenna or transmitter. 4 Table of Contents Federal Communications Commission (FCC) Interference statement 2 CE Mark Warning 3 Getting Started with the TEW-603PI 5 Wireless LAN Networking 6 Transmission Rate (Transfer Rate) 6 Type of Wireless Networks 6 Wireless LAN Security 10 Hardware and Wireless Utility 12 About Your Super G Wireless MIMO PCI Adapter 12 Package Content 12 System Requirement 12 LED Definition 12 Product Outline 13 Overview of the Wireless Client Utility 14 Working with Profiles 15 Checking for Available Access Points 22 Disabling the Wireless Client Utility 23 Exploring the Wireless Client Utility Screens 25 The Network Screen 25 The Profile Screen 28 The SiteSurvey Screen 29 The Options Screen 31 The Version Screen 32 Configuring Wireless Security 34 Configuring Security 34 Glossary 43 Appendix 45 Maintenance 45 Troubleshooting 47 5 Getting Started with the TEW-603PI Congratulations on purchasing the TEW-603PI! This manual provides information for setting up and configuring the TEW-603PI. This manual is intended for both home users and professionals. It is not required to read some of the more technical information in this manual (such as in “Wireless LAN Networking” and “Configuring Wireless Security”) to operate and enjoy the TEW-603PI. It is included for your reference only. The following conventions are used in this manual: THE NOTE SYMBOL INDICATES ADDITIONAL INFORMATION ON THE TOPIC AT HAND. THE TIP SYMBOL INDICATES HELPFULL INFORMATION AND TIPS TO IMPROVE YOUR NETWORK EXPERIENCE. THE CAUTION SYMBOL ALERTS YOU TO SITUATIONS THAT MAY DEGRADE YOUR NETWORKING EXPERIENCE OR COMPROMISE YOUR SECURITY. NOTE LIKE NOTES AND TIPS, THE IMPORTANT SYMBOL INDICATES INFORMATION THAT CAN IMPROVE NETWORKING. THIS INFORMATION SHOULD NOT BE OVER- LOOKED. 6 Wireless LAN Networking This section provides background information on wireless LAN networking technology. Consult the “Glossary ” for definitions of the terminology used in this section. T HE INFORMATION IN THIS SECTION IS FOR YOUR REFERENCE. CHANGING NETWORK SETTINGS AND PARTICULARLY SECURITY SETTTINGS SHOULD ONLY BE DONE BY AN AUTHORIZED ADMINISTRATOR. Transmission Rate (Transfer Rate) The TEW-603PI provides various transmission (data) rate options for you to select. Options include Fully Auto, 1 Mbps, 2 Mbps, 5.5 Mbps, 11 Mbps, 6 Mbps, 9 Mbps, 12 Mbps, 18 Mbps, 22 Mbps, 24 Mbps, 36 Mbps, 48 Mbps and 54 Mbps. In most networking scenarios, the factory default Fully Auto setting proves the most efficient. This setting allows your TEW-603PI to operate at the maximum transmission (data) rate. When the communication quality drops below a certain level, the TEW-603PI automatically switches to a lower transmission (data) rate. Transmission at lower data speeds is usually more reliable. However, when the communication quality improves again, the TEW-603PI gradually increases the transmission (data) rate again until it reaches the highest available transmission rate. Types of Wireless Networks Wireless LAN networking works in either of the two modes: ad-hoc and infrastructure. In infra- structure mode, wireless devices communicate to a wired LAN via access points. Each access point and its wireless devices are known as a Basic Service Set (BSS). An Extended Service Set (ESS) is two or more BSSs in the same subnet. In ad hoc mode (also known as peer-to-peer mode), wireless devices communicate with each other directly and do not use an access point. This is an Independent BSS (IBSS). To connect to a wired network within a coverage area using access points, set the TEW-603PI operation m…

Text truncated - open the document above for the full version.

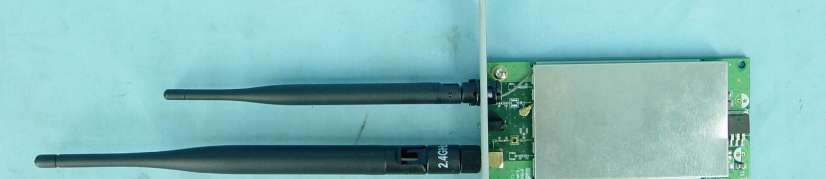

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID : S9ZTEW603PI Label Location

Page 2 Page 3 Page 4

FCC ID: S9ZTEW603PI Report No.RF940827L02A Technical Description This device is an 108Mbps 802.11g MIMO Wireless PCI Adapter which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied (108Mbps in turbo mode). If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The device has capability of receive multi channels. Physically, the card provides two RF chains. The chain 0 complete transmit and receive functions that can be connected to one of two antenna elements via an antenna diversity switch. The chain 1 provides one RF input that only operating in receiving condition. The transmitter of the EUT is powered by host equipment. The antenna used in this product is Dipole antenna with R-SMA connector. The other instruction, please have a look at the users manual.

FCC ID: S9ZTEW603PI Report No: SA940827L02A 1 RF EXPOSURE REPORT REPORT NO.: SA940827L02A MODEL NO.: TEW-603PI ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : TRENDware International Inc. ADDRESS : 3135 Kashiwa street, Torrance, CA 90505, U.S.A. ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: S9ZTEW603PI Report No: SA940827L02A 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: S9ZTEW603PI Report No: SA940827L02A 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: S9ZTEW603PI Report No: SA940827L02A 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 5dBi or 3.1623 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance: For 802.11b DSSS Modulation: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241263.8260.0401.0 6243763.6800.0401.0 11246263.3870.0401.0 For 802.11g OFDM Modulation_Normal mode: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241244.6680.0281.0 6243751.2860.0321.0 11246250.6990.0321.0 For 802.11g OFDM Modulation_Turbo mode: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6243750.4660.0321.0

FCC ID: S9ZTEW603PI Report No.: RF940827L02A1Report Format Version 2.0.3 Reference No.: 940907L20 FCC TEST REPORT REPORT NO.: RF940827L02A MODEL NO.: TEW-603PI RECEIVED: Aug. 29, 2005 TESTED: Aug. 31 ~ Sep. 06, 2005 ISSUED: Sep. 14, 2005 APPLICANT : TRENDware International Inc. ADDRESS : 3135 Kashiwa street, Torrance, CA 90505, U.S.A. ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 74 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 0528 ILAC MRA FCC ID: S9ZTEW603PI Report No.: RF940827L02A2Report Format Version 2.0.3 Reference No.: 940907L20 Table of Contents 1CERTIFICATION.....................................................................................................4 2SUMMARY OF TEST RESULTS.............................................................................5 2.1MEASUREMENT UNCERTAINTY..........................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT.......................................................................6 3.2DESCRIPTION OF TEST MODES.........................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST.....................................................7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..........................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.........................................9 3.4DESCRIPTION OF SUPPORT UNITS.................................................................10 4TEST TYPES AND RESULTS...............................................................................11 4.1CONDUCTED EMISSION MEASUREMENT........................................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................11 4.1.2TEST INSTRUMENTS..........................................................................................11 4.1.3TEST PROCEDURES..........................................................................................12 4.1.4DEVIATION FROM TEST STANDARD.................................................................12 4.1.5TEST SETUP.......................................................................................................13 4.1.6EUT OPERATING CONDITIONS.........................................................................14 4.1.7TEST RESULTS...................................................................................................15 4.2RADIATED EMISSION MEASUREMENT.............................................................21 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...........................................21 4.2.2TEST INSTRUMENTS..........................................................................................22 4.2.3TEST PROCEDURES..........................................................................................23 4.2.4DEVIATION FROM TEST STANDARD.................................................................23 4.2.5TEST SETUP.......................................................................................................24 4.2.6EUT OPERATING CONDITIONS.........................................................................24 4.2.7TEST RESULTS...................................................................................................25 4.36dB BANDWIDTH MEASUREMENT....................................................................35 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................35 4.3.2TEST INSTRUMENTS..........................................................................................35 4.3.3TEST PROCEDURE.............................................................................................35 4.3.4DEVIATION FROM TEST STANDARD.................................................................35 4.3.5TEST SETUP.......................................................................................................36 4.3.6EUT OPERATING CONDITIONS.........................................................................36 4.3.7TEST RESULTS...................................................................................................37 4.4MAXIMUM PEAK OUTPUT POWER....................................................................45 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................45 4.4.2TEST INSTRUMENTS..........................................................................................45 4.4.3TEST PROCEDURES..........................................................................................46 4.4.4DEVIATION FROM TEST STANDARD.................................................................46 4.4.5TEST SETUP.......................................................................................................46 4.4.6EUT OPERATING CONDITIONS.........................................................................46 FCC ID: S9ZTEW603PI Report No.: RF940827L02A3Report Format Version 2.0.3 Reference No.: 940907L20 4.4.7TEST RESULTS...................................................................................................47 4.5POWER SPECTRAL DENSITY MEASUREMENT................................................49 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..............................49 4.5.2TEST INSTRUMENTS....................................................................…

Text truncated - open the document above for the full version.

FCC ID: S9ZTEW603PI Report No.: RF940827L02A72Report Format Version 2.0.3 Reference No.: 940907L20 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: S9ZTEW603PI Report No.: RF940827L02A73Report Format Version 2.0.3 Reference No.: 940907L20 RADIATED EMISSION TEST
