S9ZTEW630APB300Mbps Wireless N Draft AP

300Mbps Wireless N Draft AP TEW-630APB User Manual 1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: l Reorient or relocate the receiving antenna. l Increase the separation between the equipment and receiver. l Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. l Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. 2 European Union Notice: Radio products with the CE marking comply with the R&TTE Directive (1999/5/EC), the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms: l EN 60950 Product Safety l EN 300 328 Technical requirement for radio equipment l EN 301 489-1/-17 General EMC requirements for radio equipment Trademark recognition All product names used in this manual are the properties of their respective owners and are acknowledged. 3 Table of Contents Getting Started with the WAP-372U.................................4 Package Contents .............................................5 Minimum System Requirements ................................. 5 Wireless LAN Networking ..........................................6 Introduction.................................................... 10 Features.................................................... .10 Hardware Overview ...............................................11 Rear Panel...................................................11 LEDs........................................................ .12 Installation Considerations ..................................13 Getting Started ..............................................13 Using the Configuration Menu.....................................14 Basic....................................................... .15 Advanced.................................................... .25 Tool........................................................ .29 Status...................................................... 4 .36 Glossary........................................................ 41 5 Getting Started with the WAP-372U Congratulations on purchasing the WAP-372U! This manual provides information for setting up and configuring the WAP-372U. This manual is intended for both home users and professionals. The following conventions are used in this manual: THE NOTE SYMBOL INDICATES ADDITIONAL INFORMATION ON THE TOPIC AT HAND. THE TIP SYMBOL INDICATES HELPFULL INFORMATION AND TIPS TO IMPROVE YOUR NETWORK EXPERIENCE. THE CAUTION SYMBOL ALERTS YOU TO SITUATIONS THAT MAY DEGRADE YOUR NETWORKING EXPERIENCE OR COMPROMISE YOUR SECURITY. LIKE NOTES AND TIPS, THE IMPORTANT SYMBOL INDICATES INFORMATION THAT CAN IMPROVE NETWORKING. THIS INFORMATION SHOULD NOT BE OVERLOOKED. 6 Package Contents l WAP-372U 11n (Draft) AP l CAT-5 Ethernet Cable ( the WAP-372U’s Ethernet ports is Auto-MDIX) l Power Adapter (5.0V, 2.5A) l CD-ROM with Manual l Quick Installation Guide Using a power supply with a different voltage than the one included with your product will cause damage and void the warranty for this product. Minimum System Requirements l Computers with Windows, Macintosh, or Linux-based operating systems with an installed Ethernet adapter and CD-ROM. l Internet Explorer Version 6.0 or Netscape Navigator Version 7.0 and Above 7 Wireless LAN Networking This section provides background information on wireless LAN networking technology. Consult the “Glossary” for definitions of the terminology used in this section. THE INFORMATION IN THIS SECTION IS FOR YOUR REFERENCE. CHANGING NETWORK SETTINGS AND PARTICULARLY SECURITY SETTTINGS SHOULD ONLY BE DONE BY AN AUTHORIZED ADMINISTRATOR. Transmission Rate (Transfer Rate) The WAP-372U provides various transmission (data) rate options for you to select. In most networking scenarios, the factory default Best (Auto) setting proves the most efficient. This setting allows your WAP-372U to operate at the maximum transmission (data) rate. When the communication quality drops below a certain level, the WAP-372U automatically switches to a lower transmission (data) rate. Transmission at lower…

Text truncated - open the document above for the full version.

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID .: S9ZTEW630APB Label Location

TEW-630APB Bottom Label FCC ID : S9ZTEW630APB 0560 TEW-630APB This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operations. 300Mbps Wireless N Draft AP

Page 3 Page 4 Page 5

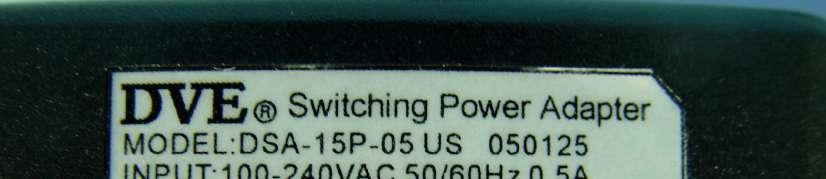

FCC ID: S9ZTEW630APB Report No.: RF950906L16 OPERATIONAL DESCRIPTION This device is a 300Mbps Wireless N Draft AP, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is dipole antenna with UFL antenna connector. For more detailed instruction, please take a look at the user’s manual.

FCC ID: S9ZTEW630APB Report No: SA950906L16 1 RF EXPOSURE REPORT REPORT NO.: SA950906L16 MODEL NO.: TEW-630APB ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: TRENDware International Inc. ADDRESS: 3135 Kashiwa street, Torrance, CA 90505, USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: S9ZTEW630APB Report No: SA950906L16 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: S9ZTEW630APB Report No: SA950906L16 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: S9ZTEW630APB Report No: SA950906L16 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 4dBi or 2.512(numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b DSSS MODULATION: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241263.0960.0321.0 6243763.9730.0321.0 11246263.6800.0321.0 802.11g OFDM MODULATION: PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1 CHAIN 0 CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM2)) LIMIT OF POWER DENSITY (mW/CM2) 12412 36.14139.90215.5816.0176.04318.81 0.038 1.0 62437 40.45840.27216.0716.0580.73019.07 0.040 1.0 112462 40.36539.81116.0616.0080.17619.04 0.040 1.0 FCC ID: S9ZTEW630APB Report No: SA950906L16 5 DRAFT 802.11n (20MHz) OFDM modulation PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1 CHAIN 0 CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM2)) LIMIT OF POWER DENSITY (mW/CM2) 12412 35.89240.08715.5516.0375.97918.81 0.038 1.0 62437 40.27240.27216.0516.0580.54419.06 0.040 1.0 112462 39.81140.45816.0016.0780.26919.05 0.040 1.0 DRAFT 802.11n (40MHz) OFDM modulation PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1 CHAIN 0 CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM2)) LIMIT OF POWER DENSITY (mW/CM2) 12422 25.41025.41014.0514.0550.82017.060.0251.0 42437 25.64525.46814.0914.0651.11317.09 0.026 1.0 72452 25.29325.41014.0314.0550.70317.05 0.025 1.0

Report No.: RF950906L161Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950906L16 MODEL NO.: TEW-630APB RECEIVED: Sep. 06, 2006 TESTED: Sep. 07 ~ Sep. 08, 2006 ISSUED: Sep. 12, 2006 APPLICANT: TRENDware International Inc. ADDRESS: 3135 Kashiwa street, Torrance, CA 90505, USA ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 109 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950906L162Report Format Version 2.0.4 TABLE OF CONTENTS 1.CERTIFICATION.................................................................................................................4 2.SUMMARY OF TEST RESULTS..........................................................................................5 2.1 MEASUREMENT UNCERTAINTY.......................................................................................5 3.GENERAL INFORMATION..................................................................................................6 3.1GENERAL DESCRIPTION OF EUT.....................................................................................6 3.2DESCRIPTION OF TEST MODES.......................................................................................8 3.2.1CONFIGURATION OF SYSTEM UNDER TEST...................................................................9 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL......................................10 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.....................................................12 3.4DESCRIPTION OF SUPPORT UNITS...............................................................................12 4.TEST TYPES AND RESULTS............................................................................................13 4.1CONDUCTED EMISSION MEASUREMENT.....................................................................13 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT...................................................13 4.1.2TEST INSTRUMENTS.......................................................................................................13 4.1.3TEST PROCEDURES.......................................................................................................14 4.1.4DEVIATION FROM TEST STANDARD..............................................................................14 4.1.5TEST SETUP....................................................................................................................15 4.1.6EUT OPERATING CONDITIONS.......................................................................................15 4.1.7TEST RESULTS................................................................................................................16 4.2RADIATED EMISSION MEASUREMENT..........................................................................34 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT........................................................34 4.2.2TEST INSTRUMENTS.......................................................................................................35 4.2.3TEST PROCEDURES.......................................................................................................36 4.2.4DEVIATION FROM TEST STANDARD..............................................................................36 4.2.5TEST SETUP....................................................................................................................37 4.2.6EUT OPERATING CONDITIONS.......................................................................................37 4.2.7TEST RESULTS................................................................................................................38 4.3 6dB BANDWIDTH MEASUREMENT.................................................................................53 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT...............................................................53 4.3.2TEST INSTRUMENTS.......................................................................................................53 4.3.3TEST PROCEDURE..........................................................................................................53 4.3.4DEVIATION FROM TEST STANDARD..............................................................................53 4.3.5TEST SETUP....................................................................................................................54 4.3.6EUT OPERATING CONDITIONS.......................................................................................54 Report No.: RF950906L163Report Format Version 2.0.4 4.3.7TEST RESULTS................................................................................................................55 4.4MAXIMUM PEAK OUTPUT POWER.................................................................................69 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...................................69 4.4.2INSTRUMENTS................................................................................................................69 4.4.3TEST PROCEDURES.......................................................................................................69 4.4.4DEVIATION FROM TEST STANDARD..............................................................................69 4.4.5TEST SETUP....................................................................................................................70 4.4.6EUT OPERATING CONDITIONS.......................................................................................70 4.4.7TEST RESULTS..............…

Text truncated - open the document above for the full version.

Report No.: RF950906L1681Report Format Version 2.0.4 DRAFT 802.11n (20MHz) OFDM MODULATION – DUAL TX: MODULATION TYPE BPSK TRANSFER RATE 7.2Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25deg.C, 63% RH, 991hPa TESTED BY Long Chen RF POWER LEVEL IN 3kHz BW (mW) RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0CHAIN 1CHAIN 0CHAIN 1 TOTAL POWER DENSITY (mW) TOTAL POWER DENSITY (dBm) MAX. LIMIT (dBm) PASS / FAIL 124120.0360.039-14.49-14.130.075-11.258PASS 624370.0370.039-14.32-14.070.076-11.198PASS 1124620.0380.037-14.23-14.260.075-11.258PASS FOR CHAIN 0: CH 1 Report No.: RF950906L1682Report Format Version 2.0.4 CH 6 CH 11 Report No.: RF950906L1683Report Format Version 2.0.4 FOR CHAIN 1: CH 1 CH 6 Report No.: RF950906L1684Report Format Version 2.0.4 CH 11 Report No.: RF950906L1685Report Format Version 2.0.4 DRAFT 802.11n (40MHz) OFDM MODULATION – DUAL TX: MODULATION TYPE BPSK TRANSFER RATE 15.0Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25deg.C, 63% RH, 991hPa TESTED BY Long Chen RF POWER LEVEL IN 3kHz BW (mW) RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0CHAIN 1CHAIN 0CHAIN 1 TOTAL POWER DENSITY (mW) TOTAL POWER DENSITY (dBm) MAX. LIMIT (dBm) PASS / FAIL 124220.0180.019-17.47-17.110.037-14.328PASS 424370.0190.020-17.20-17.090.039-14.098PASS 724520.0190.020-17.24-17.040.039-14.098PASS FOR CHAIN 0: CH 1 Report No.: RF950906L1686Report Format Version 2.0.4 CH 4 CH 7 Report No.: RF950906L1687Report Format Version 2.0.4 FOR CHAIN 1: CH 1 CH 4 Report No.: RF950906L1688Report Format Version 2.0.4 CH 7 Report No.: RF950906L1689Report Format Version 2.0.4 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100kHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS DESCRIPTION & MANUFACTURER MODEL NO.SERIAL NO.CALIBRATED UNTIL R&S SPECTRUM ANALYZER FSP40 100040Jun. 07, 2007 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. Report No.: RF950906L1690Report Format Version 2.0.4 4.6.3 TEST PROCEDURE For Single TX: The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 10Hz bandwidth from band edge. The band edges was measured and recorded. The spectrum plots (Peak RBW = VBW = 100kHz; Average RBW = 1MHz, VBW = 10Hz) are attached on the following pages. For Dual TX: a. The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 3 meter semi-anechoic chamber. The table was rotated 360 degrees to determine the position of the highest radiation. b. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. c. The antenna is a broadband antenna, and its height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. d. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters and the rotatable table was turned from 0 degrees to 360 degrees to find the maximum reading. e. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 100MHz bandwidth from band edge. The band edges was measured and recorded. The spectrum plots (Peak RBW = VBW = 100kHz; Average RBW = 1MHz, VBW = 10Hz) NOTE: The resolution bandwidth of test receiver/spectrum analyzer is 1 MHz and the video bandwidth is 10Hz for Average detection (AV) at frequency above 1GHz. 4.6.4 DEVIATION FROM TEST STANDARD No deviation Report No.: RF950906L1691Report Format Version 2.0.4 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 4.6.6 TEST RESULTS The spectrum plots are attached on the following 24 images. D1 line indicates the highest level, and D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(d). 802.11b DSSS MODULATION – SINGLE TX: NOTE 1: The band edge emission plot of DSSS technique on the next page shows 51.26dBc between carrier maximum power and local maximum emission in restrict band (2.38620GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 111.89dBuV/m (Peak), so the maximum field strength in restrict band is 111.89 – 51.26 = 60.63dBuV/m which is under 74dBuV/m limit. The band edge emission plot of DSSS technique on the next page shows 57.17dBc between carrier maximum power and local maximum emission in restrict band (2.38640GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 107.84dBuV/m (Average), so the maximum field strength in restrict band is 107.84 – 57.17 = 50.67dBuV/m which is under 54dBuV/m limit. NOTE 2: The band edge emission plot of DSSS technique on the next second page shows 52.94dBc between carrier maximum power and local maximum emission in restrict band (2.48774GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.7 is 111.94dBuV/m (Peak), so the maximum field strength in restrict band is 111.94 – 52.94 = 59.00dBuV/m which is under 74dBuV/m limit. The band edge emission plot of DSSS technique on the next third page shows 59.40dBc between carrier maximum power and local maximum emission in restrict band (2.48794GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.7 is 107.75dBuV/m (Average), so the maximum field strength in restrict band is 107.75 – 59.40 = 48.35dBuV/m which is under 54dBuV/m limit. Report No.: RF950906L1692Report Format Version 2.0.4 Report No.: RF950906L1693Report Format Version 2.0.4 Report No.: RF950906L1694Report Format Version 2.0.4 Report No.: RF950906L1695Report Format Version 2.0.4 802.…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
