SA3-AGN1023PC0000802.11a/b/g WLAN

Airgo Networks Inc.
802.11a/b/g WLAN - FCC ID SA3-AGN1023PC0000 - Airgo Networks Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Oct 04, 2004
Application Purpose
Original Equipment
Date of Application
Jul 24, 2004
Equipment Note
802.11a/b/g WLAN
Frequency Range
5745.00000000 - 5805.00000000
Company
Airgo Networks Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

β†—
β†—

Cover Letter(s)

β†—

External Photos

β†—
β†—

ID Label/Location Info

β†—

Internal Photos

β†—
β†—

RF Exposure Info

β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—

Test Report

β†—
β†—
β†—
β†—
β†—
β†—

Test Setup Photos

β†—
β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Airgo Networks, Inc. 900 Arastradero Road Palo Alto, CA 94304 P: 650-475-1900 F: 650-475-1708 www.airgonetworks.com Part Number: 640-00069-00 Published: July 2004 Installation and User Guide Airgo Wireless LAN Client Adapter Copyright Β© 2003 by Airgo, Inc. All Rights Reserved. No part of this work may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Airgo unless such copying is expressly permitted by U.S. copyright law. Installation and User Guide: Airgo Wireless LAN Client Adapteriii Contents Preface - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - v 1Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 Device Types - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 Shipping Package Contents- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 System Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 Connecting the Airgo Wireless LAN Client Adapter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2 Checking Adapter Activity - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3 Installing the Airgo Wireless LAN Client Adapter Driver and Airgo Client Utility - - - - - - - - - - - - - 4 Installation Steps - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4 Uninstalling the Airgo Client Utility and Drivers - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8 2Introduction to the Airgo Client Utility - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11 Overview of Wireless Networking - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -11 Service Set Identifiers - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -12 Wireless Bands and Channels - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -12 Airgo Client Utility - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -12 Using the Airgo Client Utility With Windows XP- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -12 Accessing the Airgo Client Utility - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -14 Using the Tray Icon - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -14 Disabling and Re-Enabling the Airgo Wireless LAN Client Adapter - - - - - - - - - - - - - - - - - - - - - - - -14 Navigating the User Interface - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -14 Using the Compact View - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -14 Using the Expanded View- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -15 Background Operation and Exiting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -17 3Configuration- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 19 Configuration Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -20 Scanning for Available Networks - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -20 Working with Profiles - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -21 Profile Window - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -23 Profile Name - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -23 Advanced Settings- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -23 Network Settings- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -24 Power Setting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -24 Security Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -24 Wireless Security- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -24 Encryption - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -25 Authentication - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -25 ivInstallation and User Guide: Airgo Wireless LAN Client Adapter Airgo Client Utility Security Options - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26 AIndividual Driver and Client Utility Installation Procedures - - - - - - - - - - - - - - - - - - - - - - - - 29 Installing the Airgo Wireless LAN Client Adapter Driver - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 29 Windows XP Instructions - - - - - - …

Text truncated - open the document above for the full version.

Users Manual

FCC Certifications This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Β¦ Reorient or relocate the receiving antenna. Β¦ Increase the separation between the equipment and receiver. Β¦ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Β¦ Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment, and users must follow specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other transmitter or antenna. This equipment has been SAR – evaluated and is authorized for use in laptop and notebook computers.

External Photos

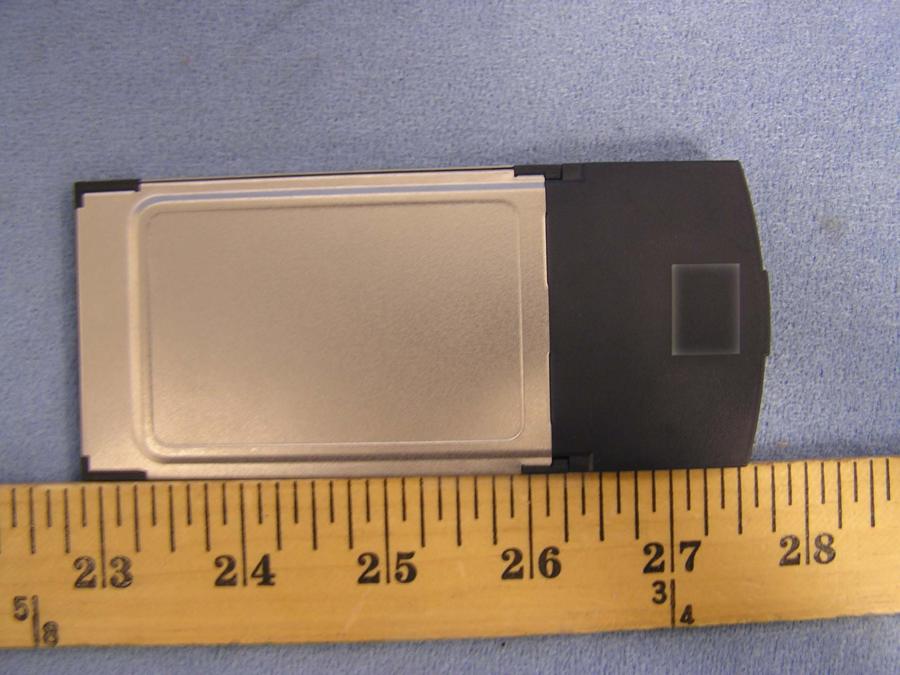

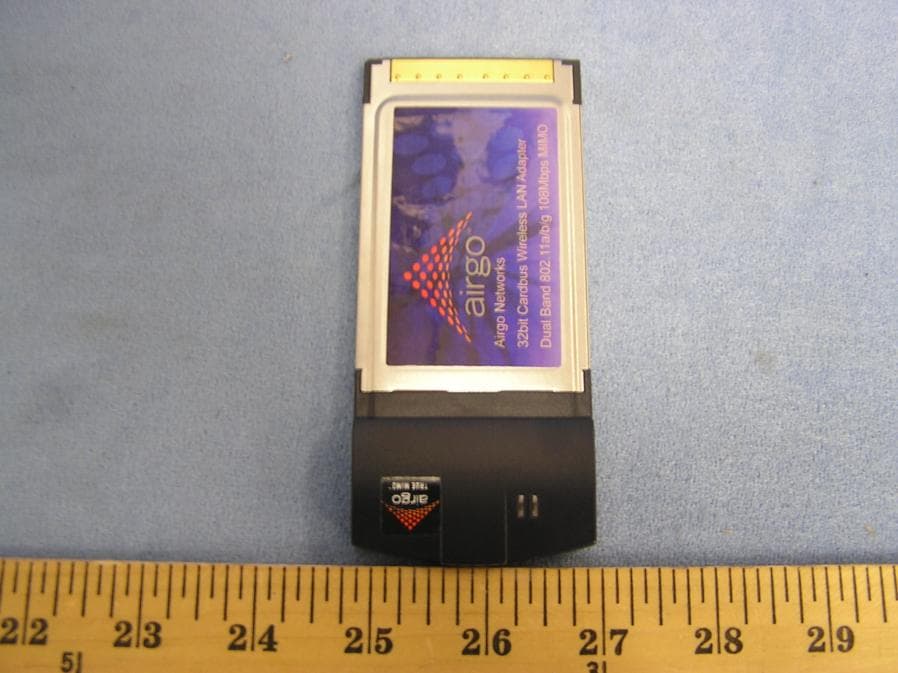

EXTERNAL PHOTOGRAPHS Airgo Networks Cardbus FCC ID: SA3-AGN1023PC0000

External Photos

EXTERNAL PHOTOGRAPHS Airgo Networks Cardbus FCC ID: SA3-AGN1023PC0000

ID Label/Location Info

FCC ID: SA3-AGN1023PC0000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference than may cause undesired operation IC: 515A-1023PC00

Internal Photos

INTERNAL PHOTOGRAPHS Airgo Networks Cardbus FCC ID: SA3-AGN1023PC0000

Internal Photos

INTERNAL PHOTOGRAPHS Airgo Networks Cardbus FCC ID: SA3-AGN1023PC0000

RF Exposure Info

Date/Time: 08/03/04 09:06:35 Test Laboratory: Compliance Certification Services File Name: D2450V2SN748_EX3DV3SN3531_080304.da4 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Program Name: System Performance Check at 2450 MHz Ambient Temp.: 25 deg. C; Liquid Temp.: 23 deg. C Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; Οƒ = 1.97 mho/m; Ξ΅ r = 52.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3531; ConvF(8.32, 8.32, 8.32); Calibrated: 7/18/2004 - Sensor-Surface: 1.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 108.5 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 21.1 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 108.5 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 20.7 mW/g Peak SAR (extrapolated) = 25.5 W/kg SAR(1 g) = 12.9 mW/g; SAR(10 g) = 6.15 mW/g 0 dB = 20.7mW/g Date/Time: 08/03/04 09:06:35 Test Laboratory: Compliance Certification Services File Name: D2450V2SN748_EX3DV3SN3531_080304.da4 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Program Name: System Performance Check at 2450 MHz Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; Οƒ = 1.97 mho/m; Ξ΅ r = 52.1; ρ = 1000 kg/m 3 Phantom section: Flat Section d=10mm, Pin=250mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 108.5 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 17.9 mW/g Date/Time: 08/0404 09:05:44 Test Laboratory: Compliance Certification Services File Name: D2450V2SN748_EX3DV3SN3531_080404.da4 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Program Name: System Performance Check at 2450 MHz Ambient Temp.: 25.0 deg. C; Liquid Temp.: 24.0 deg. C Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; Οƒ = 1.91 mho/m; Ξ΅ r = 52.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3531; ConvF(8.32, 8.32, 8.32); Calibrated: 7/18/2004 - Sensor-Surface: 1.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 107.5 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 20.5 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 107.5 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 20.1 mW/g Peak SAR (extrapolated) = 24.8 W/kg SAR(1 g) = 12.6 mW/g; SAR(10 g) = 5.98 mW/g 0 dB = 20.1mW/g Date/Time: 08/04/04 09:05:44 Test Laboratory: Compliance Certification Services File Name: D2450V2SN748_EX3DV3SN3531_080404.da4 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Program Name: System Performance Check at 2450 MHz Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; Οƒ = 1.91 mho/m; Ξ΅ r = 52.8; ρ = 1000 kg/m 3 Phantom section: Flat Section d=10mm, Pin=250mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 107.5 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 17.4 mW/g

RF Exposure Info

Date/Time: 08/03/04 13:30:25 Test Laboratory: Compliance Certification Services File Name: Host # 1 (PCG-5312).da4 DUT: Airgo; Type: AGN1023PC; Serial: 6862 Program Name: 1_Host # 1 (PCG-5312) Ambient Temp.: 25.0 deg. C; Liquid Temp.: 24.0 deg. C Communication System: 802.11b/g; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; Οƒ = 1.93 mho/m; Ξ΅ r = 52.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3531; ConvF(8.32, 8.32, 8.32); Calibrated: 7/18/2004 - Sensor-Surface: 1.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 11b_L-ch/Area Scan (11x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 22.4 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 2.04 mW/g Info: Interpolated medium parameters used for SAR evaluation! 11b_L-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 22.4 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 2.19 mW/g Peak SAR (extrapolated) = 2.8 W/kg SAR(1 g) = 1.35 mW/g; SAR(10 g) = 0.666 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 08/03/04 13:30:25 Test Laboratory: Compliance Certification Services File Name: Host # 1 (PCG-5312).da4 DUT: Airgo; Type: AGN1023PC; Serial: 6862 Program Name: 1_Host # 1 (PCG-5312) Communication System: 802.11b/g; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; Οƒ = 1.93 mho/m; Ξ΅ r = 52.1; ρ = 1000 kg/m 3 Phantom section: Flat Section 11b_L-ch/Z Scan (1x1x34): Measurement grid: dx=20mm, dy=20mm, dz=3mm Reference Value = 22.4 V/m; Power Drift = -0.002 dB Maximum value of SAR (measured) = 1.58 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 08/03/04 13:30:25 Test Laboratory: Compliance Certification Services File Name: Host # 1 (PCG-5312).da4 DUT: Airgo; Type: AGN1023PC; Serial: 6862 Program Name: 1_Host # 1 (PCG-5312) Ambient Temp.: 25.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: 802.11b/g; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; Οƒ = 1.95 mho/m; Ξ΅ r = 52.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3531; ConvF(8.32, 8.32, 8.32); Calibrated: 7/18/2004 - Sensor-Surface: 1.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 11b_M-ch/Area Scan (10x8x1): Measurement grid: dx=15mm, dy=15mm 11b_M-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 20.9 V/m; Power Drift = -0.2 dB Maximum value of SAR (measured) = 1.62 mW/g Peak SAR (extrapolated) = 1.99 W/kg SAR(1 g) = 0.995 mW/g; SAR(10 g) = 0.497 mW/g Info: Interpolated medium parameters used for SAR evaluation! 11b_M-ch/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 20.9 V/m; Power Drift = -0.2 dB Maximum value of SAR (measured) = 1.27 mW/g Peak SAR (extrapolated) = 1.59 W/kg SAR(1 g) = 0.804 mW/g; SAR(10 g) = 0.427 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 08/03/04 13:30:25 Test Laboratory: Compliance Certification Services File Name: Host # 1 (PCG-5312).da4 DUT: Airgo; Type: AGN1023PC; Serial: 6862 Program Name: 1_Host # 1 (PCG-5312) Ambient Temp.: 25.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: 802.11b/g; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2462 MHz; Οƒ = 1.98 mho/m; Ξ΅ r = 52; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3531; ConvF(8.32, 8.32, 8.32); Calibrated: 7/18/2004 - Sensor-Surface: 1.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 11b_H-ch/Area Scan (10x8x1): Measurement grid: dx=15mm, dy=15mm 11b_H-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 17.1 V/m; Power Drift = -0.2 dB Maximum value of SAR (measured) = 1.14 mW/g Peak SAR (extrapolated) = 1.47 W/kg SAR(1 g) = 0.699 mW/g; SAR(10 g) = 0.353 mW/g Info: Interpolated medium parameters used for SAR evaluation! 11b_H-ch/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 17.1 V/m; Power Drift = -0.2 dB Maximum value of SAR (measured) = 0.981 mW/g Peak SAR (extrapolated) = 1.21 W/kg SAR(1 g) = 0.609 mW/g; SAR(10 g) = 0.322 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 08/03/04 13:30:25 Test Laboratory: Compliance Certification Services File Name: Host # 1 (PCG-5312).da4 DUT: Airgo; Type: AGN1023PC; Serial: 6862 Program Name: 1_Host # 1 (PCG-5312) Ambient Temp.: 25.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: 802.11b/g; Frequency: 2412 MHz;Duty Cycle: 1:1.069 Medium parameters used (interpolated): f = 2412 MHz; Οƒ = 1.93 mho/m; Ξ΅ r = 52.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3531; ConvF(8.32, 8.32, 8.32); Calibrated: 7/18/2004 - Sensor-Surface: 1.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 11g_L-ch/Area Scan (10x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 17.2 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 0.995 mW/g Info: Interpolated medium parameters used for SAR evaluation! 11g_L-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 17.2 V/m; Power Drift = -0.1 dB Maximum value of SAR (…

Text truncated - open the document above for the full version.

RF Exposure Info

Date/Time: 08/04/04 11:56:28 Test Laboratory: Compliance Certification Services File Name: D5GHzV2_M5200_080404.da4 DUT: Dipole 5200-5800MHz; Type: D5GHzV2; Serial: 1003 Program Name: System Performance Check at Body 5200 MHz Ambient Temp.: 25deg. C; Liquid Temp.: 23 deg. C Communication System: CW 5200MHz; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5200 MHz; Οƒ = 5.37 mho/m; Ξ΅ r = 49; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3531; ConvF(4.83, 4.83, 4.83); Calibrated: 7/18/2004 - Sensor-Surface: 1.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 d=10mm, Pin=250mW/Area Scan (8x8x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 102.6 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 24.2 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 102.6 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 39.9 mW/g Peak SAR (extrapolated) = 66.4 W/kg SAR(1 g) = 18.2 mW/g; SAR(10 g) = 5.18 mW/g 0 dB = 39.9mW/g Date/Time: 08/04/04 11:56:28 Test Laboratory: Compliance Certification Services File Name: D5GHzV2_M5200_080404.da4 DUT: Dipole 5200-5800MHz; Type: D5GHzV2; Serial: 1003 Program Name: System Performance Check at Body 5200 MHz Communication System: CW 5200MHz; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5200 MHz; Οƒ = 5.37 mho/m; Ξ΅ r = 49; ρ = 1000 kg/m 3 Phantom section: Flat Section d=10mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Reference Value = 102.6 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 13.6 mW/g Date/Time: 08/05/04 08:51:13 Test Laboratory: Compliance Certification Services File Name: D5GHzV2_M5200_080504.da4 DUT: Dipole 5200-5800MHz; Type: D5GHzV2; Serial: 1003 Program Name: System Performance Check at Body 5200 MHz Ambient Temp.: 25 deg. C; Liquid Temp.: 23 deg. C Communication System: CW 5200MHz; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5200 MHz; Οƒ = 5.41 mho/m; Ξ΅ r = 48.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3531; ConvF(4.83, 4.83, 4.83); Calibrated: 7/18/2004 - Sensor-Surface: 1.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 d=10mm, Pin=250mW/Area Scan (8x8x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 101.8 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 24.8 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 101.8 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 39.2 mW/g Peak SAR (extrapolated) = 64.3 W/kg SAR(1 g) = 17.8 mW/g; SAR(10 g) = 5.09 mW/g 0 dB = 39.2mW/g Date/Time: 08/05/04 08:51:13 Test Laboratory: Compliance Certification Services File Name: D5GHzV2_M5200_080504.da4 DUT: Dipole 5200-5800MHz; Type: D5GHzV2; Serial: 1003 Program Name: System Performance Check at Body 5200 MHz Communication System: CW 5200MHz; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5200 MHz; Οƒ = 5.41 mho/m; Ξ΅ r = 48.5; ρ = 1000 kg/m 3 Phantom section: Flat Section d=10mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Reference Value = 101.8 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 13.3 mW/g Date/Time: 08/05/04 14:02:07 Test Laboratory: Compliance Certification Services File Name: D5GHzV2_M5800_080504.da4 DUT: Dipole 5200-5800MHz; Type: D5GHzV2; Serial: 1003 Program Name: System Performance Check at Body 5800 MHz Ambient Temp.: 25 deg. C; Liquid Temp.: 23 deg. C Communication System: CW 5800MHz; Frequency: 5800 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5800 MHz; Οƒ = 6.24 mho/m; Ξ΅ r = 47.6; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3531; ConvF(4.64, 4.64, 4.64); Calibrated: 7/18/2004 - Sensor-Surface: 1.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 d=10mm, Pin=250mW/Area Scan (8x8x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 95.6 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 26.8 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 95.6 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 42.3 mW/g Peak SAR (extrapolated) = 80 W/kg SAR(1 g) = 18.2 mW/g; SAR(10 g) = 5.1 mW/g 0 dB = 42.3mW/g Date/Time: 08/05/04 14:02:07 Test Laboratory: Compliance Certification Services File Name: D5GHzV2_M5800_080504.da4 DUT: Dipole 5200-5800MHz; Type: D5GHzV2; Serial: 1003 Program Name: System Performance Check at Body 5800 MHz Communication System: CW 5800MHz; Frequency: 5800 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5800 MHz; Οƒ = 6.24 mho/m; Ξ΅ r = 47.6; ρ = 1000 kg/m 3 Phantom section: Flat Section d=10mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Reference Value = 95.6 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 11.2 mW/g Date/Time: 08/06/04 09:22:01 Test Laboratory: Compliance Certification Services File Name: D5GHzV2_M5200_080604.da4 DUT: Dipole 5200-5800MHz; Type: D5GHzV2; Serial: 1003 Program Name: System Performance Check at Body 5200 MHz Ambient Temp.: 25 deg. C; Liquid Temp.: 23 deg. C Communication System: CW 5200MHz; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5200 MHz; Οƒ = 5.39 mho/m; Ξ΅ r = 48.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3531; ConvF(4.83, 4.83, 4.83); Calibrated: 7/18/2004 - Sensor-Surface: 1.…

Text truncated - open the document above for the full version.

RF Exposure Info

Date/Time: 08/05/04 10:21:25 Test Laboratory: Compliance Certification Services File Name: Host # 1 (PCG-5312)_080504.da4 DUT: Airgo; Type: AGN1023PC; Serial: 6862 Program Name: 1_Host # 1 (PCG-5312) Ambient Temp.: 25 deg. C; Liquid Temp.: 23 deg. C Communication System: 802.11a; Frequency: 5180 MHz;Duty Cycle: 1:1.089 Medium parameters used (interpolated): f = 5180 MHz; Οƒ = 5.37 mho/m; Ξ΅ r = 48.6; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3531; ConvF(4.83, 4.83, 4.83); Calibrated: 7/18/2004 - Sensor-Surface: 1.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 11a_L-ch/Area Scan (15x11x1): Measurement grid: dx=10mm, dy=10mm 11a_L-ch/Zoom Scan (7x7x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 4.31 V/m; Power Drift = 0.2 dB Maximum value of SAR (measured) = 0.228 mW/g Peak SAR (extrapolated) = 0.289 W/kg SAR(1 g) = 0.103 mW/g; SAR(10 g) = 0.042 mW/g Info: Interpolated medium parameters used for SAR evaluation! 11a_L-ch/Zoom Scan (7x7x8)/Cube 1: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 4.31 V/m; Power Drift = 0.2 dB Maximum value of SAR (measured) = 0.183 mW/g Peak SAR (extrapolated) = 0.283 W/kg SAR(1 g) = 0.091 mW/g; SAR(10 g) = 0.038 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 08/04/04 12:20:54 Test Laboratory: Compliance Certification Services File Name: Host # 1 (PCG-5312)_080404.da4 DUT: Airgo; Type: AGN1023PC; Serial: 6862 Program Name: 1_Host # 1 (PCG-5312) Ambient Temp.: 25 deg. C; Liquid Temp.: 23 deg. C Communication System: 802.11a; Frequency: 5260 MHz;Duty Cycle: 1:1.089 Medium parameters used (interpolated): f = 5260 MHz; Οƒ = 5.51 mho/m; Ξ΅ r = 48.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3531; ConvF(4.83, 4.83, 4.83); Calibrated: 7/18/2004 - Sensor-Surface: 1.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 11a_M-ch/Area Scan (15x11x1): Measurement grid: dx=10mm, dy=10mm 11a_M-ch/Zoom Scan (7x7x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 6.36 V/m; Power Drift = -0.2 dB Maximum value of SAR (measured) = 0.481 mW/g Peak SAR (extrapolated) = 0.761 W/kg SAR(1 g) = 0.234 mW/g; SAR(10 g) = 0.096 mW/g Info: Interpolated medium parameters used for SAR evaluation! 11a_M-ch/Zoom Scan (7x7x8)/Cube 1: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 6.36 V/m; Power Drift = -0.2 dB Maximum value of SAR (measured) = 0.378 mW/g Peak SAR (extrapolated) = 0.592 W/kg SAR(1 g) = 0.181 mW/g; SAR(10 g) = 0.081 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 08/05/04 10:21:25 Test Laboratory: Compliance Certification Services File Name: Host # 1 (PCG-5312)_080504.da4 DUT: Airgo; Type: AGN1023PC; Serial: 6862 Program Name: 1_Host # 1 (PCG-5312) Ambient Temp.: 25 deg. C; Liquid Temp.: 23 deg. C Communication System: 802.11a; Frequency: 5320 MHz;Duty Cycle: 1:1.089 Medium parameters used (interpolated): f = 5320 MHz; Οƒ = 5.58 mho/m; Ξ΅ r = 48.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3531; ConvF(4.83, 4.83, 4.83); Calibrated: 7/18/2004 - Sensor-Surface: 1.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 11a_H-ch/Area Scan (15x11x1): Measurement grid: dx=10mm, dy=10mm 11a_H-ch/Zoom Scan (7x7x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 6.25 V/m; Power Drift = -0.2 dB Maximum value of SAR (measured) = 0.608 mW/g Peak SAR (extrapolated) = 0.986 W/kg SAR(1 g) = 0.290 mW/g; SAR(10 g) = 0.115 mW/g Info: Interpolated medium parameters used for SAR evaluation! 11a_H-ch/Zoom Scan (7x7x8)/Cube 1: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 6.25 V/m; Power Drift = -0.2 dB Maximum value of SAR (measured) = 0.464 mW/g Peak SAR (extrapolated) = 0.726 W/kg SAR(1 g) = 0.225 mW/g; SAR(10 g) = 0.095 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 08/05/04 10:21:25 Test Laboratory: Compliance Certification Services File Name: Host # 1 (PCG-5312)_080504.da4 DUT: Airgo; Type: AGN1023PC; Serial: 6862 Program Name: 1_Host # 1 (PCG-5312) Communication System: 802.11a; Frequency: 5320 MHz;Duty Cycle: 1:1.089 Medium parameters used (interpolated): f = 5320 MHz; Οƒ = 5.58 mho/m; Ξ΅ r = 48.3; ρ = 1000 kg/m 3 Phantom section: Flat Section 11a_H-ch/Z Scan (1x1x34): Measurement grid: dx=20mm, dy=20mm, dz=3mm Reference Value = 6.25 V/m; Power Drift = -0.2 dB Maximum value of SAR (measured) = 0.241 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 08/05/04 10:21:25 Test Laboratory: Compliance Certification Services File Name: Host # 1 (PCG-5312)_080504.da4 DUT: Airgo; Type: AGN1023PC; Serial: 6862 Program Name: 1_Host # 1 (PCG-5312) Ambient Temp.: 25 deg. C; Liquid Temp.: 23 deg. C Communication System: 802.11a; Frequency: 5745 MHz;Duty Cycle: 1:1.089 Medium parameters used (interpolated): f = 5745 MHz; Οƒ = 6.17 mho/m; Ξ΅ r = 47.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3531; ConvF(4.64, 4.64, 4.64); Calibrated: 7/18/2004 - Sensor-Surface: 1.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement…

Text truncated - open the document above for the full version.

Contact Information

Applicant

John Quigley(VP Engineering)
[email protected]650 475 1991Fax: 650 475 1923

Technical Contact

T.N. COKENIAS CONSULTINGTHOMAS N COKENIAS
[email protected]650 726 1263

355 El Granada Blvd Β· EL GRANADA, California Β· United States

Non-Technical Contact

T.N. COKENIAS CONSULTINGTHOMAS N COKENIAS
[email protected]650 726 1263

Test Firm

Compliance Certification Services IncSteve Cheng
[email protected]408-463-0885Fax: 408-463-0888

Technical Specifications

#Rule PartsFrequency RangePower Output
215C5.75 GHz - 5.80 GHz668.00 mW
Confidentiality
Long Term
