SA3-AGN1023PC02002.4GHz True MIMO PC Card

Airgo Networks, Inc. 900 Arastradero Road Palo Alto, CA 94304 P: 650-475-1900 F: 650-475-1708 www.airgonetworks.com Part Number: 640-00069-00 Published: July 2004 Installation and User Guide Wireless LAN Client Adapter Copyright © 2003 by Airgo Networks. All Rights Reserved. No part of this work may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Airgo Networks unless such copying is expressly permitted by U.S. copyright law. Overview 1 Connecting the Wireless LAN Client Adapter 2 Installing the Wireless LAN Client Adapter Driver and Client Utility 4 Uninstalling the Client Utility and Drivers 8 Overview of Wireless Networking 11 Service Set Identifiers 12 Wireless Bands and Channels 12 Client Utility 12 Accessing the Client Utility 14 Navigating the User Interface 14 Configuration Overview 20 Scanning for Available Networks 20 Working with Profiles 21 Profile Window 23 Wireless Security 24 Installation and User Guide: Wireless LAN Client Adapter3 Preface This guide explains how to install and configure the Wireless LAN Client Adapter, which provides PC laptop and desktop users with access to 802.11 access points. The guide is intended for business and consumer users who want to install and configure the Wireless LAN Client Adapter quickly and easily. It is also intended for users who are interested in advanced configuration and troubleshooting. The Wireless LAN Client Adapter products include the following device options: ■PC Card adapter for use in laptop and notebook computers ■PCI adapter for use in desktop system PCI expansion slots ■Mini PCI adapter for use in laptop computer mini-PCI expansion slots The Client Utility, a software tool designed to provide basic configuration options for the device, is shipped with each unit along with the device drivers. Organization of this Guide This guide consists of the following chapters: ■Chapter 1, “InstallationOverview,” describes the features of the Wireless LAN Client Adapter and explains how to install it. ■Chapter 2, “Introduction to the Client Utility,” provides an overview of the Client Utility. ■Chapter 3, “Configuration,”describes the configuration settings of the Client Utility. ■Appendix A, “Individual Driver and Client Utility Installation Procedures,” explains how to install the driver and Client Utility as separate tasks. ■Glossary defines terms that apply to wireless and networking technology in general and Airgo products. Conventions Used in this Guide This guide uses the following conventions for instructions and information. Notes, Cautions, and Warnings Notes, cautions, and time-saving tips use the following conventions and symbols. Related Documentation The following documentation related to the Airgo Networks wireless networking product line is available via CD-ROM and also on the company website, http://www.airgonetworks.com. NOTE: Notes contain helpful suggestions or information that are important to the task at hand. CAUTION: Caution indicates that there is a risk of equipment damage or loss of data when certain actions are performed. WARNING: Warnings are intended to alert you to situations that could result in injury (such as exposure to electric current, for example). Preface 4Installation and User Guide: Wireless LAN Client Adapter ■Access Point Installation and Configuration Guide — Describes how to install and configure the Access Point. ■NMS Pro Installation and Configuration Guide — Explains how to install and use the enterprise network management application. ■Command Line Interface (CLI) Reference Manual — Provides a listing of all the commands available for the Access Point, usable through console access and command line interface; this manual is intended for advanced users and system administrators. Installation and User Guide: Wireless LAN Client Adapter1 1 InstallationOverview This chapter explains how to install the Wireless LAN Client Adapter, adapter driver, and Client Utility. It includes the following topics: •Overview •Connecting the Wireless LAN Client Adapter •Installing the Wireless LAN Client Adapter Driver and Client Utility •Uninstalling the Client Utility and Drivers Overview The Wireless LAN Client Adapter provides the communication link between your laptop or desktop PC and other devices in a wireless network. The adapter operates in the 2.4 GHz radio frequency band and can communicate with any device that meets the IEEE 802.11b or 802.11g wireless network standards. When used with Access Points as part of a wireless network installation, the Wireless LAN Client Adapter offers the following special features: •Enhanced Data Rates •Extended Range •Multi Mode and Multi-band Operation •Interference Handling The Client Utility, shipped with each Wireless LAN Client Adapter, includes tools for setting the basic configuration. Device Types The Wireless LAN Client Adapter is currently offered in three device types: • PC Card — Extended Type II PCMCIA CardBus (32-bit interface) for use in laptop and notebook computers • PCI Card — PCI adapter for use in desktop computer expansion slots • Mini PCI— Mini PCI adapter for use in laptop computer mini-PCI expansion slots Shipping Package Contents The Wireless LAN Client Adapter shipping package contains the following items: •Wireless LAN Client Adapter PC or PCI Card •CD containing the device driver and Client Utility System Requirements Your PC must meet the following minimum requirements: •Windows XP or Windows 2000 •96 MB memory 1 InstallationOverview 2Installation and User Guide: Wireless LAN Client Adapter •CPU 1.0 GHz or greater •At least 10 MB disk capacity available for the driver and Client Utility software. •Type II or Type III cardbus slot for notebooks and laptops Connecting the Wireless LAN Client Adapter To install the PC card: •With the computer powered on or off, slide the PC card firmly into an a…

Text truncated - open the document above for the full version.

FCC Certifications This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ¦ Reorient or relocate the receiving antenna. ¦ Increase the separation between the equipment and receiver. ¦ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ¦ Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment, and users must follow specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other transmitter or antenna. This equipment has been SAR – evaluated and is authorized for use in laptop and notebook computers.

tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 FCC Laboratory 31 August 2004 7435 Oakland Mills Road Columbia MD 21046 Attention: Application Examiner Reviewing Engineer Confidentiality Request , Application for a combination DTS/U-NII Access Point Applicant: Airgo Networks Inc. FCC ID: SA3-AGN1023PC0200 To whom it may concern, Request is hereby submitted, on behalf of my client Airgo Networks Inc. to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Block Diagram Operational Description Rationale for request for confidentiality: Airgo has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely, THOMAS N. COKENIAS EMC Consultant/Agent for Airgo Networks Inc. tel: 650-726-1263 fax: 650-726-1252 [email protected]

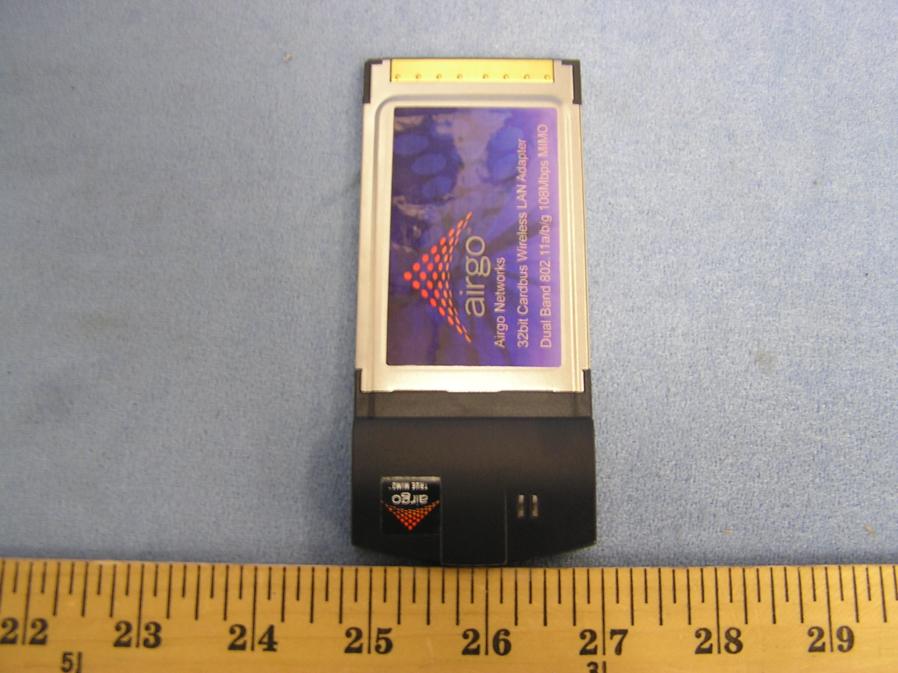

EXTERNAL PHOTOGRAPHS Airgo Networks Cardbus FCC ID: SA3-AGN1023PC0000

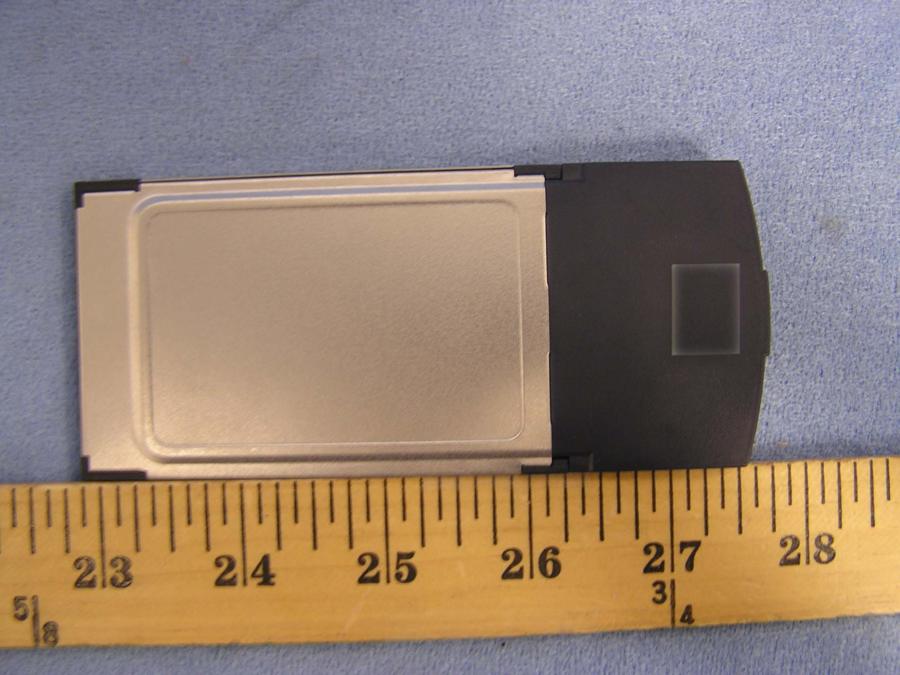

EXTERNAL PHOTOGRAPHS Airgo Networks Cardbus FCC ID: SA3-AGN1023PC0000

FCC ID: SA3-AGN1023PC0200 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference than may cause undesired operation IC: 515A-1023PC02

INTERNAL PHOTOGRAPHS Airgo Networks Cardbus FCC ID: SA3-AGN1023PC0000

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for 2.4 GHz True MIMO PC Card Model: AGN1023PC FCC ID: SA3-AGN1023PC0200 August 4, 2004 REPORT NO: 04U2913-3 Prepared for Airgo Networks Inc. 900 Arastradero Road Palo Alto, CA 94304 United States Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 REPORT NO: 04U2913-3 DATE: August 4, 2004 FCC ID: SA3-AGN1023PC0200 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 28 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Dates of Tests: August 3-4, 2004 APPLICANT: Airgo Networks Inc. 900 Arastradero Road Palo Alto, CA 94304, United States MODEL: AGN1023PC FCC ID: SA3-AGN1023PC0200 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Orthogonal Frequency Division Multiplexing (OFDM) for 802.11g Direct Sequence Spread Spectrum (DSSS) for 802.11b Tx Frequency: 2412 to 2462 MHz Max. SAR (1g): 1.35 mW/g for Host # 1 0.253 mW/g for Host # 2 0.292 mW/g for Host # 3 FCC Rule Part(s): 15.247 Host devices: Host # 1: Sony, PCG-3512 Host # 2: Sony, PCG-6B1L Host # 3: Sony, PCG-9D1R This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hsin-Fu Shih (Sunny Shih) Senior Engineer REPORT NO: 04U2913-3 DATE: August 4, 2004 FCC ID: SA3-AGN1023PC0200 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 28 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. EQUIPMENT UNDER TEST (EUT) DESCRIPTION........................................................... 4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC............................... 4 3. DOSIMETRIC ASSESSMENT SYSTEM.......................................................................... 4 3.1. MEASUREMENT SYSTEM DIAGRAM......................................................................................................5 3.2. SYSTEM COMPONENTS.......................................................................................................................6 4. EVALUATION PROCEDURES..................................................................................... 8 5. MEASUREMENT UNCERTAINTY............................................................................... 12 6. EXPOSURE LIMIT................................................................................................. 13 7. PROCEDURES USED TO ESTABLISH TEST SIGNALS................................................... 14 8. MEASUREMENT RESULTS...................................................................................... 15 8.1. SIMULATING LIQUIDS PARAMETER CHECK..........................................................................................15 8.2. SYSTEM PERFORMANCE CHECK........................................................................................................18 8.3. SAR MEASUREMENTS RESULTS.......................................................................................................19 9. PHOTOS............................................................................................................. 22 10. EQUIPMENT LIST & CALIBRATION STATUS............................................................... 26 11. REFERENCES...................................................................................................... 27 12. ATTACHMENTS.................................................................................................... 28 REPORT NO: 04U2913-3 DATE: August 4, 2004 FCC ID: SA3-AGN1023PC0200 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 28 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EQUIPMENT UNDER TEST (EUT) DESCRIPTION The following is the information provided by the applicant. Type of EUT: 2.4 GHz True MIMO PC Card With Laptop Computers (Hosts) Host # 1: Sony, PCG-3512 Host # 2: Sony, PCG-6B1L Host # 3: Sony, PCG-9D1R Modulation Type: Direct Sequence Spread Spectrum (DSSS) for 802.11b Orthogonal Frequency Division Multiplexing (OFDM) for 802.11g TX Frequency: 2412 to 2462 MHz Power Supply: Power supplied through the laptop computer 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996 [1]. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992 [6]. According to the Supplement …

Text truncated - open the document above for the full version.

Date/Time: 08/03/04 09:06:35 Test Laboratory: Compliance Certification Services File Name: D2450V2SN748_EX3DV3SN3531_080304.da4 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Program Name: System Performance Check at 2450 MHz Ambient Temp.: 25 deg. C; Liquid Temp.: 23 deg. C Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.97 mho/m; ε r = 52.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3531; ConvF(8.32, 8.32, 8.32); Calibrated: 7/18/2004 - Sensor-Surface: 1.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 108.5 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 21.1 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 108.5 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 20.7 mW/g Peak SAR (extrapolated) = 25.5 W/kg SAR(1 g) = 12.9 mW/g; SAR(10 g) = 6.15 mW/g 0 dB = 20.7mW/g Date/Time: 08/03/04 09:06:35 Test Laboratory: Compliance Certification Services File Name: D2450V2SN748_EX3DV3SN3531_080304.da4 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Program Name: System Performance Check at 2450 MHz Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.97 mho/m; ε r = 52.1; ρ = 1000 kg/m 3 Phantom section: Flat Section d=10mm, Pin=250mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 108.5 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 17.9 mW/g Date/Time: 08/0404 09:05:44 Test Laboratory: Compliance Certification Services File Name: D2450V2SN748_EX3DV3SN3531_080404.da4 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Program Name: System Performance Check at 2450 MHz Ambient Temp.: 25.0 deg. C; Liquid Temp.: 24.0 deg. C Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.91 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3531; ConvF(8.32, 8.32, 8.32); Calibrated: 7/18/2004 - Sensor-Surface: 1.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 107.5 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 20.5 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 107.5 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 20.1 mW/g Peak SAR (extrapolated) = 24.8 W/kg SAR(1 g) = 12.6 mW/g; SAR(10 g) = 5.98 mW/g 0 dB = 20.1mW/g Date/Time: 08/04/04 09:05:44 Test Laboratory: Compliance Certification Services File Name: D2450V2SN748_EX3DV3SN3531_080404.da4 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Program Name: System Performance Check at 2450 MHz Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.91 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Phantom section: Flat Section d=10mm, Pin=250mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 107.5 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 17.4 mW/g

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for 802.11b/g True Mimo CardBus Card Model: AGN1023PC FCC ID: SA3-AGN1023PC0200 September 30, 2004 REPORT NO: 04U2911-14 (BG Card) Prepared for Airgo Networks Inc. 900 Arastradero Road Palo Alto, CA 94304 United States Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 REPORT: 04U2913-3 (BG Card) DATE: Sep. 30, 2004 FCC ID: SA3-AGN1023PC0200 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 2 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Dates of Tests: September 30, 2004 APPLICANT: Airgo Networks Inc. 900 Arastradero Road Palo Alto, CA 94304, United States MODEL: AGN1023PC FCC ID: SA3-AGN1023PC0200 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Orthogonal Frequency Division Multiplexing (OFDM) for 802.11g Direct Sequence Spread Spectrum (DSSS) for 802.11b Tx Frequency: 2412 to 2462 MHz Max. SAR (1g): 0.491 mW/g for 802.11b mode 0.745 mW/g for 802.11g mode FCC Rule Part(s): 15.247 Host devices: Host # 1: Sony, PCG-3512 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hsin-Fu Shih (Sunny Shih) Senior Engineer REPORT: 04U2913-3 (BG Card) DATE: Sep. 30, 2004 FCC ID: SA3-AGN1023PC0200 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 3 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. EQUIPMENT UNDER TEST (EUT) DESCRIPTION..........................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC..............................................4 3. DOSIMETRIC ASSESSMENT SYSTEM..........................................................................................4 3.1. MEASUREMENT SYSTEM DIAGRAM..................................................................................5 3.2. SYSTEM COMPONENTS.................................................................................................6 3.2.1. DASY4 MEASUREMENT SERVER........................................................................6 3.2.2. DATA ACQUISITION ELECTRONICS (DAE)..............................................................6 3.2.3. EX3DV3 ISOTROPIC E-FIELD PROBE FOR DOSIMETRIC MEASUREMENTS..................6 3.2.4. SAM PHANTOM (V4.0)......................................................................................7 3.2.5. DEVICE HOLDER FOR SAM TWIN PHANTOM..........................................................7 3.2.6. SYSTEM VALIDATION KITS..................................................................................7 4. EVALUATION PROCEDURES.....................................................................................................8 5. MEASUREMENT UNCERTAINTY...............................................................................................12 6. EXPOSURE LIMIT.................................................................................................................13 7. PROCEDURES USED TO ESTABLISH TEST SIGNALS...................................................................14 8. MEASUREMENT RESULTS.....................................................................................................17 8.1. SIMULATING LIQUIDS PARAMETER CHECK......................................................................17 8.2. SYSTEM PERFORMANCE CHECK...................................................................................19 8.3. SAR MEASUREMENTS RESULTS...................................................................................20 8.4. HOST # 1 (SONY, PCG-5312).....................................................................................20 9. PHOTOS.............................................................................................................................21 10. EQUIPMENT LIST & CALIBRATION STATUS...............................................................................23 11. REFERENCES......................................................................................................................24 12. ATTACHMENTS....................................................................................................................25 REPORT: 04U2913-3 (BG Card) DATE: Sep. 30, 2004 FCC ID: SA3-AGN1023PC0200 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 4 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EQUIPMENT UNDER TEST (EUT) DESCRIPTION The following is the information provided by the applicant. Type of EUT: 2.4 GHz True MIMO PC Card (BG Card) With Laptop Computers (Host) Host # 1: Sony, PCG-3512 Modulation Type: Direct Sequence Spread Spectrum (DSSS) for 802.11b Orthogonal Freq…

Text truncated - open the document above for the full version.

Date/Time: 09/30/04 10:34:12 Test Laboratory: Compliance Certification Services Host # 1 (PCG-5312)_B mode DUT: Airgo; Type: AGN1023PC; Serial: 0120 Phantom section: Flat Section Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.91 mho/m; ε r = 52.1; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.5 deg. C z Area Scan setting - Find Secondary Maximum Within: 3.0 dB and with a peak SAR value greater than 0.3 W/kg z Probe: EX3DV3 - SN3531; ConvF(8.32, 8.32, 8.32); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 123 11b-1Mbps_L-ch/Area Scan (10x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.555 mW/g 11b-1Mbps_L-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 11.8 V/m; Power Drift = -0.3 dB Peak SAR (extrapolated) = 0.840 W/kg SAR(1 g) = 0.443 mW/g; SAR(10 g) = 0.228 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.595 mW/g 11b-1Mbps_L-ch/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 11.8 V/m; Power Drift = -0.3 dB Peak SAR (extrapolated) = 0.894 W/kg SAR(1 g) = 0.491 mW/g; SAR(10 g) = 0.257 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.624 mW/g 0 dB = 0.624mW/g Date/Time: 09/30/04 10:34:12 Test Laboratory: Compliance Certification Services Host # 1 (PCG-5312)_B mode DUT: Airgo; Type: AGN1023PC; Serial: 0120 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) 11b-1Mbps_L-ch/Z Scan (1x1x34): Measurement grid: dx=20mm, dy=20mm, dz=3mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.500 mW/g Date/Time: 09/30/04 10:34:12 Test Laboratory: Compliance Certification Services Host # 1 (PCG-5312)_B mode DUT: Airgo; Type: AGN1023PC; Serial: 0120 Phantom section: Flat Section Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.94 mho/m; ε r = 52; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.5 deg. C z Area Scan setting - Find Secondary Maximum Within: 3.0 dB and with a peak SAR value greater than 0.3 W/kg z Probe: EX3DV3 - SN3531; ConvF(8.32, 8.32, 8.32); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 123 11b-1Mbps_M-ch/Area Scan (10x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.461 mW/g 11b-1Mbps_M-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 10.2 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 0.693 W/kg SAR(1 g) = 0.329 mW/g; SAR(10 g) = 0.170 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.478 mW/g 11b-1Mbps_M-ch/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 10.2 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 0.697 W/kg SAR(1 g) = 0.383 mW/g; SAR(10 g) = 0.197 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.492 mW/g 0 dB = 0.492mW/g Date/Time: 09/30/04 10:34:12 Test Laboratory: Compliance Certification Services Host # 1 (PCG-5312)_B mode DUT: Airgo; Type: AGN1023PC; Serial: 0120 Phantom section: Flat Section Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2462 MHz; σ = 2 mho/m; ε r = 52; ρ = 1000 kg/m 3 Measurement Standard: DASY4 (High Precision Assessment) z Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.5 deg. C z Area Scan setting - Find Secondary Maximum Within: 3.0 dB and with a peak SAR value greater than 0.3 W/kg z Probe: EX3DV3 - SN3531; ConvF(8.32, 8.32, 8.32); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 12/23/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Bu…
