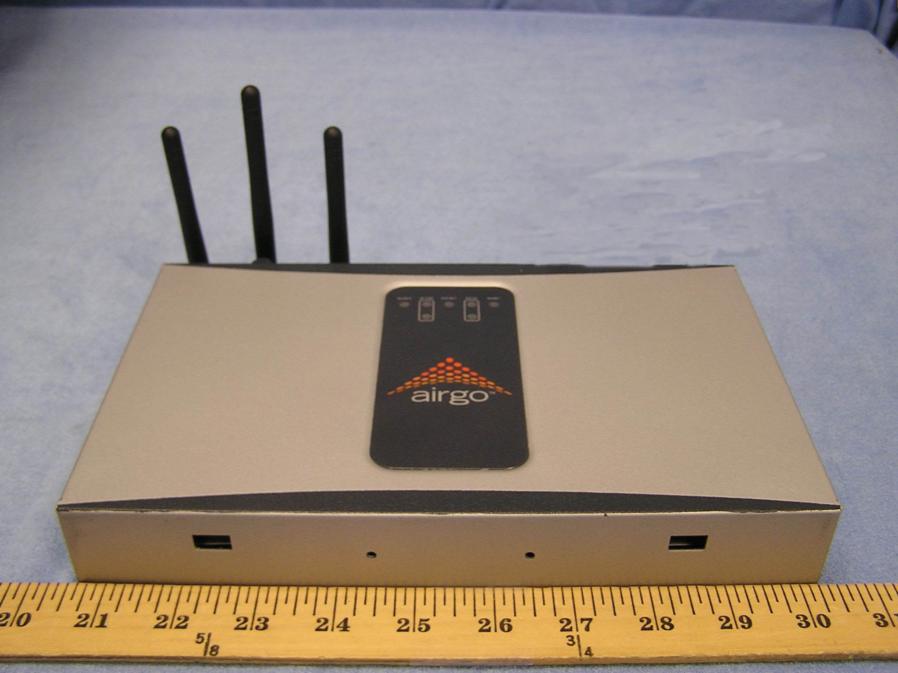

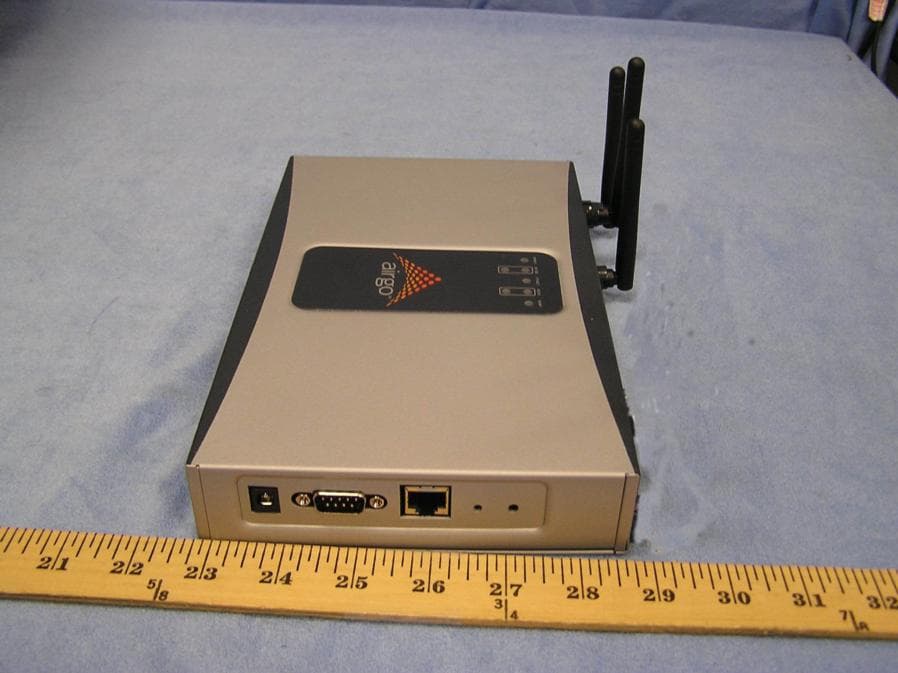

SA3-AGN1201AP0000True MIMO Access Point

Airgo Networks, Inc. 900 Arastradero Road Palo Alto, CA 94304 http://www.airgonetworks.com Part Number: 640-00068-02 Published: January 2005 Installation and User Guide Airgo Access Point Copyright © 2004 by Airgo Networks, Inc., Inc. All Rights Reserved. No part of this work may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Airgo Networks unless such copying is expressly permitted by U.S. copyright law. Installation and User Guide: Airgo Access Pointiii Contents Preface - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - x 1Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 Product Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 Product Suite - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 Features Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2 Radio Resource Management - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4 Mobility Management - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4 Portal Architecture - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4 Security - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5 VLANs - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6 Quality of Service - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6 IP Routing - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6 Multiple SSIDs - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7 Guest Access - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7 Rogue AP Detection and Classification - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7 Standards and Data Rates - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7 Integration with the Existing Wired Network - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8 Management Interface Options - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8 2Planning Your Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9 Example Wireless Network Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9 Assessing Coverage and Capacity Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10 Site Surveys - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11 Assessing Security Needs and Architecture - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11 Selecting a Network Management Method - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12 Planning Network Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 14 Sample Deployment Scenarios - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 16 Example 1: Small office, single AP, possible future growth - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 16 Example 2: Small to mid-size business with wireless backhaul - - - - - - - - - - - - - - - - - - - - - - - - - - 18 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 19 Example 3: Mid-size business, multiple SSIDs, multiple VLANs - - - - - - - - - - - - - - - - - - - - - - - - - 20 Example 4: Large business, guest access, extended network services - - - - - - - - - - - - - - - - - - - - - - 22 Example 5: Large Campus with Branch Offices - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 24 3Installing the Access Point Using the Configuration Interfaces - - - - - - - - - - - - - - - - - - - 27 Hardware Components - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27 System Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27 Installation Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27 Installation and User Guide: Airgo Access Pointiv Power and Cabling Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 28 Network Information Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 28 Installing the Access Point - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 28 Using Power Over Ethernet - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 29 Placement and Orientation -…

Text truncated - open the document above for the full version.

4 Configuring Radio Settings 78Installation and User Guide: Airgo Access Point Figure 49:Radio State Tab Use the pull-down list to switch between radios. This tab contains the following information: Field Description Radio InterfaceAP radio (wlan0 or wlan1) Radio PersonaMode of the radio - AP or BP Radio MAC AddressMAC address of radio Radio Admin StateAdministrative status of the radio (enabled or disabled) Radio Operation StateOperational status of the radio (enabled or disabled) Operating BandCurrent band of operation Viewing Radio Statistics Installation and User Guide: Airgo Access Point79 Radio Statistics The Radio Statistics tab (Figure 50) contains information on the operation of each radio. This information varies according to whether the radio is in the AP or BP persona. The statistics refresh every 10 seconds. It is advisable to wait 10 seconds or more to get new snapshot of the same statistics. Current Channel Number Current channel of operation Number of Channel Changes Number of times the channel has changed since boot-up (AP persona only) Channel Change CauseReason the frequency changed since boot-up, if appropriate, due to user intervention or performance degradation (AP persona only) Number of Associated Stations The number of stations associated to the radio (AP persona only) Number of TrunksNumber of backhaul trunks associated with the radio (AP persona only) Average Station LoadAverage load on client stations in percent (AP persona only) Average Channel Utilization Average load on channels in percent (AP persona only) Radio QoS ModeMode used for class of service mapping Load BalancedNumber of load balanced stations (AP persona only) CFP-PeriodNumber of DTIM intervals between the start of Contention Free Periods (CFPs) CFP Max DurationMaximum duration of the CFP in time units that may be generated by the AP Privacy Option Implemented Security setting Basic Rate SetSet of basic rates for BSS (AP persona only) Operational Rate SetSet of operational rates for BSS CCA Mode SupportedList of all of the Clear Channel Assessment (CCA) modes supported by the PHY Current CCA ModeCurrent CCA method in operation Temp TypeCurrent physical operating temperature range capability Max Receive LifetimeMaximum amount of time allowed to reassemble a fragmented frame External AntennaIndication of whether the radio has an external antenna (true) or not (false) InterferenceRadio interference in the surrounding wireless environment pertaining to the channel of operation, in dBm. (AP persona only) NOTE: All statistics are computed since the last radio reset or since the Clear Statistics button was last clicked. Field (continued)Description 4 Configuring Radio Settings 80Installation and User Guide: Airgo Access Point Figure 50:Radio Statistics Tab Use the pull-down list to switch between radios. This tab contains the following information: Field Description Radio InterfaceAccess point radio (wlan0 or wlan1) Transmitted FragmentsNumber of transmitted fragments (MAC Protocol Data Units) that have been acknowledged since last power-up or last Clear Statistics request Transmitted Multicast Frames Number of transmitted multicast frames Transmitted Frame Count Count for successfully transmitted MSDUs Failed CountCount of MSDU not transmitted successfully due to the number of transmit attempts exceeding either the dot11ShortRetryLimit or dot11LongRetryLimit Received FragmentsCount for successfully received MPDUs of type Data or Management Received Multicast Frames Count when an MSDU is received with the multicast bit set in the destination MAC address Viewing Radio Statistics Installation and User Guide: Airgo Access Point81 Received Frame CountCount of successfully received frames (MSDUs) FCS Error CountCount of FCS errors detected when receiving a MPDU Multiple Retry CountCount of successful transmissions after more than one retransmission Retry CountCount of successful transmissions after one or more retransmission Frame Duplicate CountCount of frames received in which the Sequence Control field indicates it is a duplicate frame Acknowledgement Failure Count Count of expected acks not received RTS Success CountCount of successful CTS received in response to an RTS RTS Failure CountCount of RTS for which a CTS response is not received WEP Undecryptable Count Only if encryption is WEP, number of times a frame is received with the WEP subfield of the Frame Control field set to one and the WEPOn value for the key mapped to the Transmitter MAC address (indicates that the frame should not have been encrypted or that frame is discarded due to the receiving STA not implementing the privacy option) Dropped CountNumber of dropped frames Transmitting BeaconsCount of successfully transmitted beacons Field (continued)Description 4 Configuring Radio Settings 82Installation and User Guide: Airgo Access Point Viewing Radio Neighbor Details A radio neighbor is a radio whose beacon frame is detected by the AP. Select Radio Neighbors from the Wireless Services menu to view summary information on all the neighboring APs within beacon range (Figure 51). Figure 51:Radio Neighbors The summary table lists the following information: Field Description InterfaceThe AP radio (wlan0 or wlan1) BSSIDMAC address of the neighboring AP radio, which determines the BSS SSIDName of the network (ESS) in which the AP is operating BSS TypeInfrastructure or ad-hoc network arrangement ChannelCurrent channel of operation for the neighboring BSS AP Beacon NameName of the neighboring AP in the beacon frame Compatibility StatusIndication of whether the neighbor is an AP with which the IAPP protocol can be established StrengthStrength of radio neighbor signal, in percentage Load PercentageLoad on the AP, in percentage STA CountNumber of client stations served by the neighboring AP Configuring SSID Parameters Installation and User Guide: Airgo Access Point83 Use the scrolling bars to display the full range of interfaces and data. Configuring SS…

Text truncated - open the document above for the full version.

8 Configuring Guest Access 168Installation and User Guide: Airgo Access Point Figure 119 provides a sample illustration of how clients are treated when guest access is implemented without VLANs. Secure clients are authenticated using WPA-PSK, while guests are authenticated through the landing page (internal page is shown). Both types of users gain access to the same network resources; however, only the secure user traffic is encrypted. Figure 119:Guest Access Without VLANs Guest access with VLANs This option, in which VLANs are used to differentiate between corporate traffic and guest user traffic, is ideal for businesses that want to provide guest access to visitors. When guest users log in, they are automatically assigned to the guest VLAN and are prevented from accessing the main corporate network. To use VLANs for guest access, the AP must be connected to a VLAN-aware switch, and the switch must be configured to support the designated VLANs. The VLAN configuration of the upstream network should make available only those network resources set aside for guest use. This often means prohibiting guest stations from accessing anything other than the corporate open subnet or the Internet. For open guest access, the Open access security option must be configured. This precludes the use of WEP Security Mode on APs that provide guest access, but does permit use of WPA Security Mode for non-guests only. NOTE: If both secured and open access are enabled (mixed-mode of operation) then some third party clients may not be able to access the network using WPA-PSK. All clients will be able to connect to the network using the open authentication correctly. ID Password Network Corp Guest Access Secure User Traffic Is Encrypted Guest Traffic is Not Encrypted Secure Client Authenticates with Pre-shared Key A0064 Guest Internal Landing Page Installation and User Guide: Airgo Access Point169 VLANs and security privileges are assigned to users by way of service profiles defined for user groups and bound to the network SSID. It is required that the VLAN configuration include DHCP and DNS services. Internal Landing Page The internal landing page is a configurable option within the Airgo AP. The guest password for the AP can be set using the Guest Access panel, or an automatically generated password can be configured through the User Management panel in NM Portal. If the automatically generated guest password is used, then the authentication process for the internal landing page also checks the password entered by the guest user against the RADIUS authentication service provided in the security portal. If either password is acceptable, the guest user is authenticated and receives the privileges specified in the guest service profile. Internal landing pages are compatible with the VLAN and non-VLAN options. Figure 120 shows how Acme Works configured guest access with an internal guest landing page. In this example, the company has two VLANs: Corporate and Guest. Corporate and guest users belong to the Enterprise and Guest user groups, respectively, with appropriate service profiles assigned and bound to the SSID. Corporate users are authenticated by way of the enterprise RADIUS server, while guest users are authenticated by way of an internal landing page configured in the Airgo AP. After they are authenticated, guest users are place in the Guest VLAN. I NOTE: If guest access is configured on a VLAN other than VLAN 1, the DCHP server on the AP cannot be used to provide IP address service for the guest VLAN. Use an external DHCP server. 8 Configuring Guest Access 170Installation and User Guide: Airgo Access Point Figure 120: Guest Access - Internal Landing Page RADIUS Server A0045D Corp VLAN Corp-VLAN VLAN Switch Guest VLAN Guest-VLAN Corp Guest Access Guest ID Password External Landing Page Installation and User Guide: Airgo Access Point171 External Landing Page An external landing web page can be set up through a corporate web server. The URL for the landing page must use an IP address rather than a domain name. Regardless of the authentication process selected for the external page, it is necessary to forward authentication results to the AP upon completion of successful or unsuccessful guest authentication. 1 External landing pages are compatible with the VLAN and non-VLAN options. Figure 121 shows a network VLAN configuration with an external guest landing page. The external landing page is made accessible over the Internet through an external web server. As in the previous example, authenticated guest users are given access to the guest VLAN. Figure 121: Guest Access - External Landing Page 1 An example external landing page is shipped with the Airgo AP. RADIUS Server A0045B CorporateVLAN CorporateVLAN VLAN Switch GuestVLAN GuestVLAN Corporate Guest Web Authentication Password Authentication Results Passed Back to AP 8 Configuring Guest Access 172Installation and User Guide: Airgo Access Point Open Subnet In an optional open subnet arrangement, shown in Figure 122, unauthenticated guest users are permitted limited access to an open enterprise subnet specified in the Airgo AP. The enterprise open subnet must be part of the Guest VLAN. Extended access requires authentication through an internal or external landing page. Figure 122: Guest Access - Open Subnet Guest Access Persistence If a guest user is temporarily disconnected from the Airgo AP due to loss of association, it may not be necessary for the user to reauthenticate if the client reassociates to the same AP within one minute. This is particularly beneficial when using a virtual private network (VPN) with guest access, wherein the user signs on as a guest and then launches a VPN session to a remote VPN server. Since the VPN session is tunneled over the guest session, a temporary loss of connectivity does not require tearing down the VPN session. If loss of association extends beyond one minute, it is necessary for the guest user to reauthenticate. In…

Text truncated - open the document above for the full version.

10 Maintaining the Access Point 258Installation and User Guide: Airgo Access Point Installation and User Guide: Airgo Access Point259 A Using the Command Line Interface This appendix explains how to access and interact with the command line interface (CLI). For detailed information on specific commands, see the CLI Reference Manual. Using the Command Line Interface To connect to the AP for command line interface access using Secure Shell (SSH), do the following: 1Launch your SSH client application. 2Type ssh admin@<AP IP address>, using the AP IP address assigned to the Access Point (or 192.168.1.254 by default) and press Return. When connected, a screen opens similar to the one shown in Figure 188. Figure 188: Access Point Serial Console Login Screen 3Enter your login ID and press Return. When prompted next, enter your password. The factory default for administrator access is username: admin. The factory default password is shipped with the AP on a paper insert. Use the password from the insert to log in. NOTE: SSH Communications provides an SSH client, http://www.ssh.com. A Using the Command Line Interface 260Installation and User Guide: Airgo Access Point 4To see the list of available commands, type a question mark (?). For a list of hot keys (short cuts for console functions, press Ctrl-H. There are two important modes in console access, one is show mode and the other is config mode. In show mode, examine the AP’s configuration settings and status. Use config mode to change values. To go into either mode from the main command> prompt, type either show or config. Toggle between show and config modes by pressing Ctrl-P. Leave a mode and return to the top level command prompt by typing exit. 5To log out and close your connection to the command line interface, type logout at any prompt. Using the Console Port for CLI Access To connect to the AP for command line interface (CLI) access using the built-in console port, do the following: 1Connect your computer to the AP console port using a serial DCE cable (this is typically a 9- pin-to-9-pin cable with the transmit and receive lines crossed over — a null modem cable). A USB-to-Serial adapter may be required if your computer lacks a 9-pin serial port. 2Launch your terminal emulation application. On PCs running Microsoft Windows operating systems, the Microsoft-provided application HyperTerminal will work fine. (This is accessed usually through Programs > Accessories > Communications > HyperTerminal. The remainder of this procedure assumes the use of HyperTerminal. Modify the procedures accordingly if using another application.) 3Create a terminal connection profile if one does not already exist. Enter a descriptive name and select any icon from the list provided. Click OK when done. If there is a working HyperTerminal connection profile, select that shortcut instead to launch the connection, and skip to step 7. 4The Connect To screen displays. The important element there is to use the Connect using: box, and select the serial port to which the AP is connected. Click OK when done. 5Use the following port settings: • Bits per second: 115200 • Data bits: 8 • Parity: None • Stop bits: 1 • Flow control: None 6Click OK when done. When connected, a screen opens similar to the one shown in Figure 188. 7If the console login screen in the HyperTerminal does not open, press Return once or twice. If you still see nothing or garbage characters appear, check the cable connection and the terminal connection parameters. 8Enter your login ID and press Return. When prompted next, enter your password. (The AP defaults are login: admin and password: password, and login: opr and password: opr for operator (read-only) access.) Using the Console Port for CLI Access Installation and User Guide: Airgo Access Point261 9To see the list of available commands, type a question mark. For a list of hot keys (short cuts for console functions, press Ctrl-H. There are two important modes in console access, one is show mode and the other is config mode. In show mode, examine the AP’s configuration settings and status. Use config mode to change values. To go into either mode from the main command> prompt, type either show or config. Toggle between show and config modes by pressing Ctrl-P. Leave a mode and return to the top level command prompt by typing exit. To log out and close your connection to the command line interface, type logout at any prompt. A Using the Command Line Interface 262Installation and User Guide: Airgo Access Point Installation and User Guide: Airgo Access Point263 B Regulatory and License Information This appendix contains the regulatory and license information specific to the Airgo Access Point hardware and software. FCC Certifications This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. IDAccess Point RequirementDetails CERT1SafetyUL 1950 third edition TUV approval UL-2043 (Fire and Smoke) Compliance CERT2EMCEMC Directive 89/336/EEC (CE Mark) CERT3Radio App…

Text truncated - open the document above for the full version.
