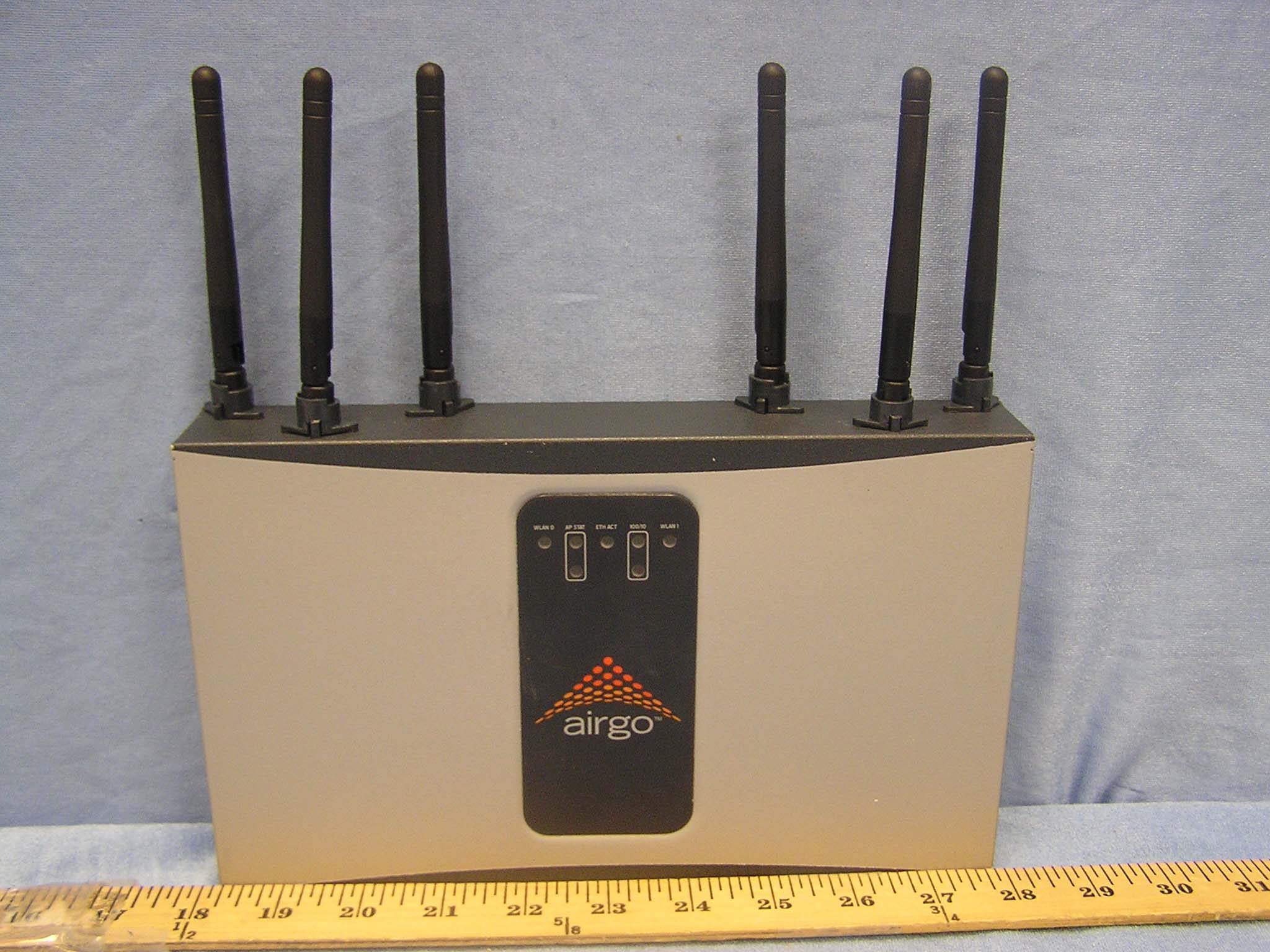

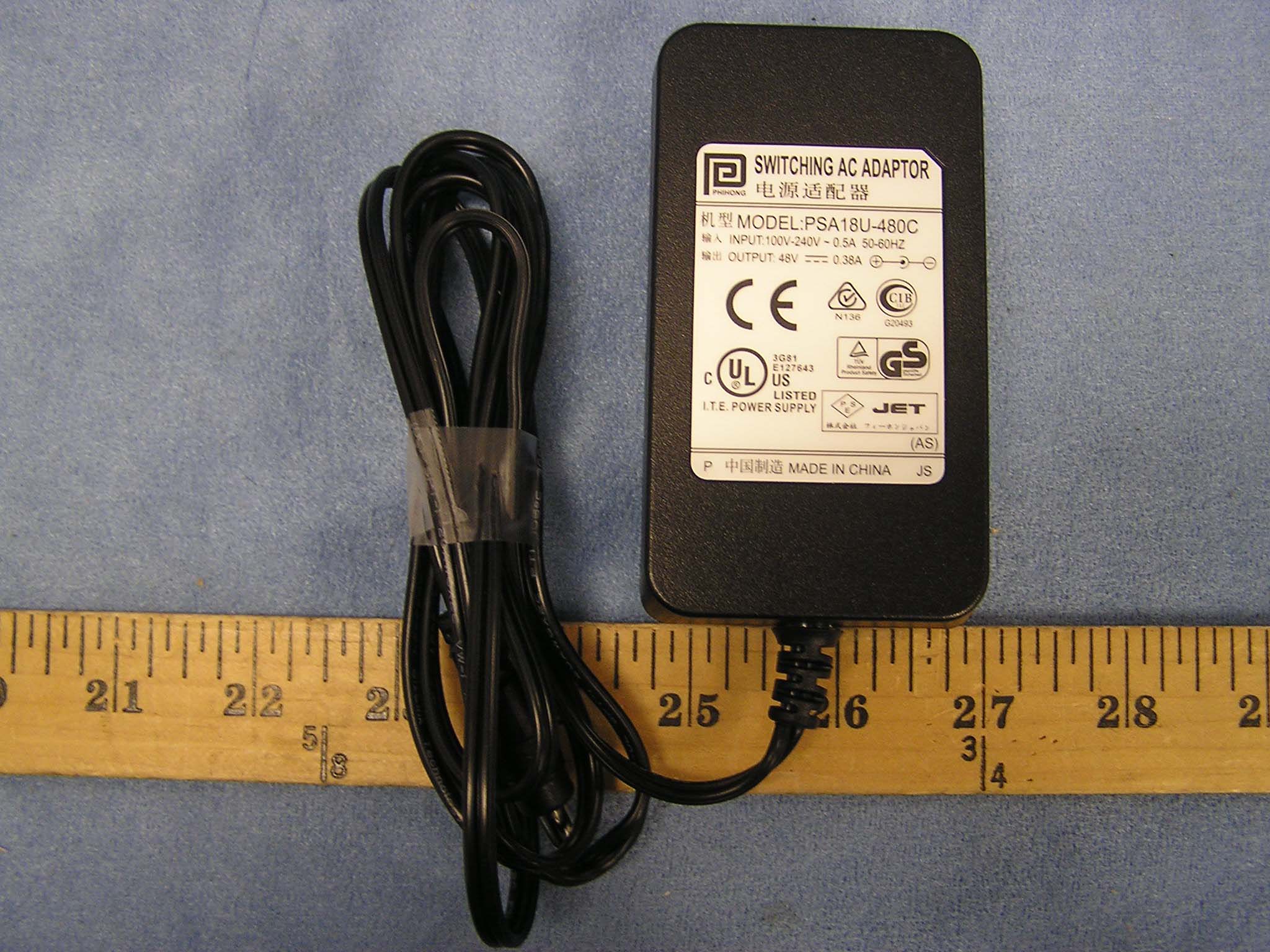

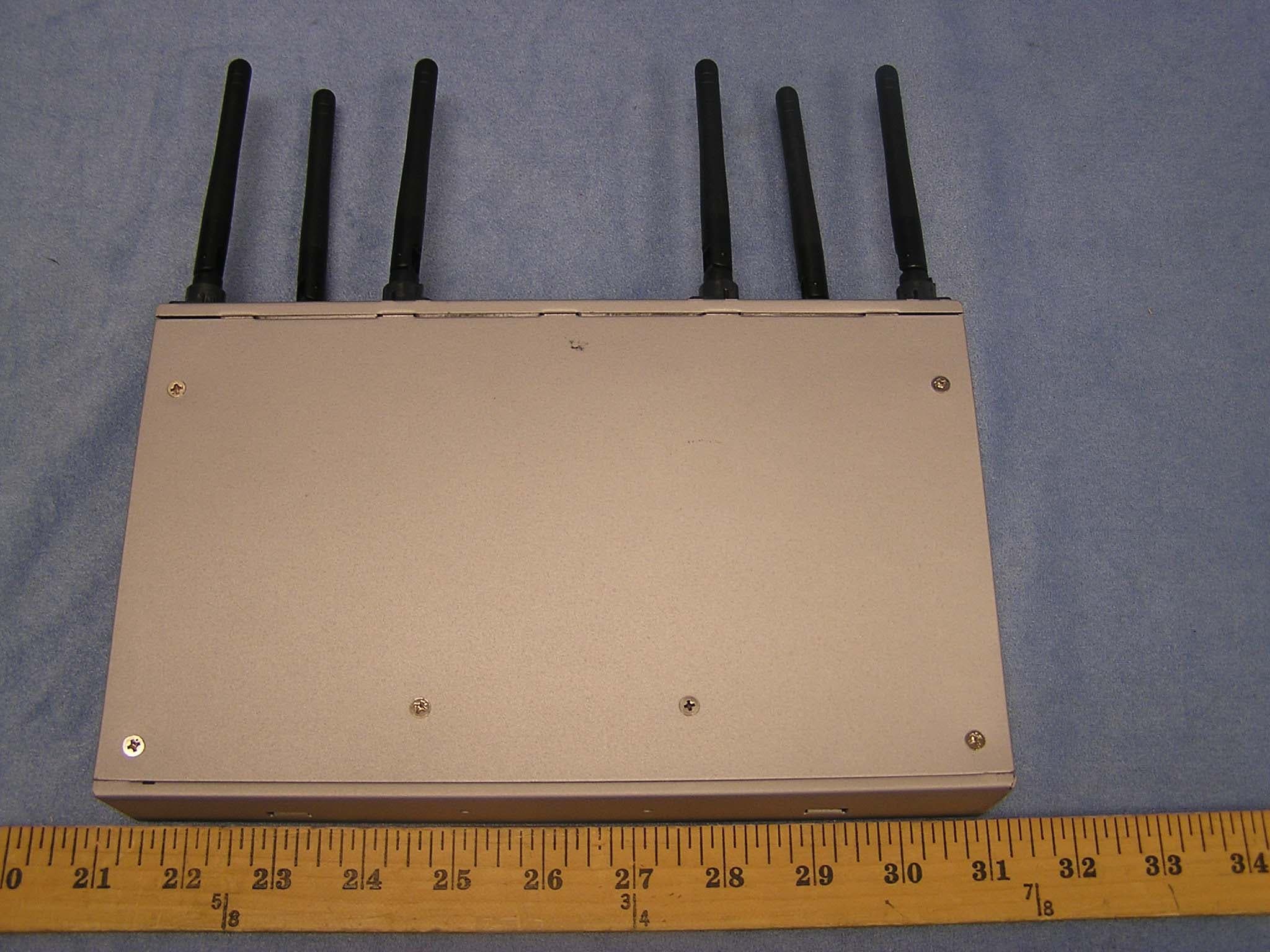

SA3-AGN1202AP0000802.11 a/b/g True MIMO Access Point

Airgo Networks, Inc. 900 Arastradero Road Palo Alto, CA 94304 P: 650-475-1900 F: 650-475-1708 www.airgonetworks.com Part Number: 640-00068-00 Published: July 2004 Installation and Configuration Guide Airgo Access Point Copyright © 2004 by Airgo, Inc. All Rights Reserved. No part of this work may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Airgo unless such copying is expressly permitted by U.S. copyright law. Installation and Configuration Guide: Airgo Access Pointiii Contents Preface - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - x 1Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 Product Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 Product Suite - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 Features Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2 Radio Resource Management - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3 Mobility Management - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3 Portal Architecture - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4 Security - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5 VLANs - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5 Quality of Service - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6 IP Routing - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6 Multiple SSIDs - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6 Guest Access - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6 Rogue AP Detection and Classification - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6 Standards and Data Rates - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7 Integration With the Existing Wired Network - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7 Management Interface Options - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8 2Planning Your Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9 Example Wireless Network Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9 Assessing Coverage and Capacity Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10 Site Surveys - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11 Assessing Security Needs and Architecture - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11 Selecting a Network Management Method - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12 Planning Network Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 14 Example Deployment Scenarios - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 16 Example 1: Small office, single AP, possible future growth- - - - - - - - - - - - - - - - - - - - - - - - - - - - - 16 Example 2: Small to mid-size business with wireless backhaul - - - - - - - - - - - - - - - - - - - - - - - - - - 18 Example 3: Mid-size business, multiple SSIDs, multiple VLANs - - - - - - - - - - - - - - - - - - - - - - - - - 19 Example 4: Large business, guest access, extended network services - - - - - - - - - - - - - - - - - - - - - - 21 Example 5: Large Campus with Branch Offices - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 23 3Installing the Access Point - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 25 Using the Configuration Interfaces - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 25 Hardware Components - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 25 System Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 25 Installation Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 25 Installation and Configuration Guide: Airgo Access Pointiv Power and Cabling Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26 Network Information Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26 Installing the Access Point - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26 Using Power Over Ethernet - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27 Placem…

Text truncated - open the document above for the full version.

7 Managing Security 138Installation and Configuration Guide: Airgo Access Point encryption provides no protection, and is only recommended when security is not of concern. WPA-AES is recommended for all installations, if possible. Configure and view the following aspects of network and user security from the web interface: •Wireless Security—Select protocols for data encryption and user authentication. •Authentication Zones—Group resources for user authentication. •Administrator Security—Set the administrator login and password to access the AP. •RADIUS Servers—Identify authorized RADIUS servers and zones. •Security Statistics—View security-related statistics, including authentication, 802.1x supplicant, and authentication diagnostic statistics. •Advanced—Configured advanced RADIUS properties. Configuring Wireless Security Choose Wireless Security from the Security Services menu to configure the protocols for data encryption and user authentication. The Wireless Security panel contains two tabs: •Security Mode—Configure WPA, WEP, or open encryption and authentication. •SSID Auth—Identify the authentication server for the SSID. Security Mode Use the Security Mode tab (Figure 102) to assign the encryption and authentication methods, including WPA, WEP, or Open. Allowing multiple encryption modes can be useful to support installations with a mixture of client wireless adapters. There are some limitations to the allowed combinations; it is not possible to enable both WEP and Open simultaneously. Also, Open and WPA encryption modes require each mode to be mapped to a separate VLAN (see “Configuring VLANs” on page 105). Table 12:Encryption Options TypeDescription AESHighest level of protection TKIPWEP with additional protection WEP 128First generation encryption using 128-bit keys, does not provide adequate protection WEP 64First generation encryption using 64-bit keys, does not provide adequate protection OpenNo protection Configuring Wireless Security Installation and Configuration Guide: Airgo Access Point139 Figure 102: Security Services - Security Mode WPA Security Select Enable WPA to activate the WPA authentication and encryption fields. The following options are available: Click Apply to save the configuration, or Reset to return to the previously saved values. WPA provides strong encryption support with the AES and TKIP algorithms. FieldDescription WPA Security ModeWPA-EAP—For RADIUS-based networking keying WPA-PSK—For pre-shared keys Encryption TypeAES, TKIP, AES and TKIP NOTE: Some early versions of WPA-capable client software may not permit a client to associate to the AP when multiple modes off encryption and authentication are chosen. 7 Managing Security 140Installation and Configuration Guide: Airgo Access Point WEP Security If it is necessary to configure WEP security, select Enable WEP to activate the WEP fields. Configure the following values in the WEP security area: Click Apply to save the settings or Reset to clear the fields on the panel. Open Access Select Enable Open Access to omit data encryption. A pop-up message warns of the potential security risk in using open access. Click OK to continue. SSID Authentication Use the SSID Authentication tab (Figure 103) to assign RADIUS Authentication servers or a WPA pre-shared key. RADIUS based authentication uses lists of servers, called authentication zones, which are provided by the Airgo AP security portal or an external RADIUS server. Each SSID can be configured with the RADIUS servers used for EAP authentication and the WPA pre-shared key (if applicable). MAC-ACL lookups can be enabled for clients that associate with WPA-PSK, manual WEP-keys, or with no security. MAC-ACL is not applicable if per user authentication is done where user name is available. NOTE: Selecting WPA-EAP or WPA-PSK displays a link that leads to the SSID Authentication tab. Refer to “SSID Authentication” on page 140 for instructions on using this tab. FieldDescription Enable WEPActivate the WEP settings. The Airgo AP supports WEP with dynamic and manually entered keys. To use dynamic keys, select WEP, but do not enter values in the Key fields. Key-LengthSelect 64-bit or 128-bit Key 1 - Key 4For manual keys, enter up to four WEP key values. Each WEP key is 26 hex- ASCII characters. (required if security mode is WEP) Configuring Wireless Security Installation and Configuration Guide: Airgo Access Point141 Figure 103: Security Services - SSID Auth Assign the following values to configure SSID authentication: Click Apply to save changes or Reset to return to previously saved values. It may be necessary to click Back on your browser to return to the Security Configuration panel. Make sure to also click Apply on the Security Configuration panel. An external RADIUS server can also be added from this tab. Click Go at the bottom of the tab to open the Authentication Zone tab of the Authentication Zones panel. For instructions on adding a server, refer to “Configuring Authentication Zones” on page 143. FeatureDescription SSID NameSelect from the SSID pull-down list. Click SSID Details to view more SSID- related information, enable multiple SSIDs, or change other SSID attributes. WPA Pre-Shared KeyEnter the pre-shared key for WPA, if appropriate. This field is grayed out if WPA-PSK is not the selected authentication type. Authentication Server Configuration Select the Security Portal or External Authentication Server radio button. For Security Portal, the IP addresses of all security portals are displayed below the radio button. For External security, select from the list of RADIUS servers or click Go at the bottom of the tab to configure the authentication server list (see “Authentication Zones” on page 143). (required) Enable MAC Access Control List Select to enable authentication using MAC addresses that are centrally managed in a RADIUS server. For MAC-ACL authentication, it is necessary to use a security portal or external RADIUS server. 7 Managing Security 1…

Text truncated - open the document above for the full version.

FCC Certifications This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ¦ Reorient or relocate the receiving antenna. ¦ Increase the separation between the equipment and receiver. ¦ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ¦ Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement To comply with RF radiation exposure requirements in FCC’s Rules, this product must be installed so there is a separation distance of at least 20 cm from all persons. This device may not be co-located with any other transmitter or transmitter antenna. Note: This product is certified for indoor use only.

[Installation and User Guide]: [Access Point]261 B Regulatory and License Information This appendix contains the regulatory and license information specific to the [Access Point] hardware and software. FCC Certifications This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. IDAccess Point RequirementDetails CERT1SafetyUL 1950 third edition TUV approval UL-2043 (Fire and Smoke) Compliance CERT2EMCEMC Directive 89/336/EEC (CE Mark) CERT3Radio ApprovalsFCC CFR47 Part 15, section 15.247 FCC (47CFR) Part 15B, Class B Emissions Canada IC RSS210 Japan MIC Radio Regulations Europe: ETS 300.328 CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. B Regulatory and License Information 262[Installation and User Guide]: [Access Point] This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.

1 Mike Kuo From: Mike Kuo Sent: August052004Thursday 11:47 AM To: Tom Cokenias Cc: CLIENT ADVOCATES; Michael Heckrotte Subject: FW: Airgo Networks, FCC ID: SA3-AGN1202AP0000, Assessment NO.: AN04T4106, Notice#1 -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Thursday, August 05, 2004 11:27 AM To: [email protected] Subject: Airgo Networks, FCC ID: SA3-AGN1202AP0000, Assessment NO.: AN04T4106, Notice#1 FYI : Some of technical questions were issued during AN04T4105 DTS portion of composite device filing. Those issues will not be repeated in this review. Please make sure to address Question 2,6,7 and 8 for this UNII applications as well. Question #1: For UNII device operates in 5.15-5.25GHz band, the operating is restricted to indoor use only per section 15.407(e) of FCC rules. In page 41, figure 27 of user manual, the software suggested that this device can be used for outdoor operation as well. Please describe how to limit the device can only be used for indoor in 5.15-5.25GHz band. Question #2: Please address 15.407(c) , 15.407(g) requirements. Question #3: In the user manual, please include information to restrict indoor use for 5.15-5.25GHz operation. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 email: [email protected] Compliance Certification Services 561F Monterey Road Morgan Hill, CA 95037 Attention: Mike Kuo Re: Reply to TCB questions regarding Airgo Networks Dual Band AP Subject: Airgo Networks, FCC ID: SA3-AGN1202AP0000, Assessment NO.: AN04T4105, Notice#1 Dear Mike, Answers to 1,2-1 4,5,6, and 7 are below. The other questions will be answered in a separate document. Question #1:Based upon internal photos, this Access point is capable of equipping with 3 mini-PCI radio module. As indicated in the internal photos, there are two identical 802.11 a/b/g modules installed. Please explain how the third mini-PCI slots will be used. ANS 1 The middle slot was intended for a VNP security module, which speeds the security processing when there are a lot of clients (i.e. like a security co-processor). The VNP security module is strictly a digital device and will be added later via permissive change route. Question #2: In the test report, there is no indication how the RF conducted measurements were performed. Please address the following issues : 1. Since there are two transmitting antenna connectors, please indicate which transmitting connector was used during RF conducted measurement. ANS 2-1 There are two transmitter ports on each radio board. A combiner and Hirose - to-SMA cables were connected to the transmitter ports, the combined output was connected to the spectrum analyzer. 2. Please clearly explain what is the operating conditions during measurements. In particular, what is the data rate used during b, g, a modulation, is only one transmitting function activated or both ? the tel: 650-726-1263 fax: 650-726-1252 [email protected] highest output power is measured with combined output power or individual output power ? Is combiner used ? ANS 2-2 Each radio was tested separately. Each radio can be configured for 2.4 GHz or 5 GHz operation, and there can only be one of each on a 2 radio AP. In other words, one radio is set for 2.4 operation, and the other must be set for 5 GHz operation only. The highest output reported was the combined output for Chain 1 and Chain 2 of each TX. See test setup diagram below 1200 AP 3. Please provide peak output power measurement data for the following mode of operation: One 802.11b mode with 1 mbps data rate measured at one transmitting connector Two 802.11 b model with 1 Mbps date rate measured with combiner One 802.11g mode with 6 Mbps date rate measured at one transmitting connector Two 802.11g mode with 6 Mbps data rate measured with combiner One 802.11g mode with 54 mbps data rate measured at one transmitting D S P TX/RX chain 1 RX only TX/RX chain 2 C O M B I N E R atten spectrum analyzer lapto tel: 650-726-1263 fax: 650-726-1252 [email protected] connector Two 802.11g mode with 54 mbps data rate measured with combiner One 802.11a mode with 6 Mbps data rate measured at one transmitting connector Two 802.11a mode with 6 Mbps data rate measured with combiner One 802.11a mode with 108 Mbps data rate measured at one transmitting connector Two 802.11a mode with 108 Mbps data rate measured wit combiner. One 802.11b mode with 1 Mbps data rate and one 802.11g mode with 54 data rate measured with combiner. ANSWER Data will be provided in separate document. Question #3: Page 41 , Figure 27 of user manual has information to allow the end user to select the channel and power. Please provide detail information to what type of setting is available for user to select. ANSWER will be provided in separate document Question #4: User Manual does not include information required per section 15.21 of FCC rules. Question #5: User manual does not include information to address RF exposure compliance. Please submit revised user manual to address this requirement. ANS 4 and 5 Refer to user manual wording to be added (attached). This was mistakenly omitted from the original attachments upload. Question #6: Please provide clear explanation to describe what is the test condition during radiated spurious emission and restricted bandedge. How many transmitters are activated ? what is the data rate ? ANS 6 Radios were tested one at a time. Spurious emissions and bandedge tests were performed at worst case as determined by preliminary testing: 11 Mbps for 802.11b and 6 Mbps for 802.11g, and for 802.11a. Question #7 Please take into account when multiple transmitters are transmitting simultaneously and relation to the output power in the MPE estimate. Please provide justification to show what is the separation distance is required when multiple transmitters are transmitting at the same tel: 650-726-1263 fax: 650-726-1252 [email protected] time. ANS 7 MPE was calculated by adding contributions from each TX antenna. Refer to attached document. Question #8 :Based upon the spectrum plots of output power, the duty cycle may not be transmitted at 100 %. Please provide technical description to describe the duty cycle for one transmitter , two transmitter in each mode and in each data rate. ANSWER Data will be provided in separate document.

Airgo Networks FCC ID: SA3-AGN1202P0000 True MIMO AP Co-location Radiated Emissions 2412 MHz and 5180 MHz, Ave and Pk Horizontal Polarity Airgo Networks FCC ID: SA3-AGN1202P0000 True MIMO AP Co-location Radiated Emissions 2412 MHz and 5180 MHz, Ave and Pk Horizontal Polarity

Mike Kuo From: Tom Cokenias [[email protected]] Sent: August10 2004 Tuesday 4:27 PM To: Mike Kuo Subject: Re: FW: Airgo Networks, FCC ID: SA3-AGN1202AP0000, Assessment NO.: A N04T4106, Notice#1 8/15/2004 -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Thursday, August 05, 2004 11:27 AM To: [email protected] Subject: Airgo Networks, FCC ID: SA3-AGN1202AP0000, Assessment NO.: AN04T4106, Notice#1 FYI : Some of technical questions were issued during AN04T4105 DTS portion of composite device filing. Those issues will not be repeated in this review. Please make sure to address Question 2,6,7 and 8 for this UNII applications as well. Question #1: For UNII device operates in 5.15-5.25GHz band, the operating is restricted to indoor use only per section 15.407(e) of FCC rules. In page 41, figure 27 of user manual, the software suggested that this device can be used for outdoor operation as well. Please describe how to limit the device can only be used for indoor in 5.15-5.25GHz band. ANS1 1) For units sold in the US, the country will be defaulted to US and the environment will be defaulted to Indoor.Ê The user will not be able to change this.Ê If the user attempts to change this via any of the interfaces (web, command line, SNMP) they will not be able to and they will get back a message stating that they are not allowed to make the change. 2) There will be no other changes to the user interface (other than the lack of ability to change the country and environment settings and the message stating that if you do try to). 3) There will be no changes to the documentation. Question #2: Please address 15.407(c) , 15.407(g) requirements. ANS2: The explanation required in 15.407 c) as given by our system architect, Dr. V K Jones, is the following: "The device operates at all times under the CSMA mechanism of the 802.11 protocol. Hence, the default operation of the device is to be in receive-only mode until two conditions are satisfied. The device initiates transmissions only when the medium is clear from transmissions on the current operation channel and, in addition to, when there is a data transmission request initiated by the host for the device. The device acts as the slave and accepts data through a PCI bus electrical interface that is controlled by a host CPU. Therefore, in default operation, no transmission is initiated in the absence of information, unless for the purpose of system management signaling (e.g. periodic beacon packets from an access point). Since the default operation of the device is to be in receive-only mode, operational failure will result in no transmissions. Additional protection is guaranteed by on-device detection of synthesizer lock failure which prevents any modifications to the center frequency control during catastrophic events." The requirements of 15.407 g) are also addressed by the explanation above, combined with the fact that the synthesizer is locked to a crystal oscillator with a frequency stability better than +/- 20 ppm as required by 802.11 (see attached data sheet). For 5805 GHz, 20 ppm represents a drift of 116.1 kHz, and the bandedge is 12 MHz above the channel skirts. Question #3: In the user manual, please include information to restrict indoor use for 5.15-5.25GHz operation. ANS3 Same as ANS 1 Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 8/15/2004

Mike Kuo From: Tom Cokenias [[email protected]] Sent: August13 2004 Friday 7:11 PM To: [email protected] Cc: [email protected] Subject: Fwd: RE: FW: Airgo Networks, FCC ID: SA3-AGN1202AP0000, Assessment NO.: A N04T4106, Notice#1 8/15/2004 Mike, Per your suggestion I have added the requirement for indoor operation to the Regulatory statement. The rest of the product documentation can remain the same. As you indicated, this statement is required because should the user attempt to operate the system out doors, the statement in the regulatory warning absolves the grantee of any liability. best regards Tom X-Original-To: [email protected] Delivered-To: [email protected] Subject: RE: FW: Airgo Networks, FCC ID: SA3-AGN1202AP0000, Assessment NO.: A N04T4106, Notice#1 Date: Fri, 13 Aug 2004 17:01:34 -0700 Thread-Topic: FW: Airgo Networks, FCC ID: SA3-AGN1202AP0000, Assessment NO.: A N04T4106, Notice#1 Thread-Index: AcSBcb2gU21Wh6jGTqSPYHbptKgKbQAH9rVA From: "Majid Malek" <[email protected]> To: "Tom Cokenias" <[email protected]> Cc: "Lance Mucenieks" <[email protected]> X-Spam-Checker-Version: SpamAssassin 2.63-1.2 (2004-01-11) on ethra2.cokenias.org X-Spam-Level: X-Spam-Status: No, hits=-0.6 required=6.5 tests=BAYES_00, HTML_FONTCOLOR_UNKNOWN,HTML_MESSAGE,SUBJ_HAS_SPACES autolearn=no version=2.63-1.2 Status: Tom Š there will be no statement in the manual, however the default will be indoor and the user will not be able to change that in the UI and will get a message indicating that if they try to.Ê Please communicate this to CCS is appropriate. From: Tom Cokenias [mailto:[email protected]] Sent: Friday, August 13, 2004 1:12 PM To: Mike Kuo Subject: Re: FW: Airgo Networks, FCC ID: SA3-AGN1202AP0000, Assessment NO.: A N04T4106, Notice#1 Mike, Per your instructions and in keeping with FCC requirements, a statement will be placed in the user manual instructing the user that the product is for indoor use only. best regards Tom -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Thursday, August 05, 2004 11:27 AM To: [email protected] Subject: Airgo Networks, FCC ID: SA3-AGN1202AP0000, Assessment NO.: AN04T4106, Notice#1 FYI : Some of technical questions were issued during AN04T4105 DTS portion of composite device filing. Those issues will not be repeated in this review. Please make sure to address Question 2,6,7 and 8 for this UNII applications as well. Question #1: For UNII device operates in 5.15-5.25GHz band, the operating is restricted to indoor use only per section 15.407(e) of FCC rules. In page 41, figure 27 of user manual, th…
