SA3-AGN1223AR0100802.11 a/b/g True MIMO APx Module

FCC Certifications This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ¦ Reorient or relocate the receiving antenna. ¦ Increase the separation between the equipment and receiver. ¦ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ¦ Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement To comply with RF radiation exposure requirements in FCC’s Rules, this product must be installed so there is a separation distance of at least 20 cm from all persons. This device may not be co-located with any other transmitter or transmitter antenna. Note: This product is certified for indoor use only.

tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 FCC Laboratory 27 July 2004 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner Reviewing Engineer Applicant: Airgo Networks Inc. FCC ID: SA3-AGN1202AP0000 Re: Request for confidentiality per section 0.459 of the Rules To whom it may concern, Request is hereby submitted, on behalf of my client Airgo Networks Inc. to withhold from public review, for an indefinite period of time, certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Block Diagrams Operational Description Rationale for request for confidentiality: Airgo has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely, tel: 650-726-1263 fax: 650-726-1252 [email protected] THOMAS N. COKENIAS EMC Consultant/Agent for Airgo Networks Inc.

tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 FCC Laboratory 7 January 2005 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner Reviewing Engineer Applicant: Airgo Networks Inc. FCC ID: SA3-AGN1223AR0100 File Confirmation Numbers: EA740086, EA387854 Description: 802.11a/b/g True MIMO Mini PCI Module Re: Applicability of Data from Previously Granted Device Description: 802.11a/b/g True MIMO Access Point FCC ID: SA3-AGN1202AP0000 Grant Date: 4 October 2004 To whom it may concern, The mini pci module referenced above is identical to the mini pci card that was installed in the Access Point granted in October. As such, previous data for antenna conducted data and AC line conducted data are applicable to and representative of emissions that would be expected from the EUT alone. A copy of the previously submitted data are included as exhibits in the referenced applicaton. If you have questions or need further information, please contact the undersigned. Sincerely, THOMAS N. COKENIAS EMC Consultant/Agent for Airgo Networks Inc.

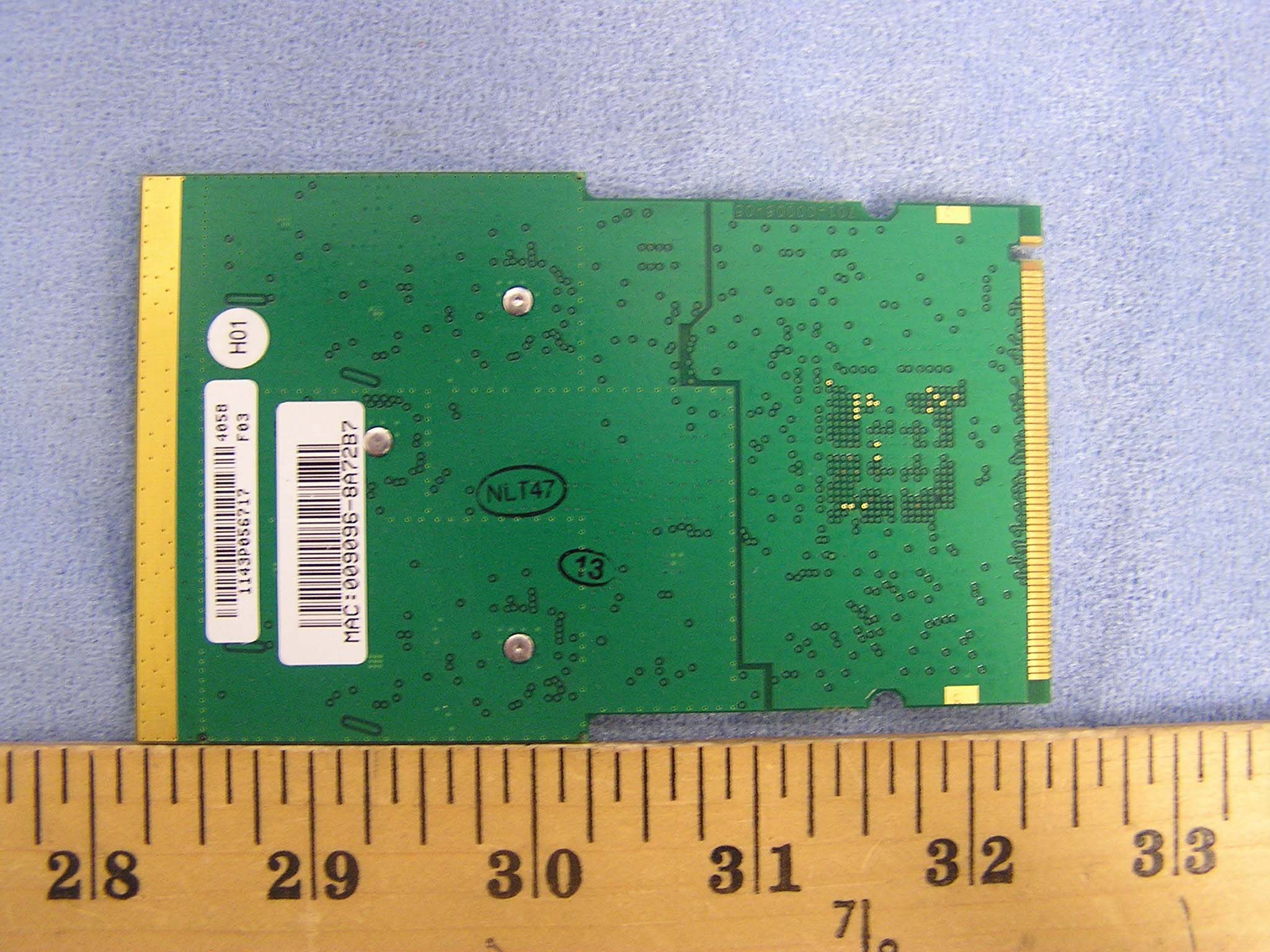

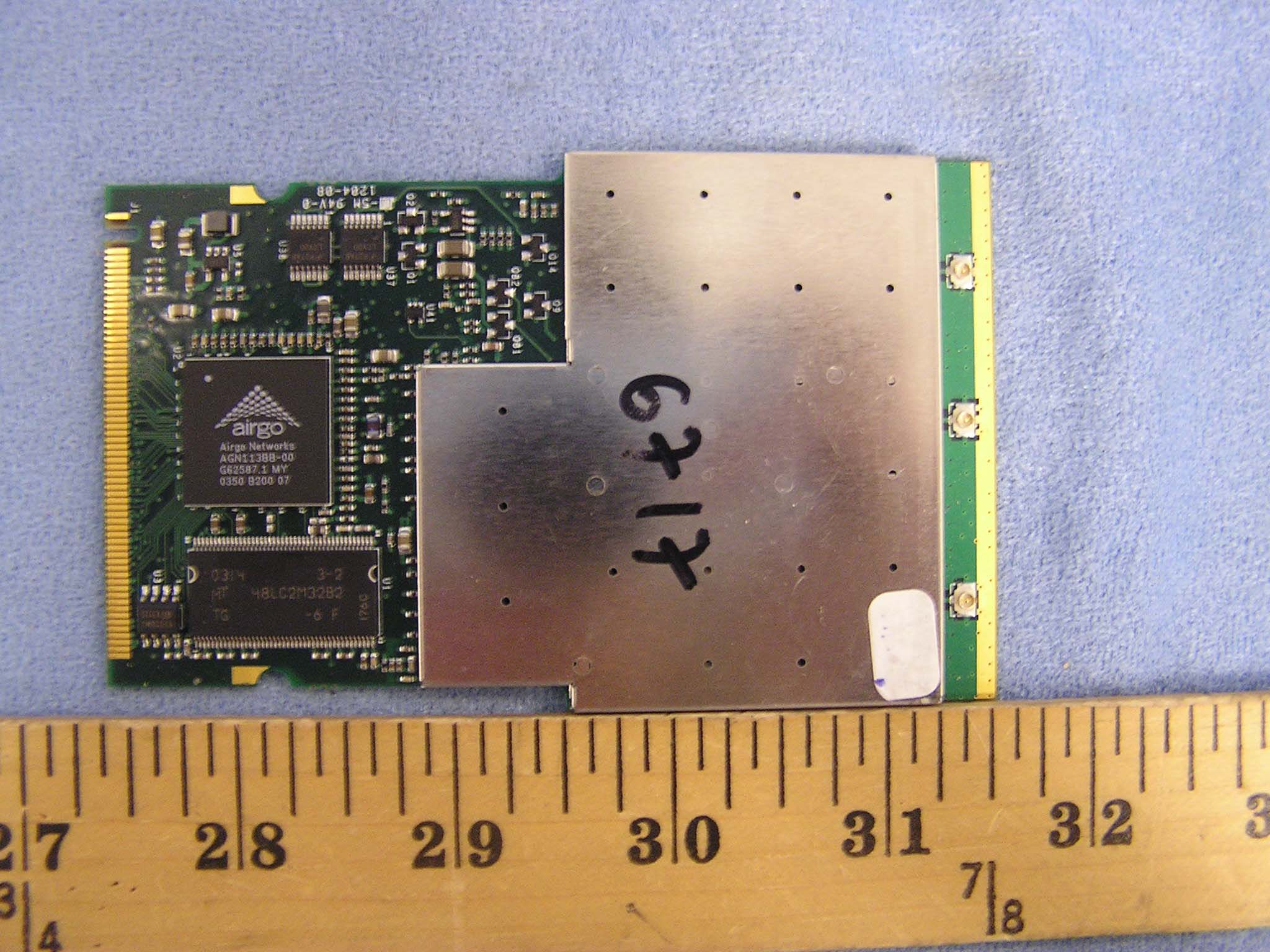

Airgo Networks Inc. FCC ID: SA3-AGN1223AR0100 802.11 a/b/g True MIMO APx mini PCI modular radio Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal power regulator. Refer to Block diagram 4 Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna ( Hirose) connector. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested on an extender board connected to laptop. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. FCC ID of label is to be placed on the module. OEM installation manual instructs installer to place required wording “Contains FCC ID:” on products containing device 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). MPE calculations submitted for 2/3 dBi antennas. Product will not be used in portable devices.

tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 FCC Laboratory 3 March 2005 7435 Oakland Mills Road Columbia MD 21046 Attention: Application Examiner Reviewing Engineer Confidentiality Request per 0.459 of FCC Rule Application for a combination DTS/U-NII APx Module Applicant: Airgo Networks Inc. FCC ID: SA3-AGN1223AR0100 To whom it may concern, Request is hereby submitted, on behalf of my client Airgo Networks Inc. to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Block Diagram Operational Description OEM Module Installation manual Note: this request for confidentiality updates the 31 August letter by adding the OEM module installation manual. Rationale for request for confidentiality: Airgo has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. The OEM installation instructions contain block diagram and pin designation information that would normally be eligible for witholding from public view if submitted as part of block diagram, schematic, or operational description. If you have questions or need further information, please contact the undersigned. Sincerely, tel: 650-726-1263 fax: 650-726-1252 [email protected] THOMAS N. COKENIAS EMC Consultant/Agent for Airgo Networks Inc.

FCC ID: SA3-AGN1223AR0100 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference than may cause undesired operation IC: 5215A-1223AR01

APPROVAL SHEET CUSTOMER FILE NO . : ESCRIPTION : 802.11 a+b ANTENNIQUES P/N : FCF-003-103-02 CUSTOMER P/N : DATE : 91 9 18 Customer Approval Antenniques Co.,Ltd 12265 TEL02-2668-5793 FAX02-2668-5795 5F,No.6,Laine 122, Sec 2,Ganyun St, Shulin Chulin City, Taipei Hsien,238 Taiwan R.O.C. [email protected] www.antenniques.com.tw TECHNICAL DATA Electrical Properties Frequency Range 2.42.5GHz & 5.15~5.85 GHz Impedance 50 Ohm nominal VSWR 2.0 Gain 5.15`~~5.85 GHz GAIN 3dBi : 2.4~~~2.5 GHZ GAIN 2dBi Radiation Omni Polarization Vertical Electrical Wave Dipole ARRAY Connector IPEX Plug Mechanical Properties Antenna Cover PU Color Black Operation Temperature2060 Storage Temperature -3075 SPECIFICATION OF COAX 50 Ohms AWG32 CORE PTFE D=1.13 mm AXON’CABLE S.A.S. CABLE & INTERCONNECT ROUTE DE CHALONS-SUR-MARNE 51210 MONTMIRAIL-FRANCE Tel : (33) 03 26 81 70 00 Fax : (33) 03 26 81 28 83 e-mail : [email protected] N° P530738A Page 1/1 This document is the property of AXON’CABLE SA, and is issued on the condition that it is not copied or disclosed to any third party without prior written consent from AXON’CABLE SA Index Date Designed by Approval Description of the Modifications A 02/04/02 PV SW CREATION I – Scope This specification presents a PTFE jacketed COAXIAL cable AWG32, 1.13 mm O.D.for internal wiring of electronic equipment, such as Computer / Notebook with wireless communication systems. II – Construction Item Unit Details Material - Silver Plated Copper Composition No./mm AWG32 or 7 x 0.079 1-Inner Conductor Nom. O.D. mm 0.237 Material - Extruded PTFE Nom. O.D. mm 0.68 2-Dielectric Color - Natural Material - Tin Plated Copper Composition - Braided Shield AWG44 3-Outer Conductor Approx. O.D. mm 0.90 Material - Extruded FEP O.D. (mm) mm 1.13±0.05 5-Outer Jacket Color - P530738A^ P530738A^V1 P530738A^V2 : Light Grey : Black : Dark Grey III – Characteristics Item Unit Nom. Value Inner Conductor resistance @20°C Ω/km 525 max. Characteristic Impedance Ω 50 ± 2 Capacitance PF/m 98 @ 1.0 GHz 1.8 @ 1.5 GHz 2.3 @ 2.0 GHz 2.6 @ 2.45 GHz 3.0 @ 5.2 GHz 4.6 Nom. Attenuation (dB/m) @ 5.8 GHz 5.0 Temperature Rating °C 150 Approx. Weight g/m 3.5

Airgo 802.11a/b/g True MIMO APx Module FCC ID: SA3-AGN1223AR0100 MPE Calculations The EUT is an 802.11 abg radio module that operates either at 2.4 or at 5 GHz. The radio uses 3 antennas in MIMO (multiple in, multiple out) configuration. Two of the antennas are transmit/receive, the third antenna is receive only. The receive only antenna is the center antenna of the triplet.. Each transmit antenna is fed half the total radio output power at that frequency. Maximum Power output: 2.4 GHz: 28.9 dBm ( 2412 MHz in 802.11g mode) 5 GHz: 29.1 dBm (5745 MHz DTS) Antenna gain, 2.4GHz: 2 dBi Antenna gain, 5 GHz: 3 dBi One-half power 2.4 GHz: 25.9 dBm One-half power 5 GHz: 26.1 dBm Maximum EIRP from each 2.4 GHz transmit antenna is 25.9 + 2 = 27.9 dBm EIRP Maximum EIRP from each 5 GHz transmit antenna is 26.1 + 3 = 29.1 dBm EIRP To determine the overall exposure at 20 cm from the EUT, the contribution from each antenna will be added and then compared to the limit of 1 mW/cm 2 1 2 3 D(1-2) = D(2-3) = 3cm d1 (20cm from RX only antenna 2) A point 20 cm from the projected center of the EUT antennas is intuitively the point at which both antennas are at their minimum separation distance, meaning the greatest field strength contribution will be located here. This is the result of a number of iterations of the calculation spread sheet, choosing different locations along the length of the EUT for exposure points. Power density decreases as the square of the separation distance, so that even if the 20 cm point is directly in front of one of the antennas, the contributions from the other antennas are less. Antenna 1 distance to d1: (3 2 + 20 2 ) 0.5 = 20.2cm = 0.202m Antenna 2 distance to d1: (3 2 + 20 2 ) 0.5 = 20.2 cm = 0.202m The field strength contribution from each antenna is calculated using the equation E, V/m = (30*EIRP,watts) 0.5 /separation distance Maximum EIRP from each 2.4 GHz transmit antenna is 27.9 dBm EIRP = 0.617 watt EIRP Maximum EIRP from each 5 GHz transmit antenna is 29.1 dBm EIRP = 0.813 watt EIRP S, mW/cm2 = E/3770 , E in V/m Total exposure at d1: Worst case, 2.4 GHz operation: 0.241 mW.cm2 Worst case, 5 GHz operation: 0.290 mW/cm2 FCC Limit: 1.0 mW/cm2

Airgo Networks 1200AP Power Measurements - DTS Portion FCC ID: SA3-AGN1202AP0000 Maximum Output power measurement summary Mode Frequency, MHz P average, info only P, DTS per Rules Agilent E4416A meter Agilent E9327A sensor Agilent E4446A analyzer 802.11a 6 Mbps 5745 18.63 dBm AVE 27.47 dBm PEAK 5785 19.75 dBm AVE 29.19 dBm PEAK 5805 17.10 dBm AVE 27.80 dBm PEAK 802.11b 11 Mbps 2412 20.84 dBm AVE 22.33 dBm PEAK 2437 20.72 dBm AVE 23.51 dBm PEAK 2462 19.37 dBm AVE 22.33 dBm PEAK 802.11g 6 Mbps 2412 20.2 dBm AVE 28.54 dBm PEAK 2437 19.95 dBm AVE 28.9 dBm PEAK 2462 20.3 dBm AVE 28.21 dBm PEAK Test Set-Up EUT controlled by Airgo “RTT” software, updated 30 Sept 2004 Airgo Networks 1200AP Power Measurements FCC ID: SA3-AGN1202AP0000 802.11 a mode 6 Mbps Airgo Networks 1200AP Power Measurements FCC ID: SA3-AGN1202AP0000 802.11 a mode 6 Mbps Airgo Networks 1200AP Power Measurements FCC ID: SA3-AGN1202AP0000 802.11 a mode 6 Mbps FCC ID: SA3-AGN1202AP0000 802.11 b mode FCC ID: SA3-AGN1202AP0000 802.11 b mode FCC ID: SA3-AGN1202AP0000 802.11 b mode FCC ID: SA3-AGN1202AP0000 802.11 g mode 6 Mbps FCC ID: SA3-AGN1202AP0000 802.11 g mode 6 Mbps Average power meter measurement: 13.9 dBm FCC ID: SA3-AGN1202AP0000 802.11 g mode 6 Mbps Channel Rate 2 Power Table MHz 1-11 6-12 18 24 36 48 54 72 96 108 2412 20 20 19 19 17 16 14 16 14 14 2417 20 20 19 19 17 16 14 16 14 14 2422 20 20 19 19 17 16 14 16 14 14 2427 20 20 19 19 17 16 14 16 14 14 2432 20 20 19 19 17 16 14 16 14 14 2437 20 20 19 19 17 16 14 16 14 14 2442 20 20 19 19 17 16 14 16 14 14 2447 20 20 19 19 17 16 14 16 14 14 2452 20 20 19 19 17 16 14 16 14 14 2457 20 20 19 19 17 16 14 16 14 14 2462 20 20 19 19 17 16 14 16 14 14 5200 17 17 17 17 15 14 12 14 12 12 5210 17 17 17 17 15 14 12 14 12 12 5220 17 17 17 17 15 14 12 14 12 12 5240 17 17 17 17 15 14 12 14 12 12 5260 17 17 17 17 15 14 12 14 12 12 5280 17 17 17 17 15 14 12 14 12 12 5300 17 17 17 17 15 14 12 14 12 12 5320 17 17 17 17 15 14 12 14 12 12 5745 17 17 17 17 14 13 11 13 11 11 5765 17 17 17 17 14 13 11 13 11 11 5785 17 17 17 17 14 13 11 13 11 11 5805 17 17 17 17 14 13 11 13 11 11 Maximum power per transmit chain, based on frequency and data rate . Total power 3 dB higher (2X)

FCC ID: SA3-AGN1223AR0100 DTS Operation 802.11a/b/g APx mini pci radio module 1 of 6 Airgo Networks Inc. EMISSIONS TEST REPORT FOR A LOW POWER TRANSMITTER I. GENERAL INFORMATION Requirement:Federal Communications Commissions Test Requirements: 15.205, 15.207, 15.209, 15.407 Applicant:Airgo Networks Inc. FCC ID:!! II. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) The Airgo Model AGN1201AP 802.11a/b/g True MIMO APx mini pci radio module. III. TEST DATES AND TEST LOCATION Testing was performed 12 Dec 04 and 21 Jan 05. All tests were performed at: Compliance Certification Services 561F Monterey Road Morgan Hill, CA 95037 T.N. Cokenias5 February 2005 EMC Consultant/Agent for Airgo Networks FCC ID: SA3-AGN1223AR0100 DTS Operation 802.11a/b/g APx mini pci radio module 2 of 6 Airgo Networks Inc. 15.203 Antenna connector requirement The antenna is to be permanently attached to the product. 15.204 Antenna description Antenna descriptionGain Omni Monopole 3 in MIMO configuration (2 TX/RX, 1 RX only) 2 dBi 2.4 GHz band 3 dBi 5 GHz bands TEST PROCEDURES All tests were performed in accordance with the applicable procedures called out in the following document(s,) unless otherwise noted: 1) ANSI C63.4 – 2003, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz TEST RESULTS Radiated Emissions Test Requirement: 15.205, 15.247 Out of Band Measurements Test Requirement: 15.247 Measurement Equipment Used: Agilent 4444A Spectrum Analyzer, 9 kHz-44 GHz EMCO 3115 Horn antenna, 1-18 GHZ Miteq pre-amplifier, 1 – 26.5 GHz Bandpass/high pass filters Radiated emissions generated by the transmitter portion of the EUT were measured. 1. The EUT was placed on a wooden table resting on a turntable on the test site. The EUT was configured to transmit continuously for each modulation at the maximum power levels recorded for power output measurements. FCC ID: SA3-AGN1223AR0100 DTS Operation 802.11a/b/g APx mini pci radio module 3 of 6 Airgo Networks Inc. The search antenna was placed 3m from the EUT. The EUT antennas were arranged vertically as per normal installation. 2. The turntable was slowly rotated to locate the direction of maximum emission at each emission falling in the restricted bands of 15.205. 3. Radiated emissions were investigated for a LOW channel, a MID channel, and HIGH channel. Emissions were investigated to the 10 th harmonic. 4. Once maximum direction was determined, the search antenna was raised and lowered in both vertical and horizontal polarizations. The maximum readings so obtained are recorded in the data listed below. Test Results: PASS. Worst case results are presented. Refer to data sheets below. FCC Radiated Emissions Limits Section 15.205 Restricted bands of operation. (a) Except as shown in paragraph (d) of this section, only spurious emissions are permitted in any of the frequency bands listed below: MHzMHzMHzGHz 0.090 - 0.110 0.495 - 0.505 (1) 2.1735 - 2.1905 4.125 - 4.128 4.17725 - 4.17775 4.20725 - 4.20775 6.215 - 6.218 6.26775 - 6.26825 6.31175 - 6.31225 8.291 - 8.294 8.362 - 8.366 8.37625 - 8.38675 8.41425 - 8.41475 12.29 - 12.293 12.51975 - 12.52025 12.57675 - 12.57725 13.36 - 13.41 16.42 - 16.423 16.69475 - 16.69525 16.80425 - 16.80475 25.5 - 25.67 37.5 - 38.25 73 - 74.6 74.8 - 75.2 108 - 121.94 123 - 138 149.9 - 150.05 156.52475 - 156.52525 156.7 - 156.9 162.0125 - 167.17 167.72 - 173.2 240 - 285 322 - 335.4 399.9 - 410 608 - 614 960 - 1240 1300 - 1427 1435 - 1626.5 1645.5 - 1646.5 1660 - 1710 1718.8 - 1722.2 2200 - 2300 2310 - 2390 2483.5 - 2500 2655 - 2900 3260 - 3267 3332 - 3339 3345.8 - 3358 3600 - 4400 4.5 - 5.15 5.35 - 5.46 7.25 - 7.75 8.025 - 8.5 9.0 - 9.2 9.3 - 9.5 10.6 - 12.7 13.25 - 13.4 14.47 - 14.5 15.35 - 16.2 17.7 - 21.4 22.01 - 23.12 23.6 - 24.0 31.2 - 31.8 36.43 - 36.5 (2) 1 Until February 1, 1999, this restricted band shall be 0.490-0.510 MHz. 2 Above 38.6 (b) Except as provided in paragraphs (d) and (e), the field strength of emissions appearing within these frequency bands shall not exceed the limits shown in Section 15.209. At frequencies equal to or less than 1000 MHz, compliance with the limits in Section 15.209 shall be demonstrated using measurement instrumentation employing a CISPR quasi-peak detector. Above 1000 MHz, compliance with the emission limits in Section 15.209 shall be demonstrated based on the average value of the measured emissions. The provisions in Section 15.35 apply to these measurements. (c) Except as provided in paragraphs (d) and (e), regardless of the field strength limits specified elsewhere in this Subpart, the provisions of this Section apply to emissions from any intentional radiator. FCC ID: SA3-AGN1223AR0100 DTS Operation 802.11a/b/g APx mini pci radio module 4 of 6 Airgo Networks Inc. Section 15.209 Radiated emission limits, general requirements. (a) Except as provided elsewhere in this Subpart, the emissions from an intentional radiator shall not exceed the field strength levels specified in the following table: Frequency Field Strength Measurement Distance (MHz) (microvolts/meter) (meters) _______________________________________________________________ 0.009 - 0.490 2400/F(kHz) 300 0.490 - 1.705 24000/F(kHz) 30 1.705 - 30.0 30 30 30 - 88 100 ** 3 88 - 216 150 ** 3 216 - 960 200 ** 3 Above 960 500 3 _______________________________________________________________ ** Except as provided in paragraph (g), fundamental emissions from intentional radiators operating under this Section shall not be located in the frequency bands 54-72 MHz, 76-88 MHz, 174-216 MHz or 470-806 MHz. However, operation within these frequency bands is permitted under other sections of this Part, e.g., Sections 15.231 and 15.241. (b) In the emission table above, the tighter limit applies at the band edges. (c) The level of any unwanted emissions from an intentional radiator operating under these general provisions shall not exceed the level of the fundame…

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR TRUE MIMO ACCESS POINT MODEL NUMBER: AGN1202AP FCC ID: SA3-AGN1202AP0000 REPORT NUMBER: 04U2821-1 ISSUE DATE: JULY 27, 2004 Prepared for AIRGO NETWORKS INC. 900 ARASTRADERO ROAD PALO ALTO, CA 94304, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 04U2821-1 DATE: JULY 27, 2004 EUT: True MIMO Access Point FCC ID: SA3-AGN1202AP0000 Page 2 of 113 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................. 3 2. EUT DESCRIPTION.......................................................................................................................... 4 3. TEST METHODOLOGY .................................................................................................................. 5 4. FACILITIES AND ACCREDITATION .......................................................................................... 5 5. CALIBRATION AND UNCERTAINTY.......................................................................................... 6 5.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 6 5.2. MEASUREMENT UNCERTAINTY ............................................................................................... 6 5.3. TEST AND MEASUREMENT EQUIPMENT................................................................................ 7 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 8 7. APPLICABLE LIMITS AND TEST RESULTS ........................................................................... 10 7.1. 6 dB BANDWIDTH ..................................................................................................................... 10 7.2. 99% BANDWIDTH ..................................................................................................................... 21 7.3. PEAK OUTPUT POWER............................................................................................................ 32 7.4. MAXIMUM PERMISSIBLE EXPOSURE ................................................................................... 44 7.5. AVERAGE POWER..................................................................................................................... 47 7.6. PEAK POWER SPECTRAL DENSITY ....................................................................................... 49 7.7. CONDUCTED SPURIOUS EMISSIONS.................................................................................... 60 7.8. RADIATED EMISSIONS.............................................................................................................79 7.8.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 79 7.8.2. TRANSMITTER RADIATED EMISSIONS ABOVE 1 GHZ .......................................... 82 7.8.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz ........................................... 101 7.9. POWERLINE CONDUCTED EMISSIONS .............................................................................. 105 8. SETUP PHOTOS ............................................................................................................................ 109 REPORT NO: 04U2821-1 DATE: JULY 27, 2004 EUT: True MIMO Access Point FCC ID: SA3-AGN1202AP0000 Page 3 of 113 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: AIRGO NETWORKS INC 900 ARASTRADERO ROAD PALO ALTO, CA 94304 U.S.A. EUT DESCRIPTION: True MIMO Access Point MODEL: AGN1202AP DATE TESTED: JULY 7, 2004 to JULY 23, 2004 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Note: The 2.4 and 5.8 GHz bands are applicable to this report; another band of operation (5.2 GHz) is documented in a separate report. Approved & Released For CCS By: Tested By: MICHAEL HECKROTTE THANH NGUYEN EMC MANAGER EMC TECHNICIAN COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 04U2821-1 DATE: JULY 27, 2004 EUT: True MIMO Access Point FCC ID: SA3-AGN1202AP0000 Page 4 of 113 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and…

Text truncated - open the document above for the full version.

Airgo 802.11a/b/g True MIMO AP Module FCC ID: SA3-AGN1223AR0100 Radiated Emission Test Set-up
