SA3-AGN1223AR03002.4GHz True MIMO Radio Module

F5D8230-4 user draft.docPage 1 of 89 [insert title page per branding standard] Wireless Pre-N Router Share your high-speed Internet connection without cables [this should match pkg] User Manual F5D8230-4 Table of Contents 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x Revolutionary 108Mbps Wireless Pre-N Technology with MIMO .x Placement of your Wireless Pre-N Router . . . . . . . . . . . . . . . . .x 2 Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x 3 Knowing your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x Easy Install Wizard Software System Requirements . . . . . .x 4 Connecting and Configuring your Router . . . . . . . . . . . . . . .x 5 Alternate Setup Method . . . . . . . . . . . . . . . . . . . . . . . . . . .x 6 Using the Web-Based Advanced User Interface . . . . . . . . . .x Changing LAN Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .x Viewing the DHCP Client List Page . . . . . . . . . . . . . . . . . x Configuring the Wireless Network Settings . . . . . . . . . . . x Setting WPA Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x Setting WEP Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x Using the Access Point Mode . . . . . . . . . . . . . . . . . . . . . .x Setting MAC Address Control . . . . . . . . . . . . . . . . . . . . . .x Configuring the Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . x Using Dynamic DNS Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x Restarting the Router . . . . . . . . . . . . . . . . . . . . . . . . . x Updating the Firmware . . . . . . . . . . . . . . . . . . . . . . . . x 7 Manually Configuring Network Settings . . . . . . .x 8 Recommended Web Browser Settings . . . . . . . . . . . . . . . . .x 9 How to Set Up your Network to Operate with AOL® for Broadband and your New Belkin Router . . . . . . . . . . . . . . . .x 10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x 11 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x F5D8230-4 user draft.docPage 2 of 89 Introduction Thank you for purchasing the Belkin Wireless Pre-N Router (the Router). Following are two short sections—the first discusses the benefits of home networking, and the other outlines best practices that maximize your wireless home network range and performance. Please be sure to read through this User Manual completely, and pay special attention to the section entitled “Placement of your Wireless Networking Hardware for Optimal Performance” on the next page. By following our simple setup instructions you will be able to use your Belkin Home Network to: • Share one high-speed Internet connection with all the computers in your home • Share resources, such as files and hard drives among all the connected computers in your home • Share a single printer with the entire family • Share documents, music, video, and digital pictures • Store, retrieve, and copy files from one computer to another • Simultaneously play games online, check Internet e-mail, and chat Here are some of the advantages of setting up a Belkin Wireless Network: • Mobility – you’ll no longer need a dedicated “computer room”—now you can work on a networked laptop or desktop computer anywhere within your wireless range • Easy installation – Belkin’s Easy Installation Wizard makes setup simple • Flexibility – set up and access printers, computers, and other networking devices from anywhere in your home • Easy Expansion – the wide range of Belkin networking products let you expand your network to include devices such as printers and gaming consoles • No cabling required – you can spare the expense and hassle of retrofitting Ethernet cabling throughout the home or office • Widespread industry acceptance – choose from a wide range of interoperable networking products. MIMO technology will be used for 802.11n, a standard for next-generation 802.11 products that boosts throughput to 100Mbps. The element that makes Belkin’s Pre-N MIMO technology different from a conventional radio is the use of three antennas and two simultaneous data streams to deliver wireless transfers around your home or office. A conventional radio uses one antenna to transmit a data stream. Belkin’s smart antenna radio (MIMO), on the other hand, uses three antennas. This design helps combat distortion and interference. Belkin’s Pre-N MIMO is multidimensional. It builds on one-dimensional smart antenna technology by simultaneously transmitting two data streams through the same channel, which increases wireless capacity. Think of conventional radio transmission as a two-lane highway. The speed limit governs the maximum allowable flow of traffic through that lane. Compared with conventional radios, one- dimensional smart antenna systems help move traffic through that lane faster and more reliably—analogous to a four-lane road on which traffic consistently moves at a rate closer to the speed limit. Belkin’s Pre-N MIMO helps traffic move at the speed limit and opens more lanes—to become the superhighway in this example. The rate of traffic flow is multiplied by the number of lanes that are opened. Revolutionary 108Mbps Wireless Pre-N Technology with MIMO Your Belkin Wireless Pre-N Router uses a new smart antenna technology called Multiple Input Multiple Output (MIMO). MIMO is a smart antenna technique that increases speed, range, reliability, and spectral efficiency for wireless networking systems. F5D8230-4 user draft.docPage 3 of 89 During the 1990s, Stanford University researchers Greg Raleigh and V.K. Jones showed that a characterist…

Text truncated - open the document above for the full version.

tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 FCC Laboratory 31 August 2004 7435 Oakland Mills Road Columbia MD 21046 Attention: Application Examiner Reviewing Engineer Confidentiality Request , Application for a combination DTS/U-NII Access Point Applicant: Airgo Networks Inc. FCC ID: SA3-AGN1223AR0300 To whom it may concern, Request is hereby submitted, on behalf of my client Airgo Networks Inc. to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Block Diagram Operational Description Rationale for request for confidentiality: Airgo has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely, THOMAS N. COKENIAS EMC Consultant/Agent for Airgo Networks Inc. tel: 650-726-1263 fax: 650-726-1252 [email protected]

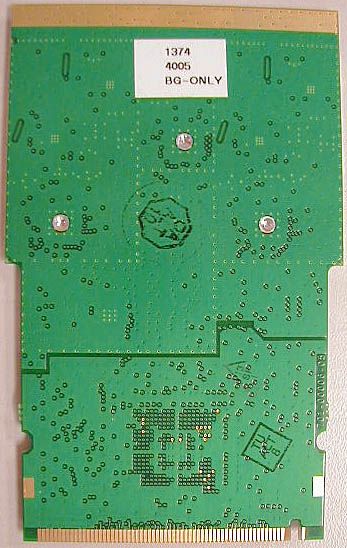

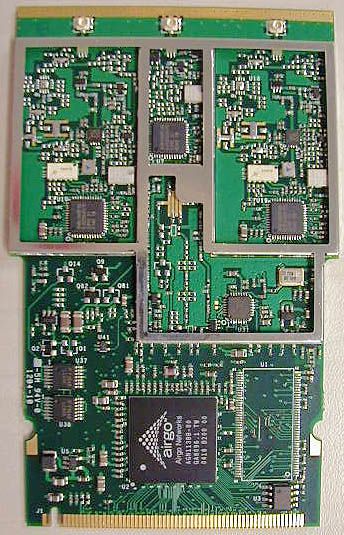

Airgo Networks Inc. FCC ID: SA3-AGN1223AR0300 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal power regulator. Refer to Block diagram 4 Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna ( Hirose) connector. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested on an extender board connected to laptop. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Two proposed FCC ID label format are included in the filing. One of label is to be placed on the module and the other label is to be placed on the outside of system. Refer to FCC ID label format and location file. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). MPE calculations submitted for 3 dBi antennas. Product will not be used in portable devices.

tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 FCC Laboratory 30 September 2004 7435 Oakland Mills Road Columbia MD 21046 Attention: Application Examiner Reviewing Engineer Confidentiality Request , Application for a combination DTS/U-NII Access Point Applicant: Airgo Networks Inc. FCC ID: SA3-AGN1223AR0300 To whom it may concern, Request is hereby submitted, on behalf of my client Airgo Networks Inc. to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Block Diagram Operational Description OEM Module Installation manual Note: this request for confidentiality updates the 31 August letter by adding the OEM module installation manual. Rationale for request for confidentiality: Airgo has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely, tel: 650-726-1263 fax: 650-726-1252 [email protected] THOMAS N. COKENIAS EMC Consultant/Agent for Airgo Networks Inc.

FCC ID: SA3-AGN1223AR0300 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference than may cause undesired operation IC: 5215A-1223AR03

MPE Calculations for Airg BBGW Module FCC ID: SA3-AGN1223AR0300 AntennaSlant dist.Slant dist.E- field,CalculatedTX antenna cmmV/mmW/cm2at location 1-d1 dist:20.00.20014.10.052922.4 GHz 2-d1 dist:24.20.24211.70.036142.4 GHz Total at 20 cm from d1:0.08906mW/cm2 1-d2 dist:21.10.21113.40.047412.4 GHz 2-d2 dist:21.10.21113.40.047412.4 GHz 0.09482 mW/cm2 Total at 20cm from d

Airgo BBGW Module True MIMO FCC ID: SA3-AGN0901AP0100 MPE Calculations The EUT has two radio boards , one operating at 2.4 GHz, the other operating at 5 GHz. Each radio uses 3 antennas in MIMO (multiple in, multiple out) configuration. Two of the antennas are transmit/receive, the third antenna is receive only. The receive only antenna is the center antenna of each triplet. Each transmit antenna is fed half the total radio output power at that frequency. The maximum RF exposure will be when both transmitter cards are transmitting data at their highest power settings. Maximum Power output: 24.25 dBm ( 2412 MHz in 802.11b mode) Antenna gain, 3 dBi One-half power (power in each TX chain): 21.25 dBm Maximum EIRP from each 2.4 GHz transmit antenna is 21.25 + 3 = 24.25 dBm EIRP To determine the overall exposure at 20 cm from the EUT, the contribution from each antenna will be added and then compared to the limit of 1 mW/cm 2 TOP VIEW EUT 13,63 cm 6.82 cm d1 d2 A point 20 cm from the center of the EUT is intuitively the point at which both antennas are at their minimum separation distance, meaning the greatest field strength contribution will be located here. This is the result of a number of iterations of the calculation spread sheet, choosing different locations along the length of the EUT for exposure points. Power density decreases as the square of the separation distance, so that even if the 20 cm point is directly in front of one of the antennas, the contributions from the other antenna is less. RX/TX1 RX RX/TX2 Antenna 1 distance to d1: 20 cm Antenna 2 distance to d1: ( 13.63 2 + 20 2 ) 0.5 = 24.2 cm = 0.242m Antenna 1 distance to d2: ( 6.82 2 + 20 2 ) 0.5 = 21.13 cm = 0.213m Antenna 2 distance to d2: ( 6.82 2 + 20 2 ) 0.5 = 21.13cm = 0.213m The field strength contribution from each antenna is calculated using the equation E, V/m = (30*EIRP,watts) 0.5 /separation distance Maximum EIRP from each 2.4 GHz transmit antenna is 24.25 dBm EIRP = 0.266 watt EIRP S, mW/cm2 = E 2 /3770 , E in V/m 20 cm exposure distances were calculated for points d1 and d2 Worst case data was at d2. Total exposure at d2: 0.09482 mW/cm 2 Limit: 1.00000 mW/cm 2

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR 2.4GHz TRUE MIMO RADIO MODULE MODEL NUMBER: AGN1223AR-03 FCC ID: SA3-AGN1223AR0300 REPORT NUMBER: 04U2916-1 ISSUE DATE: AUGUST 25, 2004 Prepared for AIRGO NETWORKS INC. 900 ARASTRADERO ROAD PALO ALTO, CA. 94304 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 04U2916-1 DATE: AUGUST 25, 2004 EUT: 2.4GHz TRUE MIMO RADIO MODULE FCC ID: SA3-AGN1223AR0300 Page 2 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................. 3 2. EUT DESCRIPTION.......................................................................................................................... 4 3. TEST METHODOLOGY .................................................................................................................. 5 4. FACILITIES AND ACCREDITATION .......................................................................................... 5 5. CALIBRATION AND UNCERTAINTY.......................................................................................... 6 5.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 6 5.2. MEASUREMENT UNCERTAINTY ............................................................................................... 6 5.3. TEST AND MEASUREMENT EQUIPMENT................................................................................ 7 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 8 7. APPLICABLE LIMITS AND TEST RESULTS ........................................................................... 10 7.1. 6 dB BANDWIDTH ..................................................................................................................... 10 7.2. 99% BANDWIDTH ..................................................................................................................... 17 7.3. PEAK OUTPUT POWER............................................................................................................ 24 7.4. MAXIMUM PERMISSIBLE EXPOSURE ................................................................................... 32 7.5. AVERAGE POWER..................................................................................................................... 35 7.6. PEAK POWER SPECTRAL DENSITY ....................................................................................... 36 7.7. CONDUCTED SPURIOUS EMISSIONS.................................................................................... 43 7.8. RADIATED EMISSIONS.............................................................................................................56 7.8.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 56 7.8.2. TRANSMITTER RADIATED EMISSIONS ABOVE 1 GHZ .......................................... 59 7.8.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz ............................................. 77 7.9. POWERLINE CONDUCTED EMISSIONS ................................................................................ 81 8. SETUP PHOTOS .............................................................................................................................. 85 REPORT NO: 04U2916-1 DATE: AUGUST 25, 2004 EUT: 2.4GHz TRUE MIMO RADIO MODULE FCC ID: SA3-AGN1223AR0300 Page 3 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: AIRGO NETWORKS INC. 900 ARASTRADERO ROAD PALO ALTO, CA. 94304 USA EUT DESCRIPTION: 2.4GHz TRUE MIMO RADIO MODULE MODEL: AGN1223AR-03 DATE TESTED: AUGUST 12 TO 23, 2004 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: YAN ZHENG VIEN TRAN EMC SUPERVISOR EMC TECHNICIAN COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 04U2916-1 DATE: AUGUST 25, 2004 EUT: 2.4GHz TRUE MIMO RADIO MODULE FCC ID: SA3-AGN1223AR0300 Page 4 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION The EUT is an 802.11b/g tru…

Text truncated - open the document above for the full version.

Airgo Networks Broadband Gateway Module Test Setup Photographs FCC ID: SA3-AGN1223AR0300 AC Line Conducted Radiated Emissions Antenna conducted tests

REPORT NO: 04U2916-1 DATE: AUGUST 25, 2004 EUT: 2.4GHz TRUE MIMO RADIO MODULE FCC ID: SA3-AGN1223AR0300 Page 85 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 04U2916-1 DATE: AUGUST 25, 2004 EUT: 2.4GHz TRUE MIMO RADIO MODULE FCC ID: SA3-AGN1223AR0300 Page 86 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 04U2916-1 DATE: AUGUST 25, 2004 EUT: 2.4GHz TRUE MIMO RADIO MODULE FCC ID: SA3-AGN1223AR0300 Page 87 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED BACK PHOTO REPORT NO: 04U2916-1 DATE: AUGUST 25, 2004 EUT: 2.4GHz TRUE MIMO RADIO MODULE FCC ID: SA3-AGN1223AR0300 Page 88 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 04U2916-1 DATE: AUGUST 25, 2004 EUT: 2.4GHz TRUE MIMO RADIO MODULE FCC ID: SA3-AGN1223AR0300 Page 89 of 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. END OF REPORT LINE CONDUCTED BACK PHOTO
