SBC-RM3030Bluetooth Module

Bluetooth Module RM3030 User’s Guide Introduction You can connect to other Bluetooth wireless devices by integrating the RM3030 module to your device. Specification Product Name Bluetooth Module Model Number RM3030 Standard Bluetooth v4.0 Frequency Band 2.402GHz ~ 2.480GHz unlicensed ISM band Transfer rates (Max) Max UART baud rates up to 4Mbits/s Antenna terminal 50 Ohms Dimension 12.5 x 16.6 mm Operating Temperature -10 ~ +50°C Storage Temperature -40 ~ +70°C Humidity 5 ~ 95% (non-condensing) Pin Assignment NO. Pin Name Description 1 GND Ground 2 NC No connect 3 PIO[0] Programmable input/output line and 32kHz sleep clock input 4 UART_RX UART data input, active high 5 UART_TX UART data output, active high 6 UART_RTS UART request to send, active low 7 UART_CTS UART clear to send, active low 8 NC No connect 9 NC No connect 10 NC No connect 11 NC No connect 12 NC No connect 13 NC No connect 14 NC No connect 15 PIO[9] Programmable input/output line 16 VDD Power supply 17 VREG_EN_RST# Take high to enable internal regulators. Also acts as active low reset 18 VDD Power supply 19 NC No connect 20 NC No connect 21 GND Ground Module Installation Manual Material: Description Picture Description Picture BT_CSR PCBA Q’ty:1 Q’ty:1 Shielding Case Q’ty:1 Tools: Description Picture Description Picture Iron Tin wire Fan Job Description and Notes: Step Picture Description 01 Job Type: Put BT_CSR PCBA on board, solder fixed, avoid short circuits. Note: Welding BT_CSR PCBA temperature of 350 0 C ± 10 0 C, not too high or too low. 02 Job Type: The Shielding Case welded on BT_CSR PCBA, careful not to short circuit and BT_CSR PCBA. Note: 1 Welded shielding case temperature of 350 0 C ± 10 0 C, not too high or too low. 2 Shielding Case not skew or subsidence short circuit. Requires a clearance, Avoid short circuit Finished: Picture Description 1. Welded shielding case temperature of 350 0 C ± 10 0 C, not too high or too low. 2. Welding BT_CSR PCBA temperature of 350 0 C ± 10 0 C, not too high or too low. 3. Welding BT_CSR PCBA requires a clearance and avoid short circuit. 4. Shielding Case not skew or subsidence short circuit. Requires a clearance, Avoid short circuit Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: SBC-RM3030 ".

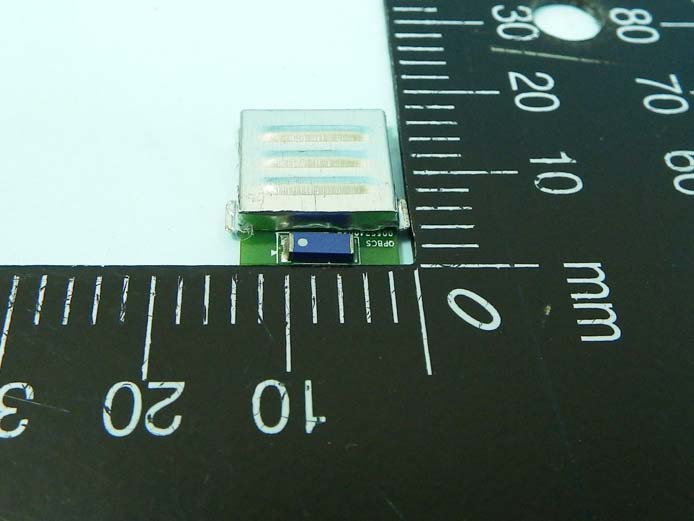

FCC Test Report Report No. : EP453011 SPORTON International Inc. PAGE NUMBER : B1 OF B3 TEL : 886-3-327-3456 ISSUED DATE : Sep. 26, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT

FCC Test Report Report No. : EP453011 SPORTON International Inc. PAGE NUMBER : B2 OF B3 TEL : 886-3-327-3456 ISSUED DATE : Sep. 26, 2014 FAX : 886-3-327-0973 BT IC FCC Test Report Report No. : EP453011 SPORTON International Inc. PAGE NUMBER : B3 OF B3 TEL : 886-3-327-3456 ISSUED DATE : Sep. 26, 2014 FAX : 886-3-327-0973 BT ANT

NCC Test Report Report No. : TR453011AD SPORTON INTERNATIONAL INC. Page No. : 2 of 39 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 Test Channel Frequencies Configuration ............................................................................................... 9 2.3 The Worst Case Power Setting Parameter ............................................................................................ 9 2.4 The Worst Case Measurement Configuration ...................................................................................... 10 2.5 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 20dB Bandwidth and Carrier Frequency Separation ........................................................................... 16 3.3 Number of Hopping Frequencies ......................................................................................................... 18 3.4 Time of Occupancy (Dwell Time) ......................................................................................................... 20 3.5 RF Output Power .................................................................................................................................. 22 3.6 Transmitter Radiated Bandedge Emissions ......................................................................................... 24 3.7 Transmitter Radiated Unwanted Emissions ......................................................................................... 27 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 38 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT NCC Test Report Report No. : TR453011AD SPORTON INTERNATIONAL INC. Page No. : 3 of 39 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 3.10.1(4) Antenna Requirement Antenna connector mechanism complied According to LP0002 Section 2.2 Complied 3.1 2.3 AC Power-line Conducted Emissions [dBuV]: 4.310 MHz 40.71 (Margin 15.29 dB) - QP 27.45 (Margin 18.55 dB) - AV According to LP0002-2.3 Complied 3.2 3.10.1(6.1) 20dB Bandwidth EDR: 1.2808 MHz N/A Complied 3.2 3.10.1(6.1) Carrier Frequency Separation (ChS) EDR: 1.0000 MHz ChS ≥ BW 20dB x2/3. Complied 3.3 3.10.1(6.1) Number of Hopping Frequencies (N) Max: 79 Min: 15 N ≥ 15 Complied 3.4 3.10.1(6.1) Time of Occupancy (Dwell Time) EDR: 0.315 sec 0.4 s within 0.4 x NComplied 3.5 3.10.1(2.3) RF Output Power (that Maximum Peak Conducted Output Power) Power [dBm] BR: -4.76 EDR: -6.05 Power [dBm] BR:21 EDR:21 Complied 3.6 3.10.1(5) Transmitter Radiated Bandedge Emissions Restricted Bands [dBuV/m at 3m]: 2483.52 MHz 56.78 (Margin 17.22 dB) - PK 44.23 (Margin 9.77 dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: LP0002-2.8 Complied 3.7 3.10.1(5) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 30.00 MHz 24.75 (Margin 15.25 dB) - PK Non-Restricted Bands: > 20 dBc Restricted Bands: LP0002-2.8 Complied NCC Test Report Report No. : TR453011AD SPORTON INTERNATIONAL INC. Page No. : 4 of 39 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date TR453011AD Rev. 01 Initial issue of report Aug. 20, 2014 TR453011AD Rev. 02 Add the shielding case on the Module Sep. 18, 2014 TR453011AD Rev. 03 Change the shielding case on the Module Sep. 26, 2014 2500-2690 NCC Test Report Report No. : TR453011AD SPORTON INTERNATIONAL INC. Page No. : 5 of 39 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) Bluetooth Mode Ch. Frequency (MHz) Channel Number RF Output Power (dBm) 2400-2483.5 BR / EDR 2402-2480 0-78 [79] -4.76 Note 1: Bluetooth BR uses a GFSK (1Mbps). Note 2: Bluetooth EDR uses a combination of π/4-DQPSK (2Mbps) and 8DPSK (3Mbps). Note 3: RF output power specifies that Maximum Peak Conducted Output Power. 1.1.2 Antenna Information Antenna Category Integral antenna (antenna permanently attached) Temporary RF connector provided No temporary RF connector provided Transmit chains bypass antenna and soldered temporary RF connector provided for connected measurement. In case of conducted measurements the transmitter shall be connected to the measuring equi…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR453011AL SPORTON INTERNATIONAL INC. Page No. : A1 of A7 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR453011AL SPORTON INTERNATIONAL INC. Page No. : A2 of A7 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC Test Report Report No. : FR453011AL SPORTON INTERNATIONAL INC. Page No. : A3 of A7 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR453011AL SPORTON INTERNATIONAL INC. Page No. : A4 of A7 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR453011AL SPORTON INTERNATIONAL INC. Page No. : A5 of A7 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR453011AL SPORTON INTERNATIONAL INC. Page No. : A6 of A7 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 For radiated emissions above 1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR453011AL SPORTON INTERNATIONAL INC. Page No. : A7 of A7 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 EUT take a close-up
