SBC-RM3230COMBO Module

FuzzyScan COMBO Module RM3230 User’s Guide Introduction You can connect to other Bluetooth wireless devices by integrating the RM3230 combo module to your device. Specification Brand Name Cino Product Name COMBO Module Model Number RM3230 WLAN Standard IEEE 802 Part 11 b/g/n Bluetooth Bluetooth IM 4.0 + HS compliance Antenna Port Support Single Antenna for both WiFi and BT RF Frequency Band Country dependant; Typical 2.4 to 2.497 GHz Data Modulation DSSS(DBPSK/DQPSK/ CCK) DFDM(BPSK/QPSK/16QAM/64QAM) Data Rate (Mbps) DSSS(1/2/5.5/11); OFDM(6/9/12/18/24/36/48/54) Channel Number 11b/g/n: 11 Transfer rates (Max) Max UART baud rates up to 4Mbits/s Antenna terminal 50 Ohms Power Type From host Dimension 12.5 x 16.6 mm Operating Temperature -20 ~ +70°C Storage Temperature -40 ~ +85°C Operating Humidity Range Less than 85% (non-condensing) Storage Humidity Range Less than 60% (non-condensing) Pin Assignment NO. Pin Name Type Description 1 VBAT I Battery supply input (3.4V~4.5V) 2 VBAT I Battery supply input (3.4V~4.5V) 3 GND I Ground 4 FM-RX I FM radio RF antenna port 5 GND I Ground 6 FM_RX_ADIO_R O FM analog audio output channel 2 7 FM_RX_ADIO_L O FM analog audio output channel 1 8 GND I Ground 9 RF_BG I/O Antenna port for WLAN and Bluetooth 10 GND I Ground 11 BT_HOST_WAKE O BT_HOST_WAKE 12 BT_RST_N I Low asserting reset for BT core 13 BT_WAKE I BT_WAKE • Asserted: Bluetooth device must wake-up or remain awake. • Deserted: Bluetooth device may sleep when sleep criteria are met. 14 BT_UART_TXD O Bluetooth UART Serial Output. 15 BT_UART_CTS I/O Bluetooth UART Clear to Send. 16 BT_UART_RXD I Bluetooth UART Serial Input. 17 BT_UART_RTS I/O Bluetooth UART Request to Send. 18 BT_PCM_IN I I PCM data input 19 BT_PCM_CLK I/O PCM clock, can be master (output) or slave (input) 20 BT_PCM_SYNC I/O PCM sync signal, can be master (output) or slave (input) 21 BT_PCM_OUT O PCM data output 22 VDD_PA3V3 I VDD power supply (from VBAT) for the internal WLAN power amplifier. 23 WL_TRST_N I Connect as described in the JTAG specification or NC(unconnected) 24 WL_TDO I Mixed with UART_TX, Connect as described in the JTAG specification or NC(unconnected) NO. Pin Name Type Description 25 WL_SDIO_SPI_HSIC_S EL I a strapping option to select between SDIO mode (pull low ) or SPI mode(pull high) 26 WL_TDI I Mixed with UART_TX, Connect as described in the JTAG specification or NC(unconnected) 27 WL_TCK I Connect as described in the JTAG specification or NC(unconnected) 28 WL_TMS I Connect as described in the JTAG specification or NC(unconnected) 29 SDIO_HOST_WAKE I/O General purpose interface pin. 30 BT_REG_ON I Used by PMU (OR-gated with WL_REG_ON) to power up or power down internal BCM4330 regulators used by the BT/FM section 31 WL_REG_ON I Used by PMU (OR-gated with BT_REG_ON) to power up or power down internal BCM4330 regulators used by the WLAN section. This pin is also a low-asserting reset for WLAN only 32 JTAG_SEL I JTAG selection pin. 33 VDDIO I Digital I/O supply (1.8V or 2.5V) 34 HSIC_STROBE I/O HSIC bidirectional data strobe signal 35 HSIC_DATA I/O HSIC bidirectional DDR data signal 36 GND I Ground 37 LPO_32K I Input for external low-power 32.768kHz Clock (Sleep Clock). 38 GND I Ground 39 SD_DAT0 I/O SDIO data 0. This pin has an internal weak pull-up resistor. 40 SD_CLK I/O SDIO clock. This pin has an internal weak pull-up resistor. 41 SD_DAT1 I/O SDIO data 1. This pin has an internal weak pull-up resistor. 42 SD_CMD I/O SDIO command. This pin has an internal weak pull-up resistor. NO. Pin Name Type Description 43 SD_DAT3 I/O SDIO data 3. This pin has an internal weak pull-up resistor. 44 SD_DAT2 I/O SDIO data 3. This pin has an internal weak pull-up resistor. 45 SR_PMU_VSS I Switching regulator ground & PMU block analog ground 46 EXT_PWM_REQ I Auxiliary PMU control inputs. 47 VIN_LDO I Buck regulator: Battery Voltage Input 48 SR_VLX1 O Core buck regulator: output to inductor and capacitor tank (2.2uH & 4.7uF are required). 49 GND I Ground 50 GND I Ground 51 GND I Ground 52 GND I Ground 53 ANT_CTRL_AUX O Antenna Switch control line. Default setting is high. 54 ANT_CTRL_MAIN O Antenna Switch control line. Default setting is high. FM FIDUCIAL MARK N/A The FM mark is used for USI manufacture only. Module Installation Manual Material: Description Picture Description Picture CD_USI PCBA Q’ty:1 Q’ty:1 Shielding Case Q’ty:1 Tools: Description Picture Description Picture Iron Tin wire Fan Job Description and Notes: Step Picture Description 01 Job Type: Put CD_USI PCBA on board, solder fixed, avoid short circuits. Note: Welding CD_USI PCBA temperature of 350 0 C ± 10 0 C, not too high or too low. 02 Job Type: The Shielding Case welded on CD_USI PCBA, careful not to short circuit and CD_USI PCBA. Note: 1 Welded shielding case temperature of 350 0 C ± 10 0 C, not too high or too low. 2 Shielding Case not skew or subsidence short circuit. Requires a clearance, Avoid short circuit Finished: Picture Description 1. Welded shielding case temperature of 350 0 C ± 10 0 C, not too high or too low. 2. Welding CD_USI PCBA temperature of 350 0 C ± 10 0 C, not too high or too low. 3. Welding CD_USI PCBA requires a clearance and avoid short circuit. 4. Shielding Case not skew or subsidence short circuit. Requires a clearance, Avoid short circuit Regulatory Information The Wi-Fi is designed to be interoperable with any Wi-Fi technology product that is incorporating Direct Sequence Spread Spectrum (DSSS) and OFDM data modulation and complies with the IEEE 802.11b/g/n. Safety The Wi-Fi, like other radio devices, emits radio frequency electromagnetic energy. The level of energy emitted by this device, however, is less than the electromagnetic energy emitted by other wireless devices such as mobile phones. The Wi-Fi device operates within the guidelines found in radio frequency safety standards and recommendations. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and…

Text truncated - open the document above for the full version.

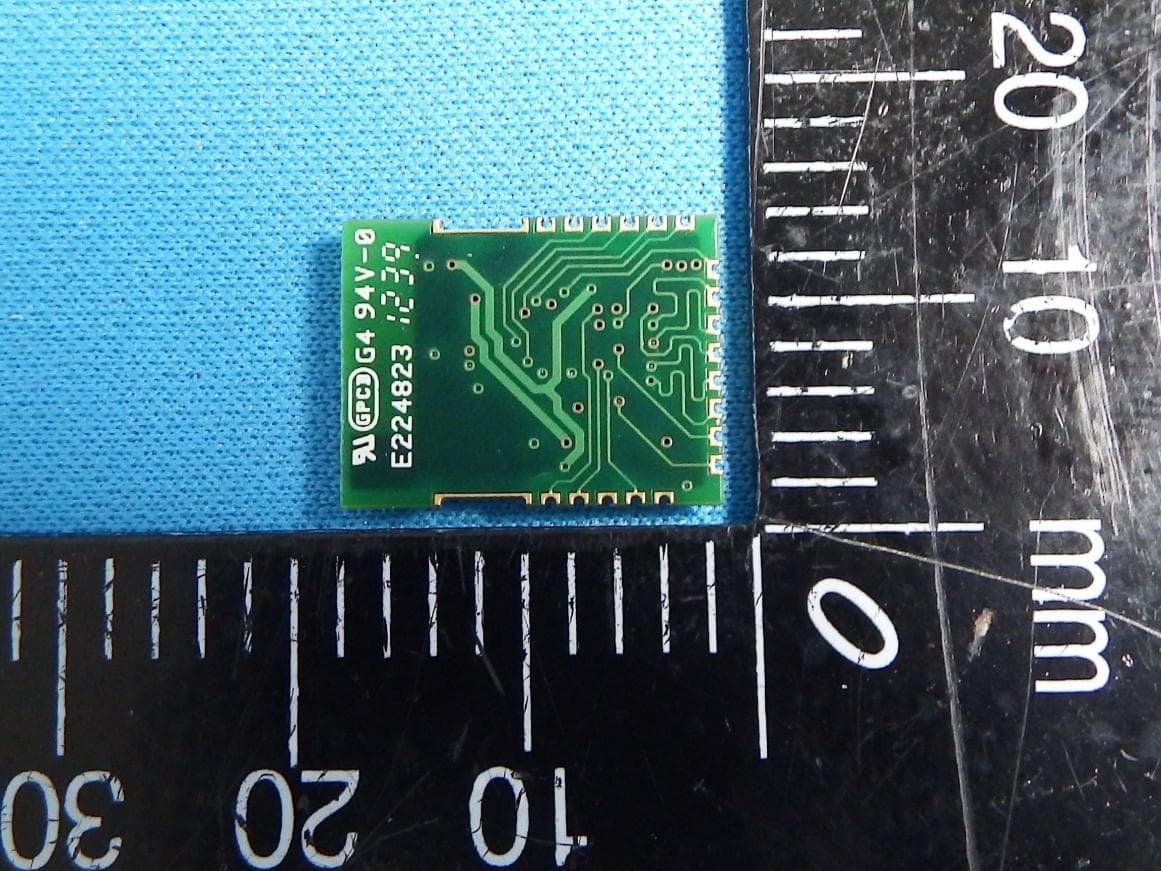

Report No. : EP453007 SPORTON International Inc. Page Number : B1 of B3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT

Report No. : EP453007 SPORTON International Inc. Page Number : B1 of B3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT Report No. : EP453007 SPORTON International Inc. Page Number : B2 of B3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP453007 SPORTON International Inc. Page Number : B3 of B3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

Maximum Permissible Exposure Report No. : FA453007 SPORTON INTERNATIONAL INC. Page No. : 1 of 6 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Maximum Permissible Exposure Equipment : COMBO Module Brand Name : cino Model No. : RM3230 FCC ID : SBC-RM3230 Standard : ANSI/IEEE C95.1 Applicant Manufacturer : PC Worth International Co., Ltd. 18F, No. 100, Sec.1, Xintal 5th Rd., Xizhi Dist., New Taipei City 221, Taiwan (R.O.C.) The product sample received on Apr. 24, 2015 and completely tested on Sep. 14, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI/IEEE C95.1 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Kevin Liang / Assistant Manager Maximum Permissible Exposure Report No. : FA453007 SPORTON INTERNATIONAL INC. Page No. : 2 of 6 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Table of Contents 1 HUMAN EXPOSURE ASSESSMENT ................................................................................................... 4 1.1 Maximum Permissible Exposure ............................................................................................................ 4 Maximum Permissible Exposure Report No. : FA453007 SPORTON INTERNATIONAL INC. Page No. : 3 of 6 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FA453007 Rev. 02 Initial issue of report Oct. 07, 2015 Maximum Permissible Exposure Report No. : FA453007 SPORTON INTERNATIONAL INC. Page No. : 4 of 6 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   Maximum Permissible Exposure Report No. : FA453007 SPORTON INTERNATIONAL INC. Page No. : 5 of 6 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure (2.4G) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b 2412-2462 1-11 [11] 1 16.00 2400-2483.5 g 2412-2462 1-11 [11] 1 14.30 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 1 13.70 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Output Power DG (dBi) EIRP Power PD (S) (mW/cm²) 11b 1 16.00 4.0 20.00 0.01989 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains Maximum Permissible Exposure Report No. : FA453007 SPORTON INTERNATIONAL INC. Page No. : 6 of 6 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 1.1.4 Result of Maximum Permissible Exposure (Bluetooth) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 BR / EDR 2402-2480 0-78 [79] 1 7.01 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode RF Output Power Antenna Gain (dBi) EIRP Power PD (S) (mW/cm²) BR / EDR 7.01 4.0 11.01 0.002512 Maximum Permissible Exposure Limit (mW/cm²) 1

FCC Test Report Report No. : FR453007AC SPORTON INTERNATIONAL INC. Page No. : 1 of 47 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Equipment : COMBO Module Brand Name : cino Model No. : RM3230 FCC ID : SBC-RM3230 Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz Equipment Class : DTS Applicant Manufacturer : PC Worth International Co., Ltd. 18F, No. 100, Sec.1, Xintal 5th Rd., Xizhi Dist., New Taipei City 221, Taiwan (R.O.C.) The product sample received on Apr. 24, 2015 and completely tested on Nov. 19, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Kevin Liang / Assistant Manager FCC Test Report Report No. : FR453007AC SPORTON INTERNATIONAL INC. Page No. : 2 of 47 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ......................................................................................................... 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 12 3.1 AC Power-line Conducted Emissions .................................................................................................. 12 3.2 6dB Bandwidth ..................................................................................................................................... 13 3.3 RF Output Power .................................................................................................................................. 15 3.4 Power Spectral Density ........................................................................................................................ 19 3.5 Transmitter Radiated Bandedge Emissions ......................................................................................... 21 3.6 Radiated Unwanted Emissions ............................................................................................................ 24 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 47 A PPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR453007AC SPORTON INTERNATIONAL INC. Page No. : 3 of 47 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions - FCC 15.207 NA 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz]:6.87 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 19.33 Power [dBm]:30 Complied 3.4 15.247(e) Power Spectral Density PSD [dBm/100kHz]: -7.37 PSD [dBm/3kHz]:8 Complied 3.5 15.247(d) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2399.824 MHz: 21.44 dB Restricted Bands [dBuV/m at 3m]: 2488.600 MHz 62.46 (Margin 11.54 dB) - PK 52.90 (Margin 1.10 dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(d) Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 4874 MHz 52.66 (Margin 1.34 dB) - AV 55.72 (Margin 18.28 dB) - PK Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR453007AC SPORTON INTERNATIONAL INC. Page No. : 4 of 47 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR453007AC Rev. 02 Initial issue of report Nov. 19, 2015 2500-2690 FCC Test Report Report No. : FR453007AC SPORTON INTERNATIONAL INC. Page No. : 5 of 47 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b 2412-2462 1-11 [11] 1 18.96 2400-2483.5 g 2412-2462 1-11 [11] 1 19.33 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 1 18.80 Note 1: RF output power specifies that Maximum Peak Conducted Outpu…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR453007AD SPORTON INTERNATIONAL INC. Page No. : A1 of A3 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Appendix A. Test Photos 1. Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz Front view Rear view FCC Test Report Report No. : FR453007AD SPORTON INTERNATIONAL INC. Page No. : A2 of A3 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz Front view Rear view FCC Test Report Report No. : FR453007AD SPORTON INTERNATIONAL INC. Page No. : A3 of A3 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 For radiated emissions above 1GHz Front view Rear view
