SBP22422INSTEON Hub

Quick Start Guide INSTEON ® Hub Model: 2242-422, 2242-442, 2242-522 Good Choice ☺ Congratulations on purchasing the INSTEON Hub! You’re only minutes away from setting up the industry gold standard in home control. This tabletop device lets you remotely control your INSTEON devices from your iOS/Android smartphone or tablet via the free INSTEON app, as well as organize scenes, set timers, view camera feeds and receive email/SMS alerts. Download INSTEON App To download the INSTEON app, visit your favorite app/marketplace and search “INSTEON.” The INSTEON app is completely free—that means no monthly fees—and makes setting up and configuring INSTEON Hub super simple. Install INSTEON Hub 1) Connect Hub to router using only the included Ethernet cable 2) Connect Hub to power (outlet, not power strip) 3) Place Hub on desk (or shelf, the higher the better) 4) Launch the INSTEON app on your smartphone or tablet and follow the onscreen instructions. 1 Hub WiFi Route r 2242-422, 2242-442, 2242-522 Rev. 9/25/2012 10:33 AM / See Owner’s Manual for Warranty Information. Protected under U.S. and foreign patents (see www.insteon.com) © Copyright 2012 INSTEON, 16542 Millikan Ave., Irvine, CA 92606, 800-762-7845 1 Note: If your router is not UPnP compliant, you will need to manually configure port forwarding to access the INSTEON Hub from outside your home. Mount Hub on Wall To free up shelf or desk space or to achieve maximum communication range, hang INSTEON Hub high on a wall just like a picture. Simply screw two screws (we recommend using #6 drywall screws) through the marks in the drawing below (leaving head of screw about ¼” from the wall) and hang Hub on the screws (you can then tear this sheet off). 2242-422, 2242-442, 2242-522 Rev. 9/25/2012 10:33 AM / See Owner’s Manual for Warranty Information. Protected under U.S. and foreign patents (see www.insteon.com) © Copyright 2012 INSTEON, 16542 Millikan Ave., Irvine, CA 92606, 800-762-7845 + + Leave approximately 6.35mm (.25”) gap for proper mounting of Hub Support For the complete Owner’s Manual and current Quick Start Guides, visit: http://www.insteon.com/support Call: INSTEON Support Line at 800-762-7845 Certifications Certification This product has been thoroughly tested by Intertek ETL, a nationally recognized independent third-party testing laboratory. The North American ETL Listed mark signifies that the device has been tested to and has met the requirements of a widely recognized consensus of U.S. and Canadian device safety standards, that the manufacturing site has been audited, and that the manufacturer has agreed to a program of quarterly factory follow-up inspections to verify continued conformance. FCC and Industry Canada Compliance Statement This device complies with FCC Rules Part 15 and Industry Canada RSS-210 Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorise aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radiolectrique subi, mme si le brouillage est susceptible d'en compromettre le fonctionnement. The digital circuitry of this device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio and television reception. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause such interference, which can be verified by turning the device off and on, the user is encouraged to eliminate the interference by one or more of the following measures: - Re-orient or relocate the receiving antenna of the device experiencing the interference - Increase the distance between this device and the receiver - Connect the device to an AC outlet on a circuit different from the one that supplies power to the receiver - Consult the dealer or an experienced radio/TV technician WARNING: Changes or modifications to this device not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. ETL/UL Warning (Safety Warning) CAUTION: To reduce the risk of overheating and possible damage to other equipment, do not install this device to control a receptacle, a motor-operated appliance, a fluorescent lighting fixture, or a transformer-supplied appliance. Gradateurs commandant une lampe a filament de tungstene – afin de reduire le risqué de surchauffe et la possibilite d’endommagement a d’autres materiels, ne pas installer pour commander une prise, un appareil a moteur, une lampe fluorescente ou un appareil alimente par un transformateur.

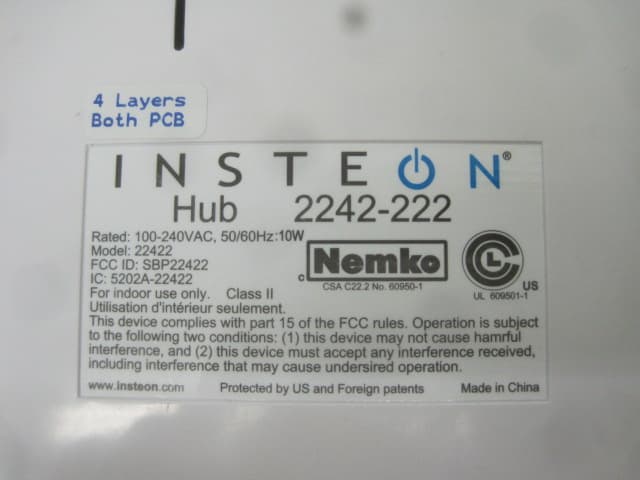

Unit Label August 7, 2012 Subject: Unit Label INSTEON TM Hub – INSTEON ® Central Controller #2242-222 FCC ID: SBP22422 IC: 5202A-22422 Label Dimensions: 2.57 inches by 1.43 inches

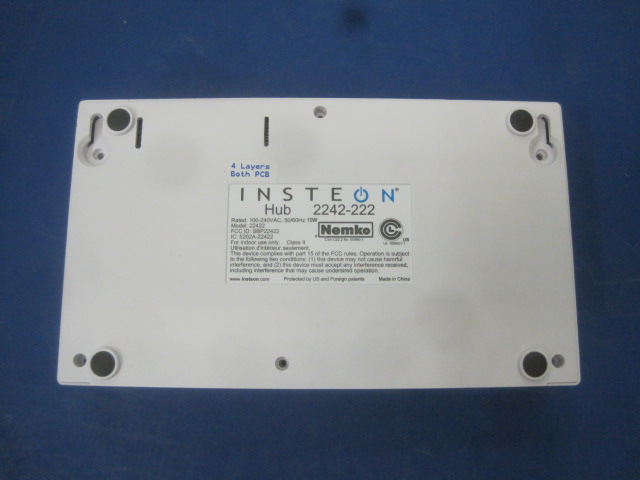

Unit Label Location August 7, 2012 Subject: Unit Label Location INSTEON TM Hub – INSTEON ® Central Controller #2242-222 FCC ID: SBP22422 IC: 5202A-22422 Label here (bottom of unit)

This report contains a total of 41 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. SmartLabs, Inc. TEST REPORT FOR INSTEON Hub, 2242-222 Tested To The Following Standards: FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249 and RSS 210 Issue 8 Report No.: 93104-14 Date of issue: August 7, 2012 This test report bears the accreditation symbol indicating that the testing performed herein meets the test and reporting requirements of ISO/IEC 17025 under the applicable scope of EMC testing for CKC Laboratories, Inc. We strive to create long-term, trust based relationships by providing sound, adaptive, customer first testing services. We embrace each of our customers’ unique EMC challenges, not as an interruption to set processes, but rather as the reason we are in business. Page 2 of 41 Report No.: 93104-14 TABLE OF CONTENTS Administrative Information .......................................................................................................................... 3 Test Report Information ............................................................................................................................................ 3 Report Authorization ................................................................................................................................................. 3 Test Facility Information ............................................................................................................................................ 4 Site Registration & Accreditation Information .......................................................................................................... 4 Summary of Results ................................................................................................................................................... 5 Conditions During Testing.......................................................................................................................................... 5 Equipment Under Test ............................................................................................................................................... 6 Peripheral Devices ..................................................................................................................................................... 6 FCC Part 15 Subpart C ................................................................................................................................... 7 15.31(e) Voltage Variations ....................................................................................................................................... 7 15.207 AC Conducted Emissions .............................................................................................................................. 10 15.249 RF Power Output ......................................................................................................................................... 24 -20dBc Occupied Bandwidth / 99% Bandwidth RSS 210 Issue 8 ............................................................................. 27 Bandedge ................................................................................................................................................................. 30 15.249(d) Radiated Spurious Emissions ................................................................................................................... 35 Supplemental Information .......................................................................................................................... 40 Measurement Uncertainty ...................................................................................................................................... 40 Emissions Test Details .............................................................................................................................................. 40 Page 3 of 41 Report No.: 93104-14 ADMINISTRATIVE INFORMATION Test Report Information REPORT PREPARED FOR: REPORT PREPARED BY: SmartLabs, Inc. 16542 Millikan Ave Orvine, CA 92606 Dianne Dudley CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 Representative: Matthew Carter Project Number: 93104 Customer Reference Number: 12-3MC0426-02 DATE OF EQUIPMENT RECEIPT: July 6, 2012 DATE(S) OF TESTING: July 6-25, 2012 Report Authorization The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the sample equipment tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 4 of 41 Report No.: 93104-14 Test Facility Information Our laboratories are configured to effectively test a wide variety of product types. CKC utilizes first class test equipment, anechoic chambers, data acquisition and information services to create accurate, repeatable and affordable test results. TEST LOCATION(S): CKC Laboratories, Inc. 110 Olinda Place Brea, CA 92823 Site Registration & Accreditation Information Location CB # Taiwan Canada FCC Japan Brea A US0060 SL2-IN-E-1146R 3082D-1 90473 R-2945 C-3248 T-1572 Page 5 of 41 Report No.: 93104-14 SUMMARY OF RESULTS Standard / Specification: FCC Part 15 Subpart C Description Test Procedure/Method Results Voltage Variation FCC Part 15 Subpart C Section 15.31(e) Pass Conducted Emissions FCC Part 15 Subpart C Section 15.207 / ANSI C63.4 (2003) Pass RF Power Output FCC Part 15 Subpart C Section 15.249 Pass -20dBc & 99% Occupied Bandwidth FCC Part 15 Subpart C Section 15.249 / RSS 210 Issue 8 Pass Bandedge FCC Part …
