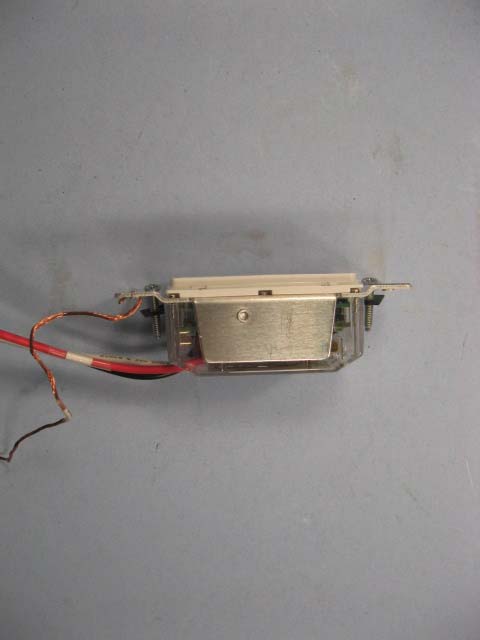

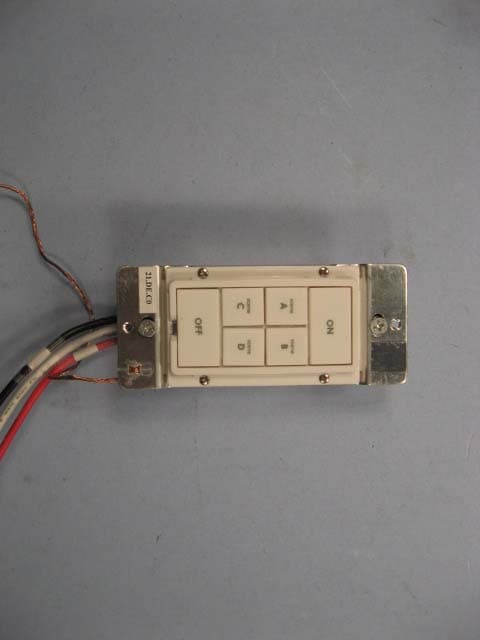

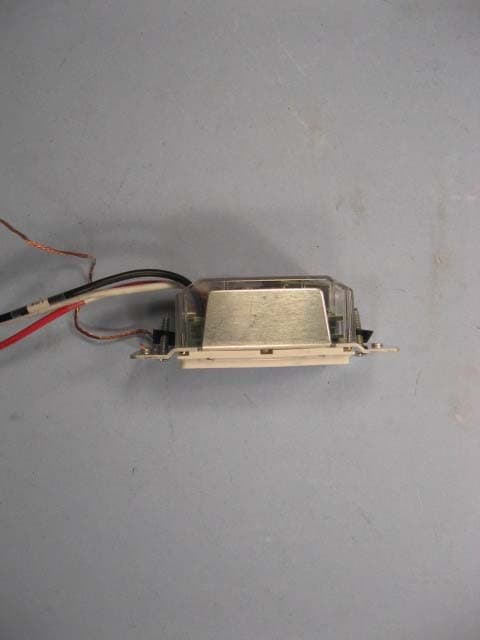

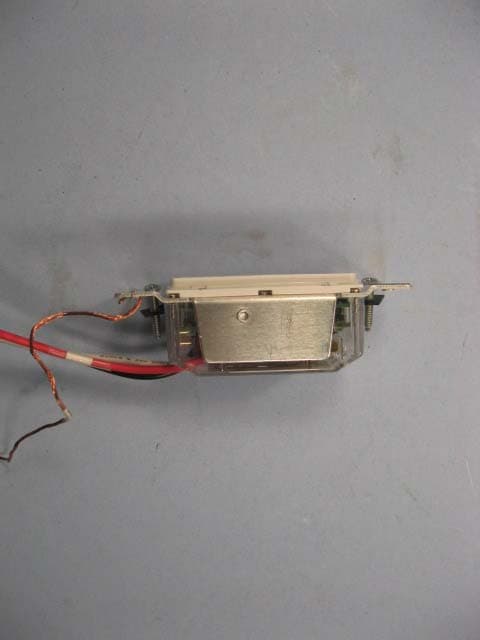

SBP23342Keypad Dimmer Switch

2334-222/2334-232 Rev. 11/28/2012 3:27 PM / See Owner’s Manual for Warranty Information. Protected under U.S. and foreign patents (see www.insteon.com ) © Copyright 2012 INSTEON, 16542 Millikan Ave., Irvine, CA 92606, 866-243-8022 Secondary buttons Set button Quick Start Guide INSTEON ® Keypad Dimmer Switch, 6 and 8-Button Models: 2334-222, 2334-232 What’s Included? • KeypadLinc Dimmer (6 or 8-button) • Four wire nuts Tools Needed • Bladed #1 screwdriver • Voltage meter • Philips screwdriver • Wire cutter/stripper Installing Keypad Installation should only be performed by a qualified electrician or a homeowner who is familiar and comfortable with electrical circuitry. If you have questions, consult an electrician or call the INSTEON Support Line at 866-243-8022 1) Turn off breaker/fuse and verify that the power is off 2) Unscrew existing switch, disconnect wires and prep all wires to be connected to Keypad, with 1/2” (12mm) of bare wire on the ends 3) Firmly connect wires per table/diagram and ensure no exposed wire. 4) Place Keypad into wall box and turn on breaker/fuse Connected load will turn on Keypad On button will turn on 5) Test by tapping Keypad on/off buttons Connected load will turn on and off For 6-button, Keypad On button will turn on when on and Off button will turn on when off For 8-button, Keypad “Main On/Off” button will turn on and off Using Keypad • Connected load will react just like the scene responders to on/off button taps • LED will mimic the on/off status of a dimmer whose scene level is 100% bright • Other buttons toggle by default Button Type Button LED before Tap First Press and Hold Subsequent Press and Holds Toggle Off Brighten scene until release Opposite of last press and hold (e.g. if last was brighten, it will dim) Toggle On Dim scene until release Opposite of last press and hold (e.g. if last was brighten, it will dim) Always On Either Brighten scene until release Always Off Either Dim scene until release Keypad Wire Wall Box Wires Bare Copper Ground - commonly bare, green wire or green screw White Neutral - commonly white Red Load - light, load, etc. Black Line - 100 – 277V (commonly black) MAIN On/Off button Primary Load Control 2334-222/2334-232 Rev. 11/28/2012 3:27 PM / See Owner’s Manual for Warranty Information. Protected under U.S. and foreign patents (see www.insteon.com ) © Copyright 2012 INSTEON, 16542 Millikan Ave., Irvine, CA 92606, 866-243-8022 Make Keypad a Controller Use Keypad button to control other INSTEON devices. 1) Tap the Keypad button of choice (for 6-button, use ON button as main scene) 2) Press and hold Keypad set button until it beeps Keypad button LED and the set button will start blinking green 3) Turn responder on (or any other state such as on 50% or even off) 4) Press and hold responder set button until it double-beeps Keypad will double-beep and its LED will stop blinking 5) Test by tapping Keypad button on and off Responder load will respond appropriately Keypad button LED will turn on and off Keypad set button will blink green once for each successful command Make Keypad a Responder Control Keypad from another INSTEON device. 1) Press and hold controller button until it beeps Controller LED will start blinking 2) Press and hold Keypad button to adjust load to desired brightness (or off) when scene is activated Connected load will respond appropriately 3) Press and hold Keypad set button until it double-beeps Controller will double-beep and its LED will stop blinking Keypad will double-beep 4) Test by tapping controller button on and off Connected load will return to the state set in step #2 Owner’s Manual and Tech Support Visit: http://www.insteon.com/support for complete manual, online tech support and latest product documents. Call: INSTEON Support Line at 866-243-8022 FCC and IC Warnings This device complies with FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorise aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radiolectrique subi, mme si le brouillage est susceptible d'en compromettre le fonctionnement. CAUTION - To reduce the risk of overheating and possible damage to other equipment do not install to control a receptacle, a motor-operated appliance, a fluorescent lighting fixture, or a transformer-supplied appliance. Gradateurs commandant une lampe a filament de tungstene – afin de reduire le risqué de surchauffe et la possibilite d’endommagement a d’autres materiels, ne pas installer pour commader une prise, un appareil a moteur, une lampe fluorescente ou un appareil alimente par un transformateur. Keypad (Responder) Controller Keypad (Controller) Responder Page 5 of 60 Rev: 12/13/2012 1:54 PM Keypad Dimmer Dual-Band Owner’s Manual (#2334-2xx US/Can) Page 6 of 60 2334-2xx- Rev: 12/13/2012 1:54 PM TABLE OF CONTENTS Product Requirements Document.............................................................................................................................1 Quick Start Guide ......................................................................................................................................................3 About Keypad ............................................................................................................................................................3 Preparation ................................................................................................................................................................3 What’s in the Box? .......................................................…

Text truncated - open the document above for the full version.

December 13, 2012 Subject: Unit Label Keypad Dimmer Switch Model: 2334-2 FCC ID: SBP23342 IC: 5202A-23342 Specs: Width – 1.38 inches (35mm) Height – 1.46 inches (37mm) Surface Material: gloss white polyester face stock with a smooth, absorbent ink-receptive top coating Surface Material Thickness - .050 mm ± 10% ISO534 Base Material – Super-Calendared White Glassine Paper Base Thickness - 0.070mm ± 10% ISO534 Adhesive Base – Acrylic .025mm Thickness 24 hour 90° Peel (st,st)-FTM 2: 7.5 Service Temperature Range: -40°C~+80°C (when applied to polycarbonate) UL Recognized Listing # MH47798 Unit Label

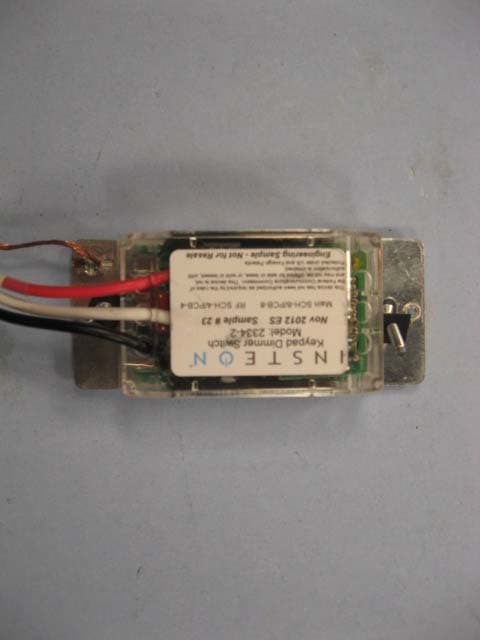

December 13, 2012 Keypad Dimmer Switch Model: 2334-2 FCC ID: SBP23342 IC: 5202A-23342 Label Size: 1.38 inches (35mm) x 1.46 inches (37mm) Manufacturing date code, revision, and ID number placed on unit label Unit label placed on back of plastic case. Unit Label Location

This report contains a total of 39 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Smartlabs, Inc. ADDENDUM TO TEST REPORT 93833-4 Keypad with Dimmer Model: 2334-2 Tested To The Following Standards: FCC Part 15 Subpart C Sections 15.207, 15.249 and RSS 210 Issue 8 Report No.: 93833-4A Date of issue: January 9, 2012 This test report bears the accreditation symbol indicating that the testing performed herein meets the test and reporting requirements of ISO/IEC 17025 under the applicable scope of EMC testing for CKC Laboratories, Inc. We strive to create long-term, trust based relationships by providing sound, adaptive, customer first testing services. We embrace each of our customers’ unique EMC challenges, not as an interruption to set processes, but rather as the reason we are in business. Page 2 of 39 Report No.: 93833-4A TABLE OF CONTENTS Administrative Information ........................................................................................................................................... 3 Test Report Information ............................................................................................................................................ 3 Revision History ......................................................................................................................................................... 3 Report Authorization ................................................................................................................................................. 3 Test Facility Information ............................................................................................................................................ 4 Site Registration & Accreditation Information .......................................................................................................... 4 Summary of Results ................................................................................................................................................... 5 Conditions During Testing.......................................................................................................................................... 5 Equipment Under Test ............................................................................................................................................... 6 Peripheral Devices ..................................................................................................................................................... 6 FCC Part 15 Subpart C .................................................................................................................................................... 7 15.31(e) Voltage Variations ....................................................................................................................................... 7 15.207 AC Conducted Emissions ................................................................................................................................ 9 15.249(a)(b) RF Power Output ................................................................................................................................. 19 -20dBc & 99% Occupied Bandwidth ........................................................................................................................ 22 Bandedge ................................................................................................................................................................. 25 15.249(d) Field Strength of Spurious Emissions ...................................................................................................... 29 Supplemental Information .......................................................................................................................................... 38 Measurement Uncertainty ...................................................................................................................................... 38 Emissions Test Details .............................................................................................................................................. 38 Page 3 of 39 Report No.: 93833-4A ADMINISTRATIVE INFORMATION Test Report Information REPORT PREPARED FOR: REPORT PREPARED BY: Smartlabs, Inc. 16542 Millikan Ave Irvine, CA 92606 Dianne Dudley CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 Representative: John Lockyer Project Number: 93833 Customer Reference Number: 12-3JL1113 DATE OF EQUIPMENT RECEIPT: December 5, 2012 DATE(S) OF TESTING: December 5, 2012 Revision History Original: Testing of the Keypad with Dimmer, 2334-2 to FCC 15.209, 15.249 and RSS-210 Issue 8 devices. Addendum A: To add a peripheral device to “Equipment under Test” section and to add statement in the “Test Conditions / Notes:” section on the 15.207 conducted emissions data sheets. Report Authorization The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the sample equipment tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 4 of 39 Report No.: 93833-4A Test Facility Information Our laboratories are configured to effectively test a wide variety of product types. CKC utilizes first class test equipment, anechoic chambers, data acquisition and information services to create accurate, repeatable and affordable test results. TEST LOCATION(S): CKC Laboratories, Inc. 1120 Fulton Place Fremont, CA 94539 Site Registration & Accreditation Informa…
