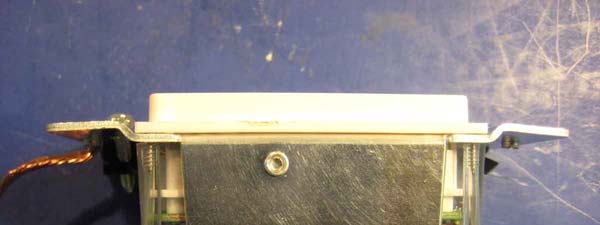

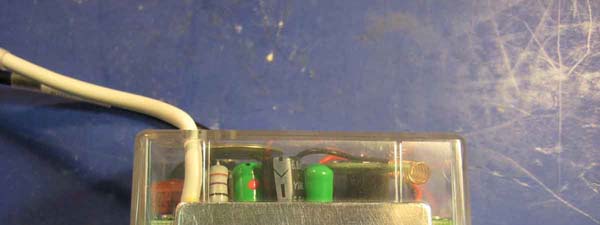

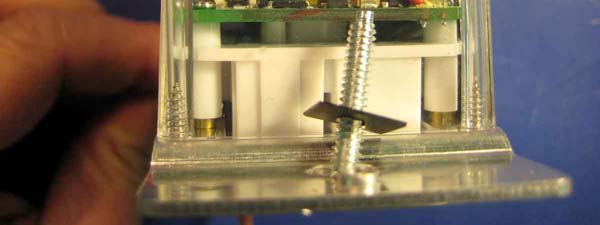

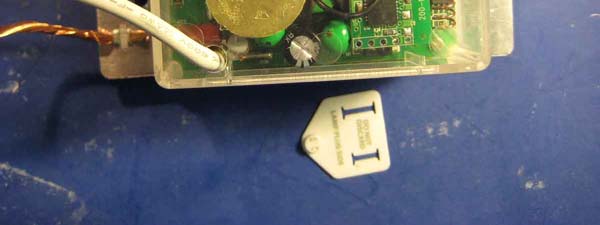

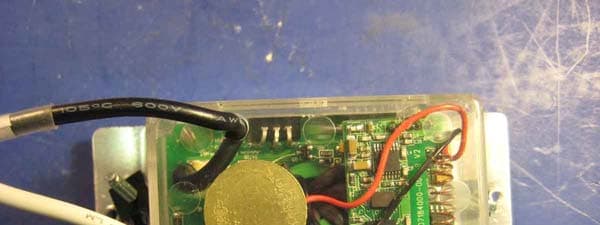

SBP2472DRF Controlled AC Outlet

Page 1 of 2 Rev. 02-15-2011 Smarthome Limited Warranty – Smarthome warrants to original consumer of this product for a period of 2 years from date of purchase, this product will be free from defects in material & workmanship & will perform in substantial conformity with its Owner's Manual. Warranty shall not apply to defects caused by misuse or neglect. U.S. Patent No. 7,345,998, International patents pending © Copyright 2010 Smarthome, 16542 Millikan Ave., Irvine, CA 92606, 800-762-7845 (Wallplate sold separately) Set Button Quick-Start Guide OutletLinc ™ – INSTEON ® Remote Control Dimmer Outlet (Dual-Band) Model: 2472D Preparation Installation should be performed only by a qualified electrician or by a homeowner who is familiar and comfortable with electrical circuitry. If you have any questions regarding installation, we suggest consulting an electrician. If you have any questions regarding setup, contact the INSTEON Gold Support Line. Tools Needed • Phillips and standard screwdrivers • Wire cutter / stripper • Voltage tester to identify wires inside the junction box Introduction OutletLinc brings the power of INSTEON into your home, allowing you to remotely control and dim any device plugged directly into the top outlet. OutletLinc also works as an INSTEON signal repeater and can be used to bridge the power phases in your home (like an Access Point, #2443). Use indoors only with incandescent loads up to 300 Watts. Controlled receptacle Status LED Uncontrolled receptacle Installation Instructions 1) At the circuit breaker or fuse panel, disable the circuit supplying power to the outlet 2) Remove the existing wallplate from the outlet you are replacing. Then, unscrew the outlet itself and pull it out from the junction box. 3) Disconnect the wires from the outlet you are replacing and ensure that you have ½ inch of bare wires on the ends 4) To correctly identify the outlet’s LINE, NEUTRAL, and GROUND wires, enable power to the outlet from the circuit breaker or use a line voltage meter, and then turn the breaker off again 5) Twist together the bare copper OutletLinc wire to the outlet’s GROUND wire with an included wire nut 6) Twist together the white OutletLinc wire to the outlet’s NEUTRAL wire (usually white) with an included wire nut 7) Twist together the black OutletLinc wire to the outlet’s LINE wire with an included wire nut 8) Ensure all the wire connectors are firmly attached and that there is no exposed copper except for the GROUND wire 9) Carefully install OutletLinc into the electrical box and replace the wallplate 10) Enable power to the outlet from the circuit breaker or fuse panel The OutletLinc Status LED should turn on solid red 11) Attach the included Outlet Dimmer Key to the plug of the load you wish to control with the magnet at the bottom. The flat side of the key should face away from the prongs of the plug (so the key will lay flush against OutletLinc when the load is plugged in). 12) Plug the load into the top outlet on OutletLinc The load should turn on and the OutletLinc Status LED should turn on solid green 13) If the load does not turn on, turn it on manually using the switch on the load itself OPTIONAL: You can use the bottom outlet on OutletLinc as you would and ordinary outlet. To control the load, you will need to Link OutletLinc to an INSTEON Controller (see Linking OutletLinc as a Responder). You will not be able to control the load from OutletLinc itself. See the Controller’s Owner’s Manual for instructions on how to control OutletLinc. NOTE: You will not be able to control the load from the manual switch. Make sure the load’s manual switch is always in the on position. Otherwise, the load will not receive INSTEON communications. Page 2 of 2 Rev. 02-15-2011 Smarthome Limited Warranty – Smarthome warrants to original consumer of this product for a period of 2 years from date of purchase, this product will be free from defects in material & workmanship & will perform in substantial conformity with its Owner's Manual. Warranty shall not apply to defects caused by misuse or neglect. U.S. Patent No. 7,345,998, International patents pending © Copyright 2010 Smarthome, 16542 Millikan Ave., Irvine, CA 92606, 800-762-7845 Quick-Start Guide INSTEON OutletLinc Dimmer (Dual-Band) *Setup Modes will automatically time out after 4 minutes. Using OutletLinc as a Responder 1) Make sure the load is on. If the load is not on, unplug it from OutletLinc and then plug it back in. The load should turn on and the OutletLinc Status LED should turn on solid green 2) Set the Controller to Linking Mode*. (For most Controllers, press & hold an On or Scene button for 10 seconds or the Set button for 3 seconds.) 3) Press & hold the Set button on OutletLinc until it double-beeps (3 seconds) The OutletLinc Status LED should flash once, and then turn on solid green 4) Confirm that Linking was successful by tapping the button you just Linked to on the Controller OutletLinc should respond appropriately Using OutletLinc as a Phase Bridger OutletLinc can help bridge the phases in your home and allow RF-only devices access to power line-only devices. For the best INSTEON network performance, it is recommended that you install at least two dual-band INSTEON devices. Search for dual-band INSTEON devices at: www.smarthome.com/dualband. Use the following procedure to test that the phases have been bridged: 1) Install additional dual-band INSTEON devices if they aren’t already installed 2) Start Phase Bridging Detection Mode* by tapping the Set button on OutletLinc four times quickly OutletLinc should begin beeping and the LED should be solid green The load may turn on or flash 3) Check the LED behavior of the other dual-band devices to see if they are on the opposite phase If at least one of the other dual-band device LEDs is blinking green, or is bright solid white or blue, the device is on the opposite phase. Continue to step 4. If none of the other dual-band devices exhibit the behavior above…

Text truncated - open the document above for the full version.

March 3, 2011 Subject: Unit Label OutletLinc™ - Dimmer (Dual-Band) Outlet Model: 2472D SMART Outlet Dimmer Model: 4741A1 FCC ID: SBP2472D IC: 5202A-2472D Specs: Width – 1.50 inches (36.1mm) Height – 1.573 inches (40mm) Surface Material: gloss white polyester face stock with a smooth, absorbent ink-receptive top coating Surface Material Thickness - .050 mm ± 10% ISO534 Base Material – Super-Calendared White Glassine Paper Base Thickness - 0.070mm ± 10% ISO534 Adhesive Base – Acrylic .025mm Thickness 24 hour 90° Peel (st,st)-FTM 2: 7.5 Service Temperature Range: -40°C~+80°C (when applied to polycarbonate) UL Recognized Listing # MH47798 Unit Label

March 3, 2011 OutletLinc™ - Dimmer (Dual-Band) Outlet Model: 2472D SMART Outlet Dimmer Model: 4741A1 FCC ID: SBP2472D IC: 5202A-2472D Unit Label Location

This report contains a total of 31 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. SmartLabs, Inc. TEST REPORT FOR OutletLinc™ ‐ Dimmer (Dual‐Band) Outlet, 2472D Tested To The Following Standards: FCC Part 15 Subpart C Sections 15.249 and RSS‐210 Issue 8 Report No.: 91264‐3 Date of issue: February 28, 2011 This test report bears the accreditation symbol indicating that the testing performed herein meets the test and reporting requirements of ISO/IEC 17025 under the applicable scope of EMC testing for CKC Laboratories, Inc. We strive to create long‐term, trust based relationships by providing sound, adaptive, customer first testing services. We embrace each of our customers’ unique EMC challenges, not as an interruption to set processes, but rather as the reason we are in business. Page 2of 31 Report No.: 91264‐3 TABLE OF CONTENTS Administrative Information ........................................................................................................................................... 3 Test Report Information ............................................................................................................................................ 3 Report Authorization ................................................................................................................................................. 3 Test Facility Information ............................................................................................................................................ 4 Site Registration & Accreditation Information .......................................................................................................... 4 Summary of Results ................................................................................................................................................... 5 Conditions During Testing ......................................................................................................................................... 5 Equipment Under Test ............................................................................................................................................... 6 Peripheral Devices ..................................................................................................................................................... 6 FCC Part 15 Subpart C .................................................................................................................................................... 7 15.207 AC Conducted Emissions................................................................................................................................ 7 15.249(a) RF Power Output ..................................................................................................................................... 14 Occupied Bandwidth ‐20dBc ................................................................................................................................... 18 Bandedge ................................................................................................................................................................. 20 15.249(d) Field Strength of Spurious Emissions ...................................................................................................... 23 RSS‐210 ........................................................................................................................................................................ 27 99 % Bandwidth ....................................................................................................................................................... 27 Supplemental Information .......................................................................................................................................... 30 Measurement Uncertainty ...................................................................................................................................... 30 Emissions Test Details .............................................................................................................................................. 30 Page 3of 31 Report No.: 91264‐3 ADMINISTRATIVE INFORMATION Test Report Information REPORT PREPARED FOR: REPORT PREPARED BY: SmartLabs, Inc. 16542 Millikan Ave. Irvine, CA 92606 Dianne Dudley CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 Representative: John Lockyer Project Number: 91264 Customer Reference Number: 11‐3JL0217 DATE OF EQUIPMENT RECEIPT: February17, 2011 DATE(S) OF TESTING: February17‐24, 2011 Report Authorization The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the sample equipment tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 4of 31 Report No.: 91264‐3 Test Facility Information Our laboratories are configured to effectively test a wide variety of product types. CKC utilizes first class test equipment, anechoic chambers, data acquisition and information services to create accurate, repeatable and affordable test results. TEST LOCATION(S): CKC Laboratories, Inc. 110 Olinda Place Brea, CA 92823 Site Registration & Accreditation Information Location CB # Japan Canada FCC Brea A US0060 R‐2945, C‐3248 & T‐1572 3082D‐1 90473 Page 5of 31 Report No.: 91264‐3 SUMMARY OF RESULTS Standard / Specification: FCC Part 15 Subpart C 15.249 and RSS‐210 Issue 8 Description Test Procedure/Method Results Conducted Emissions FCC Part 15 Subpart C Sect…
