SBPDR01INSTEON DIN Rail Dimmer and On/Off Modules

2452-222/2452-422/2452-522 Rev. 8/13/2012 9:25 AM / See Owner’s Manual for Warranty Information. Protected under U.S. and foreign patents (see www.insteon.com) © Copyright 2012 INSTEON, 16542 Millikan Ave., Irvine, CA 92606, 800-762-7845 Quick Start Guide INSTEON ® DIN Rail Dimmer Model: 2452-222/2452-422/2452-522 About INSTEON DIN Rail Dimmer The compact INSTEON DIN Rail Dimmer module installs directly onto the DIN rail to give you fully dimmable remote control over compatible lights. Note: Installation should only be performed by a qualified electrician or a homeowner who is familiar and comfortable with electrical circuitry. If you have questions, consult an electrician or call the INSTEON Support Line at 800-762- 7845. In the Box - INSTEON DIN Rail Dimmer What’s Needed - Flathead screwdriver - Wire cutter/stripper - Voltage meter Before Installation Before you install DIN Rail Module behind a switch, you must determine which switch operation mode applies to your switch—latching, single momentary or dual momentary—as each is wired differently:  Latching (default mode): Switch has no central position. It can be tapped on both the top and bottom and remains in that state once released.  Single momentary: Switch can only be tapped in one location. It returns to central position once released.  Dual momentary: Switch can be tapped on both the top and bottom. It returns to central position once released. Once you have identified your switch type, install DIN Rail module according to the corresponding wiring diagram, then see “Switch Operation Mode” to program DIN Rail module for your specific switch type. Install INSTEON DIN Rail Dimmer 1) Turn off breaker/fuse and verify that the power is off 2) At the DIN rail, strip away wire coating until you have 10mm (1/3”) of bare wire on the ends 3) After ensuring the wires are not touching, turn on breaker/fuse 4) Use a voltage meter to identify the fixture’s line, load and neutral wires, then turn off breaker/fuse again 5) For reference, write down the INSTEON I.D. (on the side of the module) and the load it is controlling 6) Snap module onto DIN rail. (If installing next to another module, allow 2cm between modules for heat dissipation.) 7) Connect line, load, neutral and sense wires according to the diagram corresponding to your switch type: Neutral Line LED Set button Sense #2 Connected load Sense #1 Paddle top (on/brighten) Fuse Paddle bottom (off/dim) 2452-222/2452-422/2452-522 Rev. 8/13/2012 9:25 AM / See Owner’s Manual for Warranty Information. Protected under U.S. and foreign patents (see www.insteon.com) © Copyright 2012 INSTEON, 16542 Millikan Ave., Irvine, CA 92606, 800-762-7845 8) After ensuring wires are firmly connected and that there is no exposed wire, turn on breaker/fuse Light will turn on and DIN Rail module LED will turn on green 9) Test connection by tapping DIN Rail module paddle top and bottom Light will turn on and off 10) If you are installing a single momentary or dual momentary switch, follow the instructions in Switch Operation Mode below to program the correct mode for your switch 11) If you are planning to manually link DIN Rail module to any INSTEON devices, do so now (see Make DIN Rail Module a Responder and Make DIN Rail Module a Controller below) 12) Test installation by tapping switch connected to DIN Rail module on and off Light will turn on and off Switch Operation Mode By default, DIN Rail module is programmed for a latching switch. Program the switch operation for single momentary mode, dual momentary mode or back to latching mode according to your switch type. 2452-222/2452-422/2452-522 Rev. 8/13/2012 9:25 AM / See Owner’s Manual for Warranty Information. Protected under U.S. and foreign patents (see www.insteon.com) © Copyright 2012 INSTEON, 16542 Millikan Ave., Irvine, CA 92606, 800-762-7845 To determine DIN Rail module’s current switch operation mode, simply tap Set button:  If it beeps, DIN Rail module is configured for a single momentary switch  If it double-beeps, DIN Rail module is configured for a dual momentary switch  If it triple-beeps, DIN Rail module is configured for a latching switch (default) Change to Single Momentary Mode 1) Press and hold Set button until it beeps LED will start blinking green 2) Press and hold Set button until it beeps again LED will start blinking red 3) Press and hold Set button until it beeps a third time LED will start blinking green 4) Slowly tap Set button four times LED will continue blinking green 5) Press and hold Set button until it double-beeps LED will stop blinking 6) Test mode change by tapping switch on and off Light will respond appropriately Change to Dual Momentary Mode 1) Press and hold Set button until it beeps LED will start blinking green 2) Press and hold Set button until it beeps again LED will start blinking red 3) Press and hold Set button until it beeps a third time LED will start blinking green 4) Slowly tap Set button five times LED will start double-blinking green 5) Press and hold Set button until it double-beeps LED will stop blinking 6) Test mode change by tapping switch top and bottom Light will respond appropriately Change to Latching Mode (default) 1) Press and hold Set button until it beeps LED will start blinking green 2) Press and hold Set button until it beeps again LED will start blinking red 3) Press and hold Set button until it beeps a third time LED will start blinking green 4) Slowly tap Set button six times LED will continue blinking green 5) Press and hold Set button until it double-beeps LED will stop blinking 6) Test mode change by tapping switch on and off Light will respond appropriately Make DIN Rail Dimmer a Responder 1) Press and hold controller Set button until it beeps Controller LED will start blinking green 2) Adjust load connected to DIN Rail module to desired brightness level 3) Press and hold DIN Rail module Set button until it double-beeps Controller will double-beep and its LED will stop blinking 2452-2…

Text truncated - open the document above for the full version.

2453-222/2453-422/2453-522 Rev. 8/13/2012 9:25 AM / See Owner’s Manual for Warranty Information. Protected under U.S. and foreign patents (see www.insteon.com) © Copyright 2012 INSTEON, 16542 Millikan Ave., Irvine, CA 92606, 800-762-7845 Quick Start Guide INSTEON ® DIN Rail On/Off Model: 2452-222/2452-422/2452-522 About INSTEON DIN Rail On/Off The compact INSTEON DIN Rail On/Off module installs directly onto the DIN rail to give you remote control over compatible lights and appliances. Note: Installation should only be performed by a qualified electrician or a homeowner who is familiar and comfortable with electrical circuitry. If you have questions, consult an electrician or call the INSTEON Support Line at 800-762- 7845. In the Box - INSTEON DIN Rail On/Off What’s Needed - Flathead screwdriver - Wire cutter/stripper - Voltage meter Before Installation Before you install DIN Rail Module behind a switch, you must determine which switch operation mode applies to your switch—latching, single momentary or dual momentary—as each is wired differently:  Latching (default mode): Switch has no central position. It can be tapped on both the top and bottom and remains in that state once released.  Single momentary: Switch can only be tapped in one location. It returns to central position once released.  Dual momentary: Switch can be tapped on both the top and bottom. It returns to central position once released. Once you have identified your switch type, install DIN Rail Module according to the corresponding wiring diagram, then see “Switch Operation Mode” to program DIN Rail Module for your specific switch type. Install INSTEON DIN Rail On/Off 1) Turn off breaker/fuse and verify that the power is off 2) At the DIN rail, strip away wire coating until you have 10mm (1/3”) of bare wire on the ends. 3) After ensuring the wires are not touching, turn on breaker/fuse 4) Use a voltage meter to identify the fixture’s line, load and neutral wires, then turn off breaker/fuse again 5) For reference, write down the INSTEON I.D. (on the side of the module) and the load it is controlling 6) Snap module onto DIN rail. (If installing next to another module, allow 2cm between modules for heat dissipation.) 7) Connect line, load, neutral and sense wires according to the diagram corresponding to your switch type: Neutral Line Paddle top (on) LED Fuse Set button Sense #2 Connected load Sense #1 Paddle bottom (off) 2453-222/2453-422/2453-522 Rev. 8/13/2012 9:25 AM / See Owner’s Manual for Warranty Information. Protected under U.S. and foreign patents (see www.insteon.com) © Copyright 2012 INSTEON, 16542 Millikan Ave., Irvine, CA 92606, 800-762-7845 8) After ensuring wires are firmly connected and that there is no exposed wire, turn on breaker/fuse Load will turn on and DIN Rail module LED will turn on green 9) Test connection by tapping DIN Rail module paddle top and bottom Load will turn on and off 10) If you are installing a single momentary or dual momentary switch, follow the instructions in Switch Operation Mode below to program the correct mode for your switch 11) If you are planning to manually link DIN Rail module to any INSTEON devices, do so now (see Make DIN Rail Module a Responder and Make DIN Rail Module a Controller below) 12) Test installation by tapping switch connected to DIN Rail module on and off Load will turn on and off Switch Operation Mode By default, DIN Rail module is programmed for a latching switch. Program the switch operation for single momentary mode, dual momentary mode or back to latching mode according to your switch type. 2453-222/2453-422/2453-522 Rev. 8/13/2012 9:25 AM / See Owner’s Manual for Warranty Information. Protected under U.S. and foreign patents (see www.insteon.com) © Copyright 2012 INSTEON, 16542 Millikan Ave., Irvine, CA 92606, 800-762-7845 To determine DIN Rail module’s current switch operation mode, simply tap Set button:  If it beeps, DIN Rail module is configured for a single momentary switch  If it double-beeps, DIN Rail module is configured for a dual momentary switch  If it triple-beeps, DIN Rail module is configured for a latching switch (default) Change to Single Momentary Mode 1) Press and hold Set button until it beeps LED will start blinking green 2) Press and hold Set button until it beeps again LED will start blinking red 3) Press and hold Set button until it beeps a third time LED will start blinking green 4) Slowly tap Set button four times LED will continue blinking green 5) Press and hold Set button until it double-beeps LED will stop blinking 6) Test mode change by tapping switch on and off Load will respond appropriately Change to Dual Momentary Mode 1) Press and hold Set button until it beeps LED will start blinking green 2) Press and hold Set button until it beeps again LED will start blinking red 3) Press and hold Set button until it beeps a third time LED will start blinking green 4) Slowly tap Set button five times LED will start double-blinking green 5) Press and hold Set button until it double-beeps LED will stop blinking 6) Test mode change by tapping switch top and bottom Load will respond appropriately Change to Latching Mode (default) 1) Press and hold Set button until it beeps LED will start blinking green 2) Press and hold Set button until it beeps again LED will start blinking red 3) Press and hold Set button until it beeps a third time LED will start blinking green 4) Slowly tap Set button six times LED will continue blinking green 5) Press and hold Set button until it double-beeps LED will stop blinking 6) Test mode change by tapping switch on and off Load will respond appropriately Make DIN Rail On/Off a Responder 1) Press and hold controller Set button until it beeps Controller LED will start blinking green 2) Adjust load connected to DIN Rail module to desired level 3) Press and hold DIN Rail module Set button until it double-beeps Controller will double-beep and its LED will stop blinking 2453-222/2453-422/2453-522 Rev. 8/1…

Text truncated - open the document above for the full version.

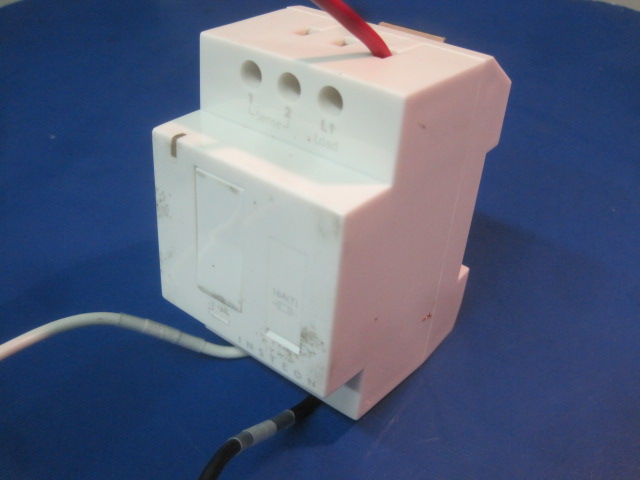

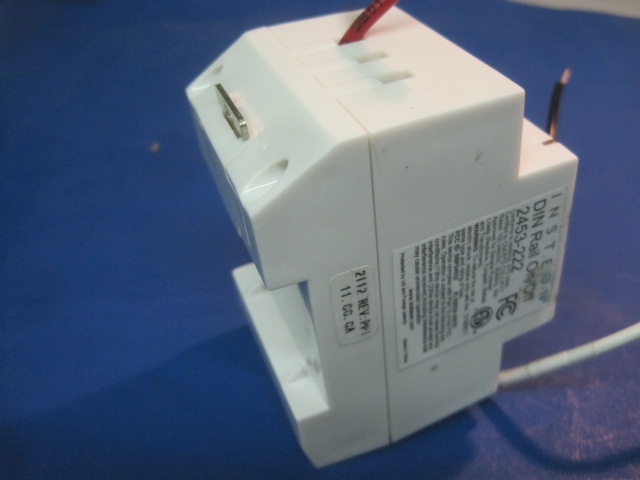

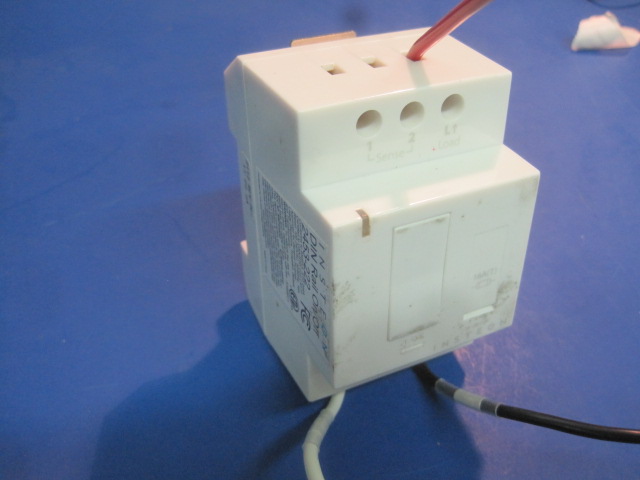

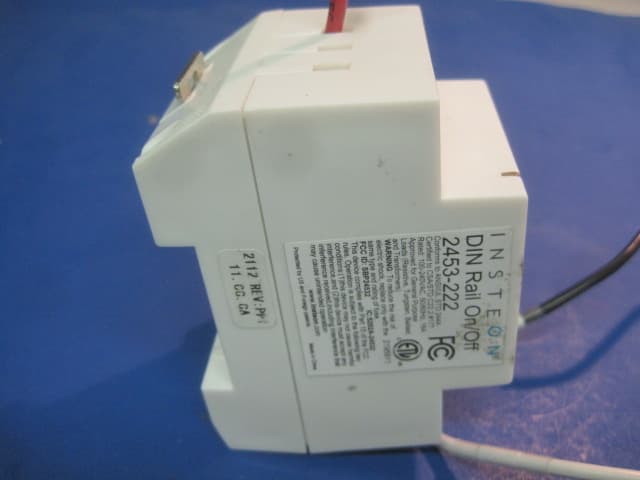

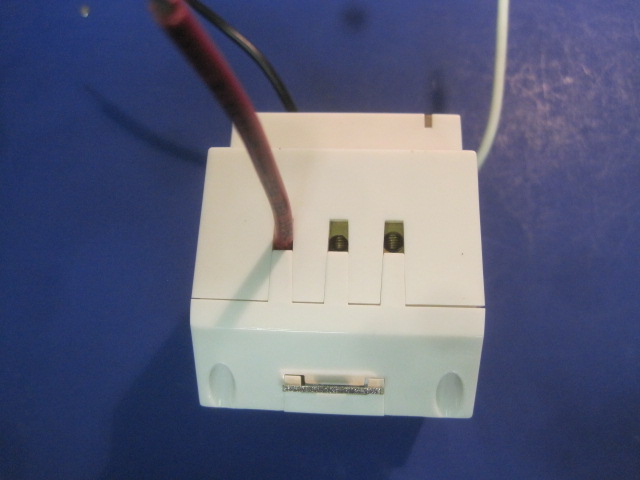

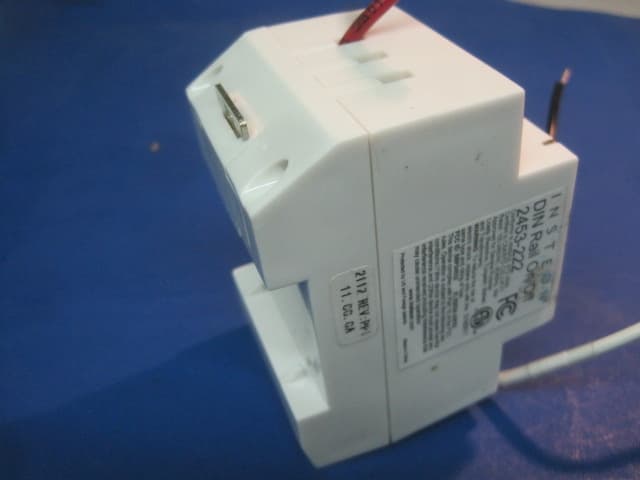

July 20, 2012 Subject: Unit Label Location INSTEON ® DIN Rail Dimmer #2452-2 INSTEON ® DIN Rail On/Off #2453-2 FCC ID: SBPDR01 IC: 5202A-DR01 Unit Label Location

This report contains a total of 58 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. SmartLabs, Inc. TEST REPORT FOR DIN Rail Module Dimmer, 24522 DIN Rail Module Relay, 24532 Tested To The Following Standards: FCC Part 15 Subpart C Sections 15.207, 15.249 and RSS 210 Issue 8 Report No.: 93084-18 Date of issue: July 30, 2012 This test report bears the accreditation symbol indicating that the testing performed herein meets the test and reporting requirements of ISO/IEC 17025 under the applicable scope of EMC testing for CKC Laboratories, Inc. We strive to create long-term, trust based relationships by providing sound, adaptive, customer first testing services. We embrace each of our customers’ unique EMC challenges, not as an interruption to set processes, but rather as the reason we are in business. Page 2 of 58 Report No.: 93084-18 TABLE OF CONTENTS Administrative Information ........................................................................................................................................... 3 Test Report Information ............................................................................................................................................ 3 Report Authorization ................................................................................................................................................. 3 Test Facility Information ............................................................................................................................................ 4 Site Registration & Accreditation Information .......................................................................................................... 4 Summary of Results ................................................................................................................................................... 5 Conditions During Testing.......................................................................................................................................... 5 Equipment Under Test ............................................................................................................................................... 6 Peripheral Devices ..................................................................................................................................................... 6 FCC Part 15 Subpart C .................................................................................................................................................... 7 15.31(e) Voltage Variations ....................................................................................................................................... 7 15.207 AC Conducted Emissions ................................................................................................................................ 9 15.249(a)(b) RF Power Output ................................................................................................................................. 35 -20dBc & 99% Occupied Bandwidth ........................................................................................................................ 38 Bandedge ................................................................................................................................................................. 41 15.249(d) Radiated Spurious Emissions ................................................................................................................... 49 Supplemental Information .......................................................................................................................................... 57 Measurement Uncertainty ...................................................................................................................................... 57 Emissions Test Details .............................................................................................................................................. 57 Page 3 of 58 Report No.: 93084-18 ADMINISTRATIVE INFORMATION Test Report Information REPORT PREPARED FOR: REPORT PREPARED BY: SmartLabs, Inc. 16542 Millikan Ave. Irvine, CA 92606 Dianne Dudley CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 Representative: Matthew Meyer Project Number: 93084 Customer Reference Number: 12-3MM0419-02 DATE OF EQUIPMENT RECEIPT: June 13, 2012 DATE(S) OF TESTING: June 13-July 2, 2012 Report Authorization The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the sample equipment tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 4 of 58 Report No.: 93084-18 Test Facility Information Our laboratories are configured to effectively test a wide variety of product types. CKC utilizes first class test equipment, anechoic chambers, data acquisition and information services to create accurate, repeatable and affordable test results. TEST LOCATION(S): CKC Laboratories, Inc. 110 Olinda Place Brea, CA 92823 Site Registration & Accreditation Information Location CB # Taiwan Canada FCC Japan Brea A US0060 SL2-IN-E-1146R 3082D-1 90473 R-2945 C-3248 T-1572 Page 5 of 58 Report No.: 93084-18 SUMMARY OF RESULTS Standard / Specification: FCC Part 15 Subpart C 15.249 and RSS 210 Issue 8 Description Test Procedure/Method Results Voltage Variation FCC Part 15 Subpart C Section 15.31(e) Pass Conducted Emissions FCC Part 15 Subpart C Section 15.207 / ANSI C63.4 (2009) Pass RF Power Output FCC Part 15 Subpart C Sec…
