SCDIW181000001802.11n 1x1 In-Wall access Point

802.11n 1x1 In-Wall access PoInt QUIcK InstallatIon GUIDe 2 ENGLISH FACE PLATE • Computer with Windows, Mac OS, or Linux-based operating system, and an Ethernet adapter installed • Internet Explorer 7, Mozilla Firefox 12.0, Safari 4.0, or Chrome 20.0 or newer I/P: 48VDC / 0.5A SYSTEM REQUIREMENTS CONTENTS OF PACKAGING contents BRACKET If any of these items are missing from your packaging, contact your reseller. 802.11N 1x1 IN-WALL ACCESS POINT AP982H10X Note: The measurements of the bracket and face plate are region-specific 3 ENGLISH PRODUCT SETUP PHYsIcal InstallatIon PoE Switch AP Back Panel LAN (PoE) The AP982H10X requires a Power over Ethernet (PoE) connection. If your wall socket does not already have a PoE connection, then you must insert an Ethernet cable into the wall socket, and connect one end of the cable to a port on your PoE switch. The following steps describe how to install the AP982H10X into a wall socket: Step 1: Unscrew the existing face plate or device and remove it from the wall socket. Step 2: Slide the AP982H10X into the bracket. Step 3: Connect the Ethernet cable to the LAN (PoE) port on the back panel of the AP982H10X. If there is an RJ-11 cable, connect it to the RJ-11 (phone) port. 4 ENGLISH Step 5: Finally, attach the face plate to the bracket by pushing it until it clicks into place. The device is now ready for configuration. Once the AP982H10X is assembled and mounted in a wall socket, you will need to configure the device with a computer connected directly to the unit. To do this, connect one end of an Ethernet cable to the LAN port on the front panel of the AP982H10X, and connect the other end to a LAN port on your computer. Alternatively, the device can be configured from a computer connected to the PoE switch. The AP982H10X can also act as a central connection point for any device (client) that has an 802.11n/g wireless network interface or Ethernet port and is within range. Wireless clients must use the same SSID (wireless network name) and channel as the AP982H10X in order to establish a wireless connection. If wireless security is enabled, the client will need to enter a password. Step 4: Place the AP982H10X and attached bracket over the wall socket and screw in place. 5 ENGLISH In Access Point (AP) Mode, 802.11n/g/b compliant wireless devices and Ethernet LAN devices can connect to the network. AP Router Mode can share an Internet connection with 802.11n/g/ b compliant wireless devices and Ethernet LAN devices. This mode contains additional features, allowing the device to act as a router. Note: The current operating mode will be listed under the device’s name in the configuration menu tree. conFIGURInG tHe DeVIce UsInG a WeB BRoWseR Open a web browser and type http://192.168.0.50 into the address bar. Enter admin as your username and leave the password blank to log in to the web UI. The AP982H10X features two different operating modes, allowing it to adapt to any situation. Select the operating mode by clicking on the radio button that corresponds to the desired mode, then click on Change Mode. After confirming that the operating mode will be changed, the AP will reboot and will be ready for use after 40 seconds. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digi tal device, pursuant to part 15 of the FCC rules. These limits are designed to provide r easonable protection against harmful interference in a residential installation. This equ ipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio co mmunications. However, there is no guarantee that interference will not occur in a par ticular installation. If this equipment does cause harmful interference to radio or televi sion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measu res: ­Reorient or relocate the receiving antenna. ­ Increase the separation between the equipment and receiver. ­ Connect the equipment into an outlet on a circuit different from that to which the recei ver is connected. ­Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party r esponsible for compliance could void your authority to operate the equipment. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co­ located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an unco ntrolled environment. This equipment should be installed and operated with a minimu m distance of 20 centimeters between the radiator and your body.

LanReady Technologies Inc BABT TCB Forsyth Hou se, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Model Difference To whom it may concern, Due to the business consideration, we hereby declare that our product of 802.11n 1x1 In-Wall access Point Model: AP982H10X; DAP-2210,WAP-3150NP,100GX-N APW800,WAP-982,AMS-W24,NWERM982,AP782X,WV-200WA have as following difference Model Description: Any questions regarding this declaration, please don’t hesitate to contact us. Sincerely yours, Sincerely, Name/Title: Spencer Chen /CTO Company Name: LanReady Technologies Inc. Address: 3F,No.166,Sinhu 2nd .,Neihu District, Taipei City 114 Taiwan(R.O.C.)TEL: 886-02-2796-8188 FAX:886-02-2796-8158 Email:[email protected]

LanReady Technologies Inc 3F,No.166,Sinhu 2nd .,Neihu District, Taipei City 114 Taiwan(R.O.C.) DateMay 6, 2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, Signature Name/Title: Spencer Chen /CTO Company Name: LanReady Technologies Inc. Address: 3F,No.166,Sinhu 2nd .,Neihu District, Taipei City 114 Taiwan(R.O.C.)TEL: 886-02-2796-8188 FAX:886-02-2796-8158 Email:[email protected]

LanReady Technologies Inc . 3F,No.166,Sinhu 2nd .,Neihu District, Taipei City 114 Taiwan(R.O.C.) DateMay 7, 2014 Subject:DoC declaration To Whom it may concern, AP982H10X,DAP-2210,WAP-3150NP,100GX-N,APW800,WAP-982,AMS-W24,NWERM982, AP782X,WV-200WA Your Sincerely, Name/Title: Spencer Chen /CTO Company Name: LanReady Technologies Inc. Address: 3F,No.166,Sinhu 2nd .,Neihu District, Taipei City 114 Taiwan(R.O.C.)TEL: 886-02-2796-8188 FAX:886-02-2796-8158 Email:[email protected]

LanReady Technologies Inc 3F,No.166,Sinhu 2nd .,Neihu District, Taipei City 114 Taiwan(R.O.C.) DateMay 6, 2014 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, hereby authorize Compliance Certification Services Inc./ David Wang. to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2015/4/11 Your Sincerely, Signature Name/Title: Spencer Chen /CTO Company Name: LanReady Technologies Inc. Address: 3F,No.166,Sinhu 2nd .,Neihu District, Taipei City 114 Taiwan(R.O.C.) TEL: 886-02-2796-8188 FAX:886-02-2796-8158 Email:[email protected]

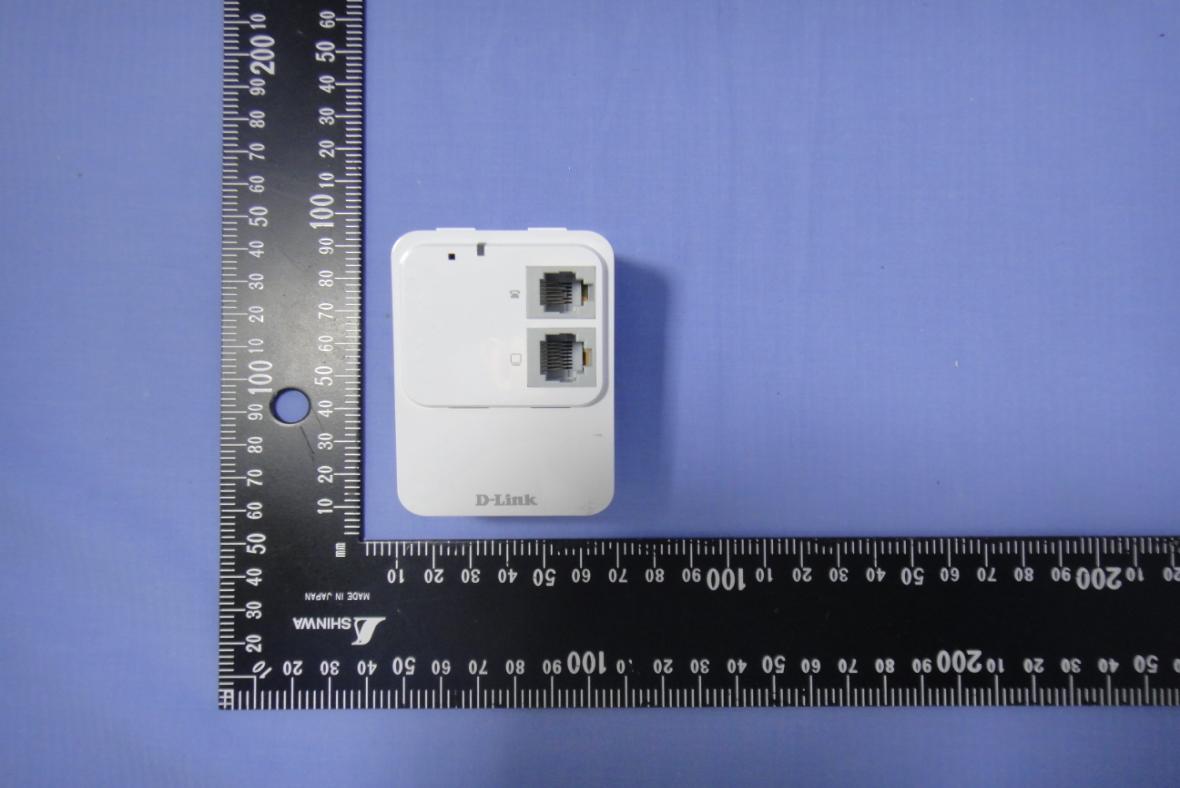

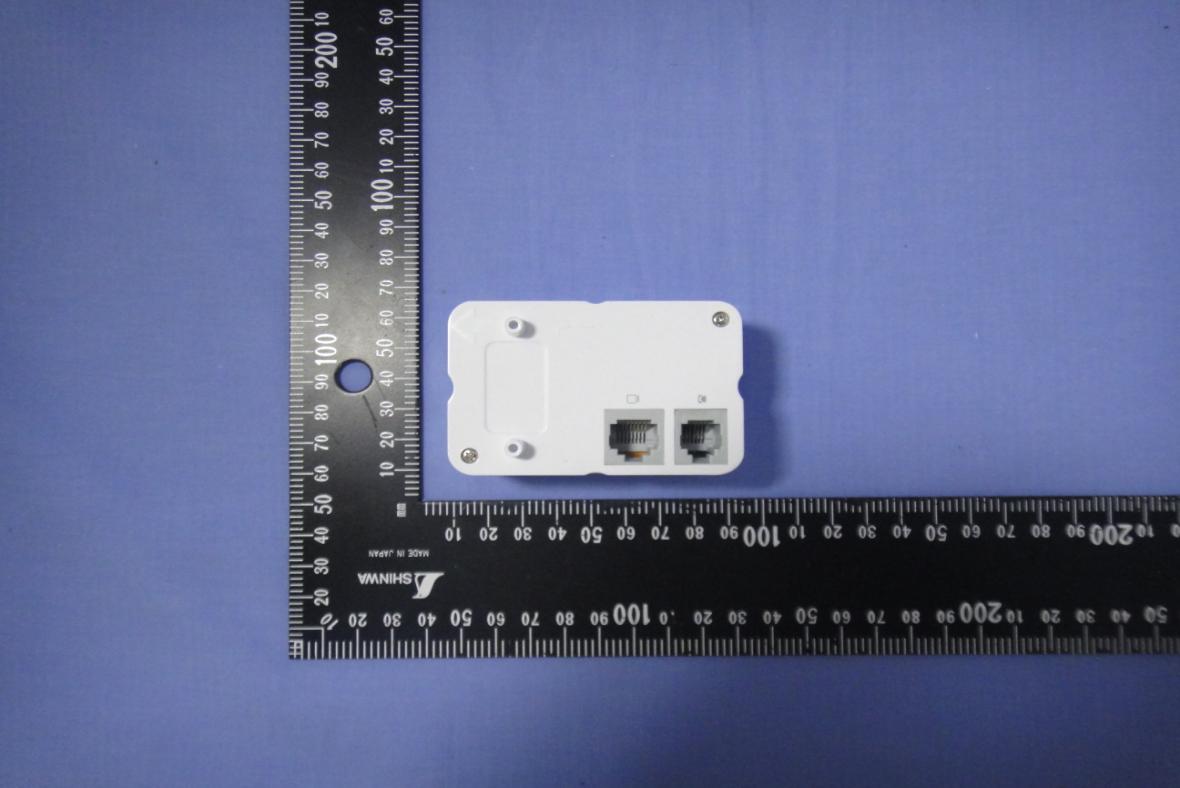

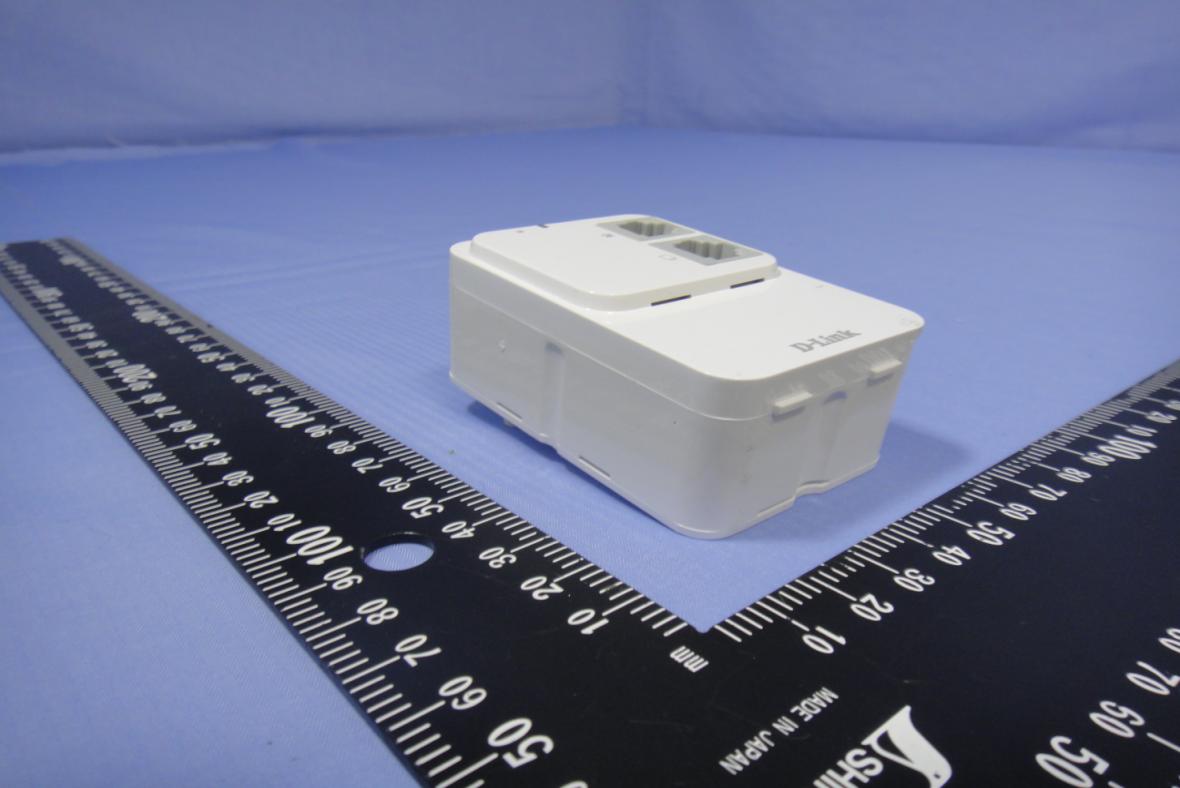

Compliance Certification Services Inc. Report No.: T131209W05 Date of Issue: April 1, 2014 A1 - 1 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T131209W05 Date of Issue: April 1, 2014 A1 - 2 Rev. 00

Compliance Certification Services Inc. Report No.: T131209W05 Date of Issue: April 1, 2014 A1 - 3 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T131209W05 Date of Issue: April 1, 2014 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T131209W05 Date of Issue: April 1, 2014 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T131209W05 Date of Issue: April 1, 2014 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T131209W05 Date of Issue: April 1, 2014 A1 - 7 Rev. 00 Module Module Compliance Certification Services Inc. Report No.: T131209W05 Date of Issue: April 1, 2014 A1 - 8 Rev. 00 Antenna Compliance Certification Services Inc. Report No.: T131209W05 Date of Issue: April 1, 2014 A1 - 9 Rev. 00

Compliance Certification Services Inc. Report No.: T131209W05-MF Date of Issue: March 25, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 802.11n 1x1 In-Wall access Point /802.11n 1x1 嵌壁式無線基地台 Model Model Number Trade Name Model Number Trade Name AP982H10X LanReady WAP-982 WiBorne DAP-2210 D-Link AMS-W24 ALCON WAP-3150NP Pheenet NWERM982 Niveo 100GX-N Cerio AP782X WAP APW800 Airlink101 WV-200WA Wavecore Frequency band (Operating) Bluetooth 2.1 + EDR / 4.0: 2402 ~ 2480 MHz 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 2.4GHz: Antenna1 Gain : 4.55 dBi (Numeric gain: 2.85) Antenna2 Gain : 4.36 dBi (Numeric gain: 2.73) Maximum Average output power IEEE 802.11b Mode: 23.07 dBm (202.768 mW) IEEE 802.11g Mode: 13.81 dBm (24.044 mW) IEEE 802.11n HT 20 Mode: 14.61 dBm (28.907 mW) IEEE 802.11n HT 40 Mode: 14.04 dBm (25.351 mW) Maximum Tune up Power IEEE 802.11b Mode: 25.00 dBm (316.228 mW) IEEE 802.11g Mode: 15.00 dBm (31.623 mW) IEEE 802.11n HT 20 Mode: 16.00 dBm (39.811 mW) IEEE 802.11n HT 40 Mode: 16.00 dBm (39.811 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T131209W05-MF Date of Issue: March 25, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/03/25 Initial Issue ALL Scott Hsu Compliance Certification Services Inc. Report No.: T131209W05-MF Date of Issue: March 25, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d G P E    30 & 377 2 E S  Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d G P S    Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields     2 2 0796 . 0 100 / 377 1000 / 30 d G P d G P S        Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T131209W05-MF Date of Issue: March 25, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: G P S    000199 . 0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6 2437 316.228 2.85 20 0.1793 1 IEEE 802.11g mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1 2412 31.623 2.85 20 0.0179 1 IEEE 802.11n HT20 mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6 2437 39.811 2.85 20 0.0226 1 IEEE 802.11n HT40 mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6 2437 39.811 2.85 20 0.0226 1

Compliance Certification Services Inc. FCC ID: SCDIW181000001 Report No.: T131209W0-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 105 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 802.11n 1x1 In-Wall access Point Model Number Trade Name Model Number Trade Name AP982H10X LanReady WAP-982 WiBorne DAP-2210 D-Link AMS-W24 ALCON WAP-3150NP Pheenet NWERM982 Niveo 100GX-N Cerio AP782X WAP APW800 Airlink101 WV-200WA Wavecore Issued to LanReady Technologies Inc . 3F,No.166,Sinhu 2nd .,Neihu District, Taipei City 114 Taiwan(R.O.C.) Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: April 1, 2014 Compliance Certification Services Inc. FCC ID: SCDIW181000001 Report No.: T131209W0-RP Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 April 1, 2014 Initial Issue ALL Angel Cheng Compliance Certification Services Inc. FCC ID: SCDIW181000001 Report No.: T131209W0-RP Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................... 4 2. EUT DESCRIPTION ........................................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................................... 6 3.1 EUT CONFIGURATION ........................................................................................................................ 6 3.2 EUT EXERCISE .................................................................................................................................... 6 3.3 GENERAL TEST PROCEDURES ............................................................................................................. 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................... 7 3.5 DESCRIPTION OF TEST MODES ........................................................................................................... 8 4. INSTRUMENT CALIBRATION ........................................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION ...................................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................... 9 4.3 MEASUREMENT UNCERTAINTY ............................................................................................. 10 5. FACILITIES AND ACCREDITATIONS ........................................................................................ 11 5.1 FACILITIES ....................................................................................................................................... 11 5.2 EQUIPMENT ...................................................................................................................................... 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................................... 12 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 13 6.1 SETUP CONFIGURATION OF EUT ....................................................................................................... 13 6.2 SUPPORT EQUIPMENT ............................................................................................................... 13 7. FCC PART 15.247 REQUIREMENTS ............................................................................................. 14 7.1 6DB BANDWIDTH ............................................................................................................................. 14 7.2 PEAK POWER .................................................................................................................................... 28 7.3 BAND EDGES MEASUREMENT ................................................................................................ 30 7.4 PEAK POWER SPECTRAL DENSITY .................................................................................................... 56 7.5 SPURIOUS EMISSIONS ................................................................................................................. 70 7.6 RADIATED EMISSIONS .............................................................................................................. 83 7.7 POWERLINE CONDUCTED EMISSIONS ............................................................................................. 100 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................. 103 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: SCDIW181000001 Report No.: T131209W0-RP Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: LanReady Technologies Inc . 3F,No.166,Sinhu 2nd .,Neihu District, Taipei City 114 Taiwan(R.O.C.) Equipment Under Test: 802.11n 1x1 In-Wall access Point Trade Name / Model Number: Model Number Trade Name Model Number Trade Name AP982H10X LanReady WAP-982 WiBorne DAP-2210 D-Link AMS-W24 ALCON WAP-3150NP Pheenet NWERM982 Niveo 100GX-N Cerio AP782X WAP APW800 Airlink101 WV-200WA Wavecore Date of Test: December 18 ~ April 1, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: SCDIW181000001 Report No.: T131209W0-RP Page 103 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: SCDIW181000001 Report No.: T131209W0-RP Page 104 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. FCC ID: SCDIW181000001 Report No.: T131209W0-RP Page 105 Rev. 00 Powerline Conducted Emissions Setup Photos
