SCDOW161000001AP Router

Version 2.0 | 11/20/2013 WCB1215H5ADX AP Router User Manual 4 User Manual Section 1 - Product Overview Note: Using a power supply with a different voltage rating or PoE injector than the one included with the WCB1215H5ADX will cause damage and void the warranty for this product. Package Contents WCB1215H5ADX Wireless N Exterior Access Point Quick Installation Guide Power Over Ethernet Injector Power Adapter Wall Mount 5 User Manual Section 1 - Product Overview System Requirements Network Requirements • An Ethernet-based Network • IEEE 802.11a/n wireless clients (AP Mode) • IEEE 802.11a/n wireless network (AP Mode) Web-based Configuration Utility Requirements Computer with the following: • Windows®, Macintosh, or Linux-based operating system • An installed Ethernet adapter Browser Requirements: • Internet Explorer® 7 and higher • Mozilla Firefox 12.0 and higher • Google™ Chrome 20.0 and higher • Apple Safari 4 and higher Windows ® Users: Make sure you have the latest version of Java installed. Visit www.java.com to download the latest version. 9User Manual Section 1 - Product Overview Hardware Overview Connections 1LAN PortConnects to 10/100 Ethernet devices such as computers, switches, and hubs. 2LAN (PoE) Port Power is supplied through the LAN cable connected in this port via the Power over Ethernet Injector. Please see “Installation” on page 11 for more details on how to correctly power the DAP-3410 and connect to other networking devices. 3Reset Button Hold the reset button for at least 5 seconds to reset the device back to the factory default settings. All the LEDs will turn on for 2 second and then begin the reboot process. 4 Grounding Wire Connector Connects to a grounding wire. 1 2 3 4 Note: The WCB1215H5ADX uses a proprietary PoE injector which is needed to function correctly. Only use the included PoE injector as other power sources such as 3rd party PoE injectors or PoE switches or hubs may damage the WCB1215H5ADX or cause it to operate unreliably, and will also void the warranty. 10User Manual Section 1 - Product Overview Hardware Overview LEDs 1 1 Wireless Signal Strength LED Shows different signal strength levels. (Only supported in Wireless Client, Repeater, WDS, and WISP mode) 2Power LEDA solid green light indicates the device is powered and ready. 3LAN LED A solid green light indicates the LAN port connection is OK. A blinking green light indicates that the unit is transmitting data over that port. 4LAN LED (PoE) A solid green light indicates the LAN port (PoE) connection is OK. A blinking green light indicates that the unit is transmitting data over that port. 3 4 2 11 User Manual Section 2 - Installation Installation First, you will need to configure the AP Router with a computer connected directly to the unit. The following pages explains how to set up the AP Router in order to be properly configured and then tested to work as desired. The AP Router acts as a central connection point for any device (client) that has a 802.11n or a 802.11a wireless network interface and is within range of the AP. Clients must use the same SSID (wireless network name) and channel as the AP in order to connect. If wireless security is enabled on the AP, the client will need to enter a password to connect to the AP. In Access Point mode, multiple clients can connect to the AP at the same time. STEP 1: Connect an Ethernet Cable to the LAN (PoE) Port on the AP. The port connection cover can be removed using a a small amount of force so that it pops off. It can be reattached by snapping it back into place. 12User Manual Section 2 - Installation A. Connect the Ethernet cable that is connected to the AP from STEP 1 to the P+DATA OUT port on the PoE Injector. B. Connect an Ethernet cable from a router, switch, or PC to the DATA IN port on the PoE Injector. C. Attach the power adapter to the connector labeled POWER IN on the PoE Injector, and plug it into an electrical outlet. 1 This product uses a proprietary PoE design and can only be used with the included PoE injector. STEP 2: Connect the AP to Your Network A C B P+DATA OUT DATA IN PoE Injector 1 POWER IN Router or SwitchComputer AP LAN (PoE) 1 13 User Manual Section 2 - Installation A. Power on the AP through the PoE kit (as in STEP 4) and connect the camera to the LAN 2 port. B. Log in to the web UI and enable PoE Passthrough in Maintenance to power on the camera. * 2 The LAN 2 port can be connected to D-Link cameras that require up to 7 watts, such as the DCS-3716, DCS-6113, and DCS-7110. It can also be connected to a router or a switch. PoE Injector 1 Router or SwitchComputer AP Camera 2 LAN2 2 LAN (PoE) 1 PoE Passthrough 14User Manual Section 2 - Installation Wireless Installation Considerations The D-Link Wireless N Exterior Access Point lets you access your network using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines: 1. Keep the number of walls and ceilings between the D-Link access point and other network devices to a minimum. Each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters). Position your devices so that the number of walls or ceilings is minimized. 2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception. 3. Building materials make a difference. A solid metal door or aluminum studs may have a negativ…

Text truncated - open the document above for the full version.

LanReady Technologies Inc 3F,No.166,Sinhu 2nd .,Neihu District, Taipei City 114 Taiwan(R.O.C.) DateDecember 25, 2013 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Model Difference To whom it may concern, Due to the business consideration, we hereby declare that our product of Main model: DAP-3410,TEW-754APB,AMS-P50,CAP-5015DP,WLO-35815NP,PS-200N-X,AOP9000,OW- 215N2-X,AMS-D50,CAP-5015D,WLO-35815N,OW-200N2-X,CAP-5015DX,WLO-35800N,AM S-D50-N,AC-GTT-11N5-D,TEW-758APBO,AC-GTT-11N5-O,TEW-759APBO. have as following difference: Model Tr a d e n a m eModel difference WCB1215H5ADX LanReardy plastic case Internal Antenna (Built In15dbi Patch) DAP-3410 D-Link plastic case Internal Antenna (Built In15dbi Patch) TEW-754APB Trendnet plastic case Internal Antenna (Built In15dbi Patch) AMS-P50ALCON plastic case Internal Antenna (Built In15dbi Patch) CAP-5015DPWiBorne plastic case Internal Antenna (Built In15dbi Patch) WLO-35815NPPheenet plastic case Internal Antenna (Built In15dbi Patch) PS-200N-X Cerio plastic case Internal Antenna (Built In15dbi Patch) AOP9000Phoebe Micro plastic case Internal Antenna (Built In15dbi Patch) OW-215N2-XCerio Aluminum case Internal Antenna (Built In15dbi Patch) AMS-D50ALCON Aluminum case Internal Antenna (Built In15dbi Patch) CAP-5015DWiBorne Aluminum case Internal Antenna (Built In15dbi Patch) WLO-35815NPheenet Aluminum case Internal Antenna (Built In15dbi Patch) OW-200N2-X Cerio Aluminum case external Antenna ( 5 dbi) CAP-5015DXWiBorne Aluminum case external Antenna ( 5 dbi) WLO-35800NPheenet Aluminum case external Antenna ( 5 dbi) AMS-D50-NALCON Aluminum case external Antenna( 5 dbi) AC-GTT-11N5-D Grand-Tek GTT Iron-hull Internal Antenna (Built In GTT 15dbi Patch) TEW-758APBOTRENDnet GTT Iron-hull Internal Antenna (Built In GTT 15dbi Patch) AC-GTT-11N5-O Grand-TekGTT Iron-hull external Antenna ( 6dbi) TEW-759APBOTRENDnetGTT Iron-hull external Antenna ( 6 dbi) Any questions regarding this declaration, please don’t hesitate to contact us. Sincerely yours, Signature Name/Title: Spencer Chen /CTO Company Name: LanReady Technologies Inc. Address: 3F,No.166,Sinhu 2nd .,Neihu District, Taipei City 114 Taiwan(R.O.C.) TEL: 886-02-2796-8188 FAX:886-02-2796-8158 Email:[email protected]

LanReady Technologies Inc 3F,No.166,Sinhu 2nd .,Neihu District, Taipei City 114 Taiwan(R.O.C.) DateDecember 19, 2013 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, Signature Name/Title: Spencer Chen /CTO Company Name: LanReady Technologies Inc. Address: No. 166 Sinhu 2nd Rd., Neihu District Taipei City 114. Taiwan (R.O.C) TEL: 886-02-2796-8188 FAX:886-02-2796-8158 Email:[email protected]

LanReady Technologies Inc. . 18, 2013 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: , would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, Signature Name/Title: Spencer Chen /CTO Company Name: LanReady Technologies Inc. Address: No. 166 Sinhu 2nd Rd., Neihu District Taipei City 114. Taiwan (R.O.C) TEL: 886-02-2796-8188 FAX:886-02-2796-8158 Email:[email protected]

LanReady Technologies Inc 3F,No.166,Sinhu 2nd .,Neihu District, Taipei City 114 Taiwan(R.O.C.) DateDecember 19, 2013 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, hereby authorize Compliance Certification Services Inc./ David Wang. to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2014/10/15 Your Sincerely, Signature Name/Title: Spencer Chen /CTO Company Name: LanReady Technologies Inc. Address: No. 166 Sinhu 2nd Rd., Neihu District Taipei City 114. Taiwan (R.O.C) TEL: 886-02-2796-8188 FAX:886-02-2796-8158 Email:[email protected]

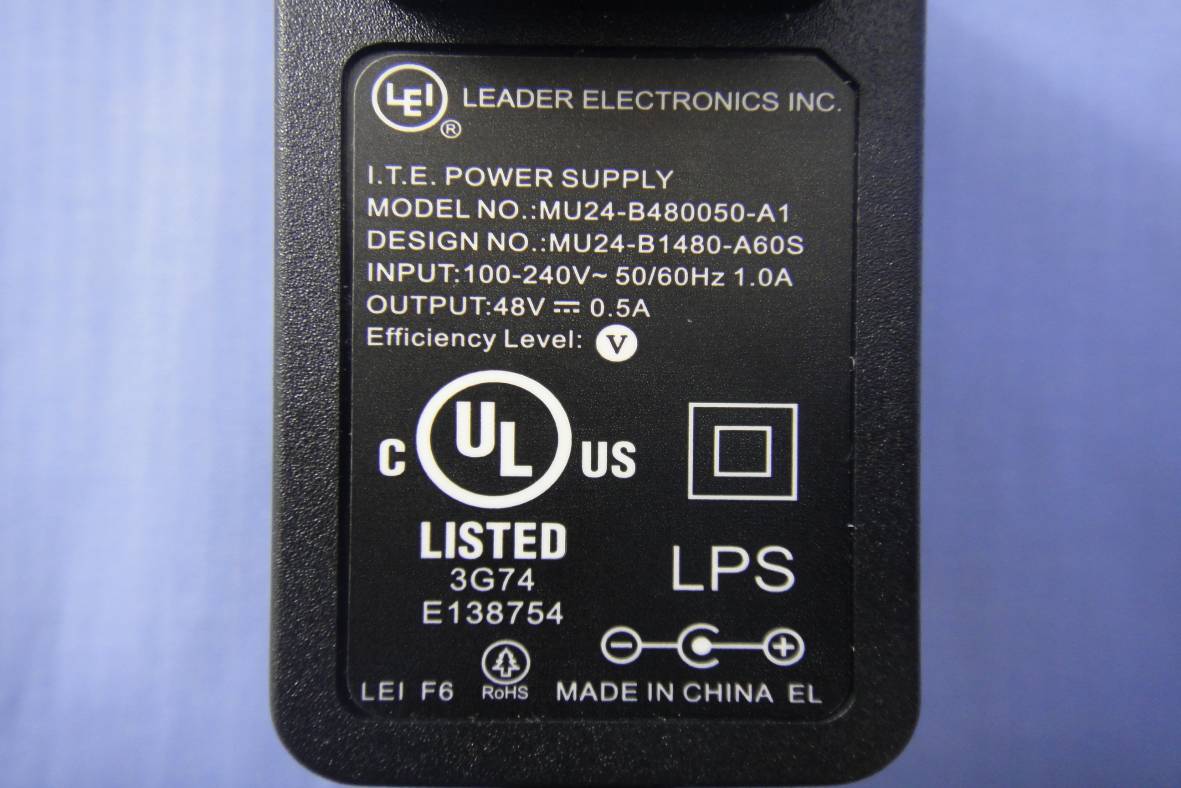

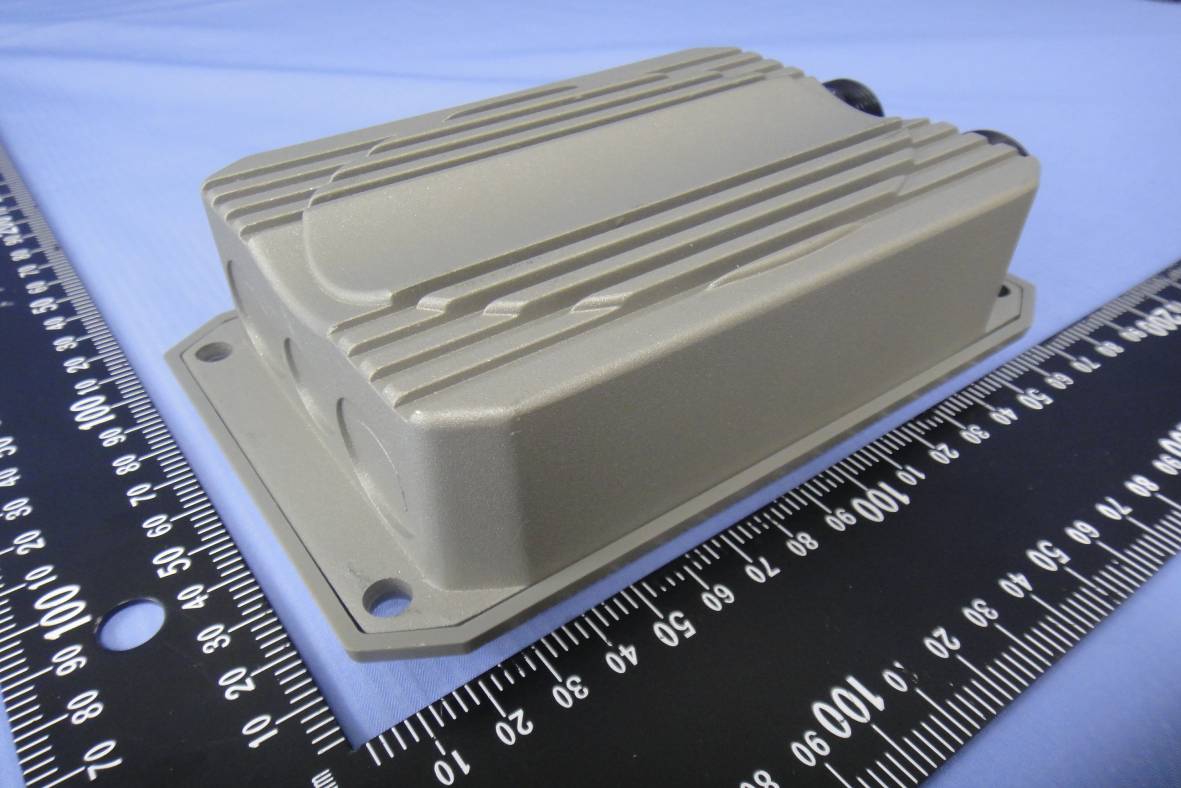

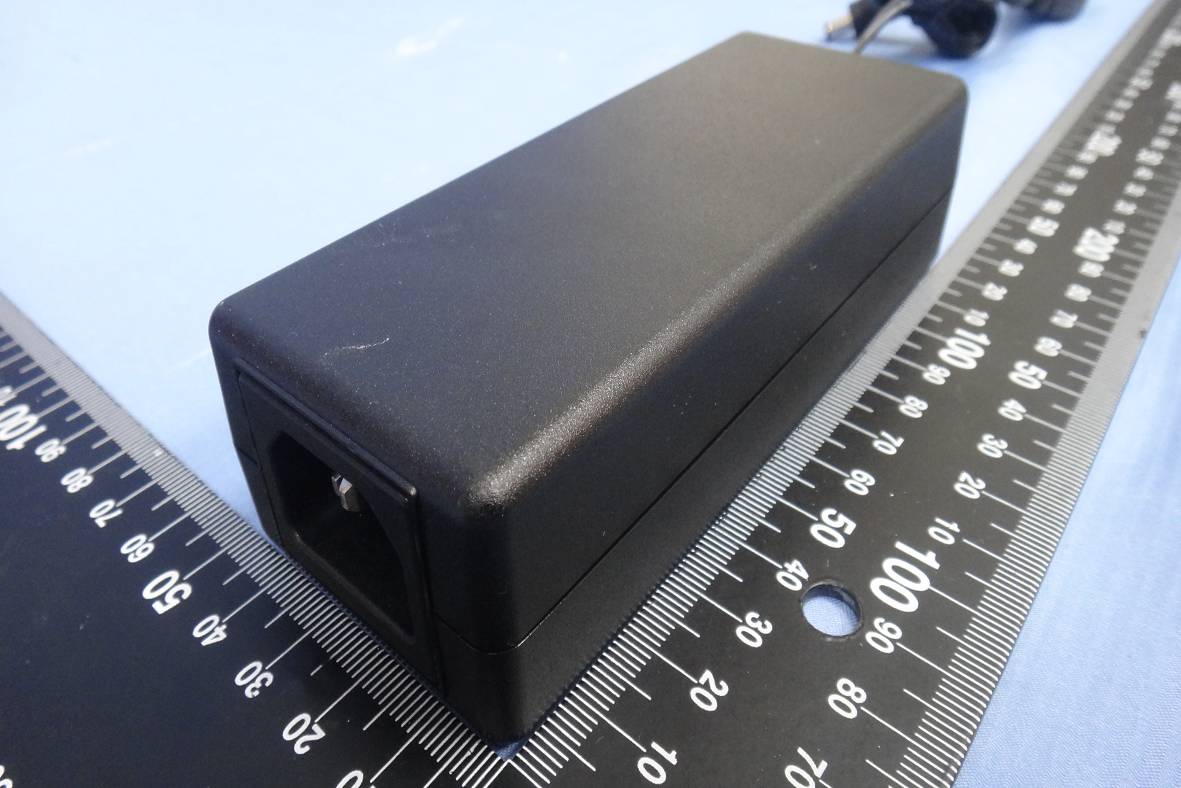

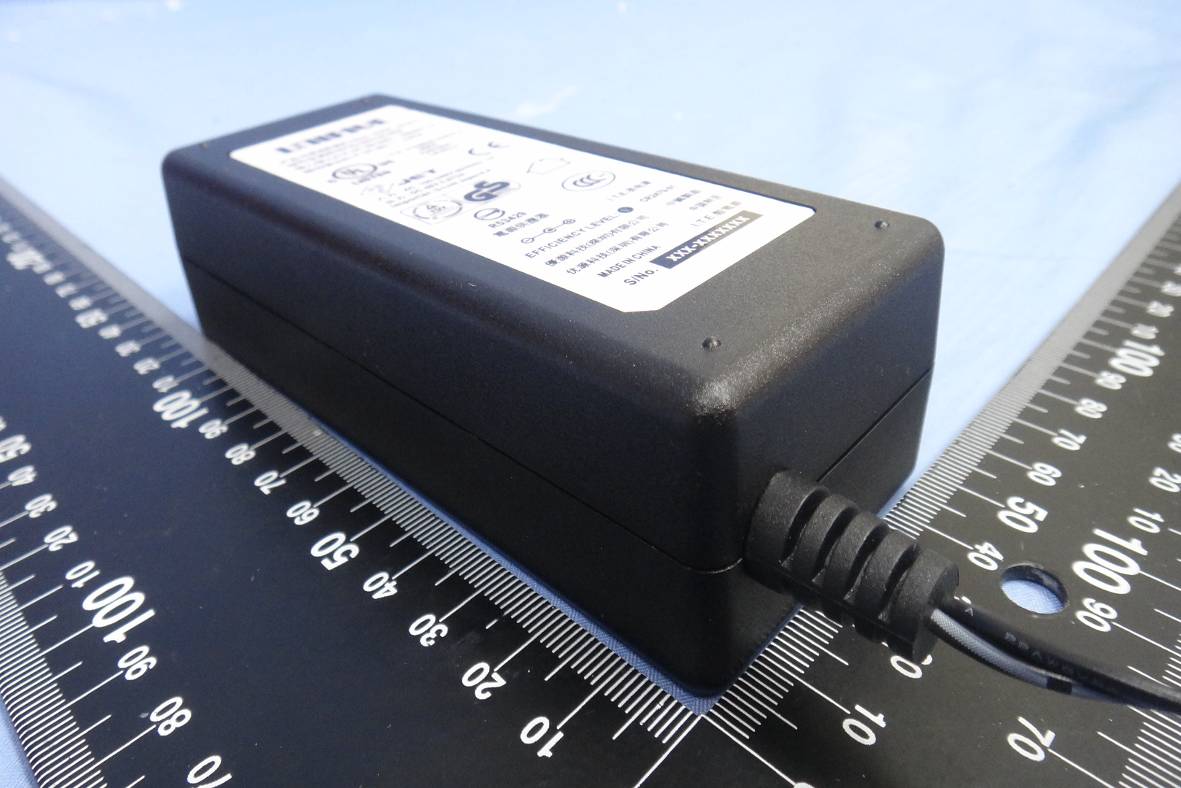

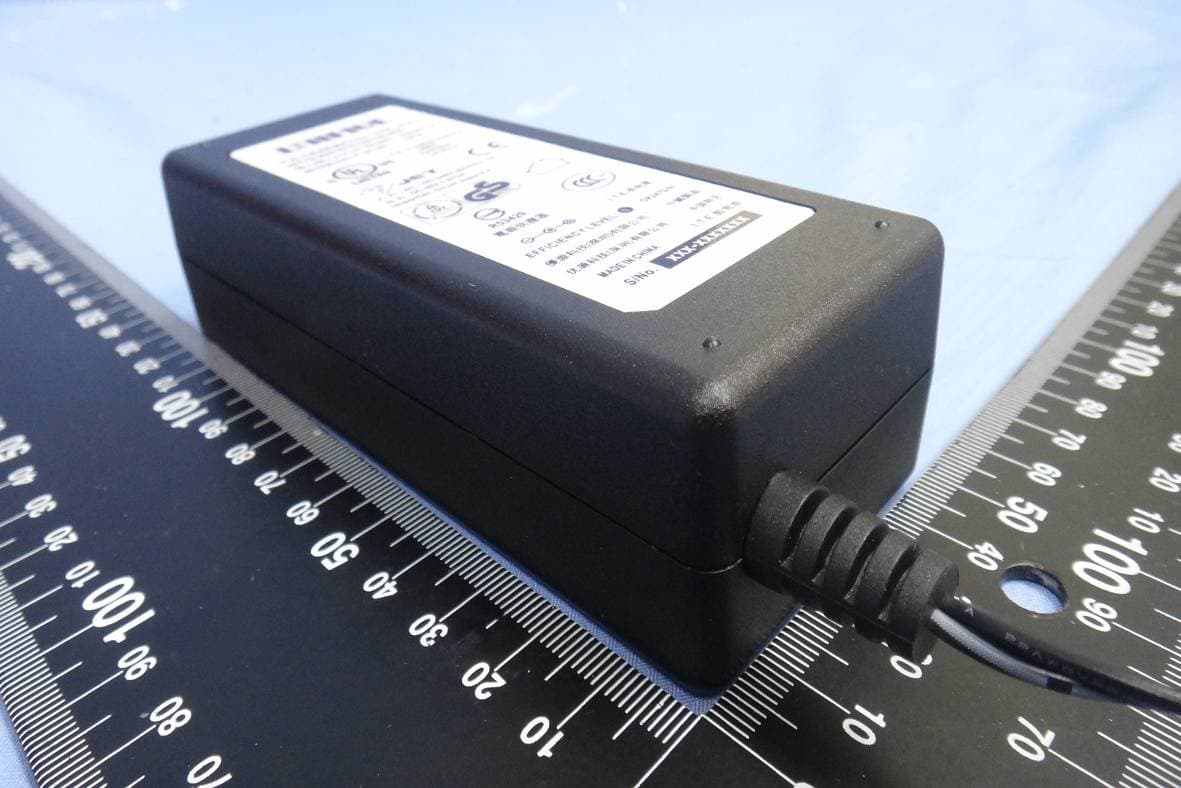

Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 1 Total Page: 22 Rev.00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT For OW-200N2-X Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 2 Total Page: 22 Rev.00 For OW-215N2-X Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 3 Rev.00 For AC-GTT-11N5-O Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 4 Rev.00 Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 5 Rev.00 Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 6 Rev.00 For DAP-3410 Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 7 Rev.00 Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 8 Rev.00 Power Adapter for MU24-B480050-A1 Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 9 Rev.00 Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 10 Rev.00 Power Adapter for UEC345-4808 Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 11 Rev.00 Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 12 Rev.00 PoE

Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 13 Rev.00 INTERNAL PHOTOGRAPHS OF EUT For OW-200N2-X Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 14 Rev.00 Omni-directional Antenna Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 15 Rev.00 For OW-215N2-X Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 16 Rev.00 Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 17 Rev.00 Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 18 Rev.00 Patch Antenna Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 19 Rev.00 Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 20 Rev.00 Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 21 Rev.00 For AC-GTT-11N5-O Compliance Certification Services Inc. Report No.: T130924W01 Date of Issue: December 3, 2013 A1 - 22 Rev.00 Omni-directional Antenna

Compliance Certification Services Inc. Report No.: T130924W01 - MF Date of Issue: December 19, 2013 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT AP Router Model / Trade Number WCB1215H5ADX / LanReardy DAP-3410 / D-Link TEW-754APB, TEW-758APBO, TEW-759APBO / Trendnet AMS-P50, AMS-D50, AMS-D50-N / ALCON CAP-5015DP, CAP-5015D, CAP-5015DX / WiBorne WLO-35815NP, WLO-35815N, WLO-35800N / Pheenet PS-200N-X, OW-215N2-X, OW-200N2-X / Cerio AOP9000 / Phoebe Micro AC-GTT-11N5-D, AC-GTT-11N5-O / Grand-Tek Frequency band (Operating) 802.11a / 802.11 HT20: 5745 ~ 5825MHz 802.11 HT40: 5755 ~ 5795MHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Omni-directional Antenna Gain 5.0 dBi (Numeric gain: 3.16) Omni-directional Antenna Gain 6.0 dBi (Numeric gain: 3.98) Patch Antenna Gain 14.5 dBi (Numeric gain: 28.38) Tune up limit Max. output power ModeAvg. Power Tolerance Milliwatt IEEE 802.11a 15.00 dBm ± 2.0 dB (50.119 mW) IEEE 802.11n HT20 15.00 dBm ± 2.0 dB (50.119 mW) IEEE 802.11n HT40 15.00 dBm ± 2.0 dB (50.119 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T130924W01 - MF Date of Issue: December 19, 2013 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2013/12/19 Initial Issue ALL Scott.Hsu Compliance Certification Services Inc. Report No.: T130924W01 - MF Date of Issue: December 19, 2013 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d G P E    30 & 377 2 E S  Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d G P S    Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields     2 2 0796 . 0 100 / 377 1000 / 30 d G P d G P S        Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T130924W01 - MF Date of Issue: December 19, 2013 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: G P S    000199 . 0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11a mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 149 5745 50.19 3.98 20 0.0398 1 Omni-directional Antenna IEEE 802.11n HT20 mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 149 5745 50.19 3.98 20 0.0398 1 Omni-directional Antenna IEEE 802.11a HT40 mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 159 5795 50.19 3.98 20 0.0398 1 Omni-directional Antenna IEEE 802.11a mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 149574550.1928.38200.28351 Patch Antenna IEEE 802.11n HT20 mode: Ch. Frq.(MHz) P (mW) Gain (num.) D (cm) Power density in mW / cm 2 Limit (mW/cm2) 149 5745 50.19 28.38 20 0.2835 1 Patch Antenna IEEE 802.11a HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 159579550.1928.38200.28351 Patch Antenna

Compliance Certification Services Inc. FCC ID: SCDOW161000001 Report No.: T130924W01-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 89 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For AP Router Model / Trade Name: WCB1215H5ADX / LanReardy DAP-3410 / D-Link TEW-754APB, TEW-758APBO, TEW-759APBO / Trendnet AMS-P50, AMS-D50, AMS-D50-N / ALCON CAP-5015DP, CAP-5015D, CAP-5015DX / WiBorne WLO-35815NP, WLO-35815N, WLO-35800N / Pheenet PS-200N-X, OW-215N2-X, OW-200N2-X / Cerio AOP9000 / Phoebe Micro AC-GTT-11N5-D, AC-GTT-11N5-O / Grand-Tek Issued to LanReady Technologies Inc 3F,No.166,Sinhu 2nd .,Neihu District, Taipei City 114 Taiwan(R.O.C.) Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: December 4, 2013 Compliance Certification Services Inc. FCC ID: SCDOW161000001 Report No.: T130924W01-RP1 Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 December 4, 2013 Initial Issue ALL Eunice Shen Compliance Certification Services Inc. FCC ID: SCDOW161000001 Report No.: T130924W01-RP1 Page 3 Rev.00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................... 4 2. EUT DESCRIPTION ........................................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................................... 7 3.1 EUT CONFIGURATION ........................................................................................................................ 7 3.2 EUT EXERCISE .................................................................................................................................... 7 3.3 GENERAL TEST PROCEDURES ............................................................................................................. 7 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................... 8 3.5 DESCRIPTION OF TEST MODES ........................................................................................................... 9 4. INSTRUMENT CALIBRATION ...................................................................................................... 10 4.1 MEASURING INSTRUMENT CALIBRATION .................................................................................... 10 4.2 MEASUREMENT EQUIPMENT USED ....................................................................................... 10 4.3 MEASUREMENT UNCERTAINTY ............................................................................................. 11 5. FACILITIES AND ACCREDITATIONS ........................................................................................ 12 5.1 FACILITIES ....................................................................................................................................... 12 5.2 EQUIPMENT ...................................................................................................................................... 12 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................................... 13 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 14 6.1 SETUP CONFIGURATION OF EUT ....................................................................................................... 14 6.2 SUPPORT EQUIPMENT ............................................................................................................... 14 7. FCC PART 15.247 REQUIREMENTS ............................................................................................. 15 7.1 6DB BANDWIDTH ............................................................................................................................. 15 7.2 PEAK POWER .................................................................................................................................... 30 7.3 PEAK POWER SPECTRAL DENSITY .................................................................................................... 32 7.4 SPURIOUS EMISSIONS ................................................................................................................. 47 7.5 POWERLINE CONDUCTED EMISSIONS ............................................................................................... 83 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................... 86 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: SCDOW161000001 Report No.: T130924W01-RP1 Page 4 Rev.00 1. TEST RESULT CERTIFICATION Applicant: LanReady Technologies Inc 3F,No.166,Sinhu 2nd .,Neihu District, Taipei City 114 Taiwan(R.O.C.) Equipment Under Test: AP Router Model Number / Trade Name: WCB1215H5ADX / LanReardy DAP-3410 / D-Link TEW-754APB, TEW-758APBO, TEW-759APBO / Trendnet AMS-P50, AMS-D50, AMS-D50-N / ALCON CAP-5015DP, CAP-5015D, CAP-5015DX / WiBorne WLO-35815NP, WLO-35815N, WLO-35800N / Pheenet PS-200N-X, OW-215N2-X, OW-200N2-X / Cerio AOP9000 / Phoebe Micro AC-GTT-11N5-D, AC-GTT-11N5-O / Grand-Tek Date of Test: October 3 ~ December 11, 2013 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: SCDOW161000001 Report No.: T130924W01-RP1 Page 86 Rev.00 APPENDIX I PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SETUP PHOTOS Compliance Certification Services Inc. FCC ID: SCDOW161000001 Report No.: T130924W01-RP1 Page 87 Rev.00 RADIATED EMISSION SETUP PHOTOS For OW-200N2-X Compliance Certification Services Inc. FCC ID: SCDOW161000001 Report No.: T130924W01-RP1 Page 88 Rev.00 For OW-215N2-X Compliance Certification Services Inc. FCC ID: SCDOW161000001 Report No.: T130924W01-RP1 Page 89 Rev.00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
