SCDOW141000001AP Router

LanReady Te chnologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886‐2‐2796‐8188 Fax: 886‐2‐2796‐8158 http//:www.lanready.com Network on Demand Network on Demand Network on Demand Network on Demand Network on Demand Model Name: WCB1105H10DX Product Name: AP Router Brand Name: LanReady - WCB11xx_H10PX series and WCB1110H10DX is a 2.4GHz Single Band AP. - The WCB1110H10DX support the IP65 water/dust-proof standard. It is recommended that you place the AP under a roof, shelter, or weather-proof container in severe weather environment. Minimum System Requirements -- Computer with Windows, MAC OS, or Linuxbased operating system, and an Ethernet adapter installed -- Internet Explorer 7.0, Mozilla Firefox® version 12.0, Safari 4.0, or Chrome 20.0 or newer Package Contents -- WCB11xx_H10PX series and WCB1110H10DX Wireless-bgn, 2.4GHz, 800mW Outdoor AP Bridge -- PoE Injector -- Power Adapter (48 V/0.5 A) -- Pole Mount (Non-detachable) -- Wall Mount (optional) -- Two Plastic Mounting Ties If any of the above items are missing, please contact your reseller. Physical Installation STEP 1: Connect an Ethernet Cable to the LAN (PoE) Port on the AP. Ethernet cable is not included in the package STEP 2: Mount the AP to a Pole or Wall 2A: Pole Mounting LanReady Te chnologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886‐2‐2796‐8188 Fax: 886‐2‐2796‐8158 http//:www.lanready.com Network on Demand Network on Demand Network on Demand Network on Demand Network on Demand Wrap the included two plastic mounting ties to the pole. 2B: Wall Mounting It is an optional accessory and fix it on the wall with screws and then attach the device and use the plastic mounting ties to hold in place. STEP 3: Connect Grounding Wire A grounding wire is recommended to protect your device from lightning strikes and the buildup of static electricity. - A grounding Wire is not included in the package. It is suggested that you use 16 to 18 AWG grounding wire. STEP 4: Connect the AP to Your Network A. Connect the Ethernet cable (connected to the AP in STEP 1) from the AP to the P+DATA OUT port on the PoE Injector. B. Connect an Ethernet cable from a router/ switch or PC to the DATA IN port on the PoE Injector. C. Attach the power adapter to the connector labeled POWER IN on the PoE Injector, and attach it into an electrical outlet. Configuration If you are configuring the AP locally, connect a PC to the PoE Injector DATA IN port using an Ethernet cable. A. Assign a static IP address to your PC which is in the same network segment with the device. As the default IP address of this unit is 192.168.2.254. B. Open a web browser and go to http:// 192.168.2.254. Enter “root” as your username and enter “default” as the password to log into the web UI. Now you can configure the AP via web UI. LanReady Te chnologies Inc. 3F., No.166, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan Tel: 886‐2‐2796‐8188 Fax: 886‐2‐2796‐8158 http//:www.lanready.com Network on Demand Network on Demand Network on Demand Network on Demand Network on Demand Waring This equipment has been tested and found to comply with the limits for a Class B digi tal device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This e quipment generates, uses and can radiate radio frequency energy and, if not installe d and used in accordance with the instructions, may cause harmful interference to ra dio communications. However, there is no guarantee that interference will not occur i n a particular installation. If this equipment does cause harmful interference to radio o r television reception, which can be determined by turning the equipment off and on, t he user is encouraged to try to correct the interference by one or more of the followin g measures: ­Reorient or relocate the receiving antenna. ­ Increase the separation between the equipment and receiver. ­ Connect the equipment into an outlet on a circuit different from that to which the recei ver is connected. ­Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co­ located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an unco ntrolled environment. This equipment should be installed and operated with a minimu m distance of 20 centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

LanReady Technologies Inc. Date: July 23, 2013 Subject: Ad Hoc Mode Function Declaration FCC ID: To Whom it may concern, This device is acting as slave and operating on 2.4GHz (2412 - 2462) band. Ad Hoc function is available on client mode and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, ( Signature Here) Name: Spencer Chen Title: CTO Tel: 886-02-2796-8188 E-mail: [email protected] Date: 2013/07/23

LanReady Technologies Inc. Clarify that we, LanReady Technologies Inc. get the approval & qualification from below brands for applying FCC. 1.D-Link 2.Airlink101 3.ALCON 4.Cerio 5.GTT 6.Pheenet 7.Trendnet 8.Wavecore 9.Wiborne Signature Name/Title: Spencer Chen /CTO Company Name: LanReady Technologies Inc. Address: No. 166 Sinhu 2nd Rd., Neihu District Taipei City 114. Taiwan (R.O.C) TEL: 886-02-2796-8188 FAX:886-02-2796-8158 Email:[email protected]

LanReady Technologies Inc. July. 17, 2013 Federal Communications Commission Authorization and Evaluation Division FCC ID Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Signature Name/Title: Spencer Chen /CTO Company Name: LanReady Technologies Inc. Address: No. 166 Sinhu 2nd Rd., Neihu District Taipei City 114. Taiwan (R.O.C) TEL: 886-02-2796-8188 FAX:886-02-2796-8158 Email:[email protected]

LanReady Technologies Inc. July. 17, 2013 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No. 11, Wugong 6 th Rd., Wugu Towership, Taipei County 24891, Taiwan Mr. David Wang Job Title: Vice President Email: [email protected] I am therefore responsible for the contents of the application. FCC ID Model Name: WCB1105H10DX Brand Name: Product Name: Signature Name/Title: Spencer Chen /CTO Company Name: LanReady Technologies Inc. Address: No. 166 Sinhu 2nd Rd., Neihu District Taipei City 114. Taiwan (R.O.C) TEL: 886-02-2796-8188 FAX:886-02-2796-8158 Email:[email protected]

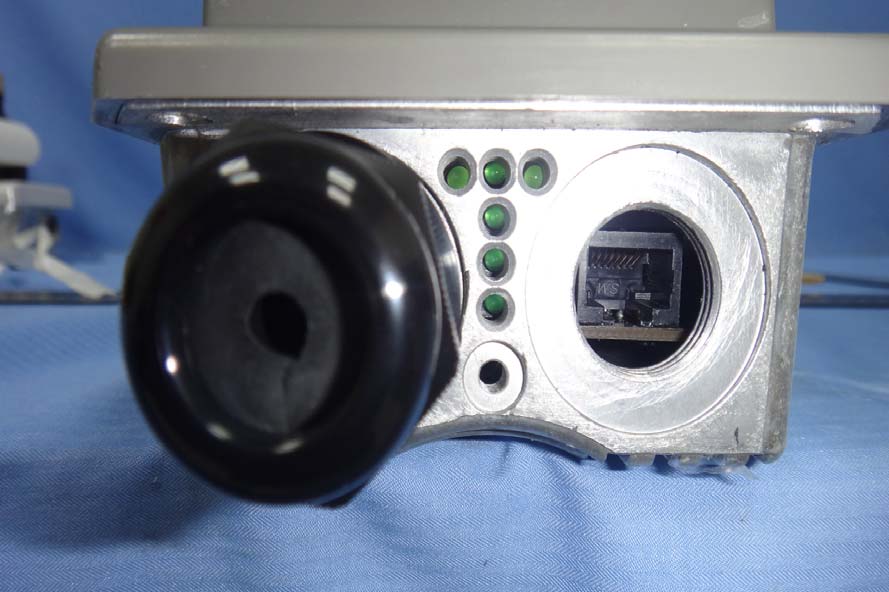

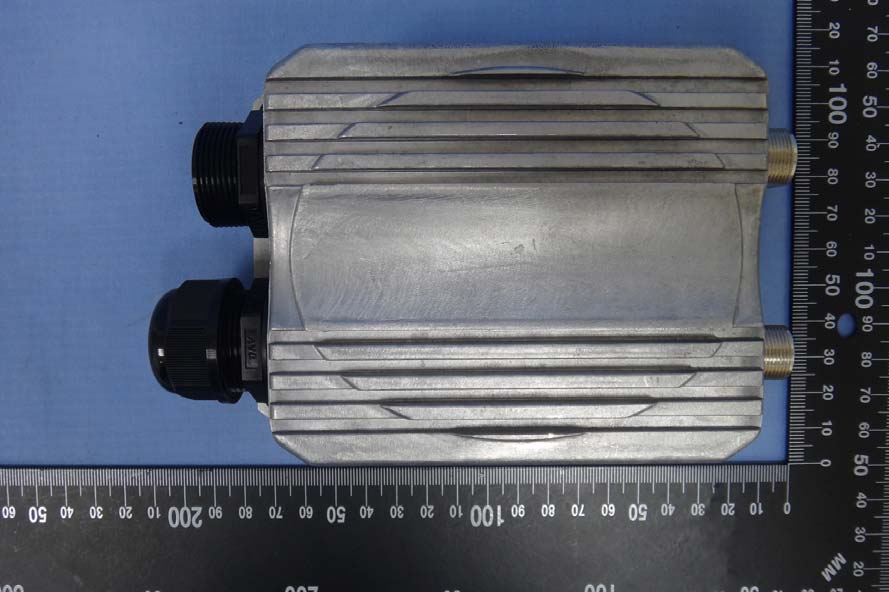

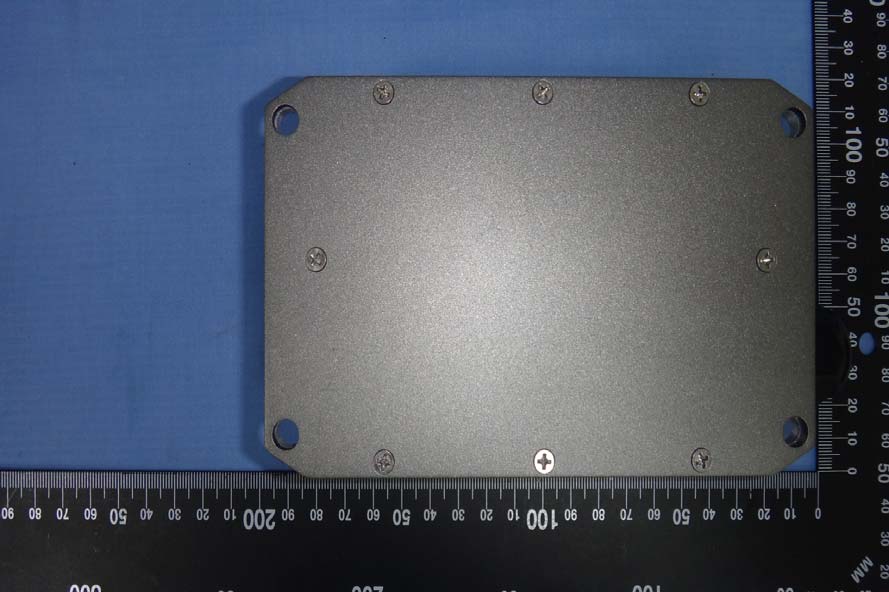

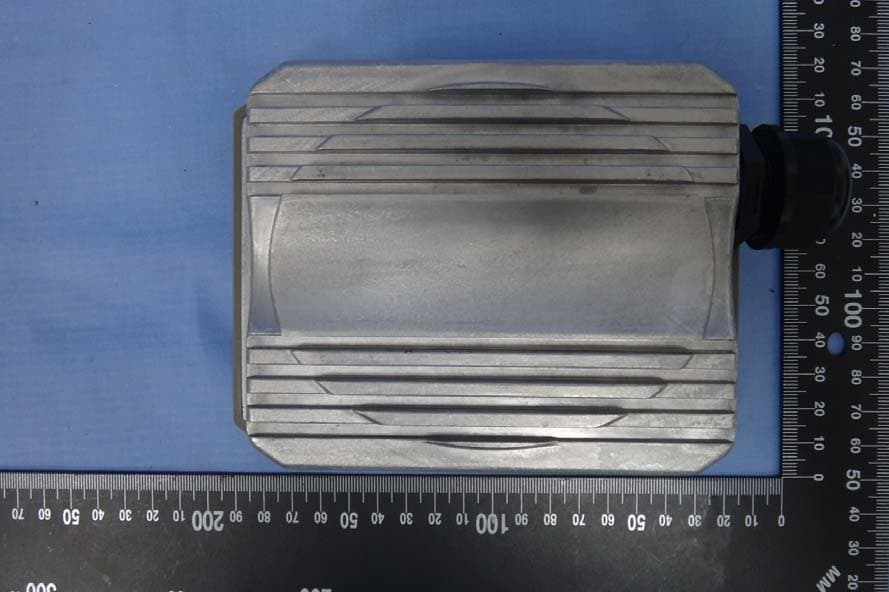

Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 1 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Model: DAP-3310 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 4 Rev. 00 Model: WCB1105H10DX Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 6 Rev. 00 Model: WCB1100H10DX Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 9 Rev. 00 Model: AC-GTT-11N-D Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 11 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 12 Rev. 00 Model: AC-GTT-11N-O Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 13 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 14 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 15 Rev. 00 Model: WLO-12410N Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 16 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 17 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 18 Rev. 00 Model: WLO-12400N Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 19 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 20 Rev. 00

Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 21 / 55 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Model: DAP-3310 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 22 / 55 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 23 / 55 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 24 / 55 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 25 / 55 Rev. 00 Antenna Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 26 Rev. 00 Model: WCB1105H10DX Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 27 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 28 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 29 Rev. 00 Antenna Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 30 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 31 Rev. 00 Model: WCB1100H10DX Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 32 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 33 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 34 Rev. 00 Antenna Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 35 Rev. 00 Model: AC-GTT-11N-D Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 36 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 37 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 38 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 39 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 40 Rev. 00 Model: AC-GTT-11N-O Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 41 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 42 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 43 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 44 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 45 Rev. 00 Model: WLO-12410N Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 46 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 47 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 48 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 49 Rev. 00 Antenna Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 50 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 51 Rev. 00 Model: WLO-12400N Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 52 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 53 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 54 Rev. 00 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: May 3, 2013 A1 - 55 Rev. 00 Antenna

Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: July 28, 2013 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT AP Router Trade Name / Model Number Trade Name Model Trade Name Model LanReady WCB1105H10DX GTT AC-GTT-11N-O D-Link DAP-3311 Trendnet TEW-739APBO Cerio DT-300N Pheenet WLO-12410N Airlink101 AOP8012 Cerio OW-310N2 D-Link DAP-3310 Wiborne CAP-2410D Pheenet WLO-12410NP ALCON AMS-D24 Wiborne CAP-2410P Wavecore WV-110CPE Trendnet TEW-734APB Airlink101 AOP8010 ALCON AMS-P24 LanReady WCB1110H10X Wavecore WV110BR Pheenet WLO-12400N Airlink101 AOP8016 Cerio OW-300N2 Lanready WCB1110H10DX Wiborne CAP-2410E LanReady WCB1100H10DX ALCON AMS-D24-N D-Link DAP-3312 Wavecore WV-100CPE GTT AC-GTT-11N-D Airlink101 AOP8000 Trendnet TEW-738APBO LanReady WCB1100H10X Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 1. LanReady / Dipole Antenna Gain: 9.12492 dBi (Reverse polarity SMA) 2. Grand-Tek / Patch Antenna Gain: 10 dBi (Numeric gain: 10) 3. WHA YU / Omni Antenna Gain: 4.55 dBi 4. LanReady / DipoleAntenna Gain: 5 dBi (Reverse polarity SMA) Max. output power IEEE 802.11b : 11.43 dBm (13.900mW) IEEE 802.11g : 8.13 dBm (6.501mW) IEEE 802.11n HT20 : 10.46 dBm (11.117mW) IEEE 802.11n HT40 : 10.04 dBm (10.093mW) Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: July 28, 2013 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: The maximum output power is 11.43dBm (13.900mW) at 2437MHz (with 10 numeric antenna gain.) Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: July 28, 2013 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T130322W11 Date of Issue: July 28, 2013 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243713.90010200.02771 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 624376.50110200.01291 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241211.11710200.02211 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 9245210.09310200.02011

Page 1 of 12 Antenna Design For NE3-12124 V1.03 Document Number NE3-12124 1 st Released Date 11/27/12 Last Released Date 12/18/12 Author Kevin Lin Review by Page 2 of 12 Revised History Date Version Revised Record 11/27/12 1.00 z 1 st released 11/30/12 1.01 z 補測平躺測試結果 12/06/12 1.02 z 更換ANT2 與 ANT1同樣TYPE 12/18/12 1.03 z 更換ANT1 Page 3 of 12 Specification Rough description Item Initial Specification Final Specification Dimensions Impedance 50Ω Test environment With Housing Application None Freq. Range 2400MHz~2500MHz Antenna type ANT1-Dipole ANT2- Dipole Gain ANT-1 (4.55dBi) ANT-2 (4.36dBi) VSWR 1.5:1 Radiation None Polarization Linear HPBW / H None HPBW / E None Rad. efficiency >65% Connector type MHF Cable type ∮1.13 Page 4 of 12 1 Antenna Introduction Page 5 of 12 S11 test results 1.1 ANT1 ANT2 Page 6 of 12 1.2 Isolation test results (ANT-1 to ANT2) Page 7 of 12 3 Gain & Patterns test results 3.1 Measurement setting XY YZ XZ 0° Right Up Up 90° Back Back Right 180° Left Down Down 270° Front Front Left X Y Z AUT Up(+Z) Left Front Back(+Y) Right(+X) Down Left Page 8 of 12 θ φ To t a l a n g l e 175 ̊ 360 ̊ How many angle scan one point 5 ̊ 5 ̊ Total scan point 36 73 Page 9 of 12 3.2 Ant 1(直立) 2400 MHz~2500 MHz X‐Z Plane (E‐total) 2400 MHz~2500 MHz Y‐Z Plane (E‐total) Page 10 of 12 2400 MHz~2500 MHz X‐Y Plane (E‐total) Ant 2 (直立) 2400 MHz~2500 MHz X‐Z Plane (E‐total) Page 11 of 12 2400 MHz~2500 MHz Y‐Z Plane (E‐total) 2400 MHz~2500 MHz X‐Y Plane (E‐total) Page 12 of 12 4 Summary 4.1 Return Loss Frequency Ant 1 (dB) Ant 2 (dB) 2400 MHz ‐20.80 ‐18.81 2450 MHz ‐22.12 ‐21.86 2500 MHz ‐18.10 ‐21.01 4.2 Isolation Frequency Ant 1 to Ant2(dB) 2400GHz ‐21.18 2450GHz ‐21.53 2500GHz ‐22.67 4.3 3D total Peak Gain & Efficiency Ant 1(直立) Ant 2(直立) Frequency Peak Gain (dBi) Efficiency (%) Peak Gain (dBi) Efficiency (%) 2400GHz 4.36 72.13 4.23 71.21 2450GHz 4.55 72.57 4.04 73.51 2500GHz 4.37 72.97 4.36 70.33

CUSTOMER P/N: DESCRIPTION: MICON P /N: DATE: 1F,NO.37,PAO‐SHING RD., HSIN‐TIEN, NEW TAIPEI CITY, TAIWAN,R.O.C 231新北市新店區寶興路37號1樓 TEL : 886‐2‐2917‐7528 FAX: 886‐2‐29121659 Http://www.micon.com.tw CUSTOMER: 2012/10/31 71869 泰鉅科技股份有限公司 垠旺精密股份有限公司 Customer Approval APPROVAL SHEET 承認書 2.4GHz 5dBi Antenna 1.0 Scope: All details specified in this and other documentation must be met with. This Product Specification covers the requirements of product performance and test methods of MICON’s ANTENNA with bifurcated contacts. 2.0 PRODUCT DESCRIPTION: 2.1 PRODUCT NAME: 2.4GHz 5dBi Antenna 2.2 PRODUCT PART NUMBER: 71869 3.0 PERFORMANCE: 3.1 ELECTRICAL REQUIREMENTS(Continued) 1 3.2 MECHANICAL REQUIREMENTS: PART NO.:REV: 2.4GHz 5dBi Antenna1 DOCUMENT NO.: APPROVED / DATE: 10/31/12 JoyceIRIS 5 OPERATING TEMPERATURE RANGE ‐20°C ~ +50°C CREATED / DATE: CHECKED / DATE: 10/31/12 PRODUCT SPECIFICATION 10110311056YANG 71869 DESCRIPTION: 4 ITEMDESCRIPTION 2 1ANTENNA BODYPC/ABS CABLE LENGTHN/A 3GAIN 5dBi V.S.W.R 2 Frequency 2.4GHz Range ITEMDESCRIPTIONREQUIREMENTS Impedance50 Ohms 3 4TERMINAL TYPE SMA JACK CONNECTOR REQUIREMENTS CABLE TYPEN/A 101 .11.1 威捷電子有限公司 WEI JIE ELECTRONIC LTD.CO. S11 (Insertion Loss) 威捷電子有限公司 WEI JIE ELECTRONIC LTD.CO. Smith Chart 威捷電子有限公司 WEI JIE ELECTRONIC LTD.CO. S11 (Return Loss) 威捷電子有限公司 WEI JIE ELECTRONIC LTD.CO. V. S. W. R.

Test Date 2012/4/27 Trade Name LanReady App.No Antenna_AH Model Name Test Mode Free Space &Talking Position Free Space Communication System Frequency 2400 2450 2500 OTA-02 Note AH Ant. Port Input Pwr. (dBm) 0 0 0 Tot. Rad. Pwr. (dBm) 1.94705 1.36751 -0.3279 Peak EIRP (dBm) 8.90328 8.35184 6.6808 Directivity (dBi) 6.95623 6.98434 7.00874 Efficiency (dB) 1.94705 1.36751 -0.3279 Gain (dBi) 8.90328 8.35184 6.6808 Front/Back Ratio (dB) 20.8487 19.9348 20.8904 Beamwidth (? 65 65 64 + Beamwidth (? 32 33 31 - Beamwidth (? 33 32 33 Boresight Angle (? 90 88 90 Maximum Power (dBm) 8.90328 8.35184 6.6808 Minimum Power (dBm) -14.099 -15.098 -16.47 Average Power (dBm) 1.92468 1.34509 -0.3502 Max/Min Ratio (dB) 23.0027 23.4501 23.1506 Max/Avg Ratio (dB) 6.9786 7.00676 7.03102 Min/Avg Ratio (dB) -16.024 -16.443 -16.12 Average Gain (dB) 1.94705 1.36751 -0.3279 Test Date 2012/4/27 Trade Name LanReady App.No Antenna_AE Model Name Test Mode Free Space &Talking Position Free Space Communication System Click to buy NOW! P D F - X C h a n g e w w w . t r a c k e r - s o f t w a r e . c o m Click to buy NOW! P D F - X C h a n g e w w w . t r a c k e r - s o f t w a r e . c o m Frequency 2400 2450 2500 OTA-02 Note AE Ant. Port Input Pwr. (dBm) 0 0 0 Tot. Rad. Pwr. (dBm) 1.72159 1.26619 -0.3649 Peak EIRP (dBm) 8.86631 8.40331 6.72696 Directivity (dBi) 7.14472 7.13712 7.09183 Efficiency (dB) 1.72159 1.26619 -0.3649 Gain (dBi) 8.86631 8.40331 6.72696 Front/Back Ratio (dB) 17.0536 16.2314 16.3708 Beamwidth (? 61 61 61 + Beamwidth (? 30 28 30 - Beamwidth (? 31 33 31 Boresight Angle (? 90 92 90 Maximum Power (dBm) 8.86631 8.40331 6.72696 Minimum Power (dBm) -16.15 -15.618 -15.251 Average Power (dBm) 1.70048 1.24514 -0.3855 Max/Min Ratio (dB) 25.0163 24.0217 21.9783 Max/Avg Ratio (dB) 7.16583 7.15817 7.11244 Min/Avg Ratio (dB) -17.85 -16.864 -14.866 Average Gain (dB) 1.72159 1.26619 -0.3649 Test Date 2012/4/27 Trade Name LanReady App.No Antenna_BH Model Name Test Mode Free Space &Talking Position Free Space Communication System Frequency 2400 2450 2500 OTA-02 Note BH Ant. Port Input Pwr. (dBm) 0 0 0 Tot. Rad. Pwr. (dBm) 0.97945 2.00949 0.95654 Peak EIRP (dBm) 7.91333 9.0607 8.17671 Directivity (dBi) 6.93389 7.05121 7.22017 Click to buy NOW! P D F - X C h a n g e w w w . t r a c k e r - s o f t w a r e . c o m Click to buy NOW! P D F - X C h a n g e w w w . t r a c k e r - s o f t w a r e . c o m Efficiency (dB) 0.97945 2.00949 0.95654 Gain (dBi) 7.91333 9.0607 8.17671 Front/Back Ratio (dB) 21.383 20.3738 21.1441 Beamwidth (? 66 64 60 + Beamwidth (? 32 31 27 - Beamwidth (? 34 33 33 Boresight Angle (? 90 90 92 Maximum Power (dBm) 7.91333 9.0607 8.17671 Minimum Power (dBm) -16.37 -16.078 -17.361 Average Power (dBm) 0.95708 1.98697 0.93415 Max/Min Ratio (dB) 24.2828 25.1389 25.5372 Max/Avg Ratio (dB) 6.95626 7.07374 7.24256 Min/Avg Ratio (dB) -17.327 -18.065 -18.295 Average Gain (dB) 0.97945 2.00949 0.95654 Test Date 2012/4/27 Trade Name LanReady App.No Antenna_BE Model Name Test Mode Free Space &Talking Position Free Space Communication System Frequency 2400 2450 2500 OTA-02 Note BE Ant. Port Input Pwr. (dBm) 0 0 0 Tot. Rad. Pwr. (dBm) 1.62484 1.99441 0.79932 Peak EIRP (dBm) 8.69191 9.12492 7.91129 Directivity (dBi) 7.06707 7.13052 7.11197 Efficiency (dB) 1.62484 1.99441 0.79932 Gain (dBi) 8.69191 9.12492 7.91129 Front/Back Ratio (dB) 19.1395 18.5755 19.4192 Beamwidth (? 64 61 62 + Beamwidth (? 31 30 29 - Beamwidth (? 33 31 33 Boresight Angle (? 90 88 90 Click to buy NOW! P D F - X C h a n g e w w w . t r a c k e r - s o f t w a r e . c o m Click to buy NOW! P D F - X C h a n g e w w w . t r a c k e r - s o f t w a r e . c o m Maximum Power (dBm) 8.69191 9.12492 7.91129 Minimum Power (dBm) -15.913 -14.853 -13.146 Average Power (dBm) 1.60251 1.97213 0.7775 Max/Min Ratio (dB) 24.6048 23.9783 21.057 Max/Avg Ratio (dB) 7.0894 7.1528 7.13378 Min/Avg Ratio (dB) -17.515 -16.826 -13.923 Average Gain (dB) 1.62484 1.99441 0.79932 Click to buy NOW! P D F - X C h a n g e w w w . t r a c k e r - s o f t w a r e . c o m Click to buy NOW! P D F - X C h a n g e w w w . t r a c k e r - s o f t w a r e . c o m

Specifications are subject to change without notice. Copyright © 2013 Grand-Tek Technology. All rights reserved 1 ANT24-2T2R 2.4GHz Dual Polarization Sector Antenna Electrical Specification Environmental & Mechanical Characteristics *inclusive of mounting kit and adapter Frequency range 2400 MHz - 2500 MHz Gain 10dBi VSWR 2.0 : 1 (max.) Polarization Vertical / Horizontal Horizontal HPBW 67°~70° ± 5° Vertical HPBW 28°~32°±5° Front-to-back ratio H-polar.:25 dB V-polar.:20 dB Isolation 15.0 dB Min. Input impedance 50 Ohm Connector UFL 088-LP Power handling 2 W (cw) Lightning protection DC ground Pig tail length 150cm max. Temperature -40°C to +70°C Humidity 95% @ 55°C Radome color White Radome material PC Weight* 412.2g Dimensions 219.5(L)x126.5(W)x34.6(T)mm Waterproof IP67 Mount kit Pole mount & Wall mount Specifications are subject to change without notice. Copyright © 2013 Grand-Tek Technology. All rights reserved 2 Radiation Pattern Port1 Specifications are subject to change without notice. Copyright © 2013 Grand-Tek Technology. All rights reserved 3 Port2

Compliance Certification Services Inc. FCC ID: SCDOW141000001 Report No.: T130322W11-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 194 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For AP Router Model / Trade Name: Model Brand Name Model Brand Name WCB1105H10DX LanReady AC-GTT-11N-O GTT DAP-3311 D-Link TEW-739APBO Trendnet DT-300N Cerio WLO-12410N Pheenet AOP8012 Airlink101 OW-310N2 Cerio DAP-3310 D-Link CAP-2410D Wiborne WLO-12410NP Pheenet AMS-D24 ALCON CAP-2410P Wiborne WV-110CPE Wavecore TEW-734APB Trendnet AOP8010 Airlink101 AMS-P24 ALCON WCB1110H10X LanReady WV110BR Wavecore WLO-12400N Pheenet AOP8016 Airlink101 OW-300N2 Cerio WCB1110H10DX Lanready CAP-2410E Wiborne WCB1100H10DX LanReady AMS-D24-N ALCON DAP-3312 D-Link WV-100CPE Wavecore AC-GTT-11N-D GTT AOP8000 Airlink101 TEW-738APBO Trendnet WCB1100H10X LanReady Issued to LanReady Technologies Inc. 3F, No.116, Sinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: May 13, 2013 Compliance Certification Services Inc. FCC ID: SCDOW141000001 Report No.: T130322W11-RP1 Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 May 13, 2013 Initial Issue ALL Angel Cheng Compliance Certification Services Inc. FCC ID: SCDOW141000001 Report No.: T130322W11-RP1 Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................... 4 2. EUT DESCRIPTION ........................................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................................... 7 3.1 EUT CONFIGURATION ........................................................................................................................ 7 3.2 EUT EXERCISE .................................................................................................................................... 7 3.3 GENERAL TEST PROCEDURES ............................................................................................................. 7 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................... 8 3.5 DESCRIPTION OF TEST MODES ........................................................................................................... 9 4. INSTRUMENT CALIBRATION ...................................................................................................... 10 4.1 MEASURING INSTRUMENT CALIBRATION .................................................................................... 10 4.2 MEASUREMENT EQUIPMENT USED ....................................................................................... 10 4.3 MEASUREMENT UNCERTAINTY ............................................................................................. 11 5. FACILITIES AND ACCREDITATIONS ........................................................................................ 12 5.1 FACILITIES .................................…
