SEJ-20202020 Tablet

Zonar Systems Inc
2020 Tablet - FCC ID SEJ-2020 - Zonar Systems Inc
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Nov 11, 2012
Application Purpose
Original Equipment
Date of Application
Nov 08, 2012
Equipment Note
2020 Tablet
Frequency Range
2412.00000000 - 2462.00000000
Company
Zonar Systems Inc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Zonar 2020 User’s Guide 1 Zonar 2020 User’s Guide Zonar 2020 User’s Guide 2 Version: 9/20/2012 Zonar 2020 User’s Guide 3 Introduction The Zonar 2020 is an Android-based tablet focused on providing a rugged device with all-in-one technology that drivers can use to perform inspections, navigate routes, view workflows, tasks, send and receive messages, maintain electronic HOS records and receive driving feedback. Also, drivers and their managers can easily access these records through Zonar’s servers in order to improve efficiency and safety across their projects. In addition, the 2020 can scale and grow to develop additional applications that can be applicable to any business or business needs of our customers. This guide’s primary purpose is to serve as a general use for drivers and field technicians for the basic function of the 2020. While we attempt to point out the most common operation questions and issues, common sense, good housekeeping procedures, attention to detail and safety adherence of the user are critical for a successful use and maintenance of the Zonar 2020. For the day-to-day users of the 2020 and other Zonar products, we have included additional materials with the device to aid in the regular use and maintenance of this product while on the job. Digital files on the tablet provide deeper explanations of the tablet’s functions are built into the 2020’s help menu. Quick reference guides are included as well for drivers to quickly learn basic functions. The software applications installed on the 2020 vary from device to device. This guide’s primary purpose is to give drivers a basic overview of the general functions of the 2020 hardware and any applications that are built into every device. Details of the new applications are covered in detail in the specific help documentation for each application. Further information on each application can be found in the help documents for each. A professional team of Zonar support technicians and engineers are available to answer all technical and usage questions. Contact Zonar at 1-877-843b-3847 or by email at [email protected]. Zonar 2020 User’s Guide 4 Table of Contents Introduction ................................................................................................................................................... 3 Zonar 2020 Tablet......................................................................................................................................... 5 Glossary of Abbreviations/Acronyms ............................................................................................................ 7 2020 First-time boot up Guide ...................................................................................................................... 9 2020 Driver ID/PIN setup in GTC................................................................................................................ 10 2020 Driver’s Login Guide........................................................................................................................... 11 Logging in a single Driver........................................................................................................................ 11 Logging in as a Team.............................................................................................................................. 11 Logout ..................................................................................................................................................... 12 Login a Co-Driver after Primary Driver Login.............................................................................................. 13 2020 Home Screen ..................................................................................................................................... 14 2020 Hard Menu ..................................................................................................................................... 15 2020 Self-Check Guide ............................................................................................................................... 17 2020 Sleep Mode ........................................................................................................................................ 19 Change Active Driver .................................................................................................................................. 20 2020 Built-in Applications............................................................................................................................ 21 Using Applications....................................................................................................................................... 23 Updating Applications ................................................................................................................................. 24 2020 Battery/Signal Display Levels ............................................................................................................ 25 Docking Station ........................................................................................................................................... 26 Docking and Undocking .......................................................................................................................... 27 Strap Installation ......................................................................................................................................... 29 2020 Unit Settings....................................................................................................................................... 30 Accessing Help ........................................................................................................................................... 33 Caring for the 2020 .........................................................................................................................…

Text truncated - open the document above for the full version.

External Photos

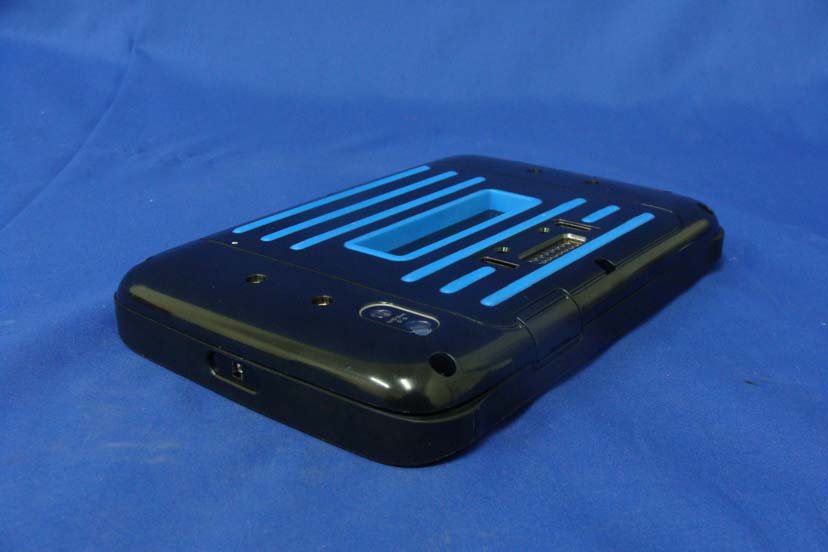

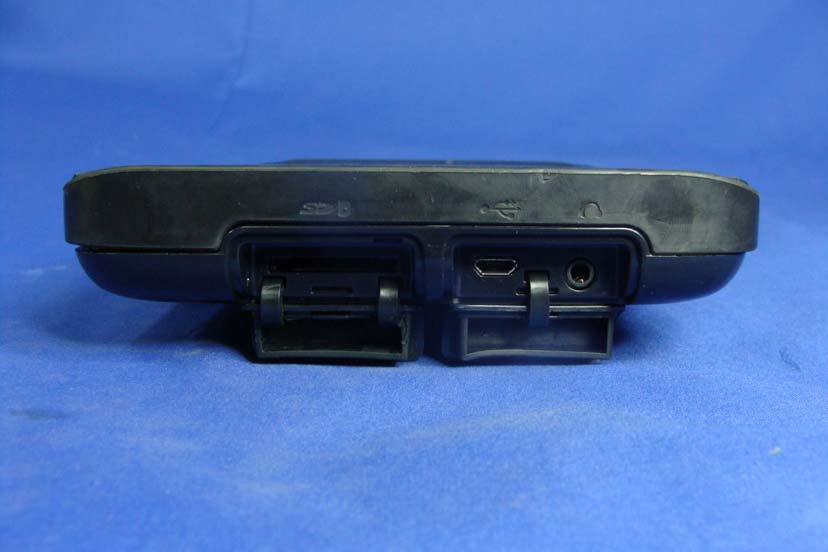

Report No.: 129412R-RFUSP42V01 Page : 1 of 18 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 129412R-RFUSP42V01 Page : 2 of 18 (3) EUT Photo (4) EUT Photo

ID Label/Location Info

Zonar Systems, Inc. FCC ID.: SEJ-2020 18200 Cascade Ave South, Suite 200, Seattle, WA 98188 Tel : (206) 878-2459 FCC ID Label

ID Label/Location Info

Zonar Systems, Inc. FCC ID.: SEJ-2020 18200 Cascade Ave South, Suite 200, Seattle, WA 98188 Tel : (206) 878-2459 The FCC ID and Doc Label will be placed on the equipment as shown in the photograph below.

Internal Photos

Report No.: 129412R-RFUSP42V01 Page : 3 of 18 (5) EUT Photo (6) EUT Photo Report No.: 129412R-RFUSP42V01 Page : 4 of 18 (7) EUT Photo (8) EUT Photo RFID Antenna WLAN Antenna BT Antenna Report No.: 129412R-RFUSP42V01 Page : 5 of 18 (9) EUT Photo (10) EUT Photo Report No.: 129412R-RFUSP42V01 Page : 6 of 18 (11) EUT Photo (12) EUT Photo Report No.: 129412R-RFUSP42V01 Page : 7 of 18 (13) EUT Photo (14) EUT Photo BT WLAN Report No.: 129412R-RFUSP42V01 Page : 8 of 18 (15) EUT Photo (16) EUT Photo Report No.: 129412R-RFUSP42V01 Page : 9 of 18 (17) EUT Photo (18) EUT Photo RFID Report No.: 129412R-RFUSP42V01 Page : 10 of 18 (19) EUT Photo (20) EUT Photo Report No.: 129412R-RFUSP42V01 Page : 11 of 18 (21) EUT Photo (22) EUT Photo Report No.: 129412R-RFUSP42V01 Page : 12 of 18 (23) EUT Photo (24) EUT Photo Report No.: 129412R-RFUSP42V01 Page : 13 of 18 (25) EUT Photo (26) EUT Photo WLAN Antenna Report No.: 129412R-RFUSP42V01 Page : 14 of 18 (27) EUT Photo (28) EUT Photo BT Antenna Report No.: 129412R-RFUSP42V01 Page : 15 of 18 (29) EUT Photo (30) EUT Photo RFID Antenna Report No.: 129412R-RFUSP42V01 Page : 16 of 18 (31) EUT Photo (32) EUT Photo Report No.: 129412R-RFUSP42V01 Page : 17 of 18 (33) EUT Photo (34) EUT Photo Report No.: 129412R-RFUSP42V01 Page : 18 of 18 (35) EUT Photo (36) EUT Photo 110mm WLAN Antenna BT Antenna WLAN Antenna 205mm 136mm 25mm

RF Exposure Info

Report No:129412R-HPUSP09V01 Page: 1 of 22 SAR Test Report Product Name :2020 Tablet Model No. :2020 Applicant : Zonar Systems, Inc. Address : 18200 Cascade Ave South, Suite 200, Seattle, WA 98188 Date of Receipt :2012/09/21 Issued Date :2012/10/31 Report No. :129412R-HPUSP09V01 Report Version :V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Report No:129412R-HPUSP09V01 Page: 2 of 22 Test Report Certification Issued Date: 2012/10/31 Report No.:129412R-HPUSP09V01 Product Name : 2020 Tablet Applicant : Zonar Systems, Inc. Address : 18200 Cascade Ave South, Suite 200, Seattle, WA 98188 Manufacturer : MICRO-STAR INT'L Co., LTD. Model No. : 2020 Trade Name : Zonar FCC ID : SEJ-2020 Applicable Standard: FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Measurement procedures : KDB 447498, KDB 248227, KDB616217 Test Result : Max. SAR Measurement (1g) 0.188 W/kg Application Type : Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Documented By : (Adm. Assistant / April Chen ) Tested By : (Engineer / Wen Lee) Approved By : (Manager / Vincent Lin) Report No:129412R-HPUSP09V01 Page: 3 of 22 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Antenna List ................................................................................................................... 5 1.3 Test Environment ...........................................................................................................6 2. SAR Measurement System .................................................................. 7 2.1 DASY5 System Description .......................................................................................... 7 2.1.1 Applications ................................................................................................................ 8 2.1.2 Area Scans................................................................................................................... 8 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 8 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 8 2.2 DASY5 E-Field Probe ................................................................................................... 9 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 10 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 10 2.5 Robot ............................................................................................................................ 11 2.6 Light Beam Unit........................................................................................................... 11 2.7 Device Holder ..............................................................................................................12 2.8 SAM Twin Phantom .................................................................................................... 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure ........................................................... 15 4.1 SAR System Check ...................................................................................................... 15 4.1.1 Dipoles ...................................................................................................................... 15 4.1.2 System Check Result ................................................................................................ 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits ......................................................................... 17 6. Test Equipment List............................................................................ 18 7. Measurement Uncertainty .................................................................. 19 8. Average Power Measurement............................................................ 20 9. Test Results......................................................................................... 21 9.1 SAR Test Results Summary ......................................................................................... 21 Appendix ............................................................................................................................ 22 Report No:129412R-HPUSP09V01 Page: 4 of 22 Appendix A. SAR System Check Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs & EUT Photographs Appendix D. Probe Calibration Data Appendix E. Dipole Calibration Data Report No:129412R-HPUSP09V01 Page: 5 of 22 1. General Information 1.1 EUT Description Product Name 2020 Tablet Trade Name Zonar Model No. 2020 FCC ID SEJ-2020 TX Frequency 2412MHz~2462MHz Type of Modulation DSSS/OFDM Antenna Type PIFA Device Category Portable RF Exposure Environment Uncontrolled Max. Output Power (Conducted) 802.11b: 17.88 dBm 802.11g: 15.47 dBm 802.11n: 13.39 dBm * Not…

Text truncated - open the document above for the full version.

Test Report

Report No. 129412R-RFUSP42V01 Page : 1 of 96 Test Report Product Name 2020 Tablet Model No 2020 FCC ID. SEJ-2020 Applicant Zonar Systems, Inc. Address 18200 Cascade Ave South, Suite 200, Seattle, WA 98188 Date of Receipt Sep. 21, 2012 Issue Date Oct. 08, 2012 Report No. 129412R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 129412R-RFUSP42V01 Page : 2 of 96 Test Report Certification Issue Date: Oct. 08, 2012 Report No.: 129412R-RFUSP42V01 Product Name 2020 Tablet Applicant Zonar Systems, Inc. Address 18200 Cascade Ave South, Suite 200, Seattle, WA 98188 Manufacturer MICRO-STAR INT'L Co., LTD. Model No. 2020 FCC ID. SEJ-2020 EUT Rated Voltage DC 3.7V EUT Test Voltage AC 120V/60Hz Trade Name Zonar Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Genie Chang ) Tested By : ( Assistant Engineer / Alan Chen ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 129412R-RFUSP42V01 Page : 3 of 96 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software ...............................................................................................................10 1.6. Test Facility .................................................................................................................................11 2. Conducted Emission..................................................................................................................12 2.1. Test Equipment............................................................................................................................12 2.2. Test Setup ....................................................................................................................................12 2.3. Limits ..........................................................................................................................................13 2.4. Test Procedure .............................................................................................................................13 2.5. Uncertainty ..................................................................................................................................13 2.6. Test Result of Conducted Emission.............................................................................................14 3. Peak Power Output ...................................................................................................................18 3.1. Test Equipment............................................................................................................................18 3.2. Test Setup ....................................................................................................................................18 3.3. Limits ..........................................................................................................................................18 3.4. Test Procedure .............................................................................................................................18 3.5. Uncertainty ..................................................................................................................................18 3.6. Test Result of Peak Power Output...............................................................................................19 4. Radiated Emission .....................................................................................................................22 4.1. Test Equipment............................................................................................................................22 4.2. Test Setup ....................................................................................................................................23 4.3. Limits ..........................................................................................................................................24 4.4. Test Procedure .............................................................................................................................25 4.5. Uncertainty ..................................................................................................................................25 4.6. Test Result of Radiated Emission................................................................................................26 5. RF antenna conducted test........................................................................................................39 5.1. Test Equipment............................................................................................................................39 5.2. Test Setup ..................................................…

Text truncated - open the document above for the full version.

Test Report

Report No. 129412R-RFUSP42V01 Page : 66 of 96 Product : 2020 Tablet Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2412 31.639 70.35 101.988 Peak Horizontal 2412 31.639 59.48 91.118 Average Vertical 2412 30.95 67.43 98.379 Peak Vertical 2412 30.95 56.7 87.649 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) Δ (dB) Band Edge Field Strength (dBuV/m) Limit (dBuV/m) Detector Horizontal 2389.2 101.988 38.44 63.548 74.000 Peak Horizontal 2390 91.118 46.76 44.358 54.000 Average Vertical 2389.2 98.379 38.44 59.939 74.000 Peak Vertical 2390 87.649 46.76 40.889 54.000 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average) Δ = Conducted Band Edge Delta (Peak or Average) Report No. 129412R-RFUSP42V01 Page : 67 of 96 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 129412R-RFUSP42V01 Page : 68 of 96 Product : 2020 Tablet Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2462 32.019 71 103.019 Peak Horizontal 2462 32.019 60.15 92.169 Average Vertical 2462 31.29 66.44 97.73 Peak Vertical 2462 31.29 55.61 86.9 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) Δ (dB) Band Edge Field Strength (dBuV/m) Limit (dBuV/m) Detector Horizontal 2483.5 103.019 36.61 66.409 74.000 Peak Horizontal 2483.5 92.169 45.16 47.009 54.000 Average Vertical 2483.5 97.73 36.61 61.12 74.000 Peak Vertical 2483.5 86.9 45.16 41.74 54.000 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average) Δ = Conducted Band Edge Delta (Peak or Average) Report No. 129412R-RFUSP42V01 Page : 69 of 96 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 129412R-RFUSP42V01 Page : 70 of 96 Product : 2020 Tablet Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2412 31.639 69.62 101.258 Peak Horizontal 2412 31.639 58.11 89.748 Average Vertical 2412 30.95 65.35 96.299 Peak Vertical 2412 30.95 54.04 84.989 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) Δ (dB) Band Edge Field Strength (dBuV/m) Limit (dBuV/m) Detector Horizontal 2390 101.258 40.07 61.188 74.000 Peak Horizontal 2390 89.748 46.83 42.918 54.000 Average Vertical 2390 96.299 40.07 56.229 74.000 Peak Vertical 2390 84.989 46.83 38.159 54.000 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average) Δ = Conducted Band Edge Delta (Peak or Average) Report No. 129412R-RFUSP42V01 Page : 71 of 96 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 129412R-RFUSP42V01 Page : 72 of 96 Product : 2020 Tablet Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2462 32.019 68.64 100.659 Peak Horizontal 2462 32.019 57.24 89.259 Average Vertical 2462 31.29 64.08 95.37 Peak Vertical 2462 31.29 52.96 84.25 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) Δ (dB) Band Edge Field Strength (dBuV/m) Limit (dBuV/m) Detector Horizontal 2484.2 100.659 39.3 61.359 74.000 Peak Horizontal 2483.5 89.259 46.82 42.439 54.000 Average Vertical 2484.2 95.37 39.3 56.07 74.000 Peak Vertical 2483.5 84.25 46.82 37.43 54.000 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average) Δ = Conducted Band Edge Delta (Peak or Average) Report No. 129412R-RFUSP42V01 Page : 73 of 96 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 129412R-RFUSP42V01 Page : 74 of 96 7. Occupied Bandwidth 7.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2012 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2012 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2012 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 7.2. Test Setup 7.3. Limits The minimum bandwidth shall be at least 500 kHz. 7.4. Test Procedure The EUT was s…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No:129412R-HPUSP09V01 Page: 1 of 13 Appendix C. Test Setup Photographs & EUT Photographs Test Setup Photographs EUT Top EUT Back Touch Touch Report No:129412R-HPUSP09V01 Page: 2 of 13 Depth of the liquid in the phantom-Zoom In Note: The positions used in the measurements were according to IEEE 1528-2003.

Test Setup Photos

Report No.: 129412R-RFUSP42V01 Page : 1 of 5 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 129412R-RFUSP42V01 Page : 2 of 5 Front View of Radiated Test Back View of Radiated Test Report No.: 129412R-RFUSP42V01 Page : 3 of 5 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn) Report No.: 129412R-RFUSP42V01 Page : 4 of 5 Front View of Conducted Test – Charge Mode Back View of Conducted Test – Charge Mode Report No.: 129412R-RFUSP42V01 Page : 5 of 5 Front View of Radiated Test – Charge Mode Back View of Radiated Test – Charge Mode

Contact Information

Applicant

David Pascoe(Design Engineer)
[email protected]2068782459Fax: 2068782459

Technical Contact

QuieTek CorporationVincent Lin
[email protected]886-2-8601-3788

No.5-22, Ruishukeng, Linkou Dist., · Taiwan

Non-Technical Contact

QuieTek CorporationSabina Chen
[email protected]

Test Firm

DEKRA TESTING AND CERTIFICATION CO., LTD. LinKouMirenda Liao
[email protected]+886-2-2602-7968Fax: +886-2-2602-3286

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz260.00 mW
Confidentiality
Long Term
Grant Notes
Power output listed is conducted. This is a portable device. The SAR data in this filing is applicable to demonstrate compliance for body-worn operating conditions and is limited to the specific configuration tested for this filling. End-users must be informed of the body worn requirements to satisfy RF exposure compliance. The highest reported SAR values is Body-worn:0.19 W/kg. This device has a 20 MHz bandwidth mode.
