Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
REV: 09/15/11 Z-Con ™ Hardware Installation Tips For Professional Installers Zonar’s equipment will provide years of reliable service if properly installed and maintained. Zonar equipment is typically installed in heavy vehicle applications and is often subject to extreme temperatures, dust, dirt, vibration, and shock. Proper installation is the critical first step to equipment longevity and optimal performance. This guide is meant to be a general guideline for the professional installer and technician. While we attempt to point out the most common installation questions and issues; common sense, good housekeeping procedures, attention to detail, safety adherence, and technical competence of the professional installer is critical for a successful installation. Please refer to your specific vehicle manufacturer guidelines for the installation of electrical components and wiring. A professional team of Zonar support technicians and engineers are available to answer your installation questions. Contact Zonar at 1-877-843-3847 or by email at [email protected]. Thank you, Andre J Horochiwsky Technical Training Manager – Zonar Systems As Zonar is continuously improving the Product, Zonar may make changes to the Product at any time which may not be reflected in this document. WOKFLOW 2 Z-Con • V2JE ™ /TRUCK SIDE BOARD Introduction................................................................................................2 System Overview........................................................................................4 V2JE/Truck Board Hardware......................................................................5 Basic Workflow...........................................................................................6 General Guidelines.....................................................................................6 V2JE Mounting Plate..................................................................................7 Wiring Guidelines........................................................................................8 V2JE Pin Configuration...............................................................................8 Cables........................................................................................................9 Antenna Installation..................................................................................11 Non-Typical System Installation................................................................12 Truck Install Application & Tool..................................................................13 GPS System Check..................................................................................14 System Checklist......................................................................................15 System Specifications..............................................................................16 Installation Example..................................................................................17 System Installation..................................................................................18 Troubleshooting...................................................................................19-20 Truck Windshield Configurations.........................................................21-22 Non-Typical System Installation................................................................23 Warranty & Notices - FCC Compliance.....................................................24 Notes.......................................................................................................25 INTRODUCTION 3 © 2011 Zonar Systems. All Rights Reserved. Products and services protected by one or more patents: REV: 09/15/11 SYSTEM OVERVIEW 4 Z-Con detects the truck via ultrasonic sensors and activates the radio in the fuel canopy and infrared transmitter. The truck’s VIN is validated indicating the truck is authorized to begin fueling. After fueling has completed, the truck leaves the pump area and the secure connection is broken - ensuring that only the authorized truck is fueled. 5 Basic Workflow 1) Unpack all equipment and verify shipment (see page 7). 2)Layout system (see page 7) 3)Install and inter-connect system. A) V2JE device (see page 7). B) Electrical/JBus data link (see pages 8-10 and page 16). C) Antenna(s) (see page 12). D) Truck board windshield mount and truck board (see page 11) 4)Operational checkout V2JE device (see page 14). 5) Provision Truck Board (see page 13). BASIC WORKFLOW Layout 1) Cellular/GSM antennas must be located a minimum of 8” from any person. 2)Mount all equipment in the interior of the vehicle. External mounted GPS antenna is the only component installed externally. 3)Do not install Zonar equipment below windows and doors which open to the vehicles exterior to prevent water damage. 4)Lay all components out prior to installation to check for proper cable length and interference issues. 5)Avoid mounting equipment in difficult to access areas. Avoid mounting in areas which do not allow for direct diagnostic LED viewing. 6)Avoid mounting equipment in dirty, dusty, or damp areas (e.g. near floors and entrance ways). 7)Avoid mounting Zonar Equipment, antennas and wiring near other radio equipment (e.g.,two-way radios), PA equipment and high energy electrical sources (e.g., cables, relays, amplifiers, etc.) Electrical 1)Consult the vehicles manufacturer for specific installation guidelines. (HIGHLY RECOMMENDED for Multiplex electrical systems) 2)All power leads (V2JE-Power Cable) must be connected to the vehicles protected circuitry (e.g. fuse panel, circuit breaker panel, protected circuits). Never electrically connect Zonar equipment to unprotected circuits. 3)It is also required that all power leads (V2JE-Power Cable) be protected with a 3 to 5 amp fuse and inline fuse holder (included) for optimal system protection. Cable Management 1)Strain relieve and support all cable installations. 2)Avoid sharp bends a…
Text truncated - open the document above for the full version.
Northwest EMC TCB Compliance Opinion Rev. 7/1/10 ZONA0033 Information about the Applicant Grantee (Company Name) Zonar Systems, LLC FCC Contact Person Kelly Niemi Address 18200 Cascade Ave. S Suite, 200 City, State, Zip Seattle, WA 98188 Job Number ZONA0033 Model 80510 FCC ID SEJ-80510 Agent Approval Type Original Equipment Class DXX Part 15, Low Power Communication Device Transmitter Rule Part 15.249 (15C) Overview The Zonar Systems Model Z-Con, model number 80510, is a 2.4 GHz low power radio designed for installation in trucks. The radio operates under FCC rule part 15.249. Confidentiality requested for allowed files. Request is properly addressed and referenced. No short term confidentiality requested. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Dave Tolman, TCB Committee 1/24/2012

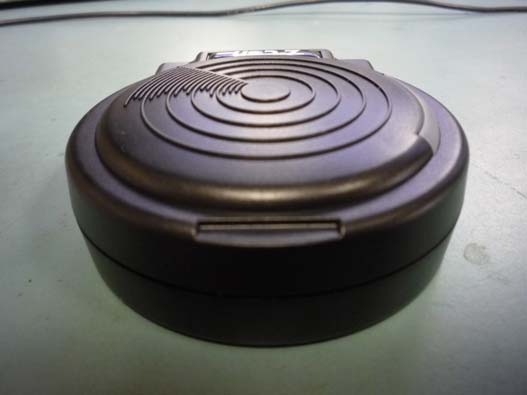

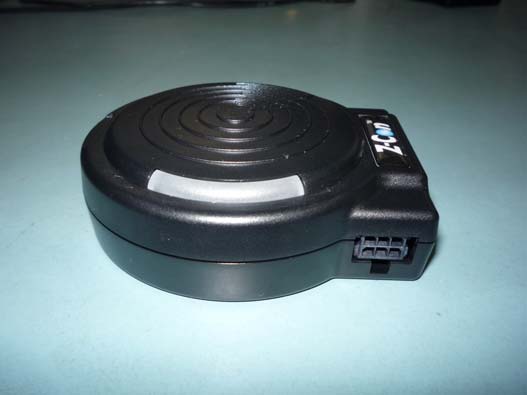

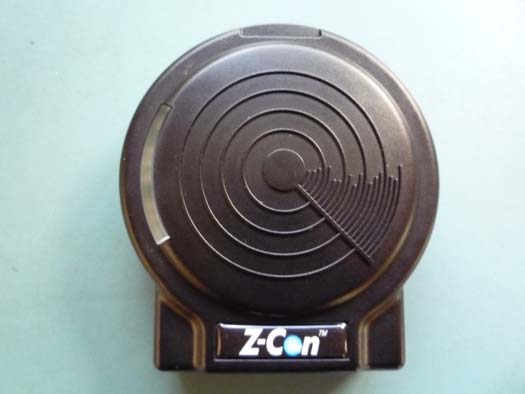

Z‐Con 80510 Truck Radio External Photos This document is provided to show external photos of the Z‐Con 80510 Truck Radio in accordance with FCC requirements per 2.1033(b)(7). Figure 1 80510 Truck Radio Front Figure 2 80510 Truck Radio Back Figure 3 80510 Truck Radio Right Figure 4 80510 Truck Radio Left Figure 5 80510 Truck Radio Bottom Figure 6 80510 Truck Radio Top
Z‐Con 80510 Truck Radio FCC/IC ID Label The FCC ID label (FCC ID SEJ‐80510) and IC ID label (IC: 5266A‐80510) for the 80510 is applied with a label on the back side of the Truck Radio enclosure (Figure 1). Figure 1 Label located on the enclosure back
Z‐Con 80510 Truck Radio Internal Photos This document is provided to show internal photos of the Z‐Con 80510 Truck Radio (FCC ID SEJ‐80510) in accordance with FCC requirements per 2.1033(b)(7). Figure 1, item 1 identifies the PCB Trace Antenna and Figure 1, item 2 identifies the radio section of the PCB. Figure 2 shows the back of the PCB. Figure 1 ‐ 80510 with trace antenna Figure 2 ‐ 80510 back side
Z‐Con 80510 Truck Radio Antenna Information This document provides antenna compliance information for the 80510. a) As per FCC requirement 15.203; the 80510 antenna is an integrated trace antenna etched into the PCB shown in Figure 1. b) The 80510 PCB trace antenna as a gain of 0dBi. c) The 80510 will be secured internally to an enclosure, making it inaccessible for modification or replacement without compromising the device. Figure 1 80510 uses an integrated trace antenna
Zonar Systems, LLC 80510 Truck Radio Report No. ZONA0032 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2011 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Last Date of Test: November 2, 2011 Zonar Systems, LLC Model: 80510 Truck Radio Emissions Test Description Specification Test Method Pass/Fail Spurious Radiated Emissions FCC 15.249:2011 ANSI C63.10:2009 Pass Field Strength of Fundamental FCC 15.249:2011 ANSI C63.10:2009 Pass AC Powerline Conducted Emissions FCC 15.207:2011 ANSI C63.10:2009 Pass Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada (Site filing #2834D-2). Approved By: Rod Munro, Operations Manager NVLAP Lab Code: 200630-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 06/29/09 Barometric Pressure The recorded barometric pressure has been normalized to sea level. Revision Number Description Date Page Number 00 None Accreditations and Authorizations FCC Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP Northwest EMC, Inc. is accredited under the National Voluntary Laboratory Accreditation Program (NVLAP) for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. NVLAP is administered by the National Institute of Standards and Technology (NIST), an agency of the U.S. Commerce Department. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 2004/108/EC, and ANSI C63.4. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. Industry Canada Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS-Gen, Issue 2 and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. (Site Filing Numbers - Hillsboro: 2834D-1, 2834D-2, Sultan: 2834C-1, Irvine: 2834B-1, 2834B-2, Brooklyn Park: 2834E-1) CAB Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. Australia/New Zealand The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for product conformity. The report should be endorsed with the respective logo of the accreditation body (NVLAP). Accreditations and Authorizations VCCI Accepted as an Associate Member to the VCCI, Acceptance No. 564. Conducted and radiated measurement facilities have been registered in accordance with Regulations for Voluntary Control Measures, Article 8. (Registration Numbers. - Hillsboro: C-1071, R-1025, G-84, C-2687, T- 1658, and R-2318, Irvine: R-1943, G-85, C-2766, and T-1659, Sultan: R-871, G-83, C-3265, and T-1511, Brooklyn Park: R-3125, G-86, G-141, C-3464, and T-1634). BSMI Northwest EMC has been designated by NIST and validated by C-Taipei (BSMI) as a CAB to conduct tests as described in the APEC Mutual Recognition Agreement (US0017). GOST Northwest EMC, Inc. has been assessed and accredited by the Russian Certification bodies Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC, to perform EMC and Hygienic testing for Information Technology Products. As a result of their laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification KCC Northwest EMC, Inc is a CAB designated by MRA partners and recognized by Korea. (Assigned Lab Numbers: Hillsboro: US0017, Irvine: US0158, Sultan: US0157, Brooklyn Park: US0175) VIETNAM Vietnam MIC has approved Northwest EMC as an accredited test lab. Per Decision N…
Text truncated - open the document above for the full version.
NORTHWEST EMC SPURIOUS RADIATED EMISSIONS PSA 2011.05.11 NORTHWEST EMC SPURIOUS RADIATED EMISSIONS PSA 2011.05.11 NORTHWEST EMC SPURIOUS RADIATED EMISSIONS PSA 2011.05.11 NORTHWEST EMC Field Strength of Fundamental PSA 2011.05.11 NORTHWEST EMC Field Strength of Fundamental PSA 2011.05.11 NORTHWEST EMC Field Strength of Fundamental PSA 2011.05.11 NORTHWEST EMC CE (1).JPG CE.JPG AC POWERLINE CONDUCTED EMISSIONS PSA-ESCI 2011.07.26
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.43 GHz - 2.48 GHz | - |
