SG70121HC-C53CDMA 1x Mobile Phone

Qingdao Haier Telecom Co. Ltd. HC-C53_User Guide 1 Copyright©2011 Haier Technologies Co.., Ltd All Rights Reserved Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission as Haier Technologies Co.., Ltd. Statement The contents of this manual maybe different with the cell phone please according the cell phone. Haier Technologies Company reserves the right to revise this document or withdraw it at any time without prior notice. Safety Precautions Please read these simple guidelines. Not following them may be dangerous or illegal. Do not switch the phone on when Mobile Phone use is prohibited or when it may cause interference or danger. Do not place your phone and its accessories in containers with strong electromagnetic field. Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety. Hospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Do not use the phone at a refueling point. Do not use near fuel or chemicals. Follow any restrictions. Wireless devices can cause interference in aircraft. Keep the phone and all its parts, including accessories, out of the reach of small children. Use only approved batteries and chargers. Disconnect the charger from the power source when it is not in use. Do not leave the battery connected to a charger for more than a week, since overcharging may shorten its life. Only qualified personnel should service the phone or install the phone in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device. Qingdao Haier Telecom Co. Ltd. HC-C53_User Guide 2 Phone appearance Keys and Functions Press... To... ·Enter the all calls list in idle mode. ·Dial or answer a call. ·Press and hold to switch your phone on/off. ·End a call during a phone call. ·Reject an incoming call. ·Return to standby. Select the option displayed on the lower left corner of the screen. Select the option displayed on the lower right corner of the screen. ·Quick into Call history, Settings, Mp3 player and Messages menu in idle mode. Qingdao Haier Telecom Co. Ltd. HC-C53_User Guide 3 ·Control the cursor directions. ·Increase or decrease the volume during a call. - ·Enter numbers and characters. ·Press and hold the 1-9 keys to dial speed-dial phone numbers. ·Enter the * symbol. ·Press and hold to lock the keypad in idle mode. ·Press twice to enter ‘+’ in idle mode. ·Press three times to enter ‘P’ in idle mode. ·Press four times to enter ‘T’ in idle mode. ·Enter the # symbol. ·Press and hold to enable or disable the vibrator . ·Activate symbol mode. Screen Icons Icon Description Icon Description Network signal strength Battery power level New message received Ringer mode Alarm clock on Silence mode Roaming service mode Vibrator enable Battery Removing the Battery 1. Turn off your phone. 2. Gently lift the battry cover outwards. 3. Gently lift the battery outwards. 4. Take out the battery. Qingdao Haier Telecom Co. Ltd. HC-C53_User Guide 4 Installing the Battery 1. Place the battery in the battery compartment. 2. Close the battery cover. Charging the Battery 1. Plug the charger transformer into a standard outlet. 2. Insert the charger output into charging port of the right of the phone 3. The rolling of the electric quantity bar indicates that the phone begins to charge. 4. After charging is complete, switch off the electric supply and pull out the charger’s jack. Using the Function Menu 1. In idle mode, press key or key to display the Menu interface. 2. Press key to scroll to a menu item. 3. Press key to display the menu. 4. Display the submenu in either of the ways: · Press key to scroll to a submenu item and press key to display the submenu. · Press the number key corresponding to the number of a submenu to display it. 5. Press key to return to the previous menu or quit the function menu. Press key to return to the idle screen. Qingdao Haier Telecom Co. Ltd. HC-C53_User Guide 5 Making a call 1. Dialing Select a desired entry from the names list or directly type in the phone number in idle mode, then press key to dial. 2. Making an international call  Enter “+” and the country code, area code (without prefix zero) and phone number.  Press key to dial. 3. Ending a call Press key to end a call. Receiving a call 1. Press key or any key (need setting) to answer the call. Or press [Silence] key once to close incoming ringer, then press [Answer] key again to receive the incoming call. 2. Press [Ignore] key or key to reject the incoming call. Phone Lock The phone lock code is used to protect your phone from unauthorized use. It can be set automatically to lock your phone each time it is switched on or when in idle mode. In this condition, you can only dial emergency call. Emergency call number is: 110/112. When phone is locked, to unlock, user must enter the preset security code (The default code is 0000). Keypad lock The keypad lock can prevent you from accidental calls. If the keypad is locked, it unlocks when you receive a call. After the call, the lock automatically gets locked again. When the keypad is locked, only call the emergency number. Press “unlock” and then press * key to unlock. Qingdao Haier Telecom Co. Ltd. HC-C53_User Guide 6 Text input method 1. Your phone provides following text input methods:  English input method: input English characters.  Numeric input method: input numeric characters. Input method Icon Letter case Multi-tap Abc Word/sentence case text, only available at the beginning of a word/sentence. ABC Upper case abc Lower case Numeric 123 - 2. Change the input method  Short press key to enter symbol list;  Press and key to switch between Multi-tap and Numeric mode. Qingdao Haier Telecom Co. Ltd. HC-C53_User Guide 7 RF Exposure Inform…

Text truncated - open the document above for the full version.

Date: 11 March, 2011 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Haier Telecom (Qingdao) Co., Ltd. , the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the Haier Telecom (Qingdao) Co., Ltd. solely in matters relating to the application for an FCC equipment authorization for FCC ID # SG70121HC-C53 including the signing of documents in connection with this Application. Necessary acts carried out by Haier Telecom (Qingdao) Co., Ltd. on our behalf of the Haier Telecom (Qingdao) Co., Ltd. in connection with the Application shall have the same effect as acts of the Haier Telecom (Qingdao) Co., Ltd.. The Haier Telecom (Qingdao) Co., Ltd. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Sincerely Yours, James Shi Type Approval Manager Haier Telecom (Qingdao) Co., Ltd.

Date: 11 March 2011 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Haier Telecom (Qingdao) Co., Ltd. FCC ID: SG70121HC-C53 FCC Part 24E&15B Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Haier Telecom (Qingdao) Co., Ltd. requests that the following documents regarding this submission for FCC ID: SG70121HC-C53 be kept confidential: Exhibit Type File Name Block Diagram HC-C53_Block Diagram.pdf Schematics HC-C53_Schematics.pdf Operational Description HC-C53_Operational description.pdf Part list HC-C53_BOM.pdf Tune-Up-Procedure HC-C53_Tune up procedure.pdf Those documents contain detailed system and equipment description and related information about the product which Haier Telecom (Qingdao) Co., Ltd. considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Haier Telecom (Qingdao) Co., Ltd. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. James Shi Type Approval Manager Haier Telecom (Qingdao) Co., Ltd.

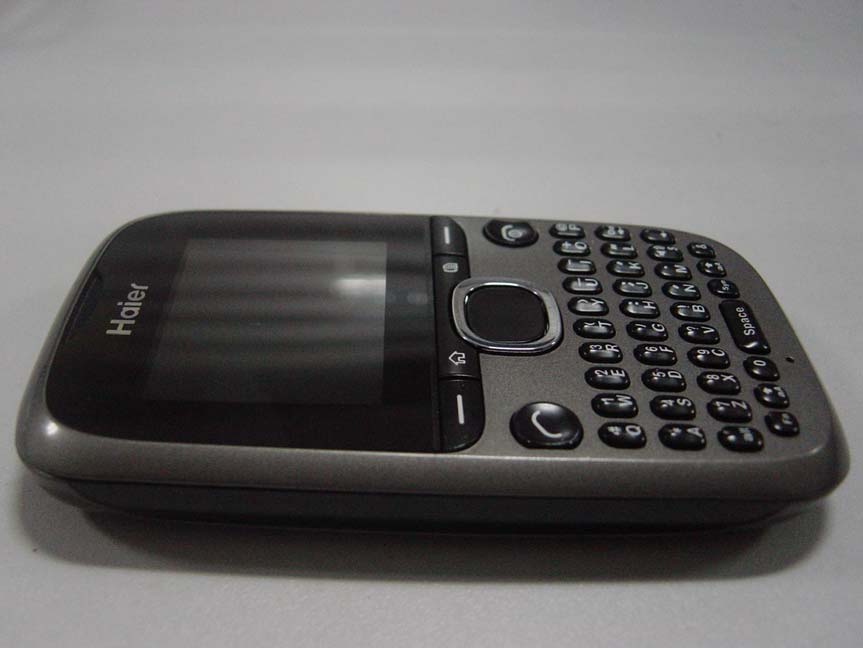

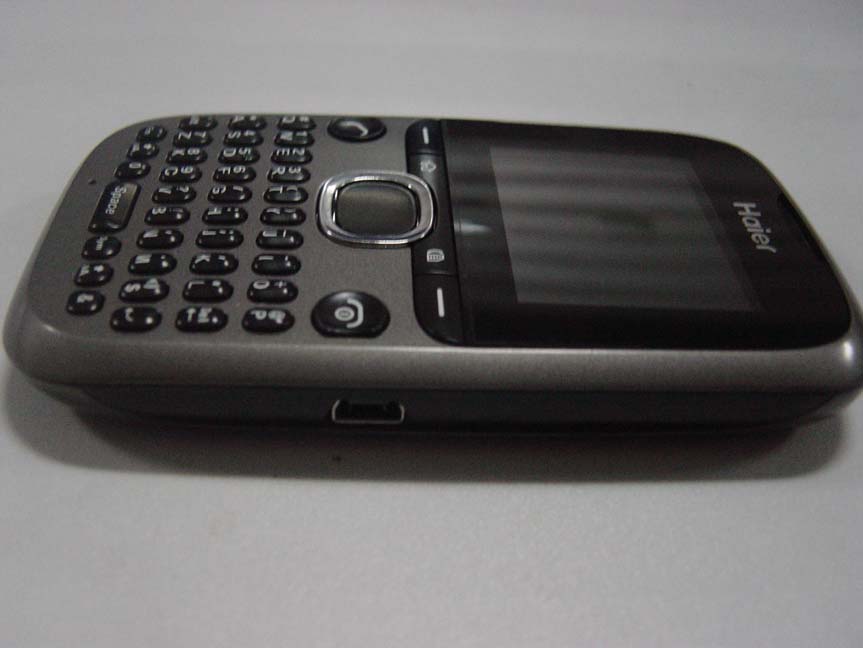

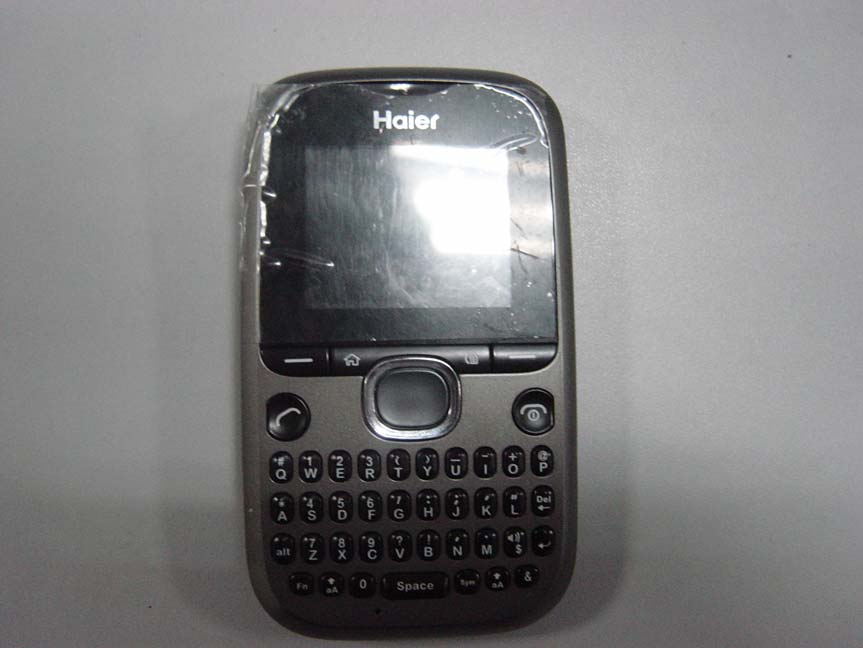

External Photos 1. Front View of EUT 2. Back View of EUT 3. Side View of EUT

Label Label Location

Internal Photos

Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 1/26 Issue: A Date: 2010/10/06 1 COMOSAR E-FIELD PROBE CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 2/26 Issue: A Date: 2010/10/06 2 COMOSAR SEPT ISOTROPIC E-FIELD PROBE CALIBRATION REPORT DATE: 12/02/2009 REFERENCE: SN 37/08 EP80 OBJECT: COMOSAR SEPT ISOTROPIC E-FIELD PROBE MANUFACTURER: SATIMO SERIAL NUMBER: SN 37/08 EP80 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 24/09/20 10 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 3/26 Issue: A Date: 2010/10/06 3 PRODUCT DESCRIPTION Frequency Range 100 MHz - 30 GHz Probe length 330 mm Length of one dipole 4.5 mm Maximum external diameter 8 mm Probe extremity diameter 6.5 mm Distance between dipoles/probe extremity < 2.7 mm Resistance of the three dipole (at the connector) Dipole 1: R1=1.4382 MΩ Dipole 2: R2=1.4894 MΩ Dipole 3: R3=1.4683 MΩ Connector (HIROSE series SR30) 6 wire male (Hirose SR30series) The probe could be checked by measuring the resistance of the three dipoles. CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION Calibration bench CALISAR Multimeter Keithley 2000 Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 4/26 Issue: A Date: 2010/10/06 4 MEASUREMENT PROCEDURE Probe calibration is realized, in compliance with CENELEC EN 50361 and IEEE 1528 std, with CALISAR, Antennessa proprietary calibration system. The calibration is performed with the EN 50361 annexe technique using reference guide at the five frequencies. Where : P fw = Forward Power P bw = Backward Power a and b = Waveguide dimensions
= Skin depth Keithley configuration: Rate = Medium; Filter =ON; RDGS=10; FILTER TYPE =MOVING AVERAGE; RANGE AUTO After each calibration, a SAR measurement is performed on a validation dipole and compared with a NPL calibrated probe, to verify it. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 5/26 Issue: A Date: 2010/10/06 5 PROBE UNCERTAINTIES Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 6/26 Issue: A Date: 2010/10/06 6 1. Calibration at 450.00 MHz A. Calibration parameters. Label GSM450 Epsilon 43.33 Sigma 0.84 S/m Temperature 21°C Antenna gain 2.03 dB Antenna S11 -10.50 dB Low limit detection (CW) 0.72 V/m (0.47 mW/kg) Calibration curves ei=f(V) (i=1,2,3) allow to obtain E-field value using the formula: 2 3 2 2 2 1 **EEEE= The following tables represent the calibration curves linearization by curve segment in CW signal. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 7/26 Issue: A Date: 2010/10/06 7 Calibration coefficients for the three dipoles in CW: v1 e1 v2 e2 v3 e3 0.584004 419.557857 -0.696059 435.622023 0.541191 412.830715 0.467833 339.207465 -0.556278 351.381991 0.469757 336.297240 0.376994 276.348283 -0.452232 288.647980 0.378826 274.224190 0.302778 224.954643 -0.359005 232.397390 0.305842 224.365698 0.241038 182.154071 -0.286978 188.889931 0.246562 183.825274 0.192549 148.484090 -0.230386 154.650994 0.195712 148.993075 0.154033 121.674762 -0.185412 127.378480 0.157543 122.783107 0.123397 100.276479 -0.147311 104.193802 0.125866 100.956090 0.099878 83.770361 -0.118637 86.660489 0.101471 84.063863 0.081165 70.553219 -0.095250 72.263937 0.082289 70.694342 0.065166 59.152028 -0.076788 60.795323 0.066427 59.538957 0.051916 49.592416 -0.061280 51.041514 0.053353 50.232492 0.041968 42.297602 -0.048746 43.022565 0.042906 42.675214 0.033724 36.126757 -0.039149 36.748110 0.034686 36.605243 0.021855 26.962568 -0.024798 27.024723 0.022272 27.149463 0.018405 23.975145 -0.020856 24.085809 0.018755 24.141334 0.015467 21.515985 -0.017534 21.515985 0.015767 21.615299 0.013018 19.309065 -0.014750 19.398191 0.013276 19.487731 0.010938 17.408496 -0.012392 17.529166 0.011157 17.569575 0.009022 15.586953 -0.010228 15.658899 0.009215 15.676938 0.007353 13.956010 -0.008328 13.988181 0.007484 14.020428 0.005989 12.466979 -0.006801 12.495719 0.006111 12.567858 0.004890 11.214019 -0.005573 11.265779 0.005003 11.330818 0.004019 10.133541 -0.004570 10.121882 0.004099 10.168601 0.003279 9.094132 -0.003739 9.157170 0.003352 9.125596 0.002660 8.095827 -0.003041 8.293946 0.002769 8.265350 0.002126 7.324219 -0.002453 7.366500 0.002188 7.358024 0.001685 6.565400 -0.001947 6.580536 0.001724 6.542765 0.001300 5.784440 -0.001511 5.718225 0.001334 5.757862 0.001123 5.245191 -0.001307 5.269400 0.001174 5.275471 0.000891 4.701768 -0.001057 4.723470 0.000924 4.728912 0.000704 4.209798 -0.000850 4.226839 0.000736 4.243862 0.000574 3.790376 -0.000689 3.791428 0.000603 3.830551 0.000457 3.396200 -0.000570 3.434303 0.000483 3.421852 0.000365 3.050686 -0.000463 3.078014 0.000389 3.079630 0.000292 2.745766 -0.000369 2.726866 0.000311 2.759206 0.000236 2.486639 -0.000312 2.489933 0.000246 2.460514 0.000…

Text truncated - open the document above for the full version.

Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 1/6 Issue: B Date: 2010/10/05 1 DIPOLE 1800 MHZ CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 2/6 Issue: B Date: 2010/10/05 2 DIPOLE 1800 MHz CALIBRATION REPORT DATE: 19/02/2009 REFERENCE: SN 36/08 DIPF101 OBJECT: COMOSAR IEEE REFERENCE DIPOLE MANUFACTURER: SATIMO SERIAL NUMBER: SN 36/08 DIPF101 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 2 3/09/2010 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 3/6 Issue: B Date: 2010/10/05 3 PRODUCT DESCRIPTION Dimension: L=72 mm/ h=41.7 mm / d=3.6 mm CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION DATE OF CALIBRATION Vector Network Analyzer HP8753D (SN: 5410A08882) 10-05-2010 MEASUREMENT PROCEDURE We placed the dipole under the flat part of SAM phantom fill with 1800 MHz head liquid. Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 4/6 Issue: B Date: 2010/10/05 4 Calibration was performed according to IEEE Std P1528-2003 and OET bulletin 65 Supplement C (Ed. 01-01) VSWR at 1800 MHz: -25.09 dB -25,09 -35 -30 -25 -20 -15 -10 -5 0 1,71,81,9 Frequency (GHz) S11 (dB) Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 5/6 Issue: B Date: 2010/10/05 5 SAR MEASUREMENT EQUIPEMENT Voltmeter Keithley (2000, SN:1000572) Date of calibration: 01-07-2010 Signal generator Rohde&Schwarz (SML_03, SN:101868) Date of calibration: 15-11-2009 Power amplifier Nuclétudes (ALB216, SN:10800) Date of calibration: 24-10-2009 Power meter Rohde&Schwarz (NRVD, SN:101066) Date of calibration: 04-07-2010 Probe SATIMO Bretagne (SN:EP37) CF (35.35,34.93,37.42) Date of calibration: 19-06-2010 SAR MEASUREMENT CONDITION Software OpenSAR V3 Phantom SATIMO Bretagne (SN: SN_20_07_SAM42) Liquid SATIMO Bretagne (Last Calibration: 19 09 08) Head Liquid Values: eps’ : 39,80 sigma : 1,45 Distance between the center of the dipole and the liquid (set with a spacer) 10 mm Area scan resolution dx=8mm/dy=8mm Zoom scan resolution dx=8mm/dy=8m/dz=5mm Frequency 1800 MHz Input power 30 dBm Expanded uncertainty (K=1) 8.09% SAR MEASUREMENT RESULT 10g 1g SAR measured Liquid : HL Input power : 1W 20,05 W/Kg + 1,24 % 39,32 W/Kg + 3,20 % Ref: CR-280-5-08-SATB-B COMOSAR Dipole 1800 MHz Calibration Report Page: 6/6 Issue: B Date: 2010/10/05 6 SAR MEASUREMENT PLOTS

Report No.: SZ11030003S01 Page 2 of 88 Contents 1. GENERAL INFORMATION....................................................................................................4 1.1. Notes.........................................................................................................................................4 1.2. Organization item....................................................................................................................4 1.3. Conclusion................................................................................................................................4 2. TESTING LABORATORY.......................................................................................................5 2.1. Identification of the Responsible Testing Laboratory..........................................................5 2.2. Identification of the Responsible Testing Location..............................................................5 2.3. Accreditation Certificate........................................................................................................5 2.4. List of Test Equipments..........................................................................................................5 3. TECHNICAL INFORMATION ...............................................................................................6 3.1. Identification of Applicant......................................................................................................6 3.2. Identification of Manufacturer..............................................................................................6 3.3. Equipment Under Test (EUT)................................................................................................6 3.3.1. Photographs of the EUT..................................................................................................7 3.3.2. Identification of all used EUTs........................................................................................7 3.4. Applied Reference Documents...............................................................................................7 3.5. Device Category and SAR Limits..........................................................................................7 3.6. Test Environment/Conditions................................................................................................8 4. SPECIFIC ABSORPTION RATE (SAR) ................................................................................9 4.1 Introduction.................................................................................................................................9 4.2 SAR Definition.............................................................................................................................9 5. SAR MEASUREMENT SETUP .............................................................................................10 5.1. The Measurement System....................................................................................................10 5.2. Probe.......................................................................................................................................11 5.3. Phantom.................................................................................................................................13 5.4. Device Holder........................................................................................................................13 6. TISSUE SIMULATING LIQUIDS .........................................................................................14 7. UNCERTAINTY ASSESSMENT ...........................................................................................16 7.1. UNCERTAINTY EVALUATION FOR HANDSET SAR TEST......................................16 Report No.: SZ11030003S01 Page 3 of 88 7.2. UNCERTAINTY FOR SYSTEM PERFORMANCE CHECK........................................17 8. SAR MEASUREMENT EVALUATION ...............................................................................19 8.1. System Setup..........................................................................................................................19 8.2. Validation Results..................................................................................................................19 9. OPERATIONAL CONDITIONS DURING TEST ................................................................20 9.1. Informations on the testing..................................................................................................20 9.2. Body-worn Configurations...................................................................................................21 9.3. Measurement procedure.......................................................................................................21 9.4. Description of interpolation/extrapolation scheme............................................................22 10. MEASUREMENT PROCEDURES........................................................................................23 10.1. Procedures Used To Establish Test Signal...........................................................................23 10.2. SAR Measurement Conditions for CDMA.........................................................................23 10.3. Output Power Verification...................................................................................................23 10.4. SAR Measurement................................................................................................................23 11. TEST RESULTS LIST .............................................................................................................25 ANNEX A ACCREDITATION CERTIFICATE................................................26 ANNEX B PHOTOGRAPHS OF THE EUT......................................................27 ANNEX C GRAPH TEST RESULTS .................................................................31 Change Hist…

Text truncated - open the document above for the full version.

Report No.: SZ11030003E01 Page 2 of 27 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 3 1.1 EUT Description ......................................................................................................................... 3 1.2 Test Standards and Results ........................................................................................................ 4 1.3 Facilities and Accreditations ...................................................................................................... 5 2. 47 CFR PART 2, PART 22H, PART 24E REQUIREMENTS ................................................ 6 2.1 General Information ................................................................................................................... 6 2.2 Frequencies .................................................................................................................................. 9 2.3 Conducted RF Output Power .................................................................................................. 11 2.4 Occupied Bandwidth ................................................................................................................ 13 2.5 Conducted Spurious Emission ................................................................................................. 16 2.6 Band Edge ................................................................................................................................. 18 2.7 Transmitter Radiated Power (EIRP/ERP) ............................................................................. 20 2.8 Radiated Spurious Emission .................................................................................................... 22 2.9 Frequency Stability ................................................................................................................... 26 Change History Issue Date Reason for change 1.0 March 10, 2011 First edition Report No.: SZ11030003E01 Page 3 of 27 1. GENERAL INFORMATION 1.1 EUT Description EUT Type ............................. : CDMA 1x mobile phone Serial No. .............................. : (n.a, marked #1 by test site) Hardware Version ................. : P0V0 Software Version .................. : Applicant .............................. : Manufacturer ........................ : C5310-HSP-S001.0-MOVILNET Qingdao Haier Telecom Co.,ltd No.1 Haier Road Hi-tech Zone Qingdao P.R.CHINA Qingdao Haier Telecom Co.,ltd No.1 Haier Road Hi-tech Zone Qingdao P.R.CHINA Frequency Range .................. : Tx: 1851.25 MHz -1908.75 MHz; Rx: 1931.25 MHz-1988.75 MHz Modulation Type................... : CDMA 1X Emission Designators ........... : 1M25F9W Power Supply ....................... : Battery Model Name: 423450A Brand name: BAK Capacitance: 800mAh Rated voltage: 3.7V Manufacturer: ShenZhen BAK Battery CO.,LTD Manufacturer Address: BAK Industrial Park,Kuichong Street,Longgang District,Shenzhen Ancillary Equipments ........... : AC Adapter (Charger for Battery) Model Name: H21115 Brand Name: 利顺达 Serial No.: (n.a. marked #1 by test site) Rated Input: 100-240V, 50- 60Hz, 150mA Rated Output: 5.0V, 550mA Manufacturer: Ningbo Lishunda Electronics Co.,Ltd Manufacturer Address: No.13 Lishan Guangming Rd.Yuyao City, Ningbo, Zhejiang, China Note 1: The transmitter (Tx) frequency arrangement of the CDMA 1900MHz band used by the EUT can be represented with the formula F(n)=1851.2+0.05*(n-25), 25<=n<=1175; the lowest, middle and highest channel numbers (ARFCHs) used and tested in this report are separately 25 (1851.2MHz), 600 (1880.0MHz) and 1175 (1908.7MHz). Note 2: The GPRS was tested under 2 uplink time slots mode. Note 3: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Report No.: SZ11030003E01 Page 4 of 27 1.2 Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 2, Part 24 for the EUT FCC ID Certification: No. Identity Document Title 1 47 CFR Part 2 (10-1-09 Edition) Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 3 47 CFR Part 24 (10-1-09 Edition) Personal Communications Services Test detailed items/section required by FCC rules and results are as below: No. Section Description Result 1 2.1046 Conducted RF Output Power PASS 2 2.1049 20dB Occupied Bandwidth PASS 3 2.1055 22.355 24.235 Frequency Stability PASS 4 2.1051 2.1057 22.917 24.238 Conducted Out of Band Emissions PASS 5 2.1051 2.1057 22.917 24.238 Band Edge PASS 6 22.913 24.232 Transmitter Radiated Power (EIPR/ERP) PASS 7 2.1053 2.1057 22.917 24.238 Radiated Out of Band Emissions PASS NOTE：Measurement method according to TIA/EIA-603. Report No.: SZ11030003E01 Page 5 of 27 1.3 Facilities and Accreditations 1.3.1 Facilities Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory is a testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L3572. All measurement facilities used to collect the measurement data are located at 3/F, Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055 P. R. China. The test site is constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22; the FCC registration number is 741109. 1.3.1 Test Equipments Description Manufacturer Model Serial No. Cal. Date Cal. Due System Simulator Agilent E5515C GB43130131 2010.09 1year Spectrum Analyzer Agilent E7405A US44210471 2010.09 1year Power Splitter Weinschel 1506A NW521 (n.a.) (n.a.) Attenuator 1 Resnet 20dB (n.a.) (n.a.) (n.a.) Attenuator 2 Resnet 3dB (n.a.) (n.a.) (n.a.) Full-Anechoic Chamber Albatross 9m…

Text truncated - open the document above for the full version.
